Hotel Lock RFID card Management System/Hotel Room Locks w/Mechnical key+Card/CN
Hotel Lock RFID card Management System/Hotel Room Locks w/Mechnical key+Card/CN
Couldn't load pickup availability
Note:
1, Please indicate the use of places, such as hotel , household , office .
2, Such as the family、office, software is not required.
Specifications
|
Technical Data |
|
|
Model |
|
|
Card Type |
125Khz T5577 card |
|
Mechanical Key |
2 pcs |
|
Material |
Stainless Steel |
|

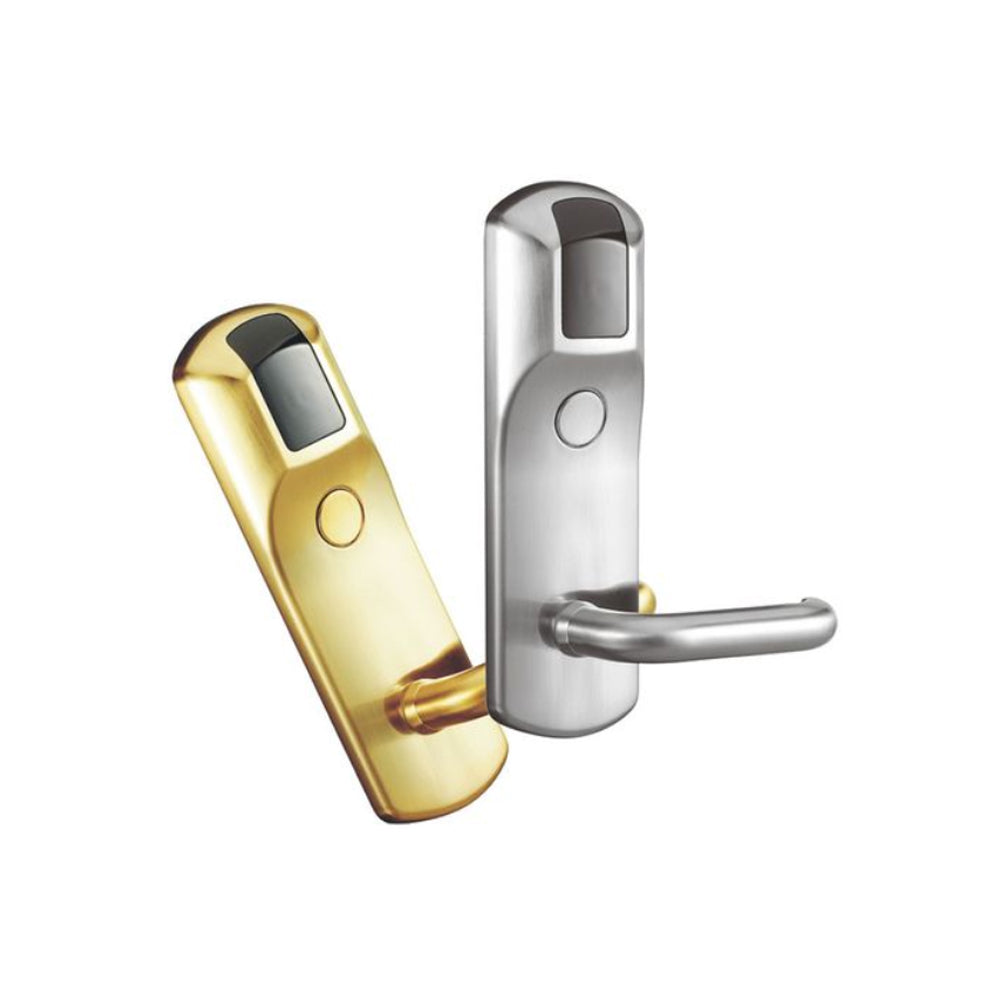

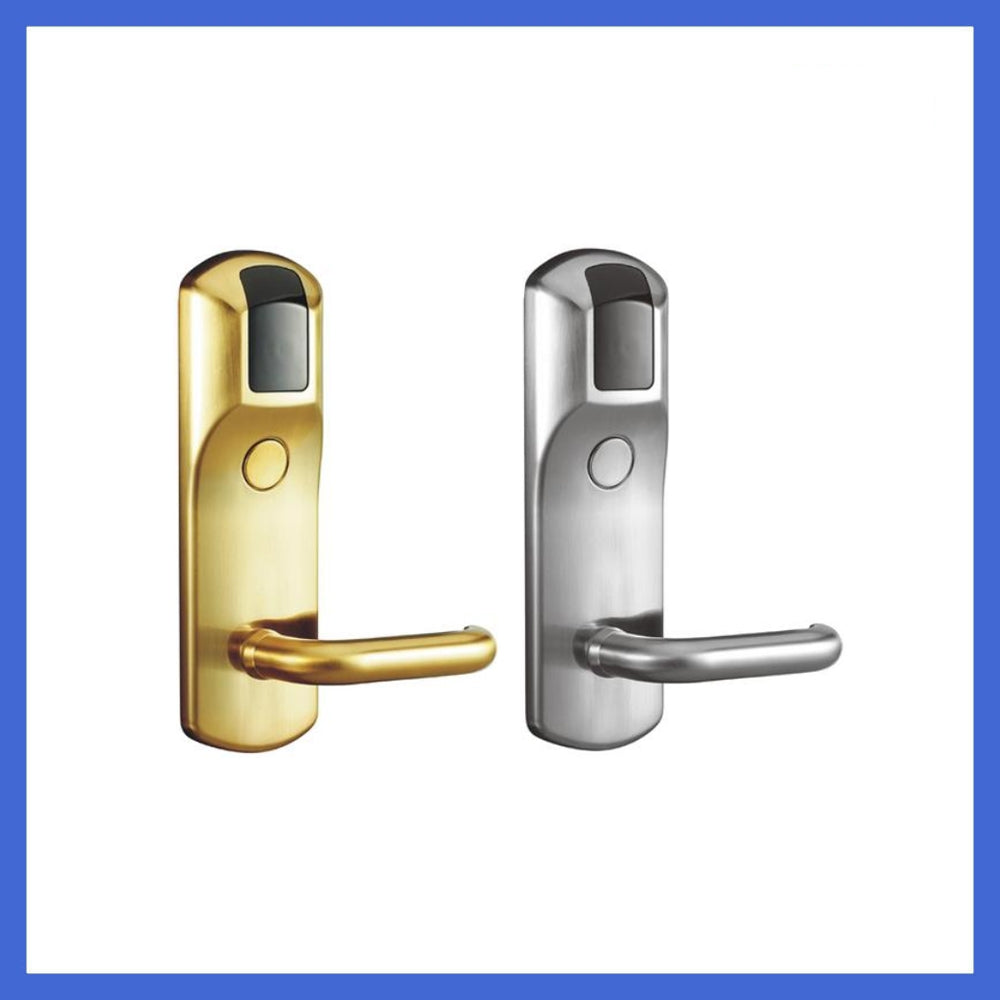

Finish |
Brushed Steel, PVD,BPVD |
|
Color |
Silver/Gold |
|
Latch Style |
Mortise |
|
Backset |
56/70mm |
|
Deadbolt |
20mm |
|
Batteries |
4 AA batteries required.(not included) |
|
Battery duration |
ca 1 year |
|
Static Current |
≤20μA |
|
Dynamic Current |
≤200mA |
|
Working temperature |
-25°C—65°C |
|
Applicable door range |
30*55mm |
|
Exterior trim size(L*W*D) |
24.5*7.7*3.1cm |
|
Interior trim size(L*W*D) |
24.5*7.7*2.2cm |
|
RFID Card to open the door: The unique RFID card reader design provides great convenience for the elder and young family members as well as office staff who have cards already.(It also support the RFID keyfob) |
|
|
Emergency Key to open the door If you do not want to use the RFID Card/Remotel control(or keyfob), you can still use the backup mechanical keys included in the package to open the lock. |
|
| Deadbolt + Anti-card Latch: It has two Latchs: One is Deadbolt Latch, the other is Anti-card Latch, with these two Latchs, you will make your Home/Office more security. |
|
|
Handle: The default version is right handle, we also supply the Left handle version door lock. If you need the Left handle door lock, please contact us |
|
|
Back Bolt Knob: There is a Bolt knob on the back of the lock, when you at indoor, you can twist this bolt knob to make the deadbolt latch out to improve your security. |
|
|
4x AA Batteries: It works with 4x AA batteries, you do not need to worry about power off, because if the voltage is less than 4.8v, there will be battery alarm and you still can use it more than 100times before you change the battery. |
Note:
1.Power supply: DC6V, 4PCS Standard AA Alkaline Battery
2.Battery Life: about 1 year, depending on the usage condition.
3.Low voltage warning: Voltage less than 4.8v, there will be 3 sounds and the red LED light. The lock still can be unlockedmore than 50 times ,before the battery are replaced.
4.Reliability of card operation: No accident for 1000 times of continuous card operation
5.Emergency unlocking: The door can be unlocked by Master card OR Mechanical key even though the deadbolt works under mergency situation.
6.Installation request: To be installed on the door, with the door thickness between 35mm and 55 mm.
7.If the door surface is decorated , the distance between the decoration edge to the door edge must be over 95mm.
Software：
1. The hotel key card lock management software can be run by Win2000,WinXP,Win7&8 computer operating system.if you need Software ,please message us.
|
Different grade card |
|
|
A. Security card |
To open all the room locks whether it is in deadbolt working or not when using it. (For senior securers in emergency). |
|
B. Manager card (Centrally-control card) |
To open all the room locks except in deadbolt working.(For senior management personnel of hotels). |
|
C. Waiter/Waitress card |
To come into the room and provide services for clients in the specified time |
|
D. Storey manager card |
To open all room locks of the designated storey except in deadbolt working. |
|
E. Cleaning card |
To come into the room to do cleaning in the specified time (For cleaners) |
|
F. Maintenance card |
To come into the room to do maintenance in the specified time (For maintenance workers) |
|
G. Client card |
To record the information of clients and open the designated room lock within its validity. (For clients). |
|
H. Record card |
To check the lock-opening records (For management personnel). |
|
I. Restriction card |
When any valid card is missing, a restriction card can be made through system management software and card-making machineto cause the previous valid card to become void. |

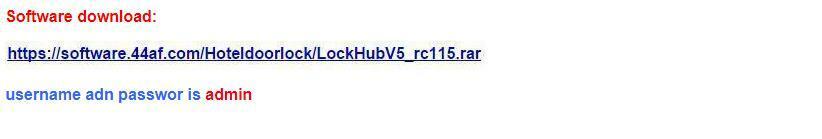

2. Softwares
Schematic diagram of hotel lock management system
More Pictures：
|
|
|

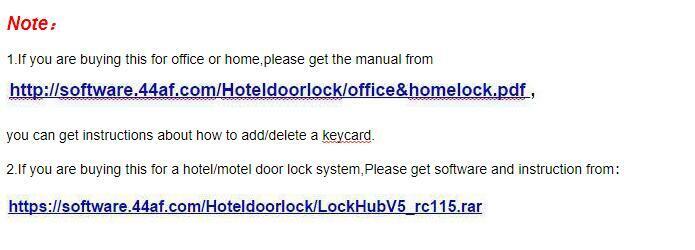

Note：
1.If you are buying this for office or home,please get the manual from
you can get instructions about how to add/delete a keycard.
2.If you are buying this for a hotel/motel door lock system,Please get software and instruction from：
You also need items below:
A.power saver,
You may need to amount such a power saver near the door.When a RFID card plugged in,power on.
B.cards,
 |
|
Hotel Motel RFID Doorlock Management System Keycards Keytags |
Usually you need 2 times of rooms cards.For example ,if your hotel has 50 rooms,you need at least 100 cards.We are pleased
to print your hotel LOGO for free if more than 200 cards orded.
C.card programmer.
 |
You need at least 1 programmer and it will be connected to your lobby computer.You have to tell cards which room is valid and
expiration by this device.Also,I DO suggest you should have at least 2 pcs of programmer in case of defect.
