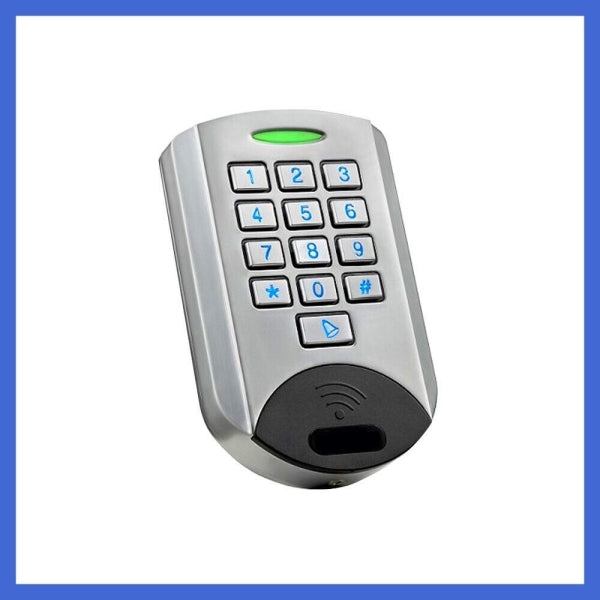

Stainless Steel Metal Case Waterproof EM ID Keypad Standalone Access Control
Stainless Steel Metal Case Waterproof EM ID Keypad Standalone Access Control
No se pudo cargar la disponibilidad de retiro
Main Features:
Metal structure, anti-vandal, more secure , waterproof design .
Protective properties: IP65 fully-potted.
Backlight keypad.
Up to 2,000 users, Support 3 Modes Access: Card, PIN, Card+PIN
Card Type: 125KHz EM
Can be used as a standalone keypad, Pin length 4 Digits
Operating Voltage: 12-24V DC.
One programmable Relay output,NO,NC,COM
Adjustable Door output time, Alarm time,Door open tiem.
Very low power consumption ( ≤60mA)
Built in light dependent resistor(LDR) fro anti tamper
Built in buzzer
Block enrollent, can enroll maxiumu 2000 consecutive card within 2 minutes.
Specifications:
Operating Voltage:12-24V DC
User Capacity:2000
Keypad: 12 keys+1 bell key
Card Type: 125KHz EM
Card Read Rang: 3-6cm
Active Current:<80Ma
Ldle Current: <40Ma
Lock Output Load: 2A
Alarm Output Load: 1A
Operating Temperature: -20-60 Centigrade
Operating Humidity: 0-95%
Environment: Conform to IP65
Adjustable Door Relay Time: 1-99s
Alarm Time:3 minutes
Wiegant 26 Interface: Input & Output
Wiring Connections: Eletric Lock,Exit Button,Alarm, Bell,Door sensor
Dimension: L120mm×W76mm×H22m

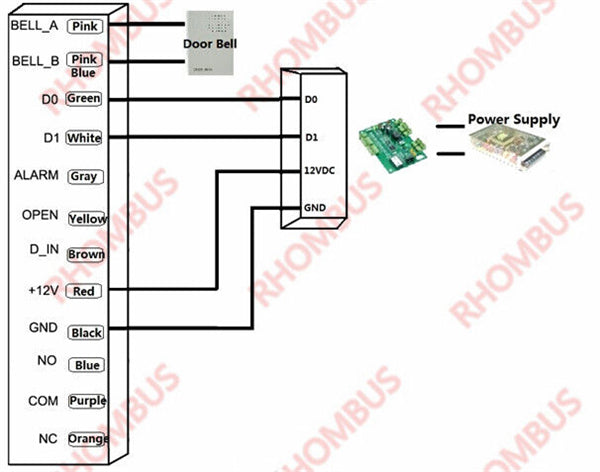

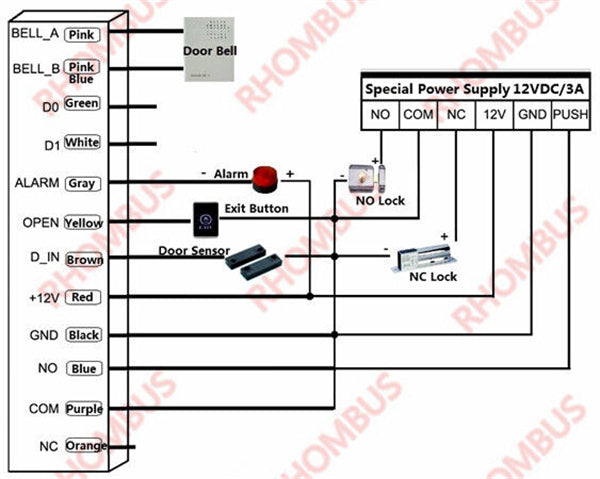

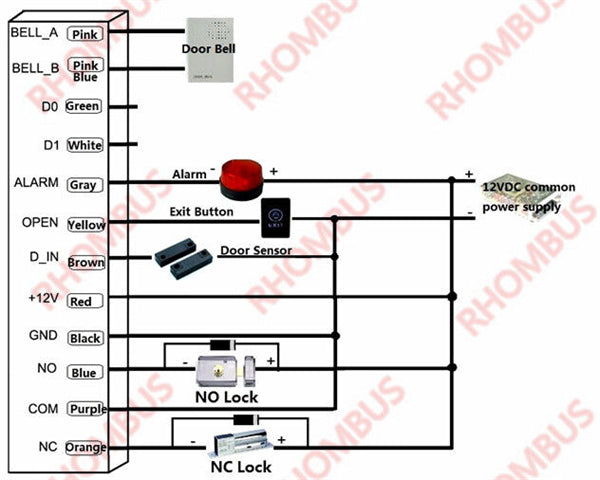

PIN description
Pink:BELL_A
Light green:BELL_B
Green:Data0
White:Data1
Grey:ALARM
Yellow:OPEN
Brown:D_IN
Red:+12V
Black:GND
Blue:NO
Violet:COM
Orange:NC
