Rhombus Access Control System

125Khz EM4100/4102 RFID Wiegand26/34 Dual Led Contactless Access Control READER

125Khz EM4100/4102 RFID Wiegand26/34 Dual Led Contactless Access Control READER

Regular price $20.95 USD
Regular price Sale price $20.95 USD
Sale Sold out
Model
125Khz EM4100/4102 RFID Wiegand26/34 Dual Led Contactless Access Control READER - Picture 6 of 14

                         125Khz EM4100/4102 RFID Wiegand26/34 Dual Led Contactless Access Control READER - Picture 7 of 14

Detailed Description:


Specification

Decode time

<0.2s

Communication

Weigand 26/34

Card type

EM card , EM compatible card ,EM4100\4102

Induction Distance

2-5cm

Power supply

DC12V

DATA transfer range

 Max 100m

Currency

<40MA

Working Temperature

-20~60°C

Working Humidity

Less than 90%

Physical

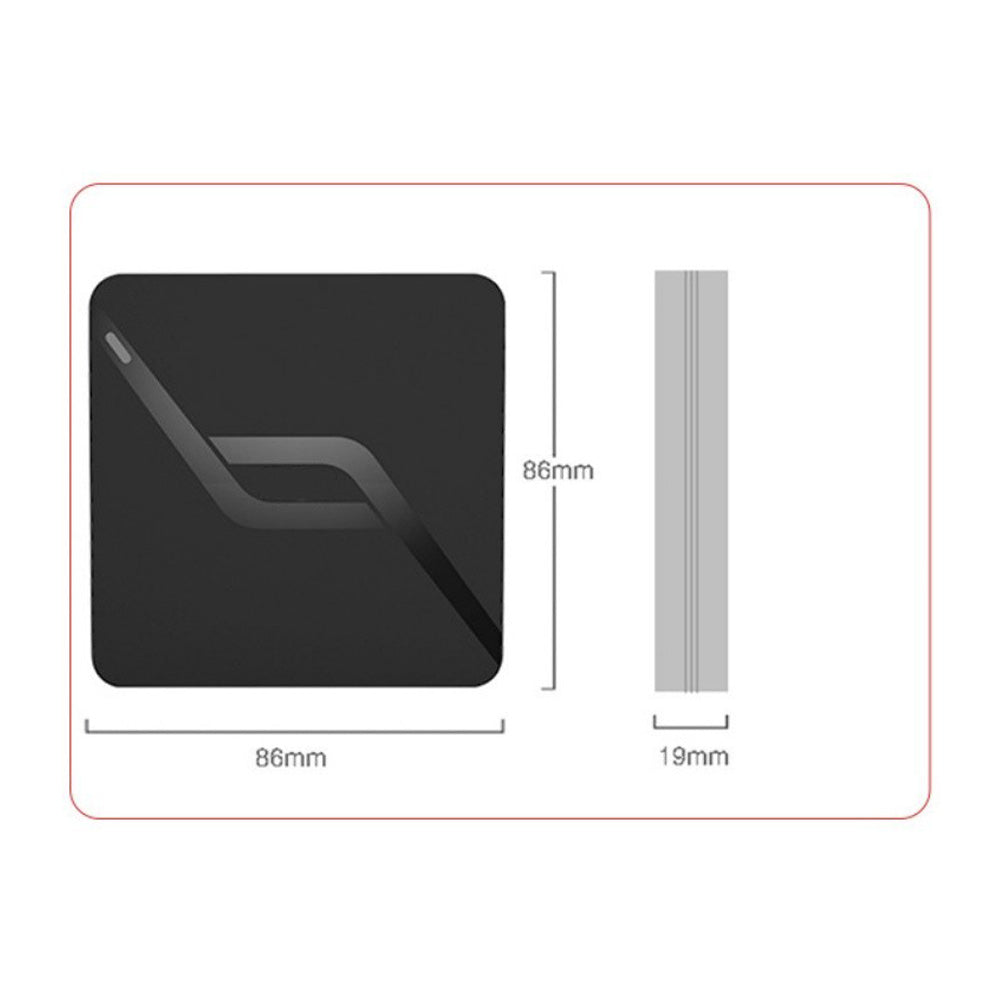

Dimension (LxWxH mm)

86*86*19

Package

 plastic casing &epoxy saturated

Colour

Black

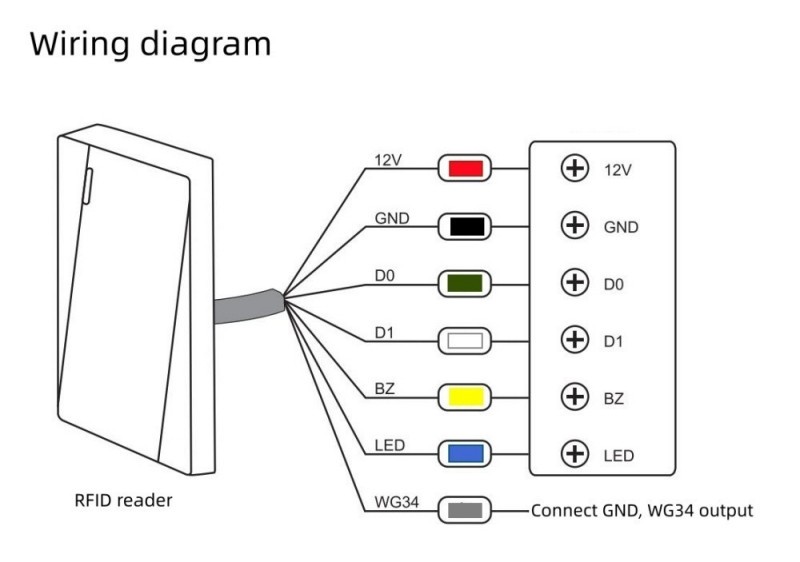

 PIN description

Pin

Color

Description

1

RED

DC12V

2

BLACK

GND

3

GREEN

WG data0(RS485+)

4

WHITE

WG data1(RS485-)

5

BLUE

LED

6

YELLOW

BUZZER

7

Grey

Select,

No Contact means  WG26,Connect to GND means WG34 outpu


125Khz EM4100/4102 RFID Wiegand26/34 Dual Led Contactless Access Control READER - Picture 8 of 14

Package:
  • 1x rfid reader
