Rhombus Access Control System

13.56MHz Wiegand26/34 Dual LED 9V 12V RF Contactless Mifare1 MF IC Card Reader

Name: 13.56MHz Wiegand26/34 Dual LED 9V 12V RF Contactless Mifare1 MF IC Card Reader
Brand: Rhombus Access Control System
Price: 23.95 USD
Availability: InStock

$23.95 USD

Sale Sold out

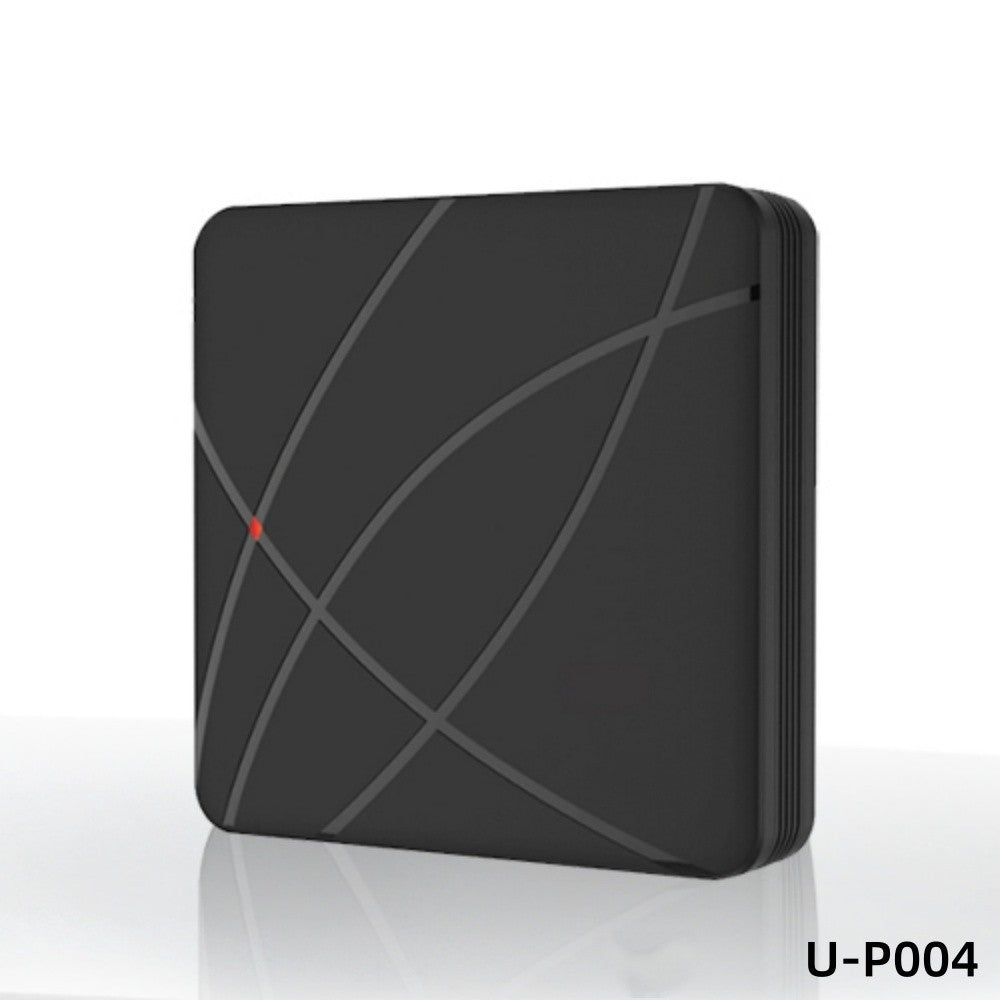

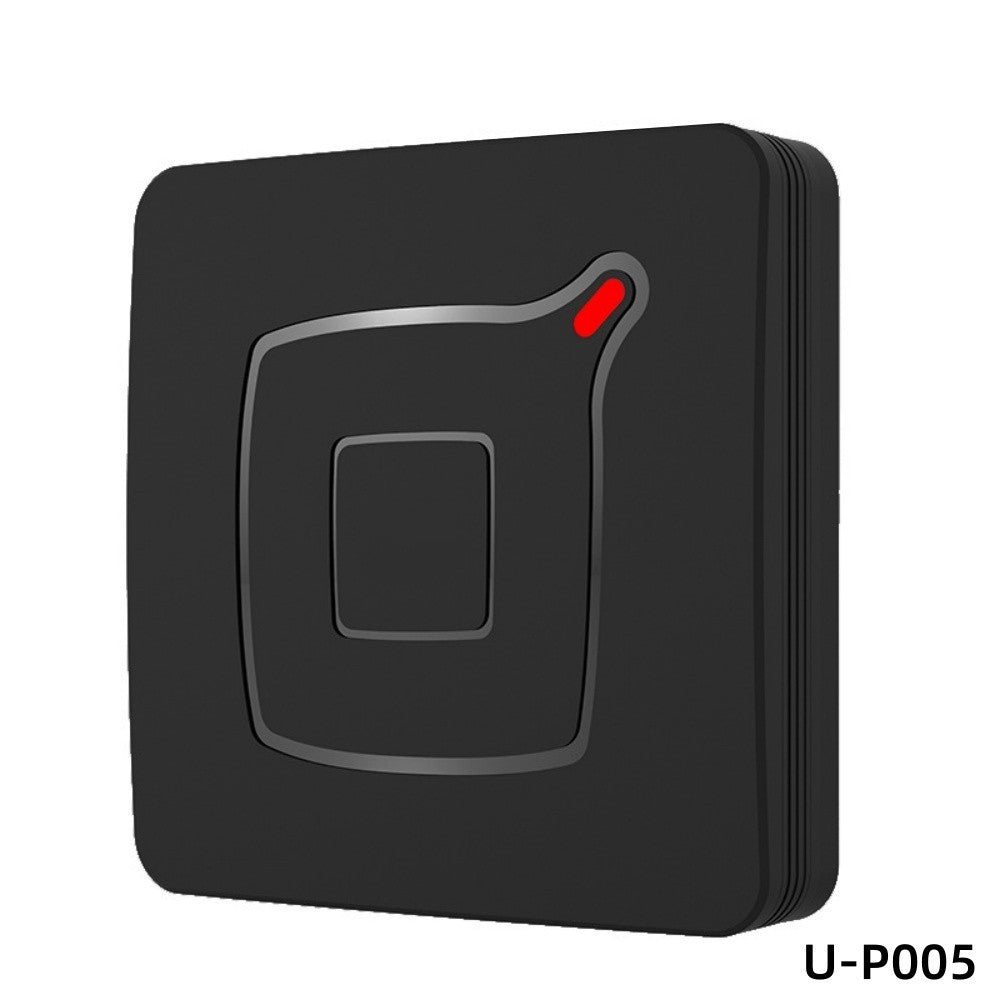

Model U-P004-IC U-P005-IC U-P006-IC

Product variants

Quantity

13.56MHz Wiegand26/34 Dual LED 9V 12V RF Contactless Mifare1 MF IC Card Reader - Picture 6 of 14

13.56MHz Wiegand26/34 Dual LED 9V 12V RF Contactless Mifare1 MF IC Card Reader - Picture 7 of 14

Detailed Description:

Specification
Decode time	<0.2s
Communication	Weigand 26/34
Card type	MF1 S50/S70 13.56Mhz IC card
Induction Distance	2-5cm
Power supply	DC12V
DATA transfer range	Max 100m
Currency	<40MA
Working Temperature	-20~60°C
Working Humidity	Less than 90%
Physical

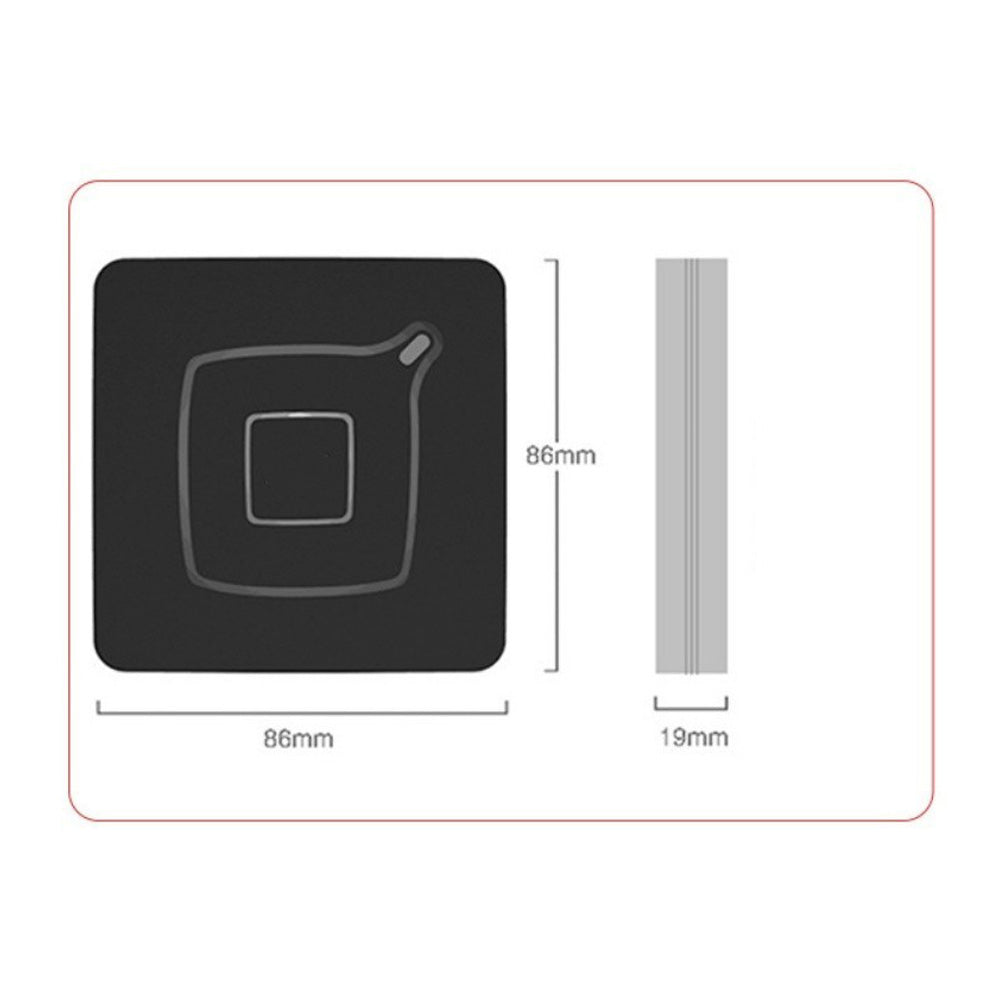

Dimension (LxWxH mm)	868619
Package	plastic casing &epoxy saturated
Colour	Black

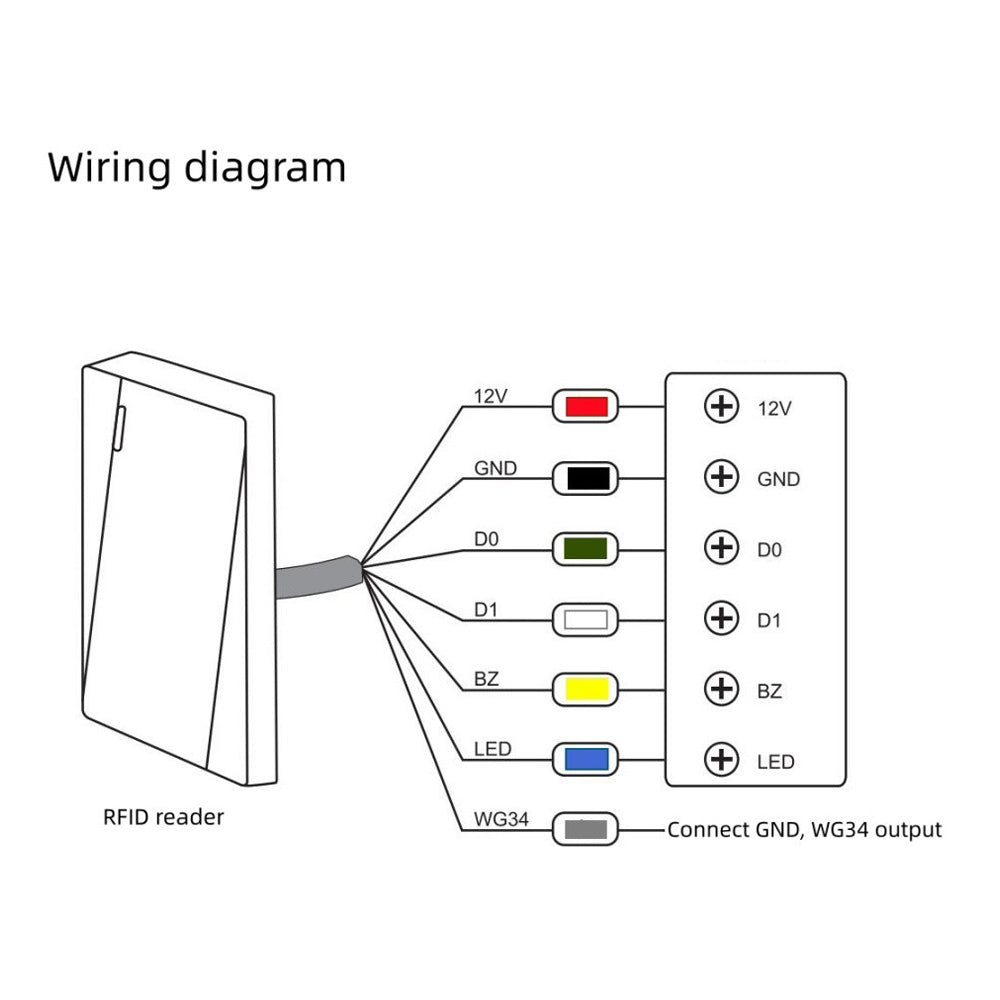

PIN description

Pin	Color	Description
1	RED	DC12V
2	BLACK	GND
3	GREEN	WG data0(RS485+)
4	WHITE	WG data1(RS485-)
5	BLUE	LED
6	YELLOW	BUZZER
7	Grey	Select, No Contact means WG26,Connect to GND means WG34 outpu
