Rhombus Access Control System

Weatherproof Dual Frequency Keypad 125KHz/13.56MHz EM/MF Contactless RFID Reader

Weatherproof Dual Frequency Keypad 125KHz/13.56MHz EM/MF Contactless RFID Reader

$30.95 USD
$30.95 USD
Sale Sold out
Model
13.56MHz Wiegand26/34 Dual LED 9V 12V RF Contactless Mifare1 MF IC Card Reader - Picture 6 of 14                   Weatherproof Dual Frequency Keypad 125KHz/13.56MHz EM/MF Contactless RFID Reader - Picture 9 of 10

Detailed Description:

Specification

Decode time

<0.2s

Communication

Weigand 26/34

Card type

ID:EM card , EM compatible card ,EM4100\4102

IC:MF1 S50/S70 13.56Mhz  IC card

ID+IC: both ID and IC

Induction Distance

2-5cm

Power supply

DC12V

DATA transfer range

 Max 100m

Currency

<40MA

Working Temperature

-20~60°C

Working Humidity

Less than 90%

Physical

Dimension (LxWxH mm)

86*86*20

Package

 plastic casing &epoxy saturated

Colour

Black

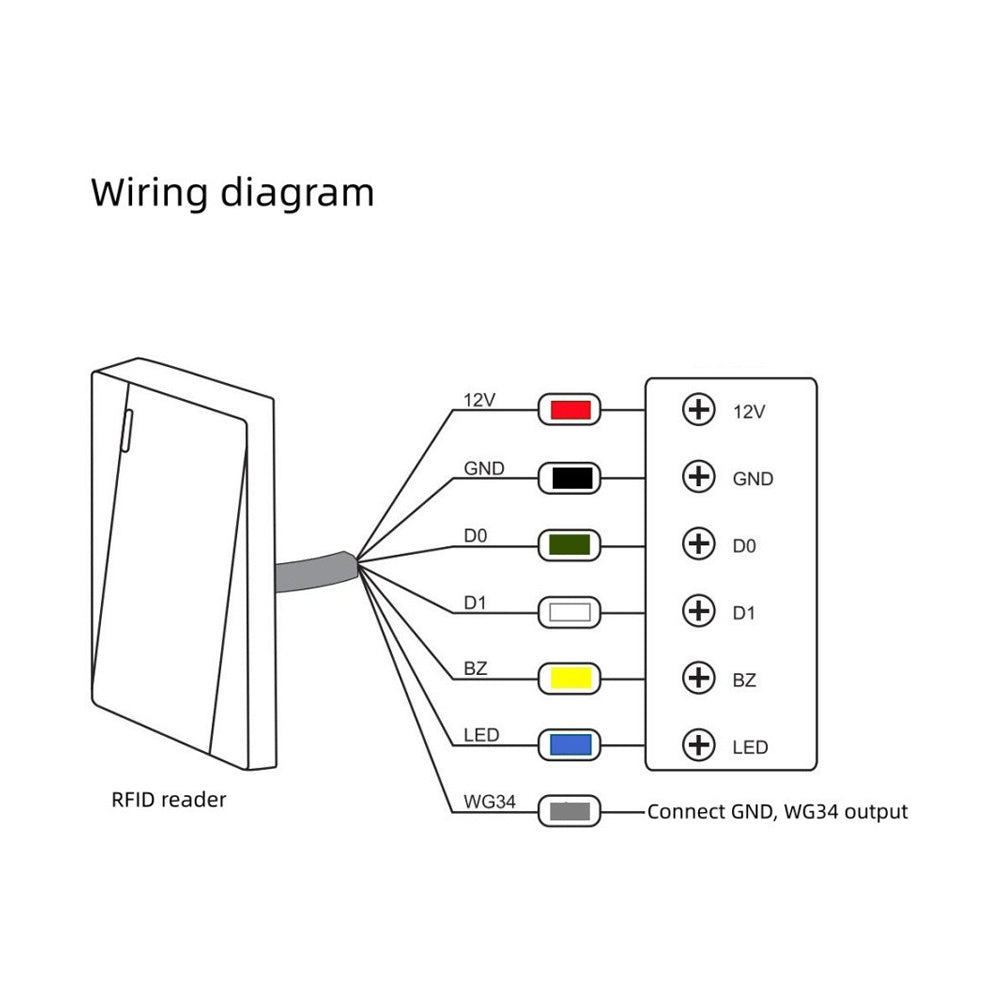

 PIN description

Pin

Color

Description

1

RED

DC12V

2

BLACK

GND

3

GREEN

WG data0(RS485+)

4

WHITE

WG data1(RS485-)

5

BLUE

LED

6

YELLOW

BUZZER

7

Grey

Select,

No Contact means  WG26,Connect to GND means WG34 outpu

Weatherproof Dual Frequency Keypad 125KHz/13.56MHz EM/MF Contactless RFID Reader - Picture 10 of 10

Package：
  • 1x rfid reader
