Rhombus Access Control System

ZK WAN/LAN TCP/IP ZKSoftware C4 series RFID Access Control Panel/w Power

ZK WAN/LAN TCP/IP ZKSoftware C4 series RFID Access Control Panel/w Power

Regular price $82.95 USD
Regular price Sale price $82.95 USD
Sale Sold out
Model



Introduction:



Product model

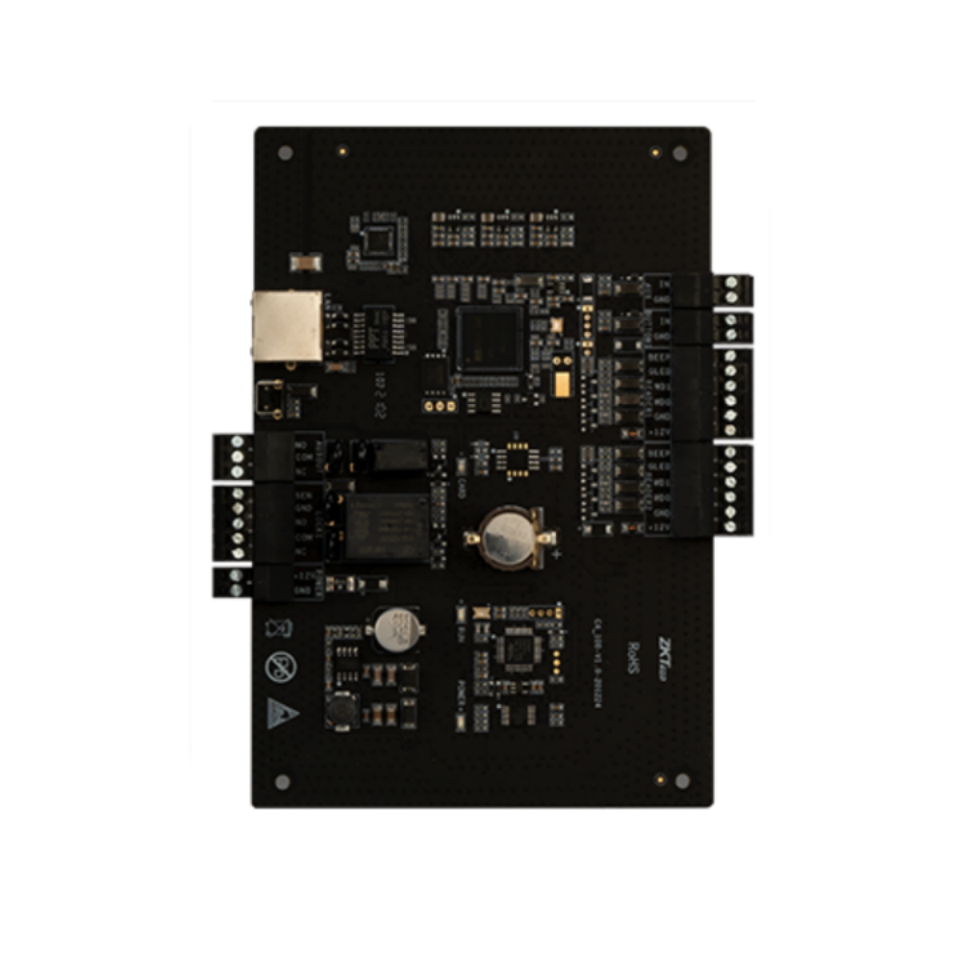

C4-100

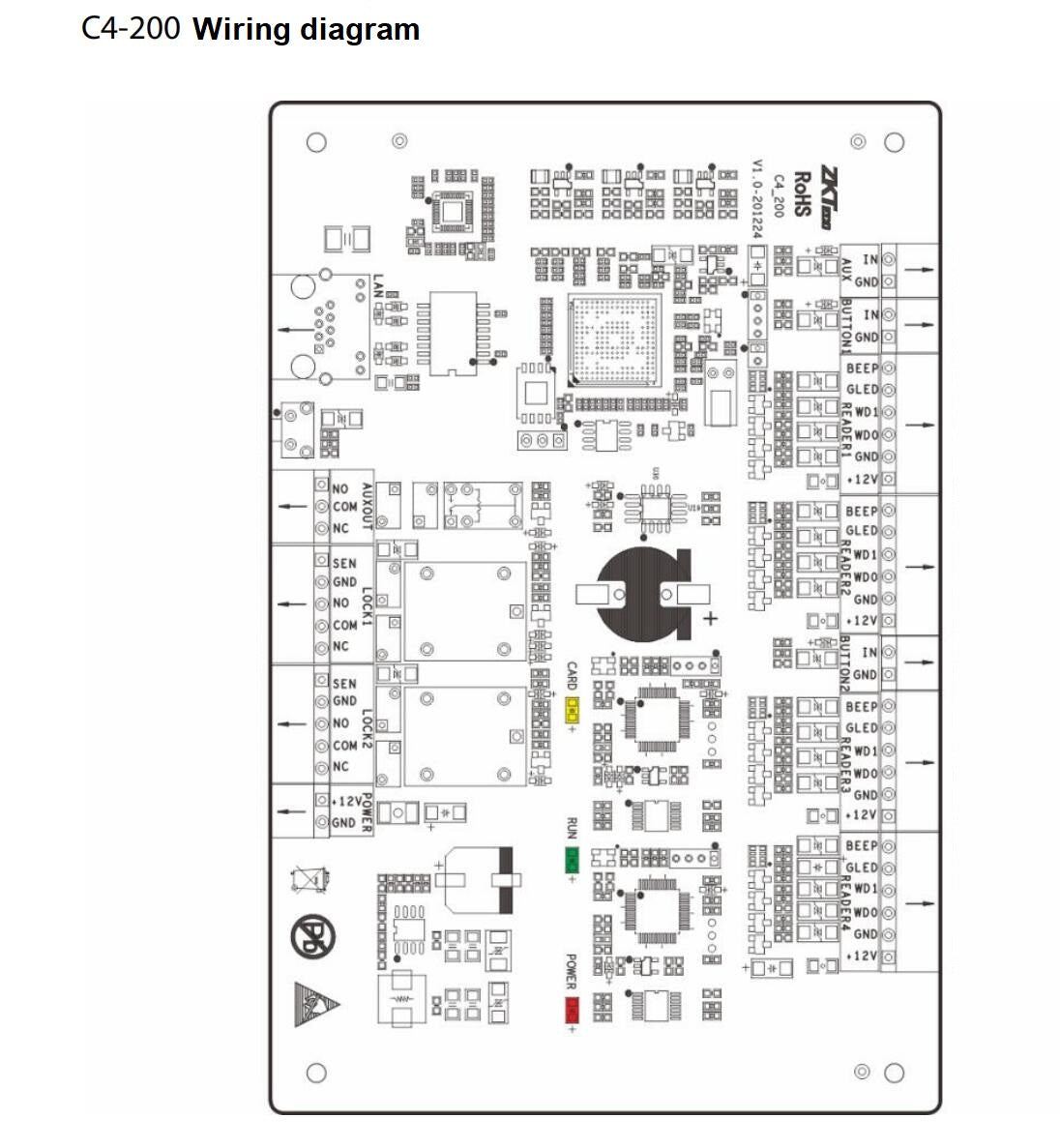

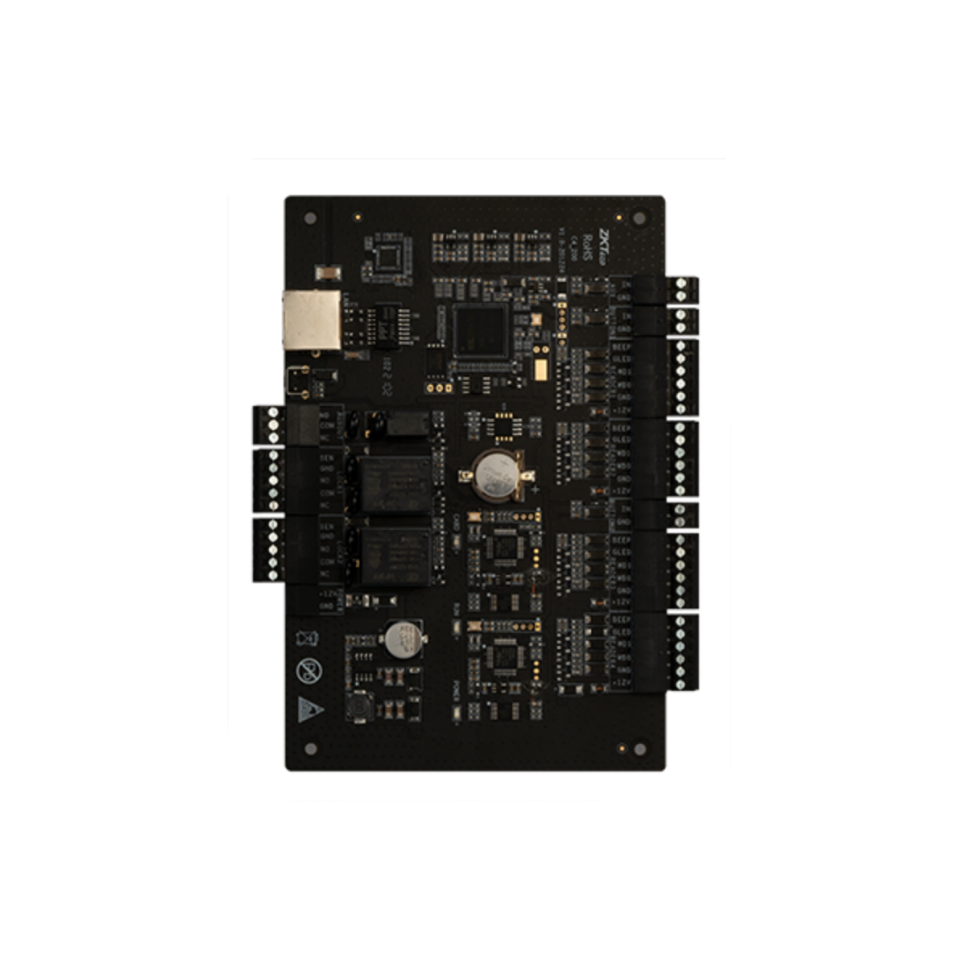

C4-200

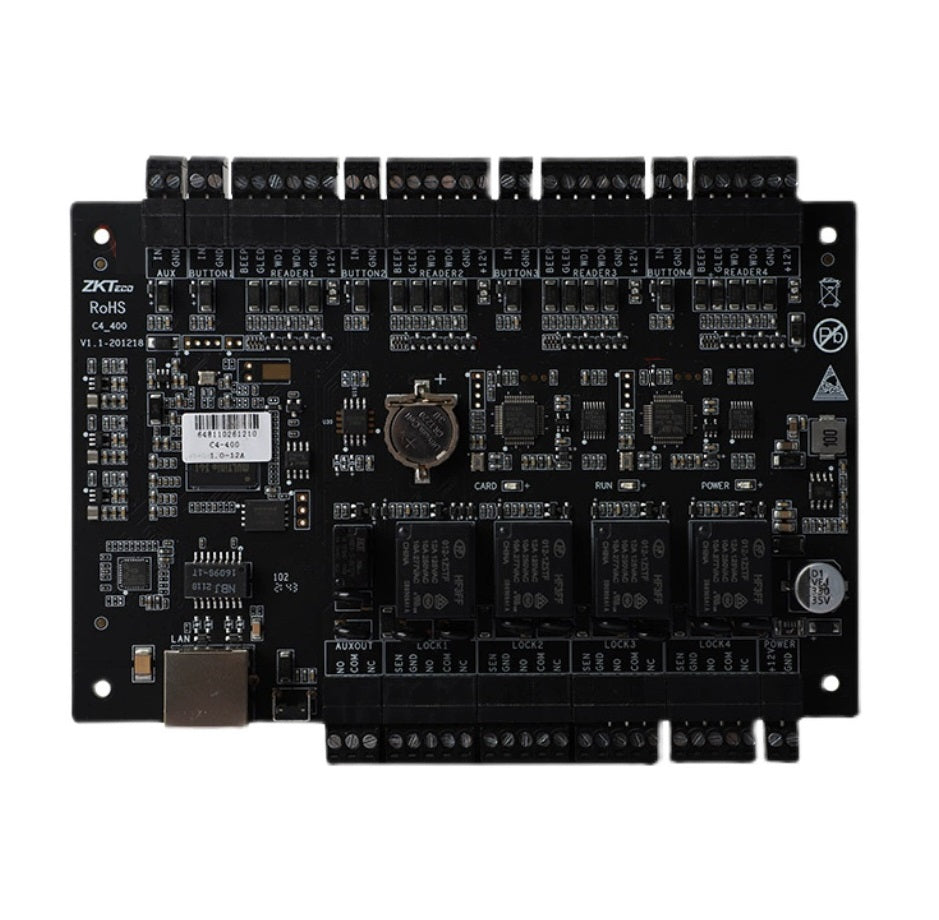

C4-400

Voltage

12V (± 20%) DC

Current

≤ 3A

Identification method

EM CARD, IC CARD, Password

Hardware specifications

Operating system: embedded Linux system; Storage: 256MB Flash

Function

Comparison results: front-end reader collection, back-end controller comparison, and upload the results

 to the software

Access control function: Judge ID, IC, and password verification information, control door locks, gates,

or remotely control through servers

Card capacity

30,000

Card capacity

100,000

Number of access control

One-door

Two-door

Four-door

Exit button

1

2

4

Number of card readers connected

2

4

4

Auxiliary input

1

Auxiliary output

1

Communication method

TCP/IP

Support software

ZKAccess3.5 software、E-ZKEco Pro softwaire(LAN)

Working environment temperature

0 ℃~55 ℃,

Humidity

10-80%

Electric lock relay output

maximum switching voltage: 36V (DC), maximum switching current: 5A

Auxiliary relay output

maximum switching voltage: 36V (DC), maximum switching current: 2A

Appearance size

160*106mm

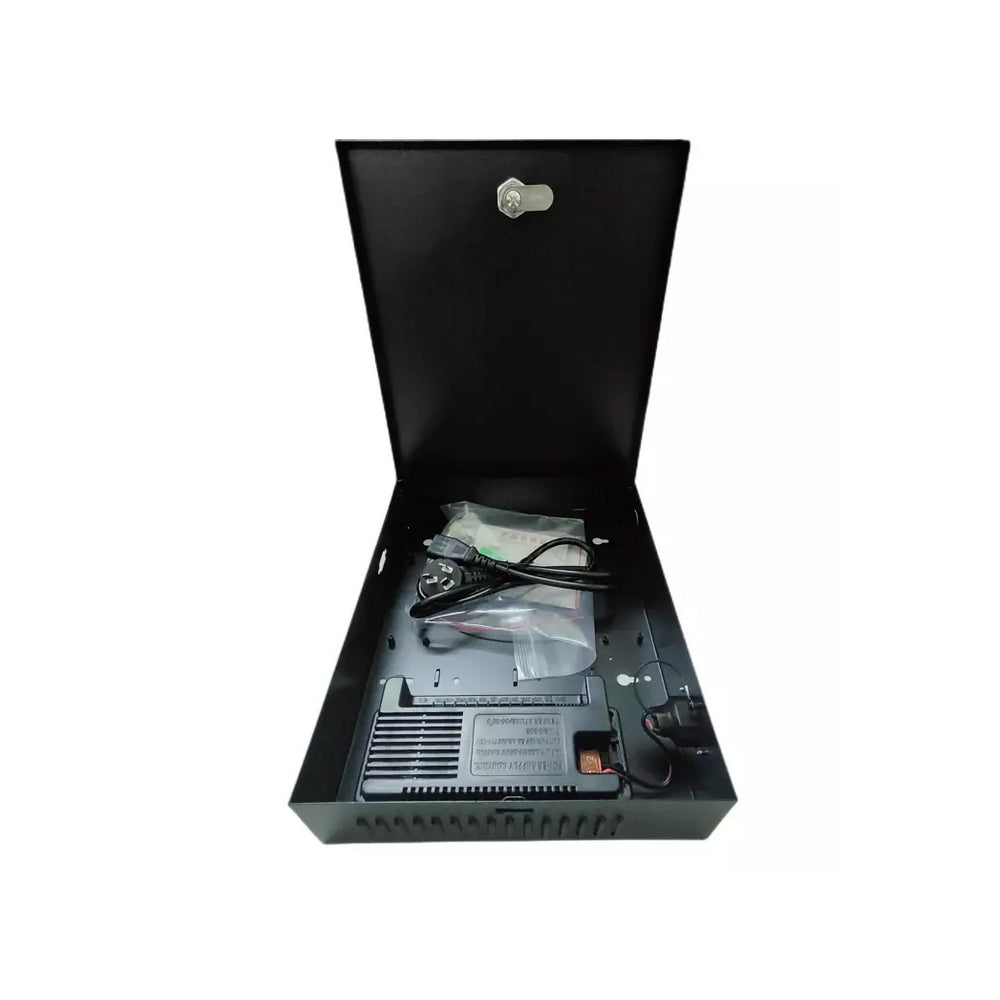

Power Supply

Size: 273mm*228mm*65mm;
Power:30-50W
Case color: Black;
Power Input: 90-240VAC;
Power Out: 12VDC (11-14V)
Current Rating:5A
Storage battery Specification:7AH 12VDC
Storage battery Protection Voltage:9V



Package:

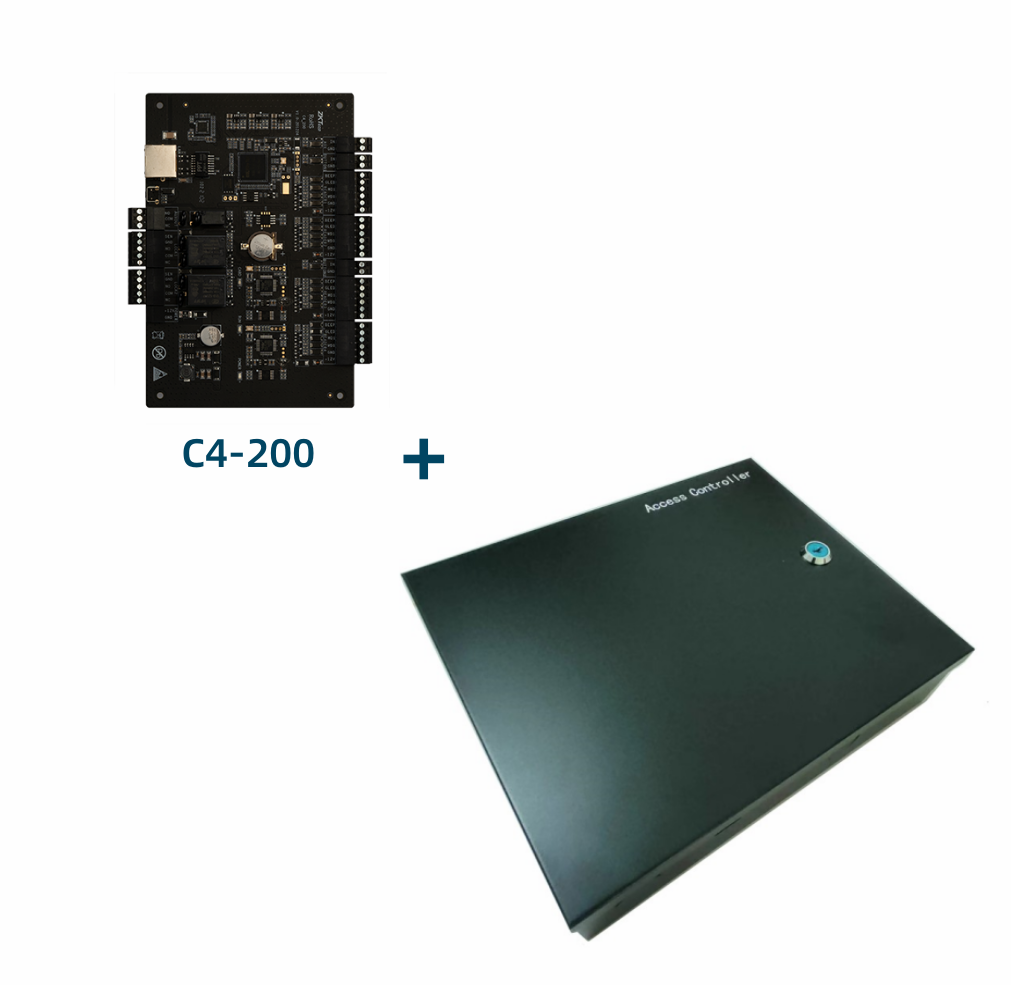

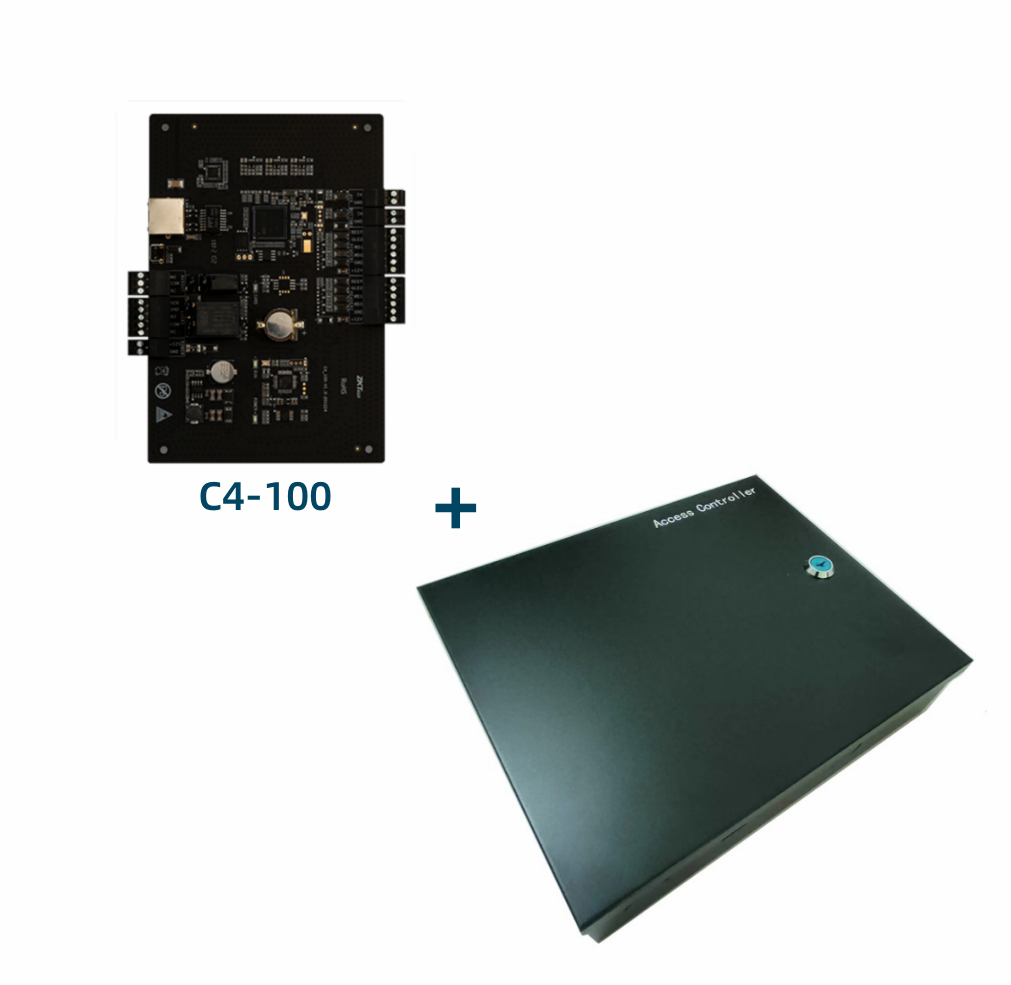

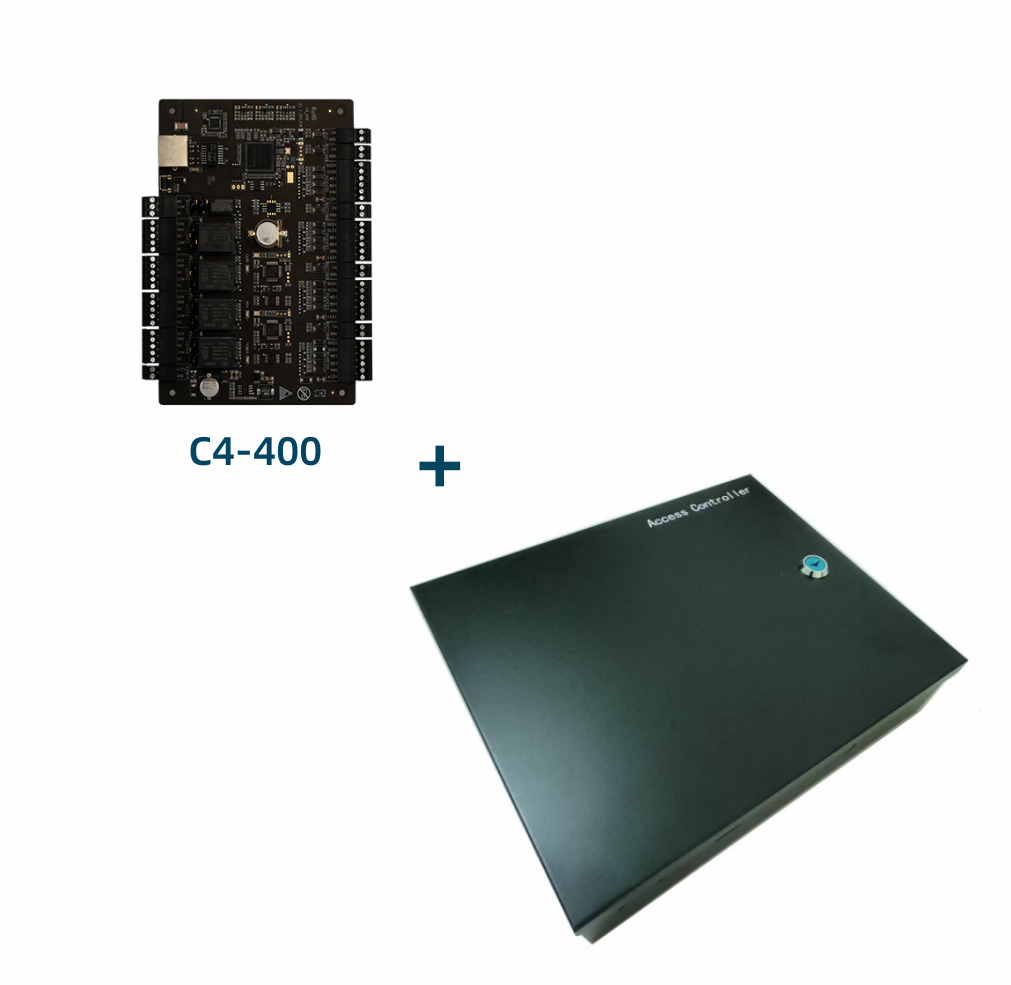

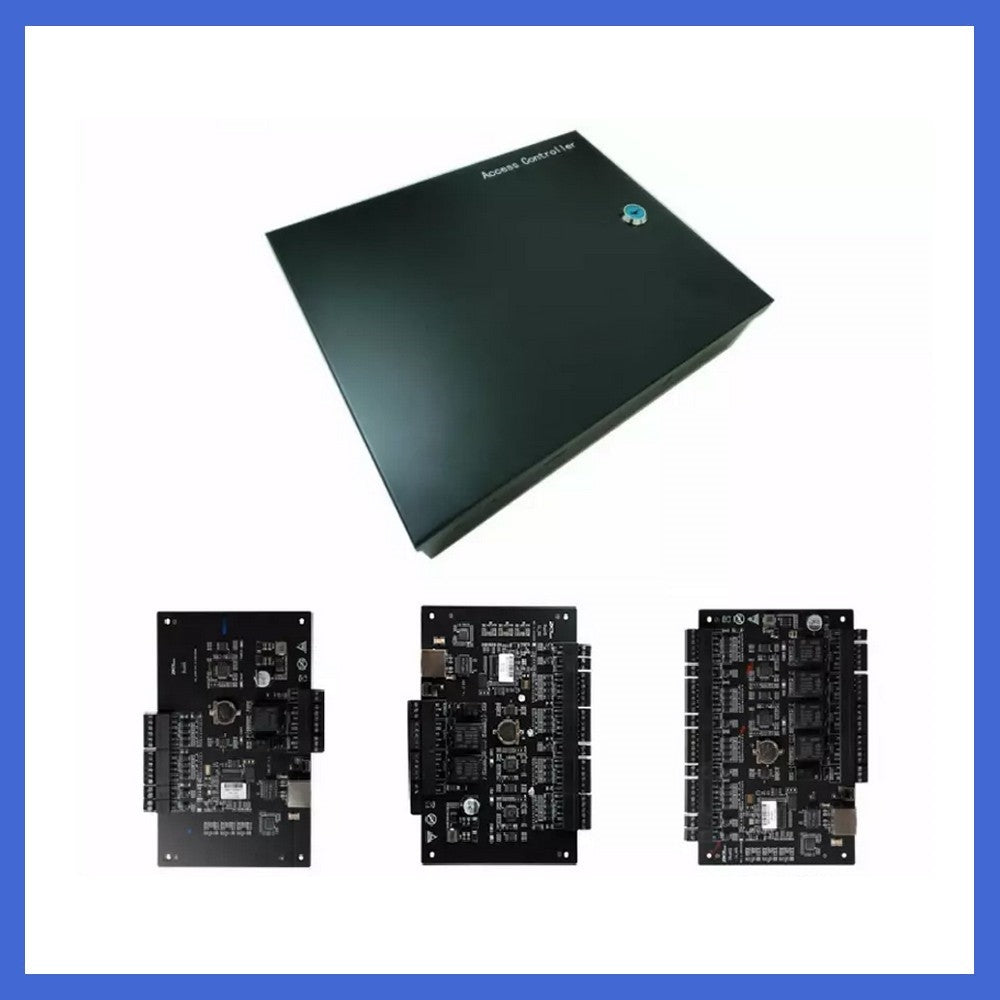

  • 1x access control board with iron power supply
