Rhombus Access Control System
TCP IP RS485 Fingerprint RFID Pincode Voice WG26 output door lock Access Control
TCP IP RS485 Fingerprint RFID Pincode Voice WG26 output door lock Access Control
Couldn't load pickup availability
Description
Features
· 1. Strictly follow the national security product standard. Suitable for the
entrances and exits of appartment, multi-family houses,office, factory, hotel, school, etc.
· 2. TCP/IP + RS485 Communication + USB Flash Drive Up/Download.
· 3. Anti-dismantlement alarm, threatens alarm, unlock illegally alarm,not block alarm are available.
· 4.Fingerprint / Card / Password / Fingerprint+Card / Fingerprint+Password / Card+Password / Fingerprint+Card+Password identification modes are all available.
Technical parameter
|
Model |
ZD2F20S |
|
LCD Resolution |
128*64 |
|
Fingerprint Sensor Resolution |
500DPI |
|
Rotational Angle |
Total Rotational Angle |
|
FRR |
0.1% |
|
FAR |
0.0001% |
|
Identification Time |
0.1 S |
|
Query Record |
Available |
|
Real Time Fingerprint Picture Display |
Available |
|
Operating Mode |
Off-line/On-line |
|
Authentication Mode |
1:1 1:N |
|
Identification Mode |
Fingerprint/ID Card/Password |
|
Fingerprint Capacity |
2,000 |
|
Log Capacity |
30,000 events |
|
Communication |
TCP/IP, RS485 |
|
U disk up/download |
Available |
|
Language |
Chinese, English, Korean,French,Thailand |
|
Software Language |
Chinese,Chinese Traditional,English,Arabic,French,Portuguese,Thailand |
|
Voice prompt |
Available |
|
Capacity notification |
Alarm when log capacity is full |
|
Bell |
Built-in timing bell |
|
Lock Output |
Normal Open / Normal Closed |
|
Door Open Button |
Can connect the common button, or the wireless remote controlled button |
|
Doorbell Output |
Can connect the doorbell in every voltages |
|
Access Control Interface |
Wiegand 26/34 Optional, Input/ Output Optional |
|
Anti-passback |
Available |
|
Alarm |
Threatens Alarm, Anti-dismantlement Alarm, Unlock Illegally Alarm, |
|
Power |
DC 12V/1A |
|
Operating environment |
Operating Temp: 0-50, Humidity:80% |
Structure description

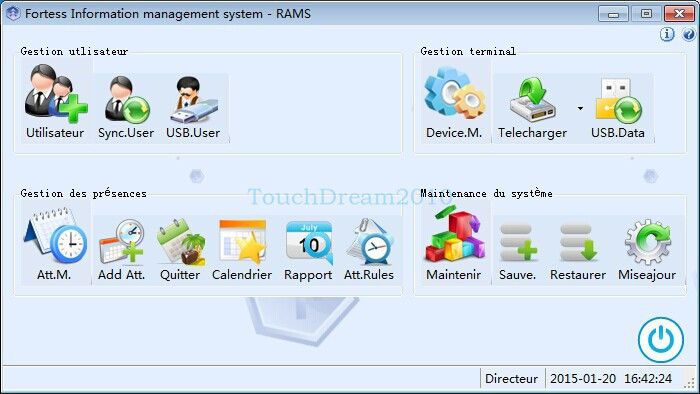

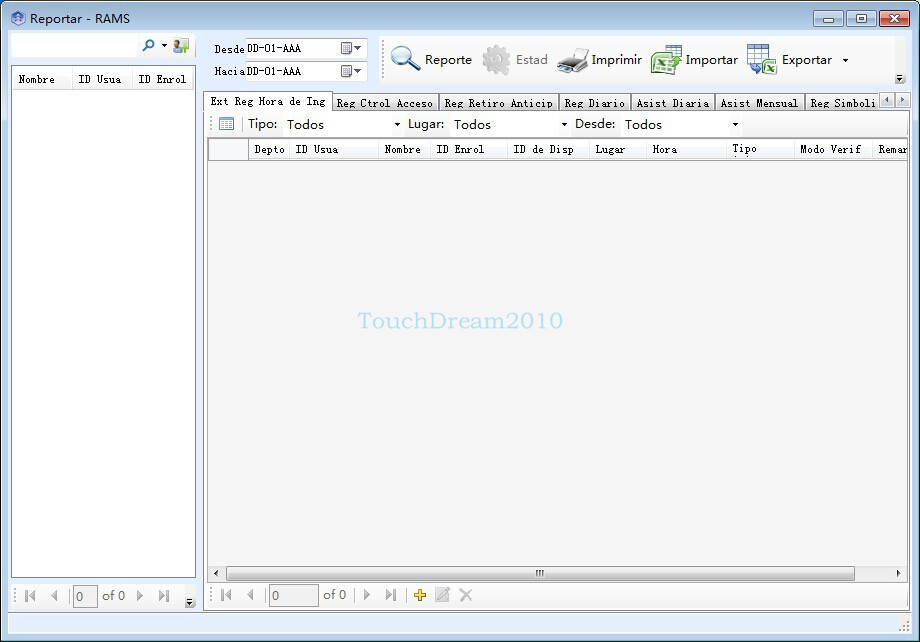

Want to try its software?Need more details introduction?
