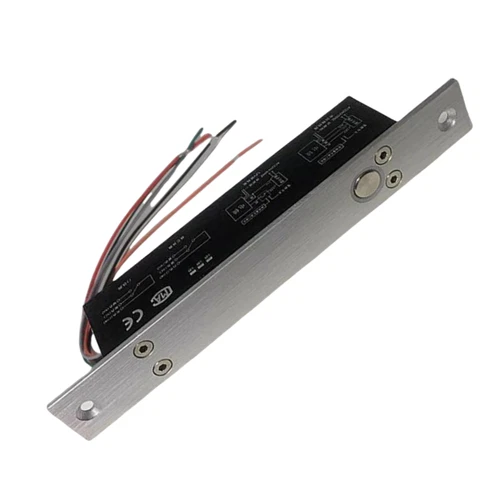

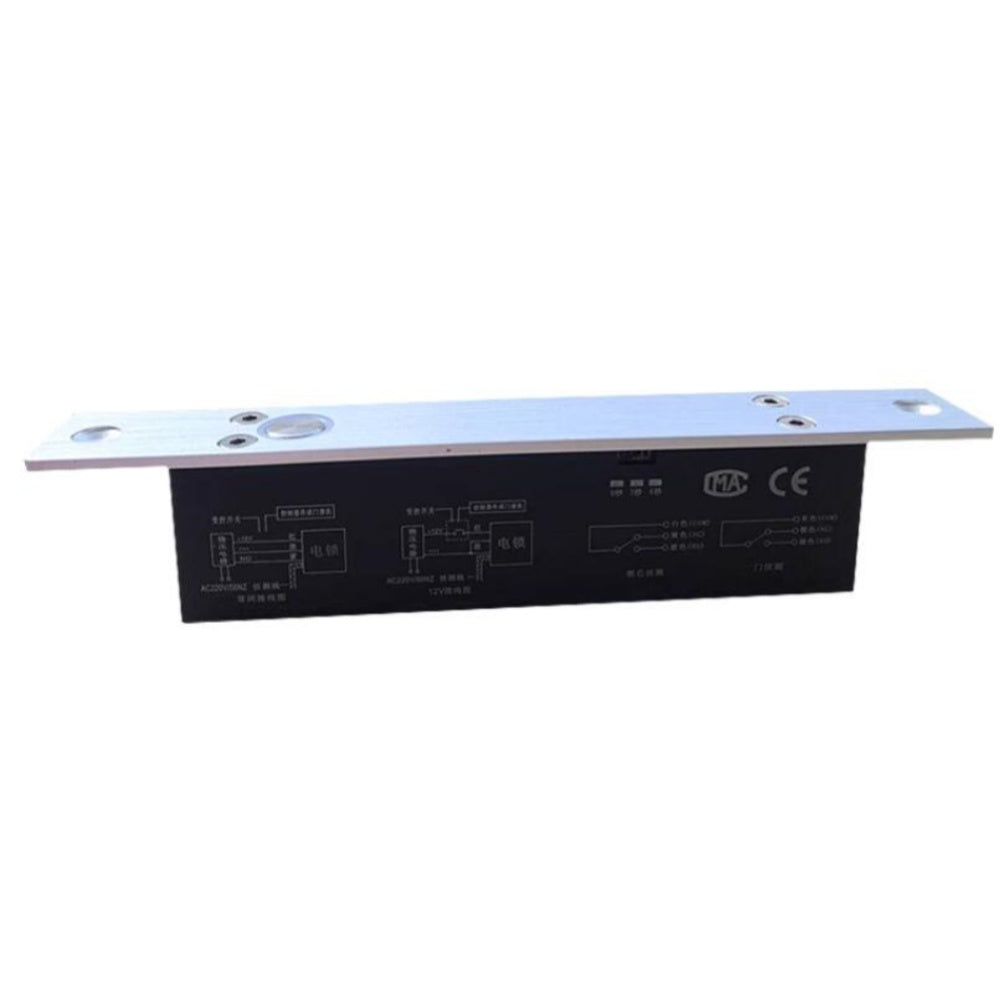

DC12V Electric Bolt Door Lock for Access Control Fail-Safe NC Time Delay

Specifications:

• Operational Method: NC(Fail Safe: Locked when energized)
• Surface Temp: 10 degree C- 50 degree C
• Face Plate: 200Lx28WX36.5H(mm)
• Strike: 90Lx24Wx4H(mm)
• Voltage: DC12V
• Start Current: 950mA
• Standby Current: 150mA
• Time delay：0s, 3s, 6s
• Operating temp: -25~+55C(14-131F)
• Operating Humidity: 0~90%(non-condensing)
• Construction:Aluminium alloy
• Suitable For: Woodeng Door,Glass Door,Metal Door, fireproof Door

Package:

• Electric Magnetic Lock (NC mode)  X 1
• Screws & Installation Kit x 1
