Rhombus Access Control System
Metal Shell Waterproof 125Khz Wiegand26 EM prox RFID Access Control Card Reader
Metal Shell Waterproof 125Khz Wiegand26 EM prox RFID Access Control Card Reader
通常価格
$38.95 USD
通常価格
セール価格
$38.95 USD
単価
あたり
受取状況を読み込めませんでした
Product Features:
Appearance: metal structure, anti-sabotage, waterproof design.
Support Card Type: EM (125KHz)
Super Immunity: Metal doors can resist the impact of the reader, and the interference between readers.
Communication Interface: Wiegand 26
Power consumption: ≤ 30mA
Protection class: IP65 (irrigation green plastic), antistatic 15KV.
Technical parameters:
- Intput Voltage: 12V +/- 10% DC (Recommended 12V DC)
- Input current: <100 mA
- Protection grade: IP65
- Card Type: RFID/EM compatible card
- Frequency: 125Khz
- Read range: 1-10cm
- Ambient temp: -10 degree C ~ 70 degree C
- Operating Humidity: 10%- 90% RH

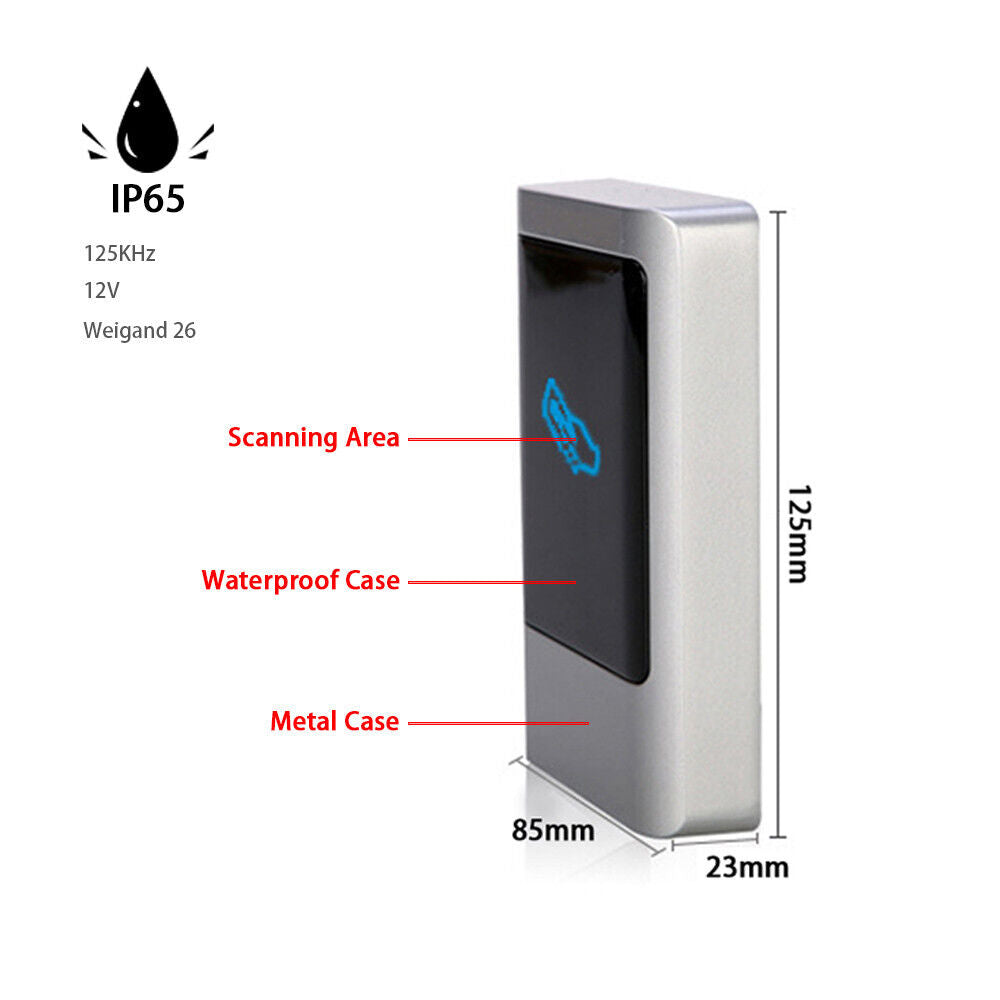

- Dimension: 125mm x 85 mm x 23mm
PIN description
Pin |
Color |
Description |
1 |
RED |
DC12V |
2 |
BLACK |
GND |
3 |
GREEN |
WG data0 |
4 |
WHITE |
WG data1 |
Standard accessories:
1 × Metal Waterproof reader
1 × Manual
