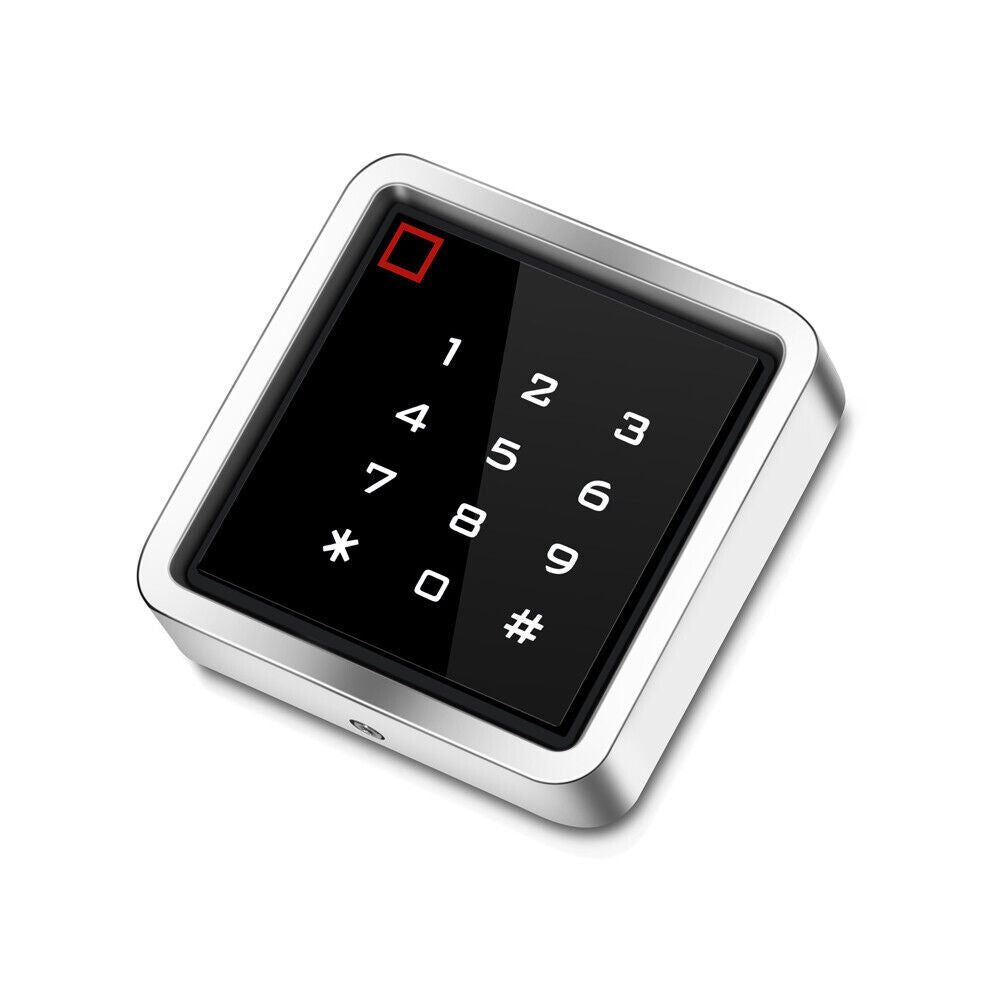

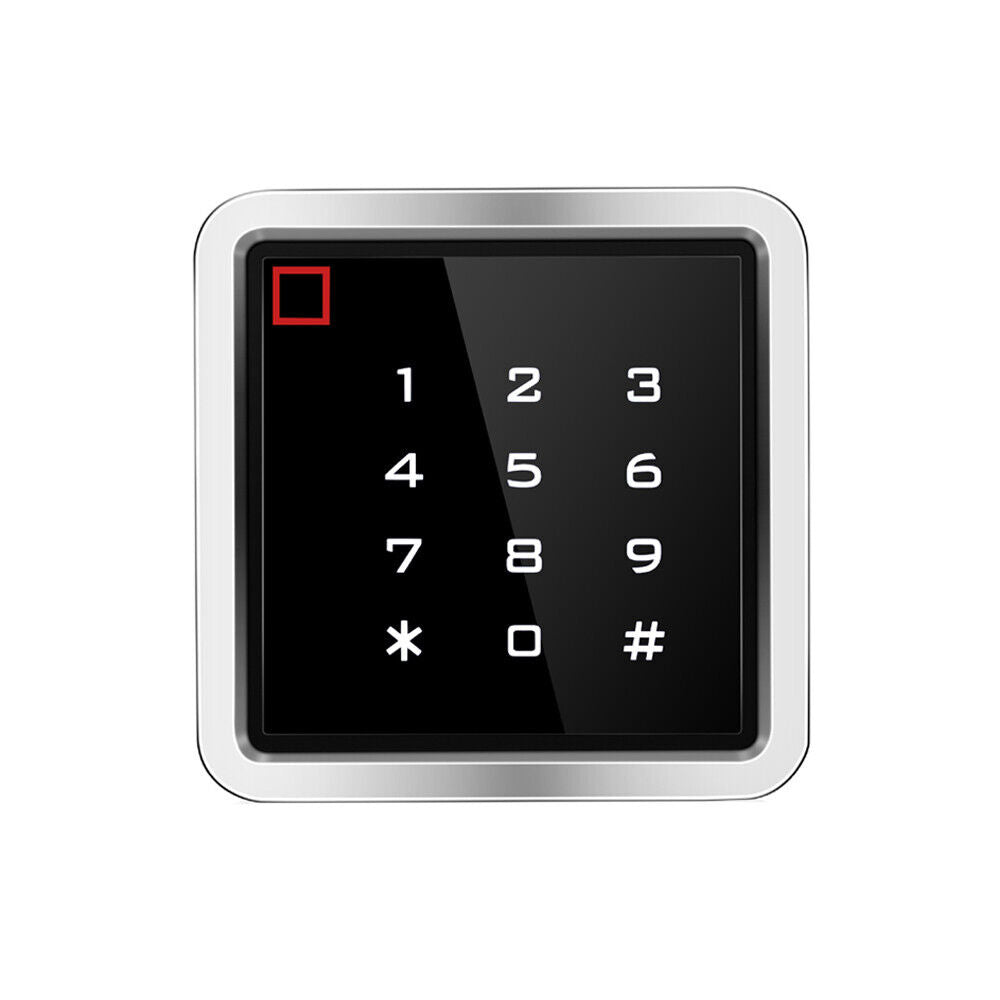

Metal Shell Waterproof 13.56MHz WG26/34 keypad MF/S50 Access Control RFID Reader

Specifications:

• Less than 0.2 second Response Speed
• Less than 0.5 seconds Proximity Time Distance
• 2-15cm Proximity Range
• Support Mifare1 S50/S70 13.56Mhz IC card
• Built-in Antenna
• Built-in LED (Double Color LED)
• Built-in Loud Speaker (Buzzer)
• DC 12V Working Voltage,70mA Working Current
• 100 Meters Communication Distance
• Real Time Data Transfer
• Metal shell  (Black Resin for Water-Proof Function)
• 86mm*86mm*20mm
• Waterproof IP68 metal rfid reader

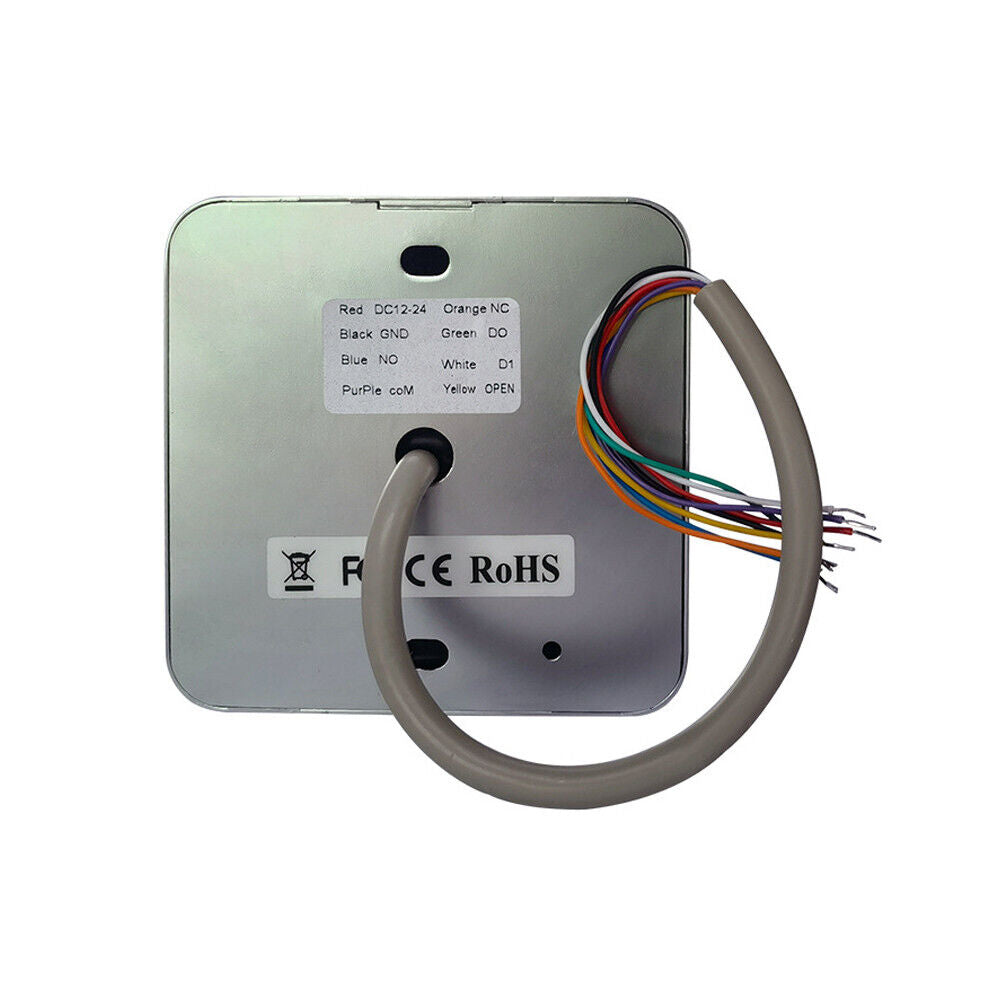

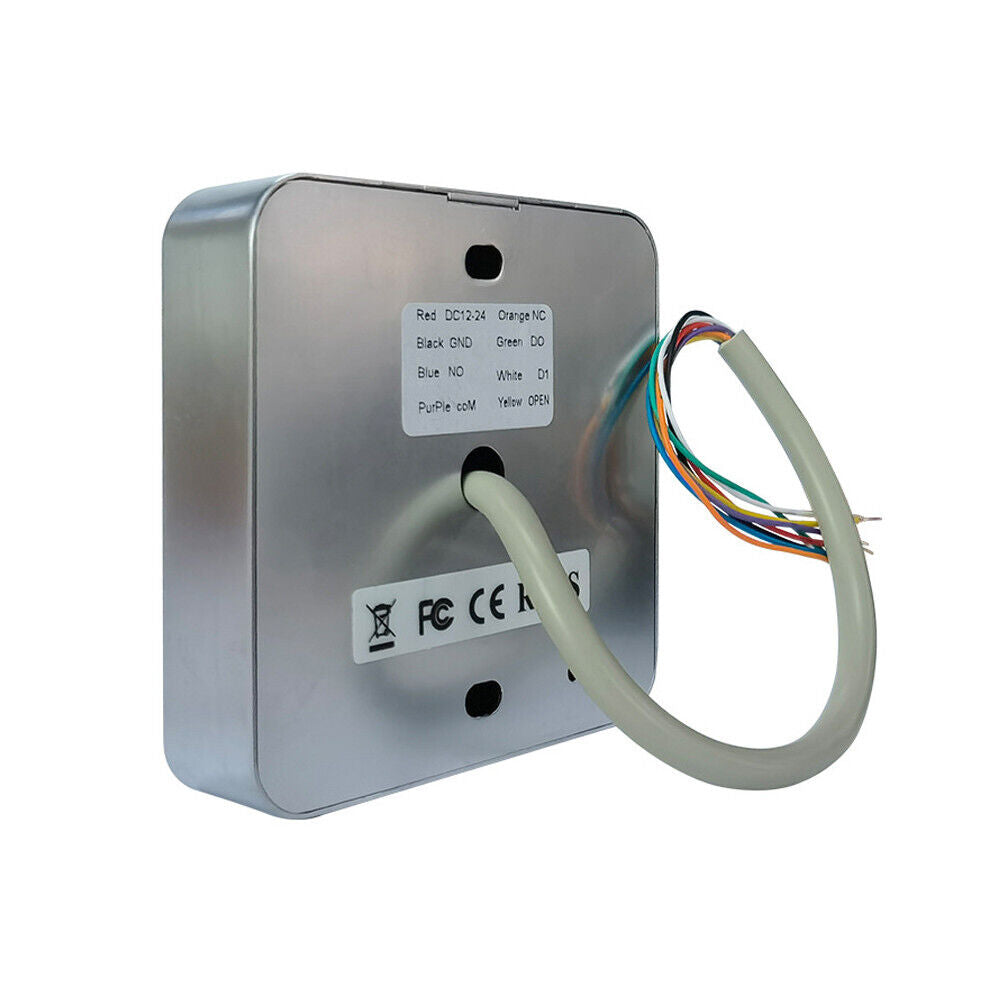

Wire Connection

Size:

 Package Included:

• 1 x Reader

Note:

It's NOT a stand alone access controller.

It's a standard wiegand 26bit reader for access controller.

Notice：

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia,

    or using several parallel Network wires
