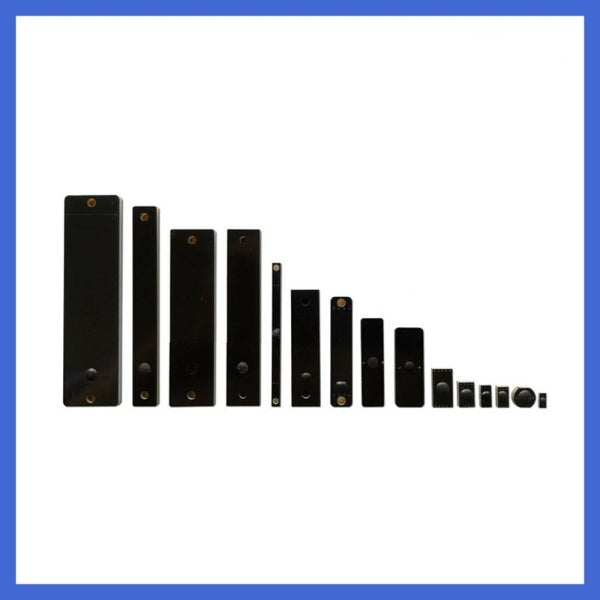

50pcsWaterproof Anti-Metal Heat Resistant UHF 860-960MHZ ISO18000-6C RFID PCB Tag
50pcsWaterproof Anti-Metal Heat Resistant UHF 860-960MHZ ISO18000-6C RFID PCB Tag
Couldn't load pickup availability
Specifications
Support EPC global C1Gen2 and ISO18000-6C protocol
Operating frequency: 860- 960 MHz
Industry-leading read and write sensitivity: -16dB (up to 9 meters of reading distance)
Label chip: Alien H3
96-EPC Bits, extensible to 480 Bits›
512 User Bits›
64 Bit Unique TID
Data storage time: 10 years
Repeated erase times: 100,000 times
High degree of protection: IP65
Material: PCB
Colour: Black
Installation: 3M adhesive or screw fixed,
Operating temperature: -20 ℃ to + 85 ℃
Storage temperature: -10 ℃ to + 70 ℃
See table for dimensions
|
Model |
Size（LxWxH）(mm) |
|
RH0505 |
Φ5x3 |
|
RH0603 |
6x3x3 |
|
RH0803 |
8x3x3 |
|
RH1004 |
10x4x3 |
|
RH1010 |
Φ10x3 |
|
RH1207 |
12x7x3 |
|
RH1309 |
13x9x3 |
|
RH1809 |
18x9x3 |
|
RH2208 |
22x8x3 |
|
RH2409 |
22x9x3 |
|
RH3005 |
30x5x2 |
|
RH3613 |
36x13x3 |
|
RH4010 |
40x10x3 |
|
RH5010 |
50x10x3 |
|
RH5313 |
53x13x3 |
|
RH6025 |
60x25x3 |
|
RH6604 |
66x4x3 |
|
RH7020 |
70x20x3 |
|
RH8008 |
80x8x3 |
|
RH8015 |
80x15x3 |
|
RH8020 |
80x20x3 |
|
RH9011 |
90x11x3 |
|
RH9525 |
95x25x3 |
|
RH10030 |
100x30x3 |
Package
50pcs/lot
