Rhombus Access Control System

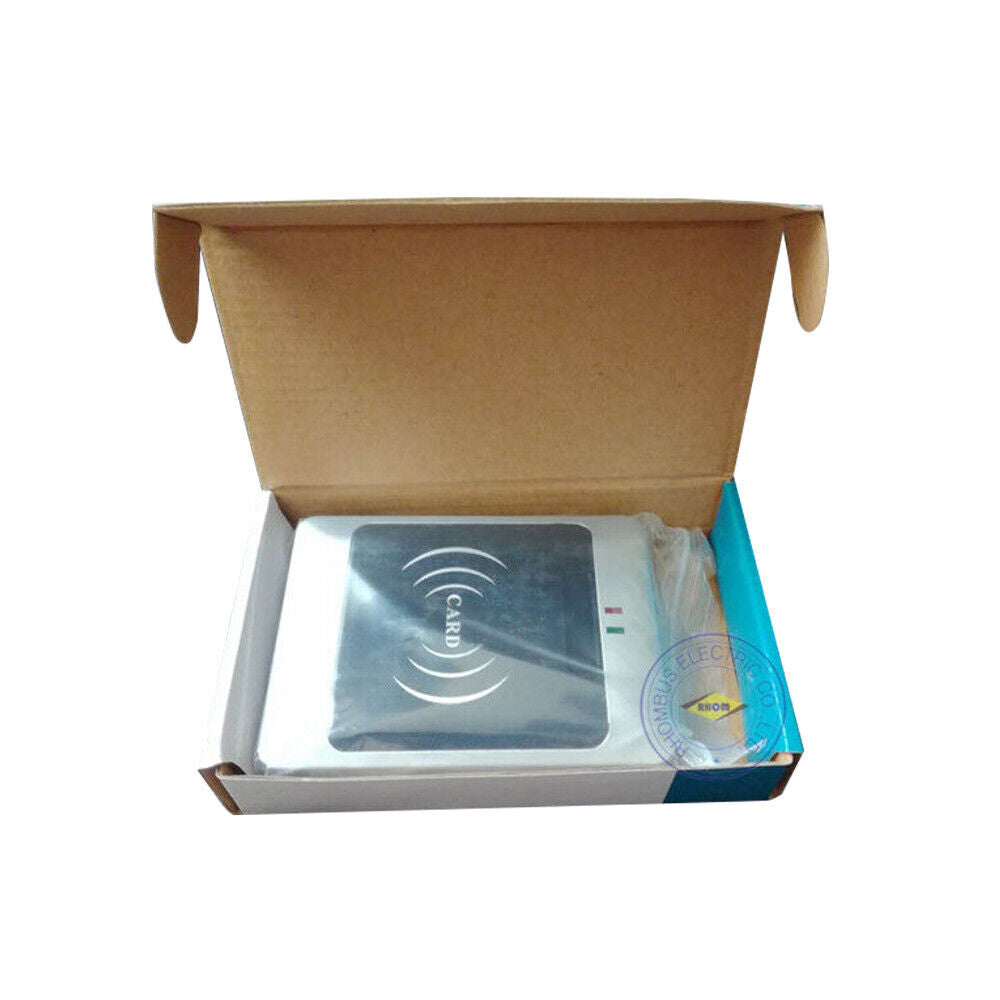

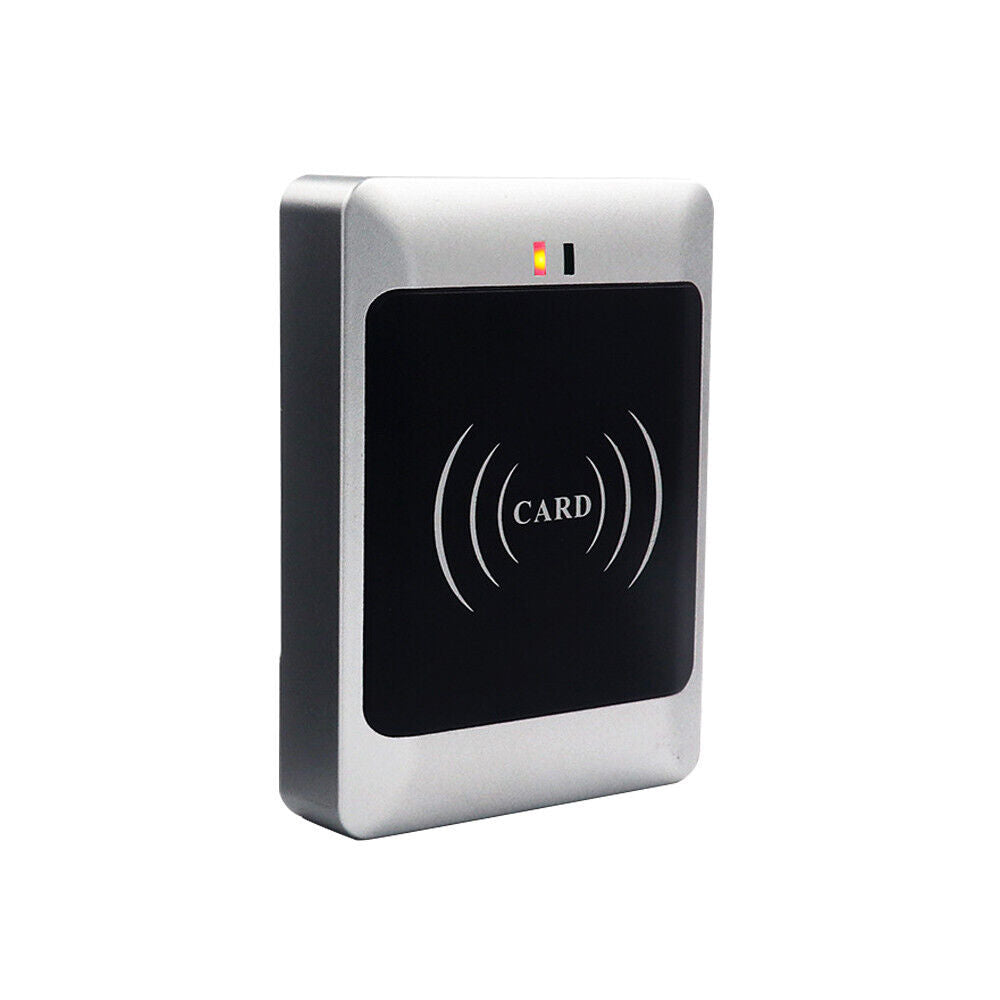

13.56Mhz MF1 S50 Waterproof RFID WG26/34 dual Led Access Control Card READE/R01M

13.56Mhz MF1 S50 Waterproof RFID WG26/34 dual Led Access Control Card READE/R01M

$9.98 USD
$9.98 USD
Sale Sold out



Detailed Description:


Specification

Decode time

<0.2s

Communication

Weigand 26/34

Card type

Mifare1 S50 S70 13.56Mhz ISo14443A

Induction Distance

10~18cm

Power supply

DC12V

DATA transfer range

 Max 80m

Currency

<100MA

Working Temperature

0~70°C

Working Humidity

Less than 80%

Physical

Dimension (LxWxH mm)

74*100*20

Package

 plastic casing &epoxy saturated

Weight (kg)
Color

0.2
Black


PIN description

Pin

Color

Description

1

RED

DC12V

2

BLACK

GND

3

GREEN

WG data0(RS485+)

4

YELLOW

WG data1(RS485-)

5

WHITE

LED

6

BLUE

BUZZER

7

GREY

Select,No Contact means  WG26,Connect to GND means WG34 output
