Rhombus Access Control System

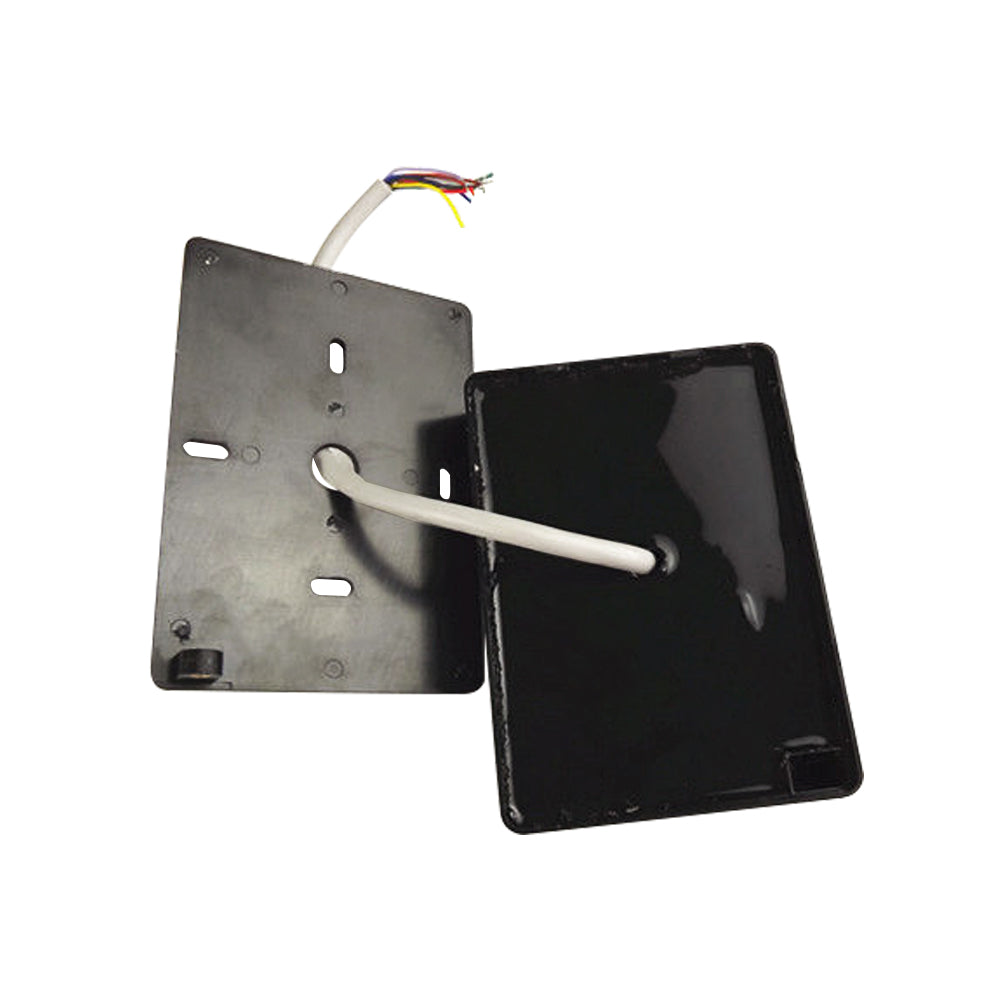

13.56Mhz,wiegand26/34 dual Led 9V 12V epoxy packaged Reliable RF contactless Mifare1 IC card READER

13.56Mhz,wiegand26/34 dual Led 9V 12V epoxy packaged Reliable RF contactless Mifare1 IC card READER

$24.95 USD
$24.95 USD
Sale Sold out



Description

Power supply:DC12V

Currency:<100MA

Communication:Weigand 26/34

Card type:13.56MHz MF1 s50/s70 13.56Mhz

Induction Distance:1-5cm

DATA transfer range:Max 80m

Working Temperature:0-70°C

Working Humidity:Less than 80%

Dimension (LxWxH mm):110x80x25

Package:plastic casing &epoxy saturated

Color:black

Weight(kg):0.2



PIN description



Pin

Color

Description

1

RED

DC12V

2

BLACK

GND

3

GREEN

WG data0(RS485+)

4

WHITE

WG data1(RS485-)

5

YELLOW

BUZZER

6

BLUE

LED

7

BROWN

Select,

No Contact means  WG26,Connect to GND means WG34 output
