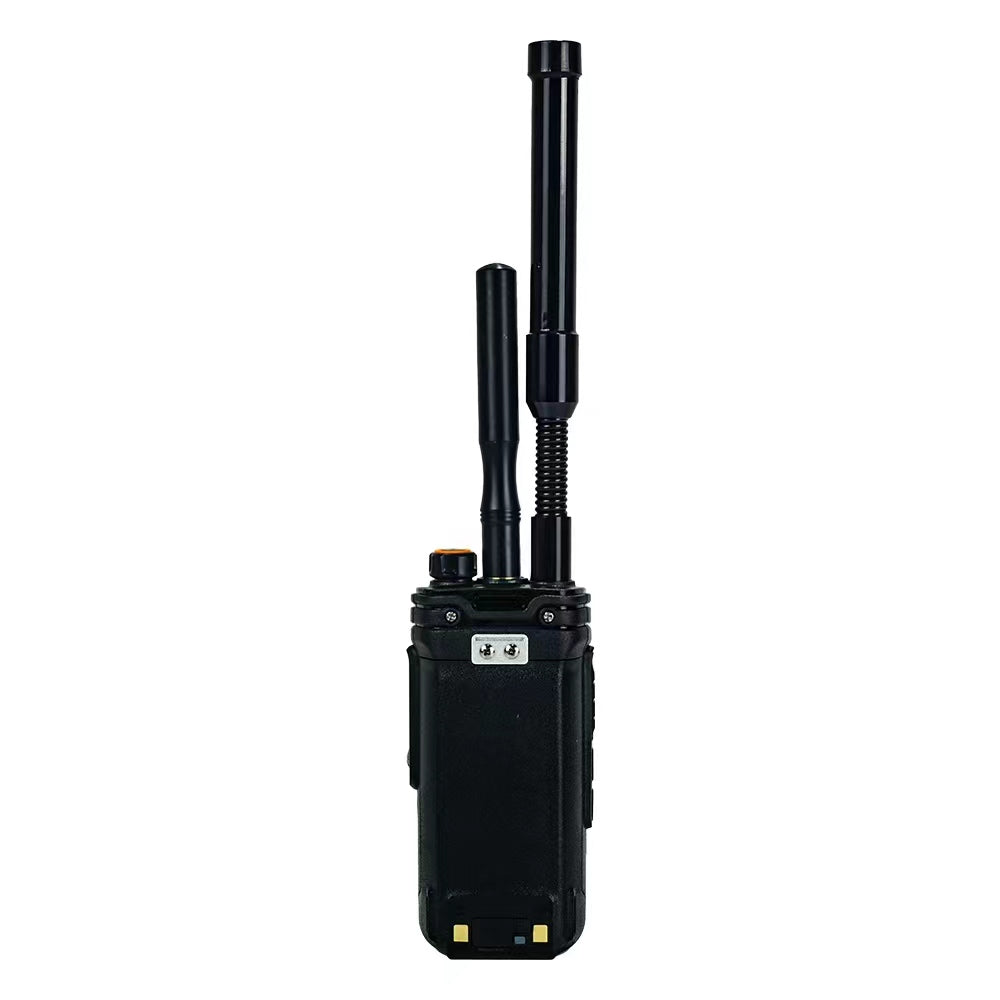

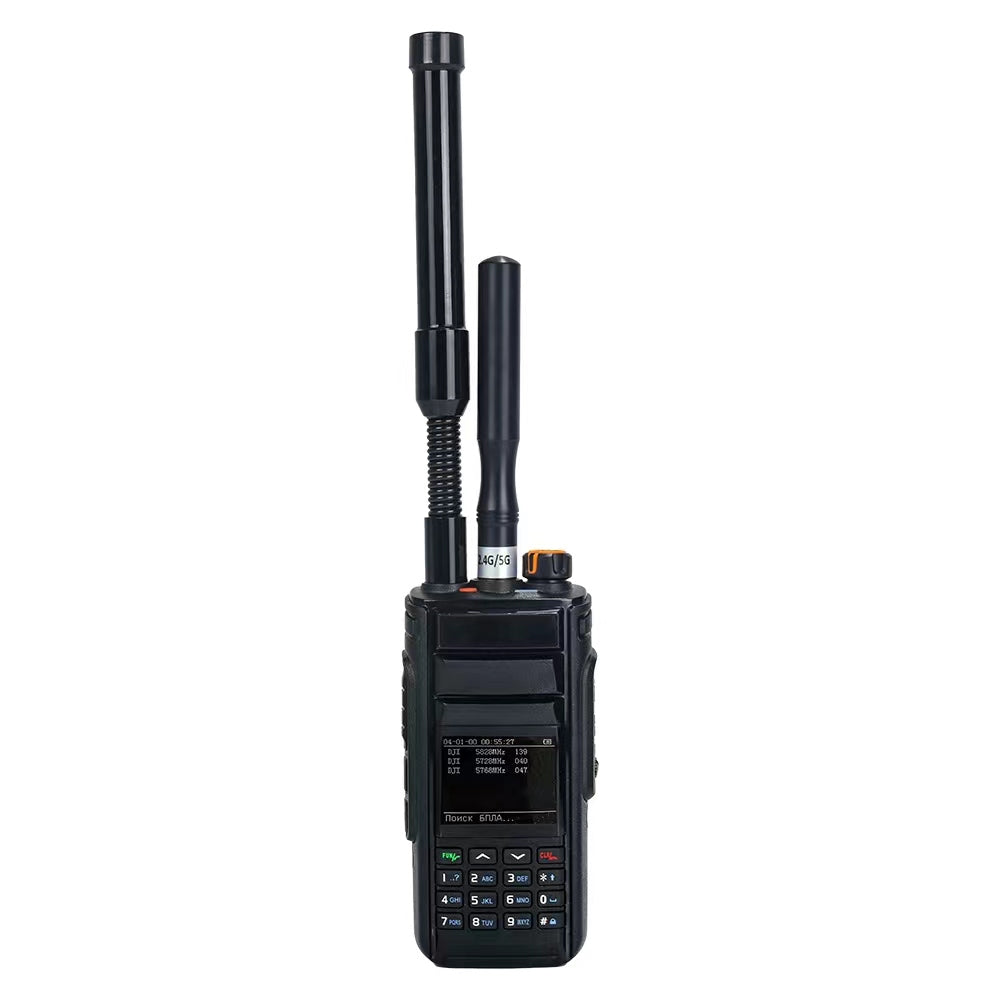

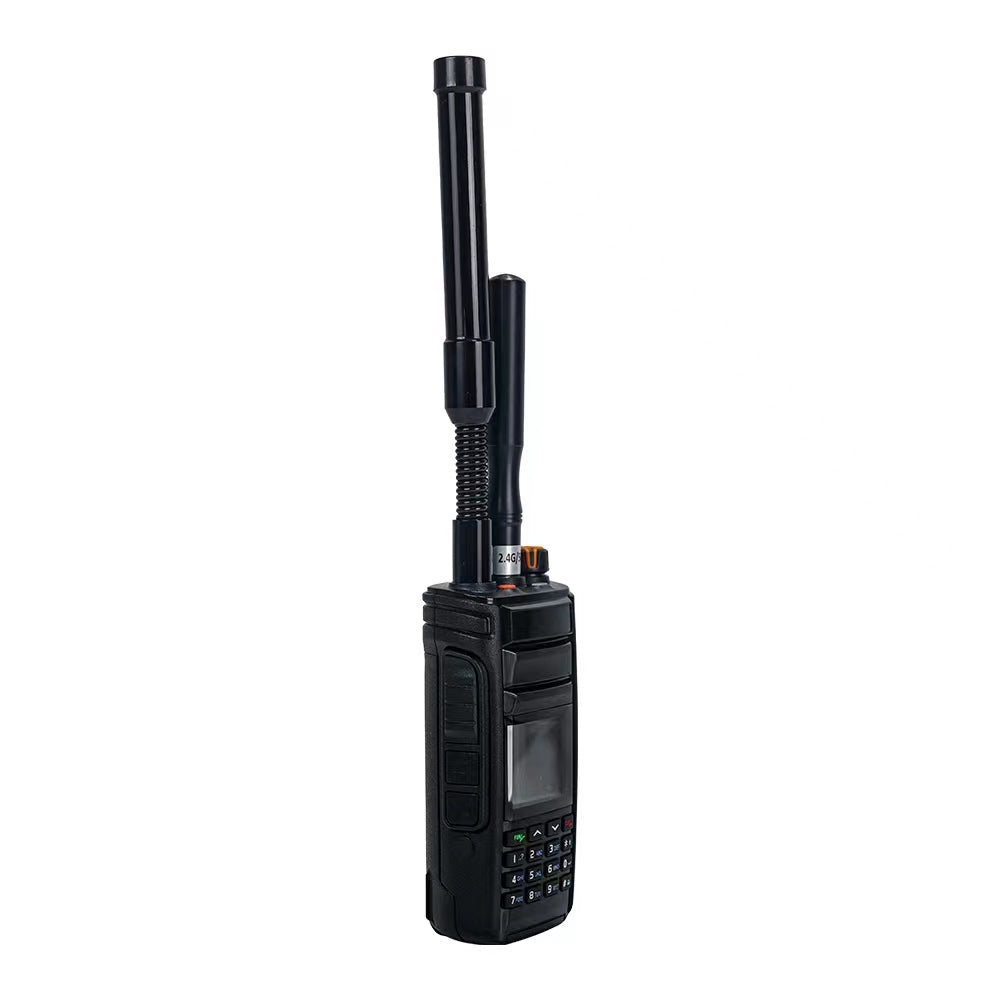

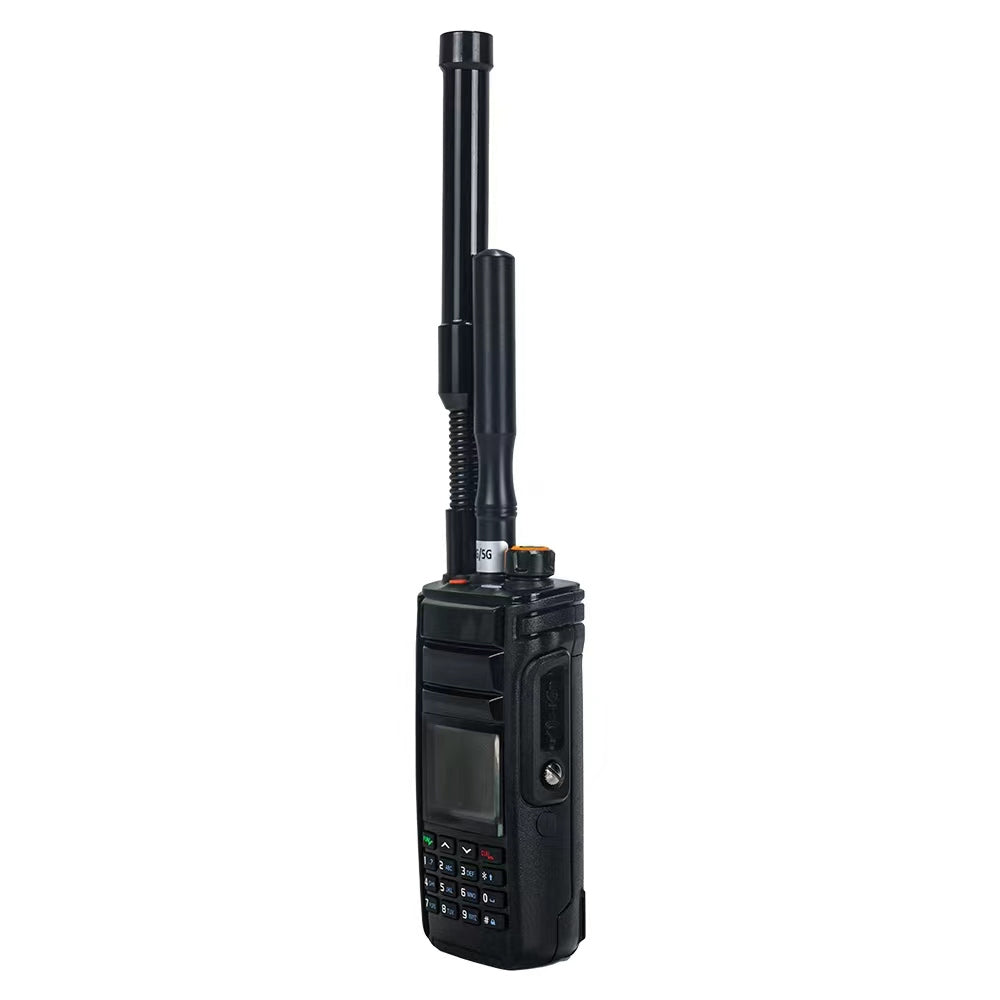

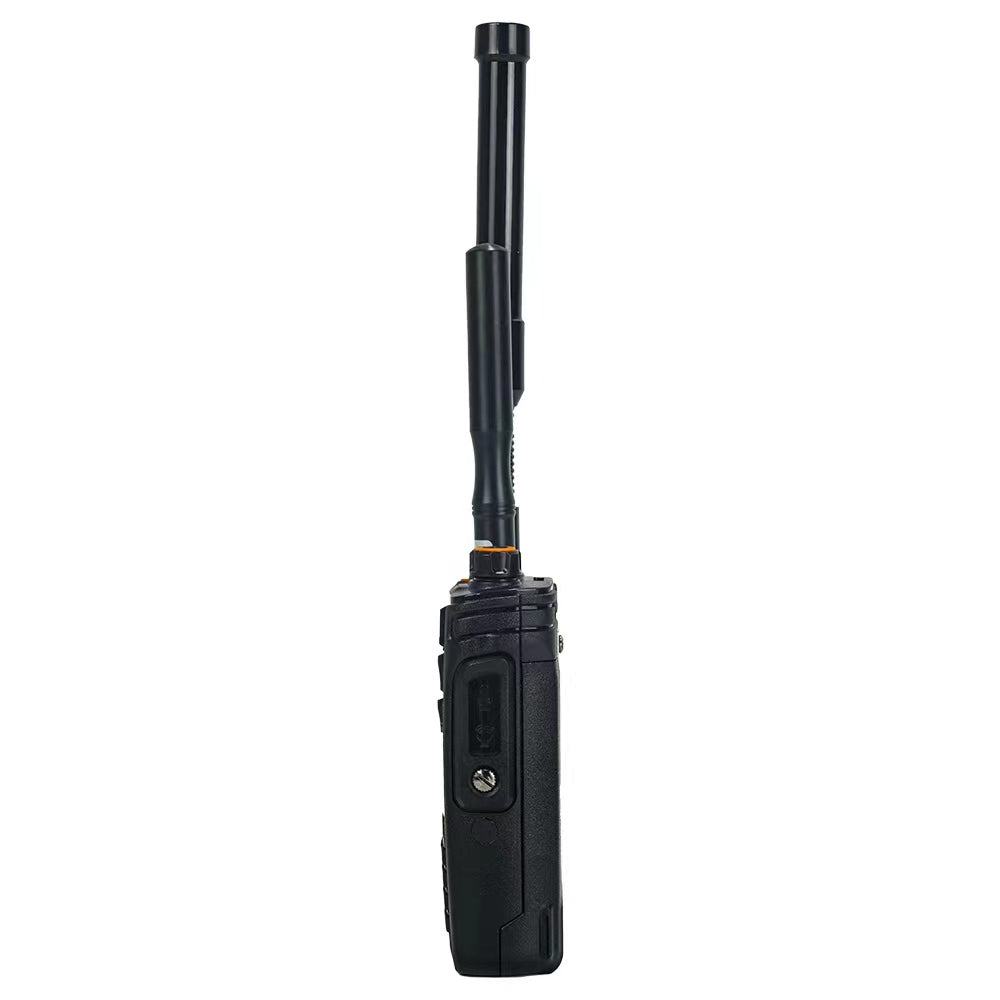

300MHz-6200MHz Dual Antennas Portable UAV Detector
300MHz-6200MHz Dual Antennas Portable UAV Detector
Couldn't load pickup availability
Main functions and features
Passive Detection : Able to identify UAV such as DJI and AUTEL that use OFDM 2/2 high-definition image transmission; Can detect FPV using analog image transmission within 300MHz-6200MHz.
Sound and light alarm: headphone sound alarm, external sound and light alarm.
Log recording: It has alarm log recording and can export alarm logs through USB interface.
Headphone function: capable of obtaining alarm sound through headphones.
Firmware upgrade function: Upgrade firmware through USB interface.
Data transmission function: Real time alarm data of the drone can be obtained through the USB port.
Multi language switching: supports English and Russian.
Work status display: language, battery level
Working modes: default mode, key frequency band scanning mode, user-defined feature library scanning mode.
Custom detection: Users can modify, delete, or add detection drone feature
libraries through the USB interface.
Technical indicators
- Detection distance: ≥ 1km
- Detection sensitivity: better than -96dBm
- Alarm detection methods: headphones, sound and light
- Log recording: Supports no less than 500 alarm records
- Upgrade and data export interface: mircoUSB
- Power supply: Removable lithium battery (type-c charging)
- Battery type: 2400mA lithium battery
- Battery life: ≥ 6 hours (single battery)
- Structural dimensions: ≤ 135mm × 60mm × 35mm (host without antenna)
- Working weight: ≤
- Receiving frequency range: 300MHz-6200MHz
- Identification type: OFDM high-definition image transmission signal, FPV
- FM analog image transmission
- 500g (including single battery)
