Embedded Waterproof 125KHz EM/ID 2k User Keypad Standalone Access Controller

Name: Embedded Waterproof 125KHz EM/ID 2k User Keypad Standalone Access Controller
Brand: Rhombus Access Control System
Price: 47.95 USD
Availability: InStock

$47.95 USD

Sale Sold out

Model EK50-ID EK70-ID EK86-ID

Product variants

Quantity

Embedded Waterproof 125KHz EM/ID 2k user keypad Standalone Access controller - Picture 10 of 27

Embedded Waterproof 125KHz EM/ID 2k user keypad Standalone Access controller - Picture 9 of 27

Product Parameters

Card reading type: 125KHz ID/EM card
Working voltage: DC12V
User Capacity：2000 card users
Door opening mode：card, pin, card+pin
Output Way:WG26/34
Static current: ≤ 30mA
Operating current: ≤ 100mA
Working environment temperature: -20~60 ℃
Working environment humidity: 0~95%
Contact current of electric lock signal relay: ≤ 1A
Alarm signal MOS transistor output current: ≤ 1A
Unlocking time: adjustable from 0-99s
Reading distance: 2-5cm
Unlocking signal：The unlocking signal adopts NO, NC, COM output of relay
Admin Card: Support admin add card, admin delete card and setting card
Size：EK50: 138mm*50mm*20mm

EK70: 115mm*70mm*20mm

EK86: 86mm*86mm*20mm

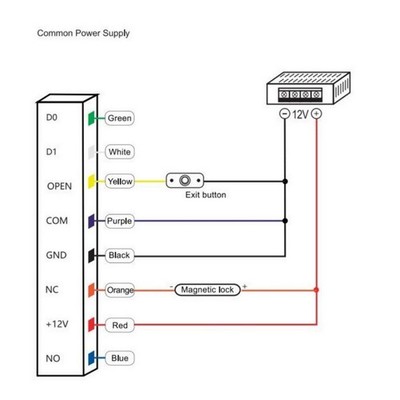

Wiring

Color	Marks	Description
Green	D0	Wiegand Input (Wiegand Output in Card Reader Mode)
White	D1	Wiegand Input (Wiegand Output in Card Reader Mode)
Yellow	OPEN	Exit button input end
Red	+12V	Positive power supply
Black	GND	Negative power supply
Blue	NO	Relay NO end
Purple	COM	Relay COM end
Orange	NC	Relay NC end
