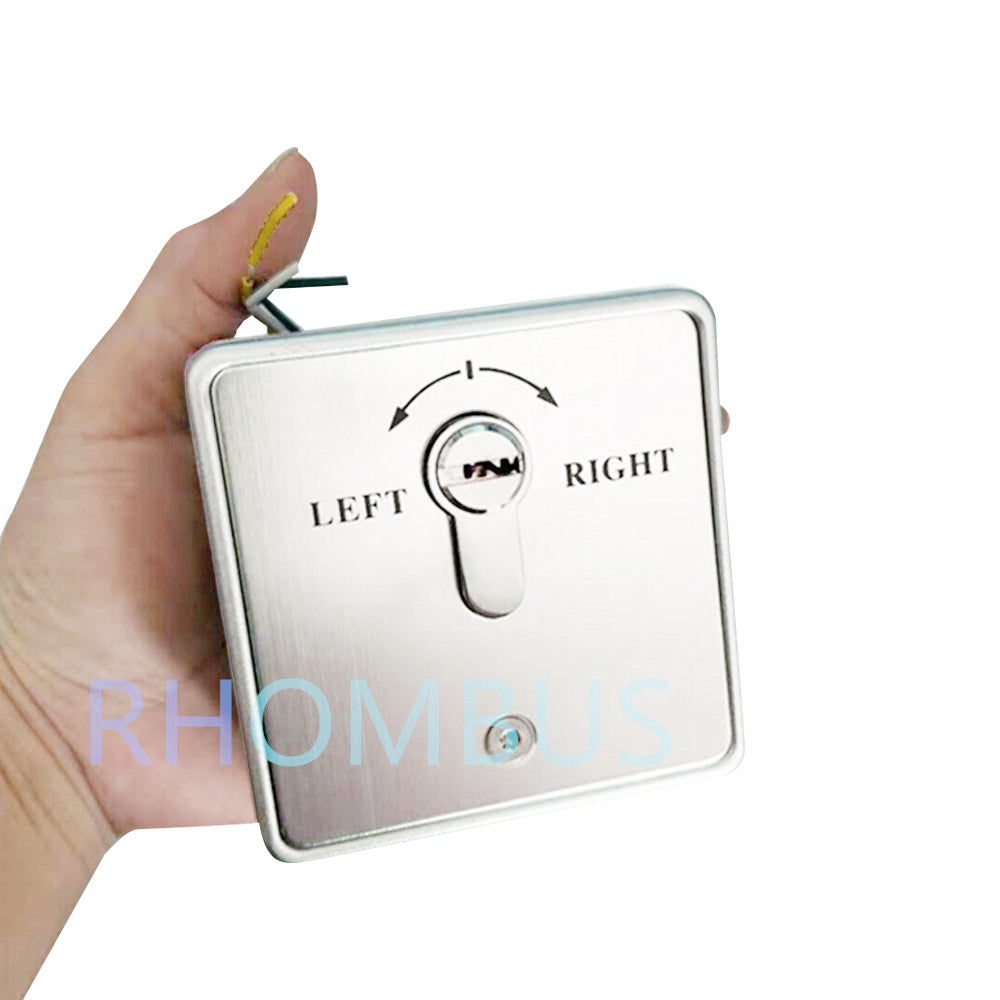

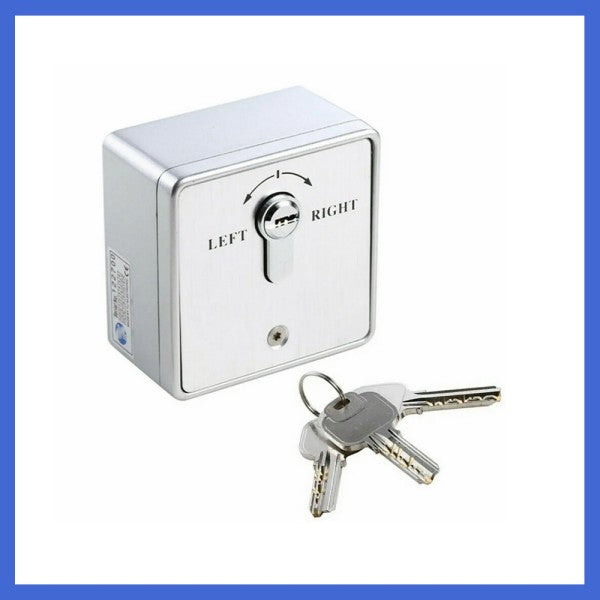

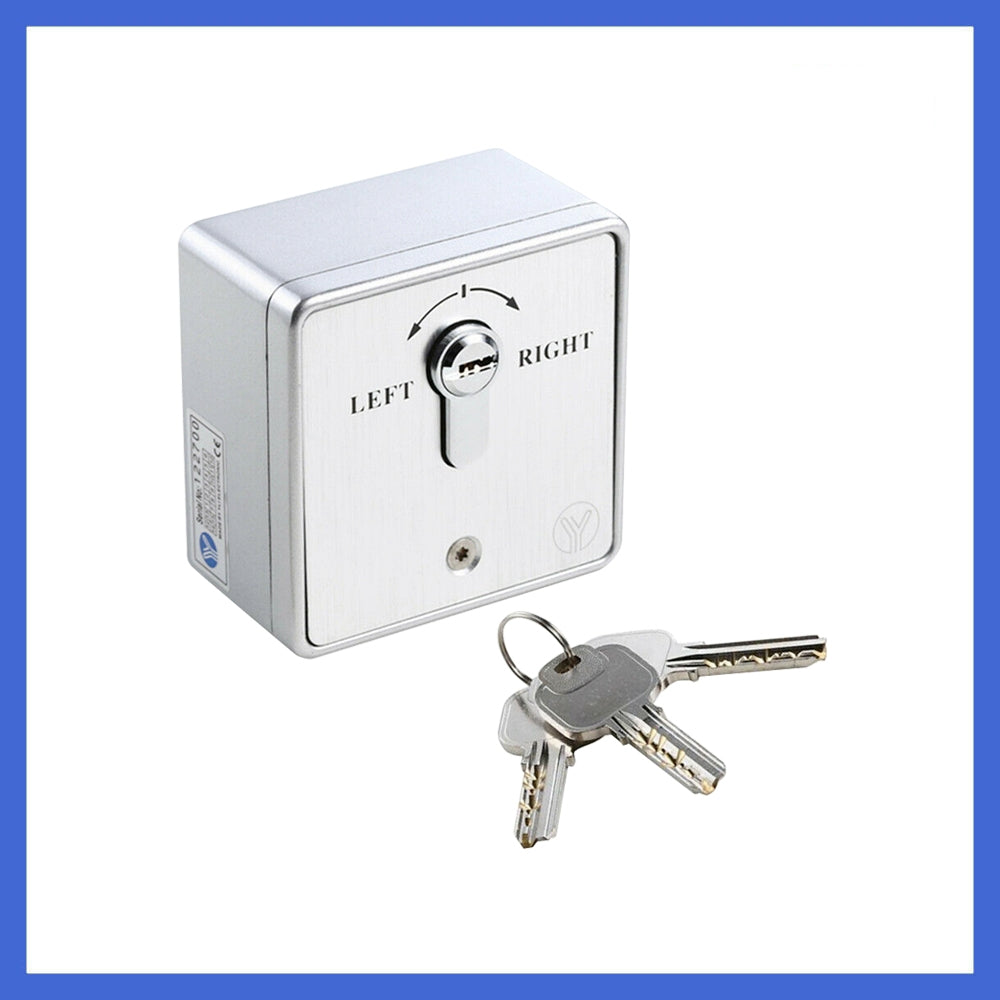

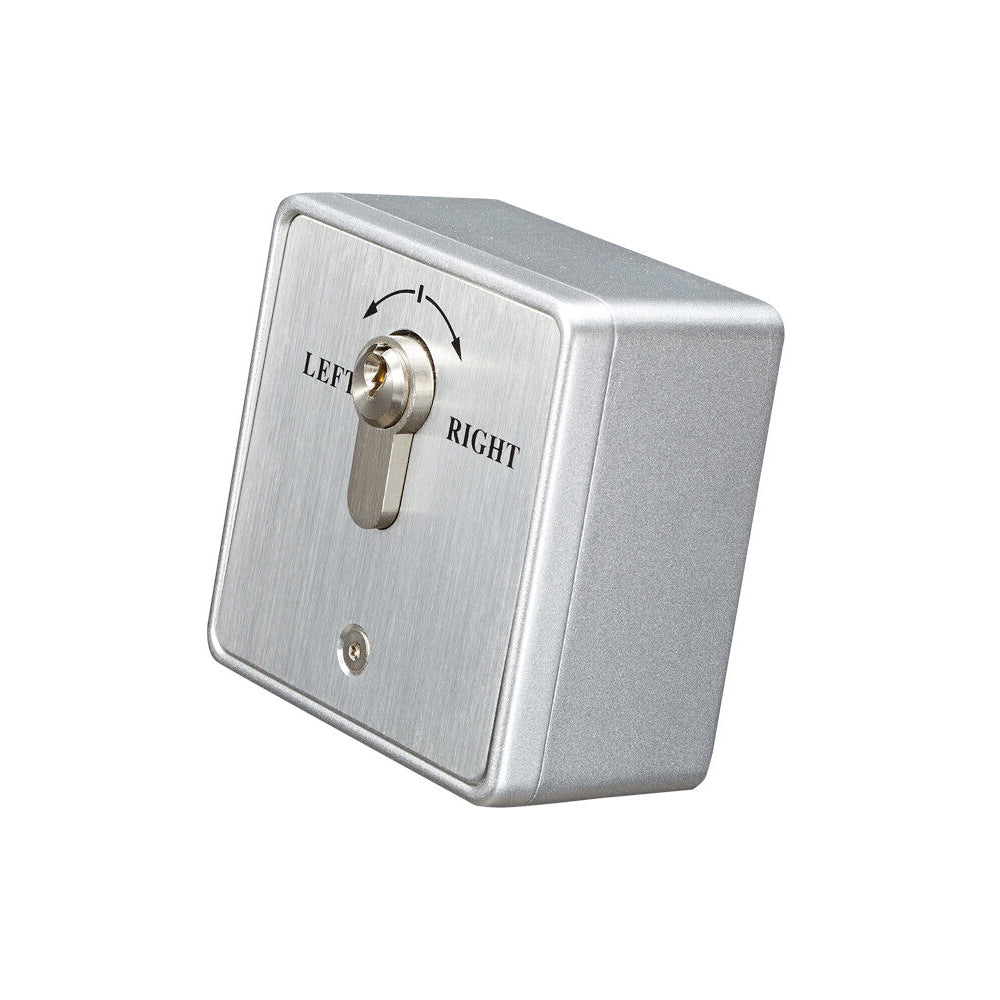

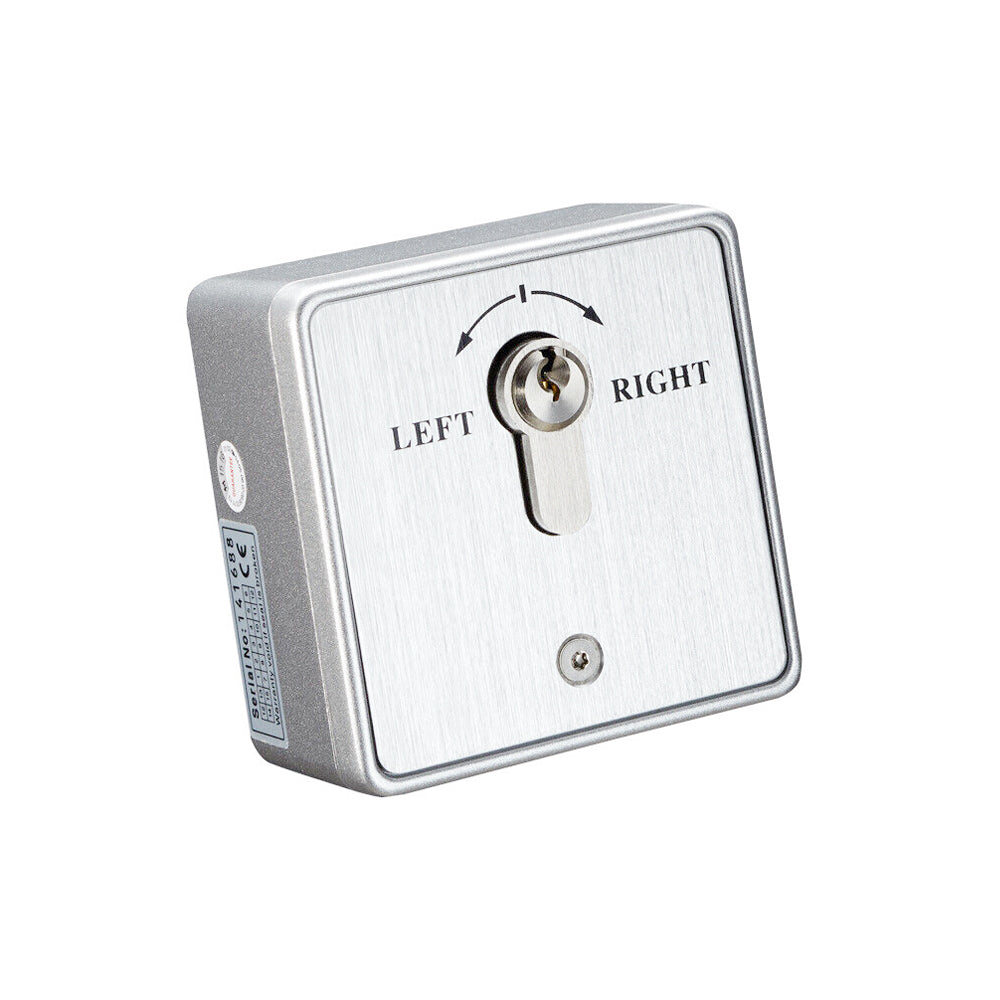

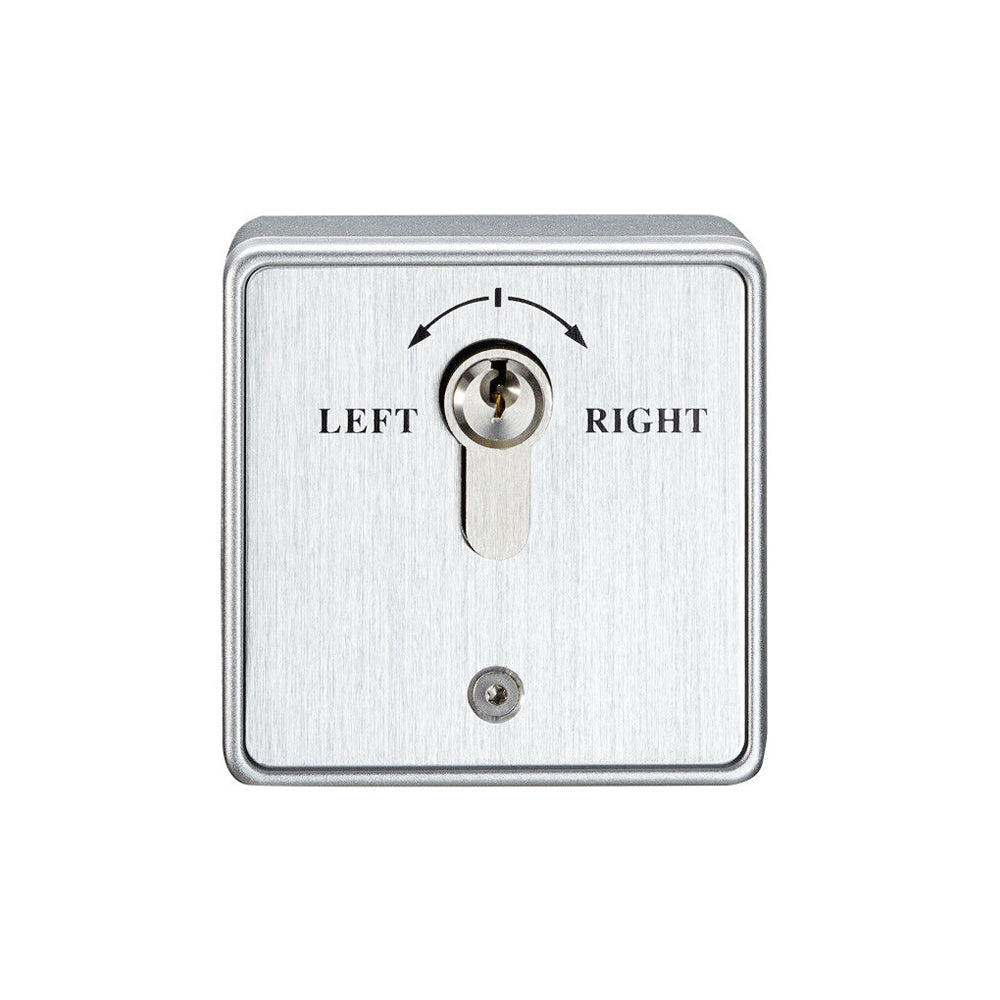

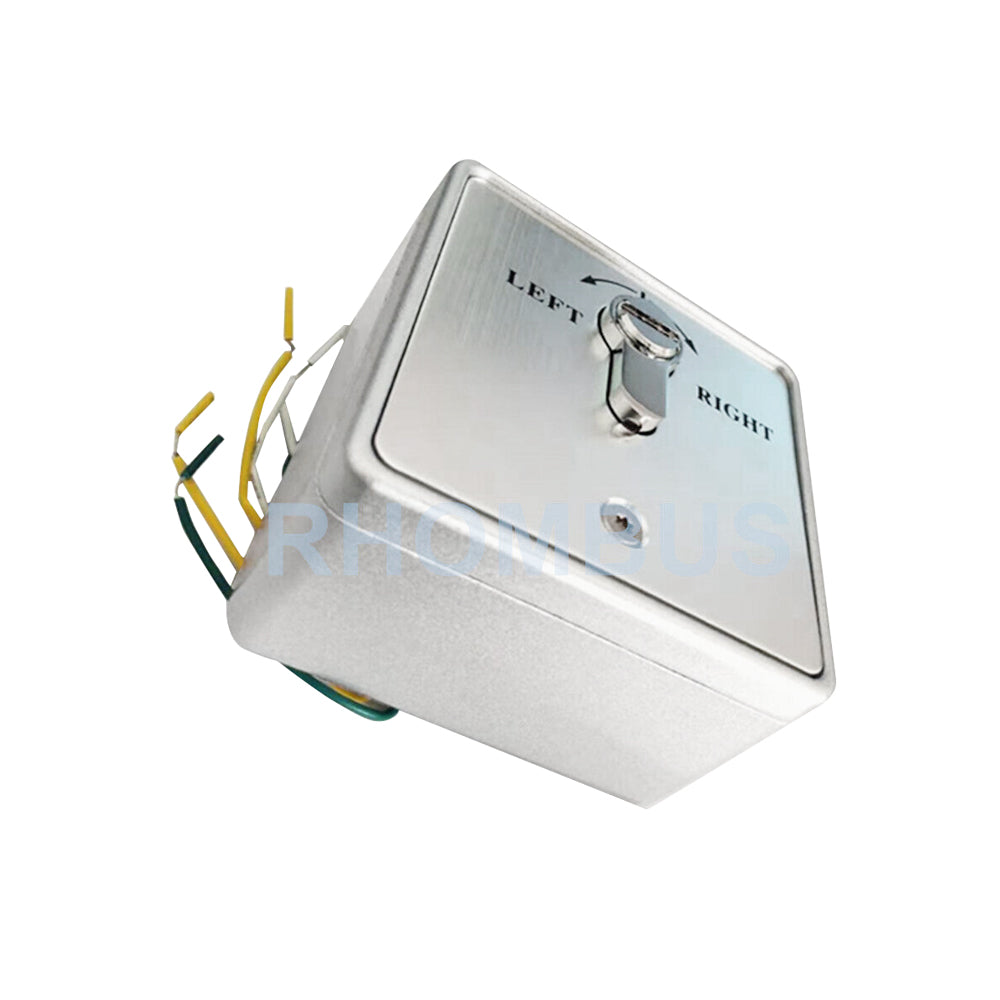

European Type Emergency Release Exit Out Button With Key Switch for Hollow Door



Specification

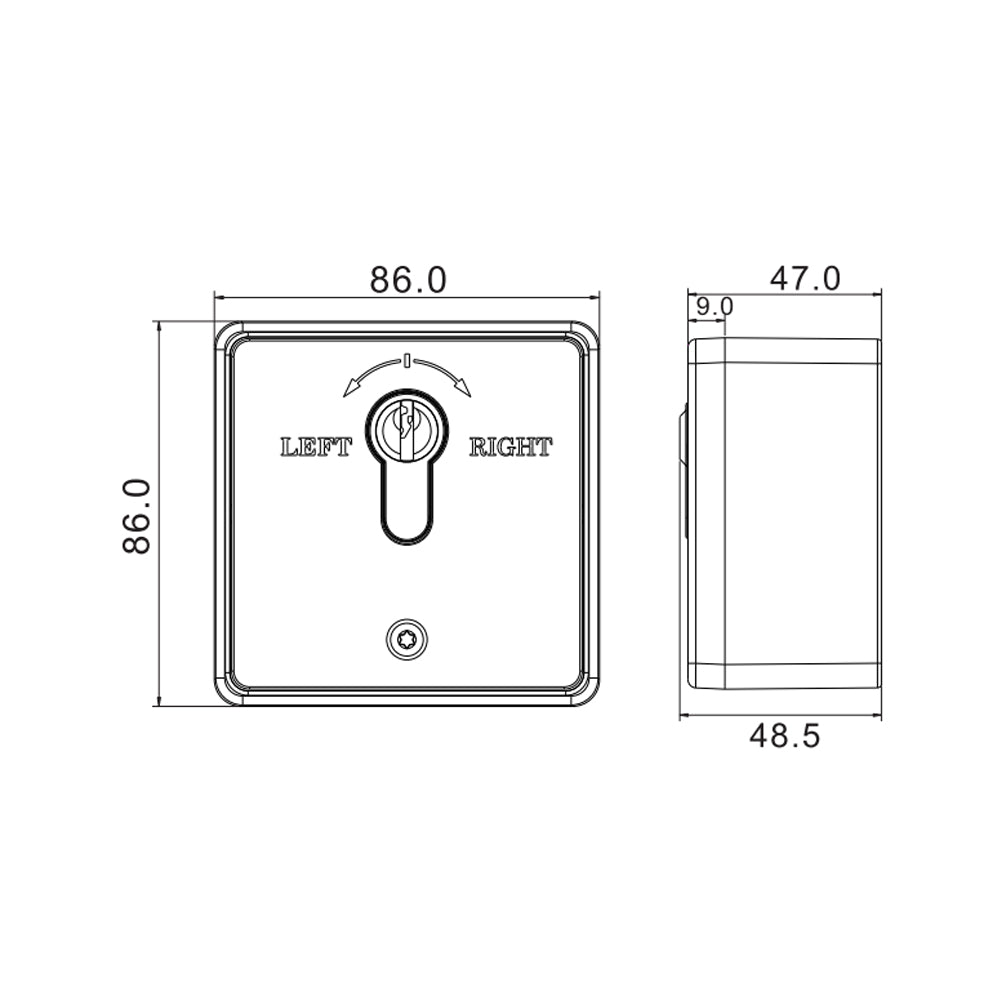

• Size:86Lx86Wx48.5H(mm)
• Finish:be finished with wire drawing
• Current rating: 5A/125VAC (max)

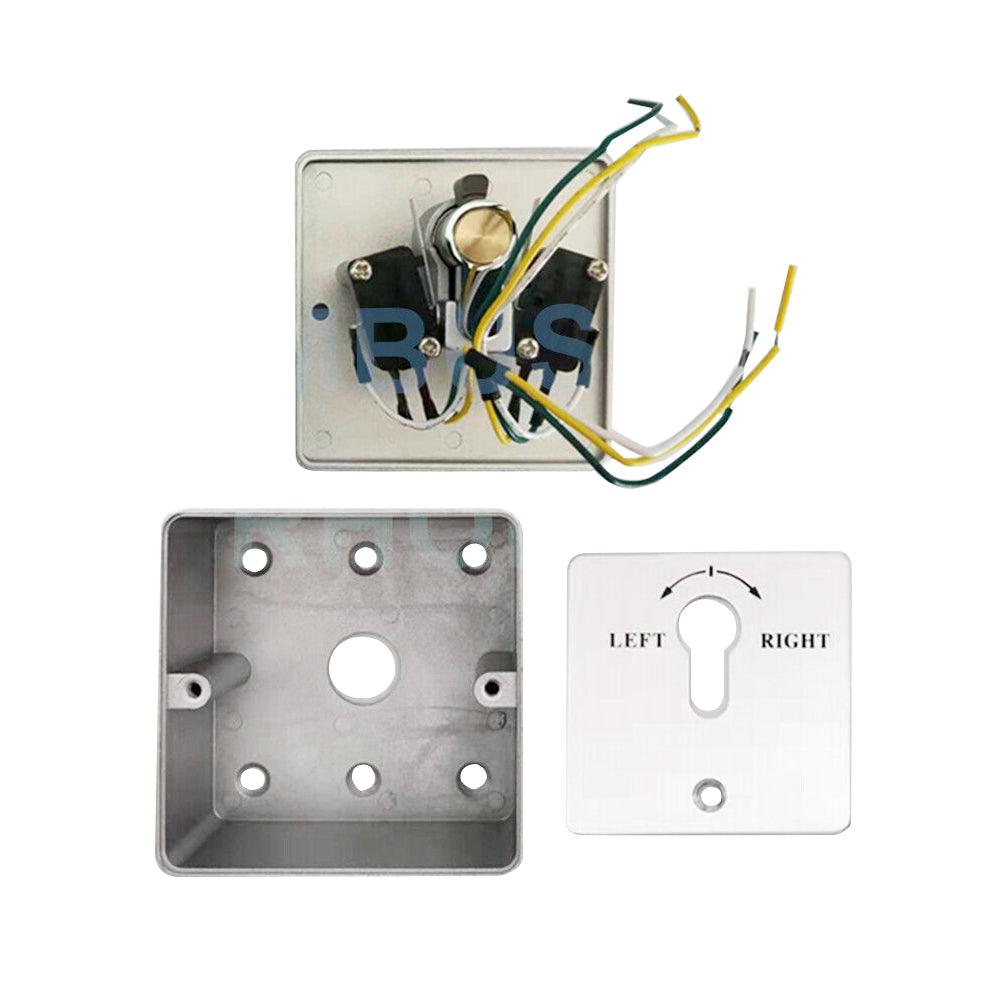

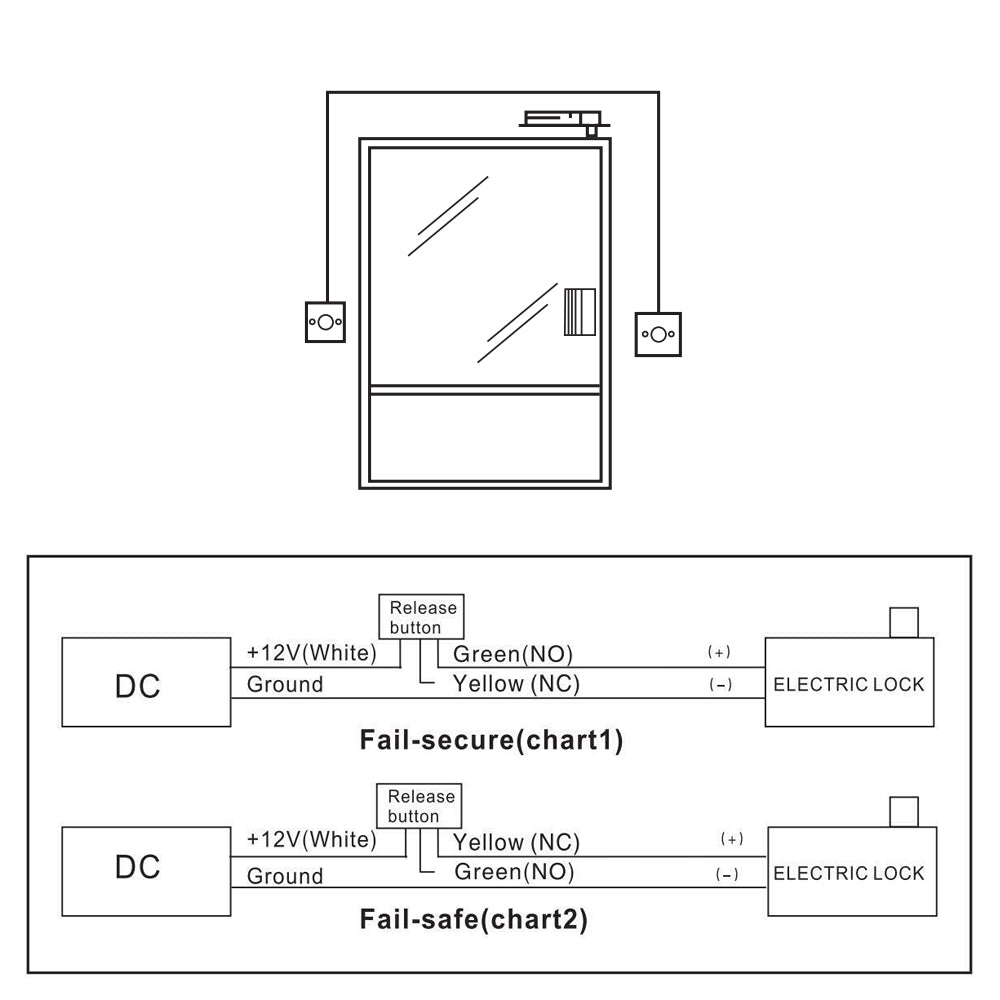

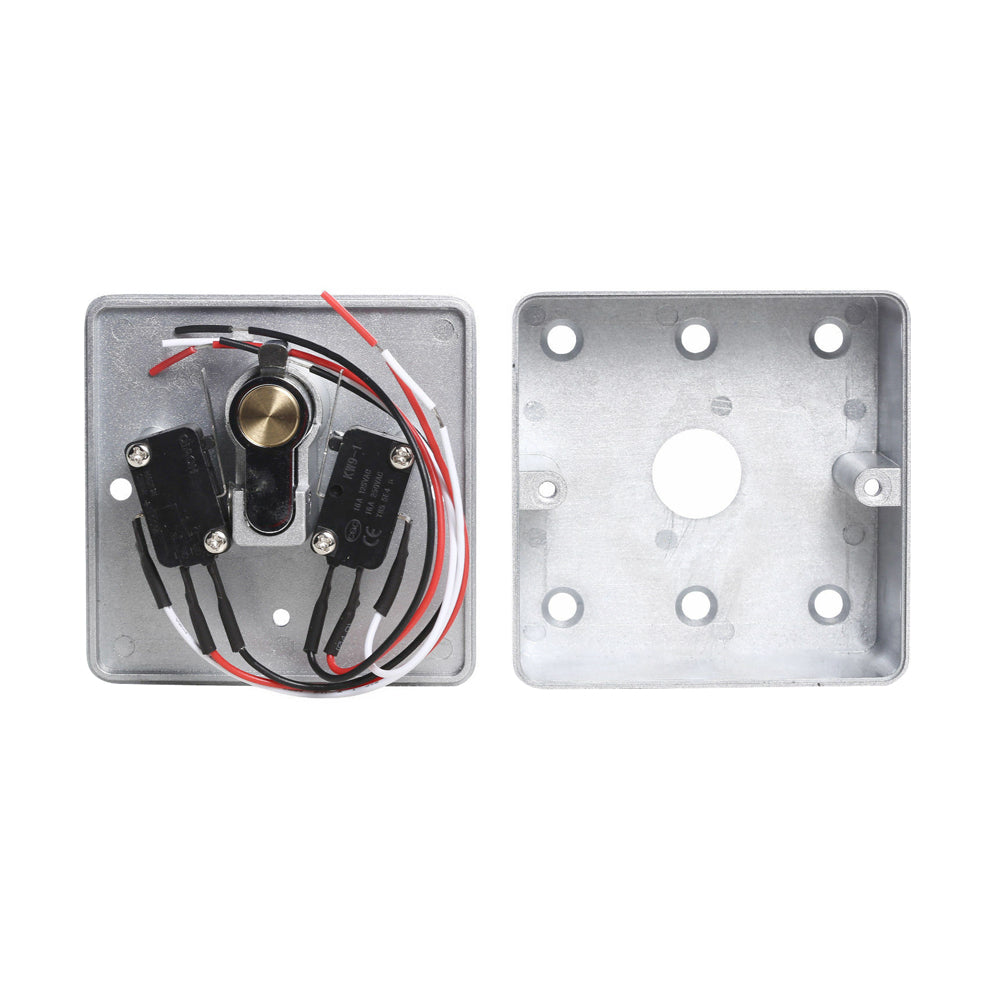

• Output contact: NO/NC/COM, NO/NC/COM
• Mechanical life: 500,000 tested

• Feature:Reset automatically,

                    open & close(need order)

• Suitable for door: Hollow Door
• Safe Type:Weatherproof, defend and Duplicate the Key
• Operating temp:10 ~+55(14-131F)

• Operating humidity:0-95^o/〇 (non- condensing)

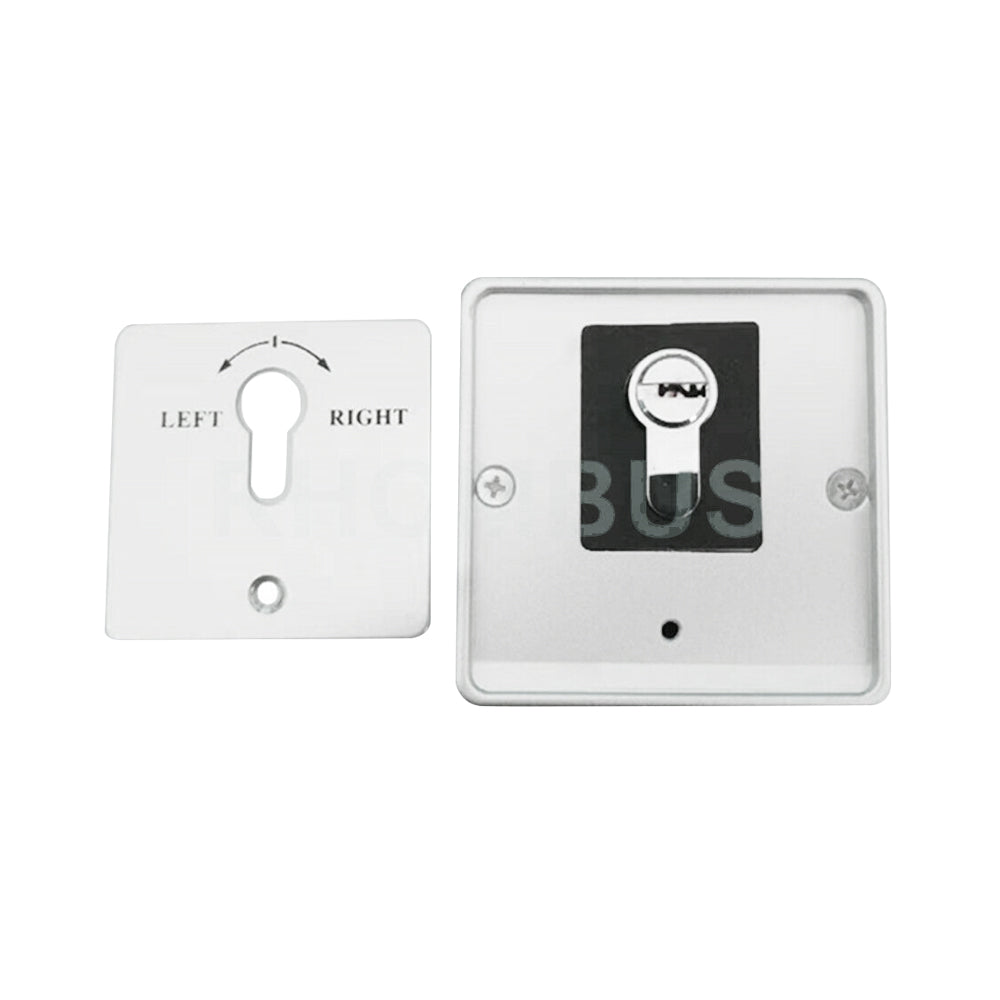

• Panel Material:Aluminium Panel
• Weight：0.67kg

Package:

• 1 x Emergency switch
