Rhombus Access Control System

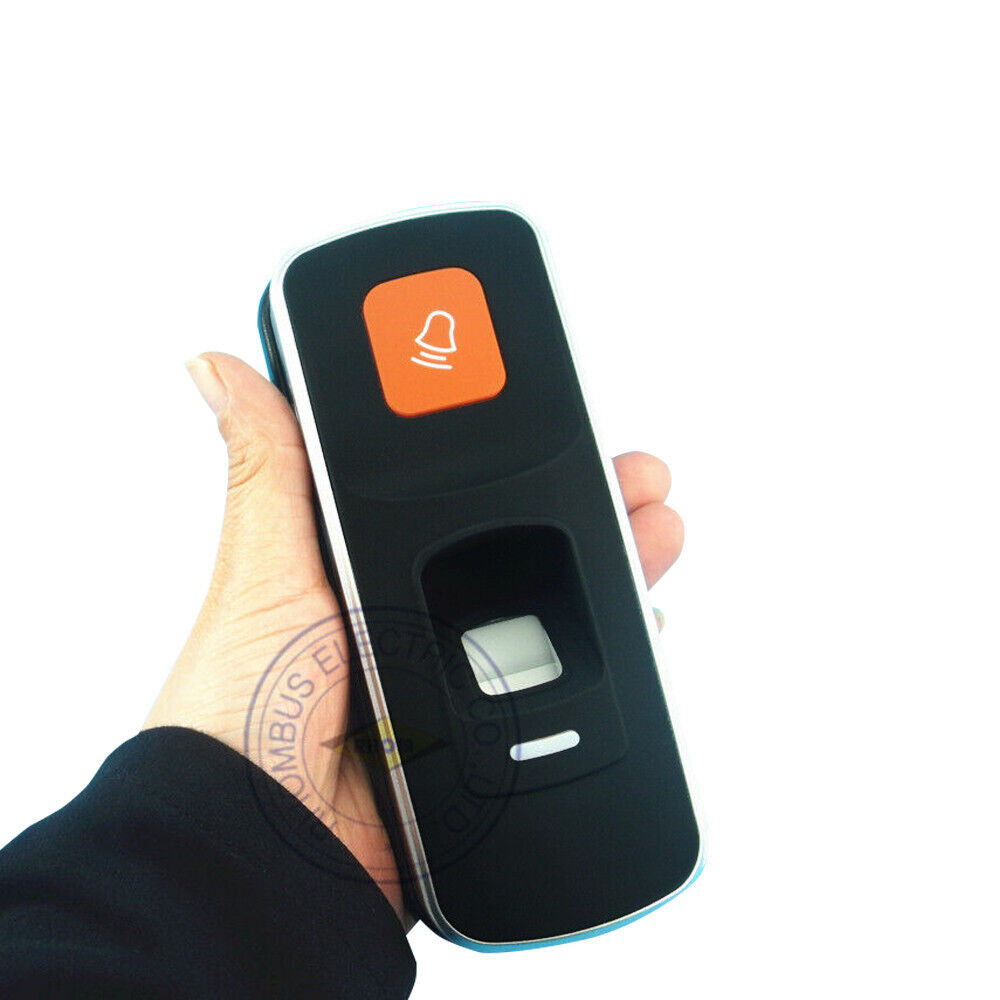

Fingerprint & RFID ID Card Reader Access Attendance Control System Security
Fingerprint & RFID ID Card Reader Access Attendance Control System Security
Regular price
$41.95 USD
Regular price
Sale price
$41.95 USD
Unit price
per
Couldn't load pickup availability
Technical Specifications
|
Model Name |
X660 |
|
Supply Voltage |
12VDC ± 10% |
|
Sleeping Current |
<20mA |
|
Stay Current |
<100mA |
|
Door Relay |
3A |
|
Temperature |
-20°c -60°c |
|
Humidity |
20%RH-80%RH |
|
User fingerprint quantity |
3000 fingerprints &3000 EM Card |
|
Wiegand Interface |
Wiegand26 |
|
Built-in Card Reader |
EM or EM Compatible |
|
Resolution |
450 DPI |
|
Fingerprint input time |
<1S |
|
Identification time |
<2S |
|
FAR |
<0.0001% |
|
FRR |
<0.01% |
|
Dimensions |
155(L) ×66 (W) × 28(H)mm |
Hint: After power on the device,once the tamper alarm is not started, no need to press and hold the tamper button during the operation.
Wiring Diagram
Appearane Instructions
Package:
- 1 x Fingerprint & RFID ID Card Reader Access Control System
