Rhombus Access Control System

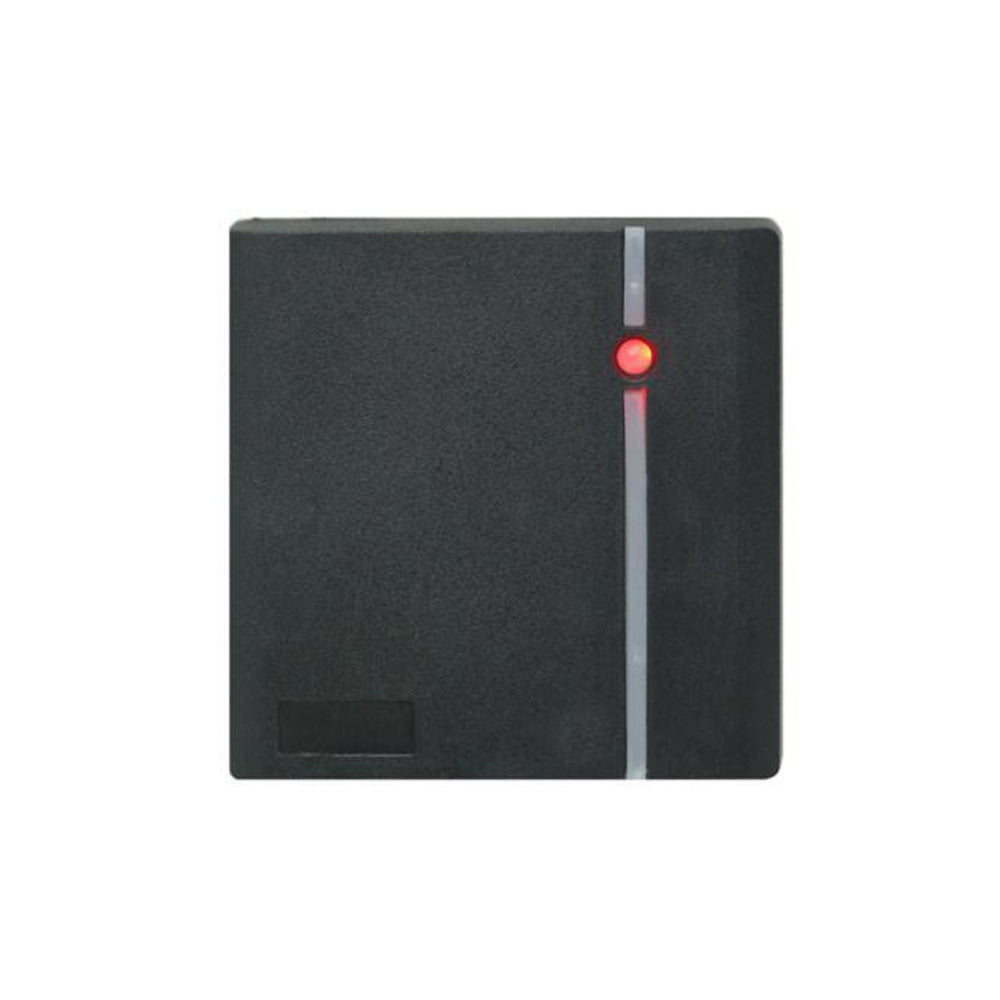

New 125Khz,wiegand26 dual Led 9V 12V epoxy packaged RF contactless EM4100/4102 ID card KO Knock out box READER

New 125Khz,wiegand26 dual Led 9V 12V epoxy packaged RF contactless EM4100/4102 ID card KO Knock out box READER

$16.95 USD
$16.95 USD
Sale Sold out
Color


ModelFC203E

Specification

decode time<0.2s
CommunicationWeigand 26
Card typeEM card , EM compatible card ,EM4100\4102
Induction Distance10~18cm
Power supplyDC12V
DATA transfer range Max 80m
 Currency<100MA
Working Temperature 0~70°C
Working Humidity Less than 80%
Dimension (LxWxH mm)88*88*18
Package plastic casing &epoxy saturated
Colorblack/white optional
Weight (kg)0.25


PIN description



Pin

Color

Description

1

RED

DC12V

2

BLACK

GND

3

GREEN

WG data0

4

WHITE

WG data1

5

YELLOW

BUZZER

6

BLUE

LED
