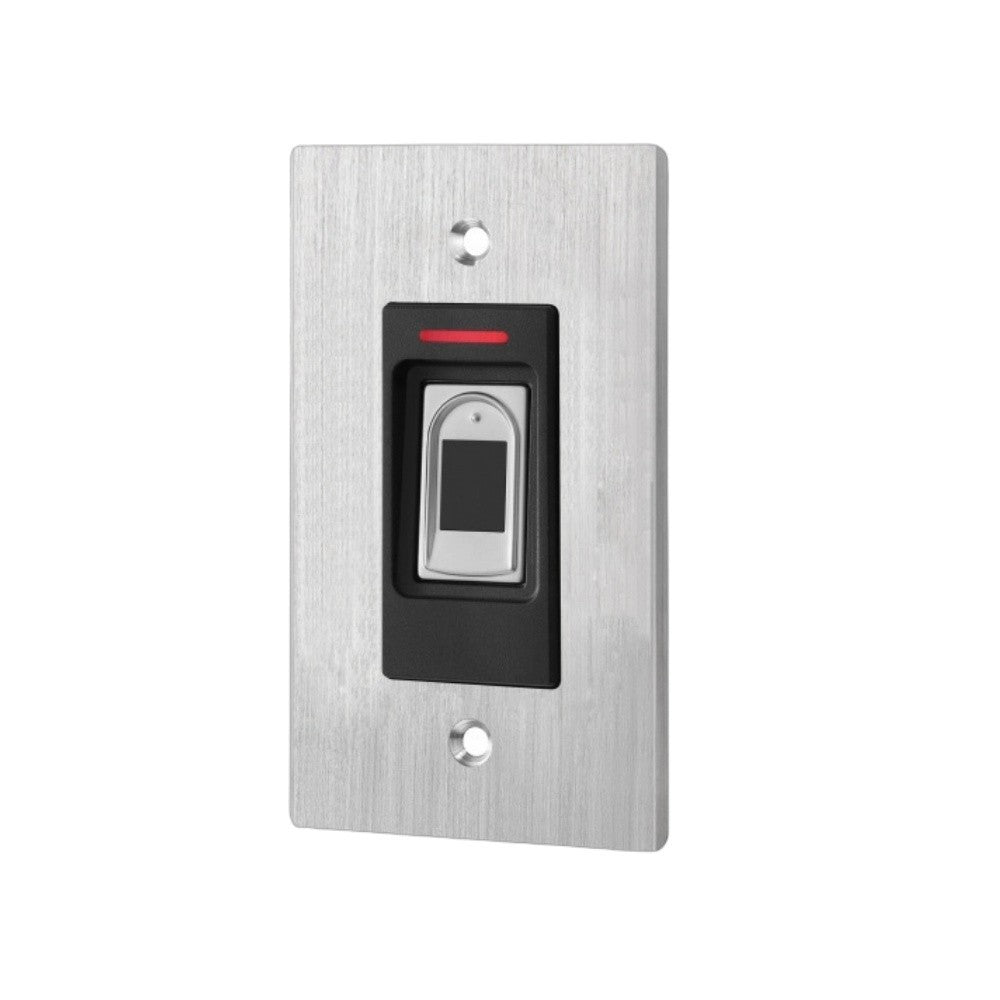

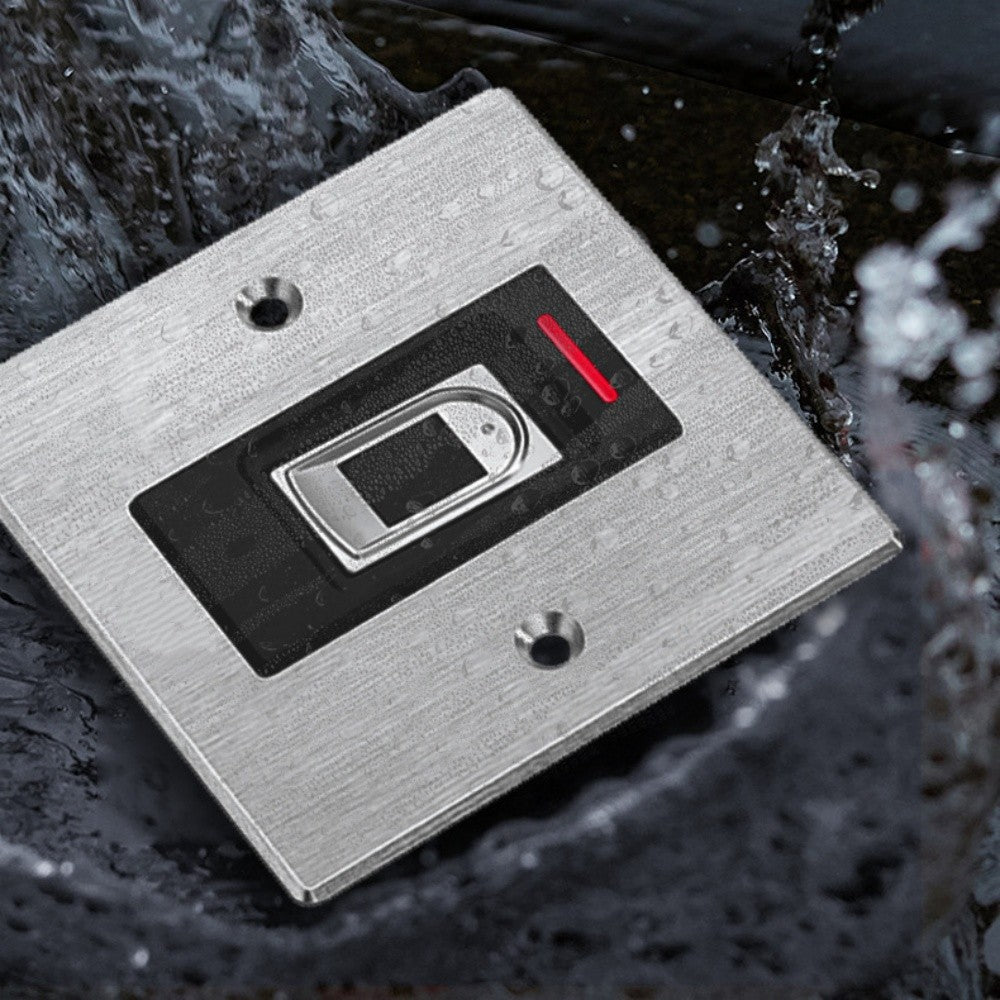

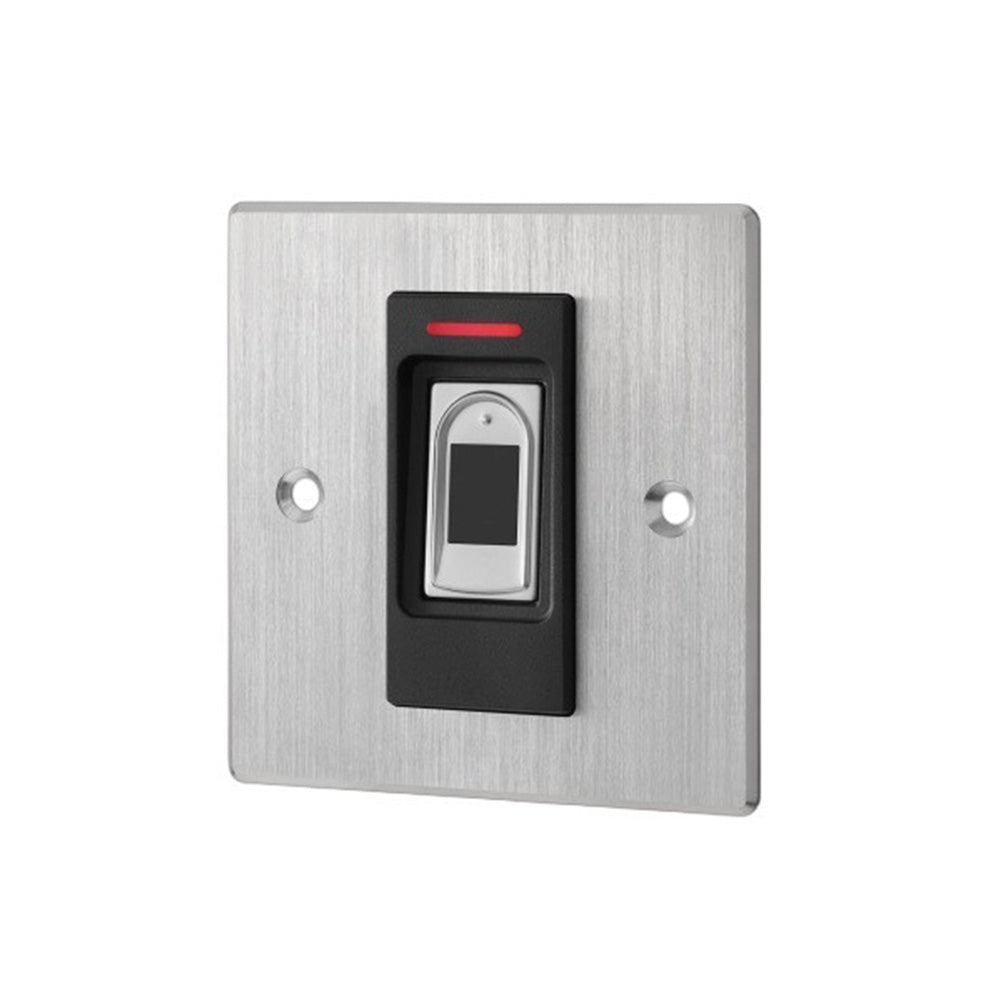

Embedded Waterproof DC12V Fingerprint+ 13.56MHz IC Standalone Access Controller
Embedded Waterproof DC12V Fingerprint+ 13.56MHz IC Standalone Access Controller
Preço normal
$58.95 USD
Preço normal
Preço promocional
$58.95 USD
Preço unitário
por
Não foi possível carregar a disponibilidade de retirada.
Product Parameters
- Operating Current: ≤100mA
- Operating Voltage: DC 12-24V

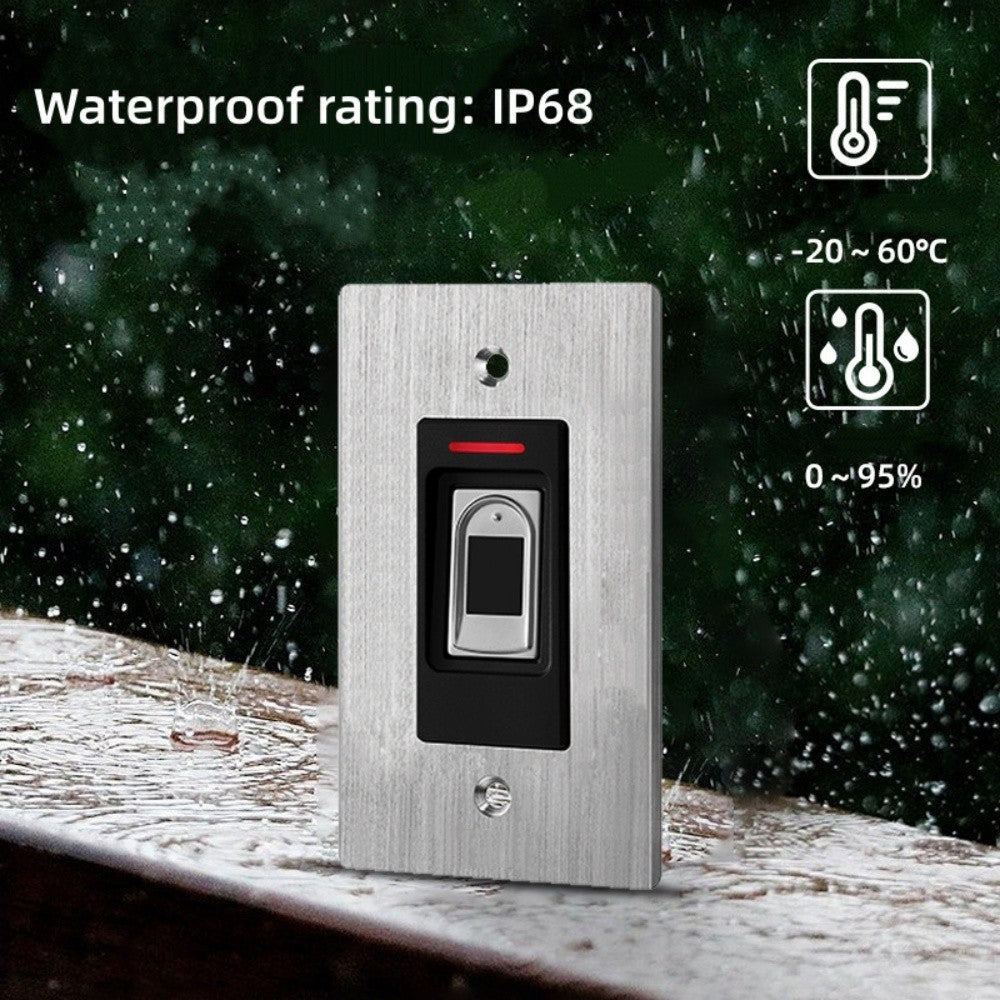

- Operating Humidity: 0%~95%
- Standby Current: ≤ 35mA
- Operating Temperature: -20℃~60℃
- Electric lock signal relay contact current：≤1A
- Alarm signal MOS tube output current: ≤1A Unlocking time: 0~300s adjustable
- Card Type:13.56MHz Mifare S50 S70 IC card
- Keypad Characteristic:Operate by infrared remote
- Output Way:Contain reader mode, the transmission format could be adjusted by users.
- Access Way:Support multi access ways: Card+Fingerprint, multi cards or multi fingerprints
- Admin Card/Fingerprint:Support admin card/admin fingerprint
- User Capacity:10,000 card users and 300 fingerprint users
- Unlocking Signal:Relay NO/NC/COM output

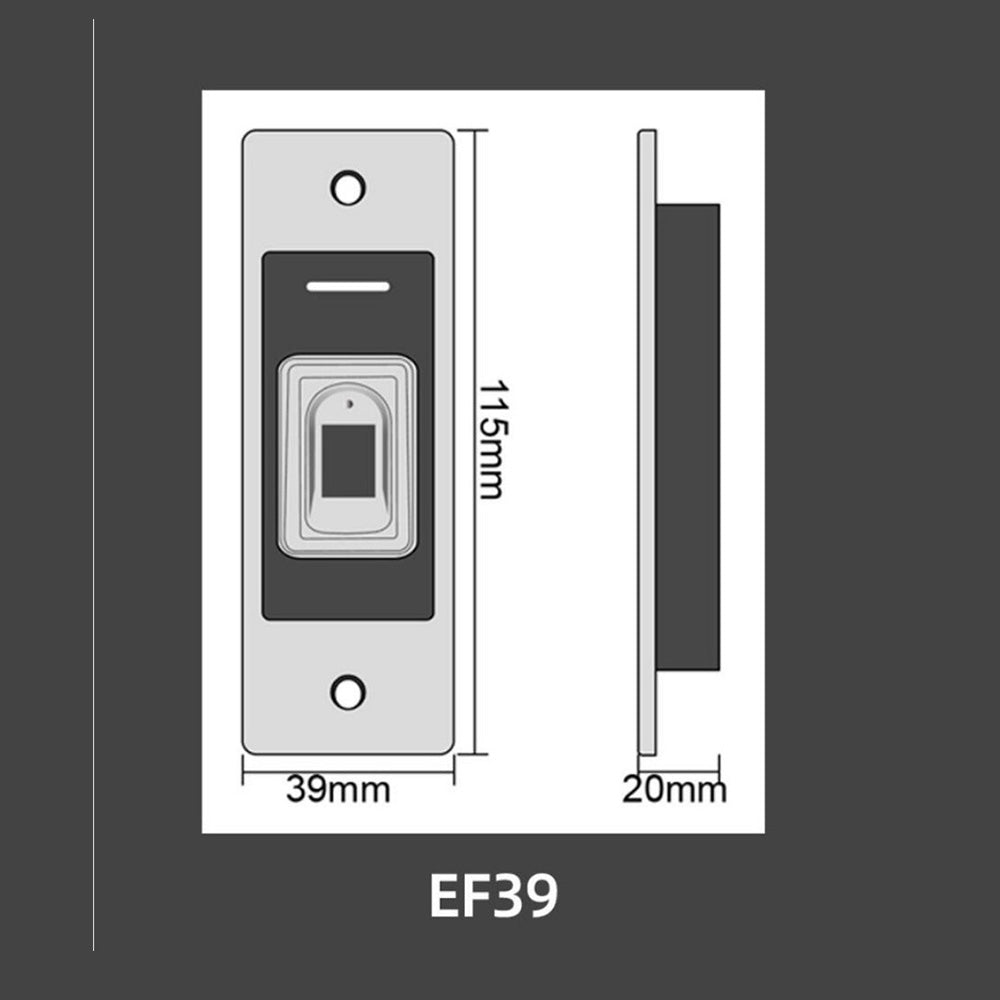

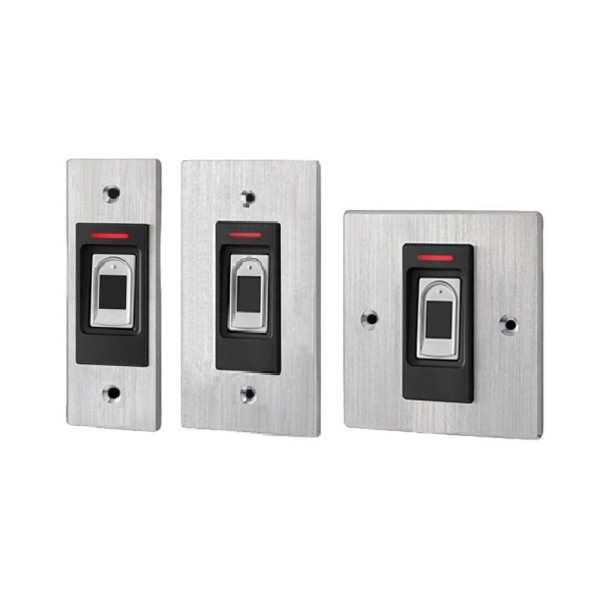

- Size：EF39: 115mm*39mm*20mm
EF70: 115mm*70mm*20mm

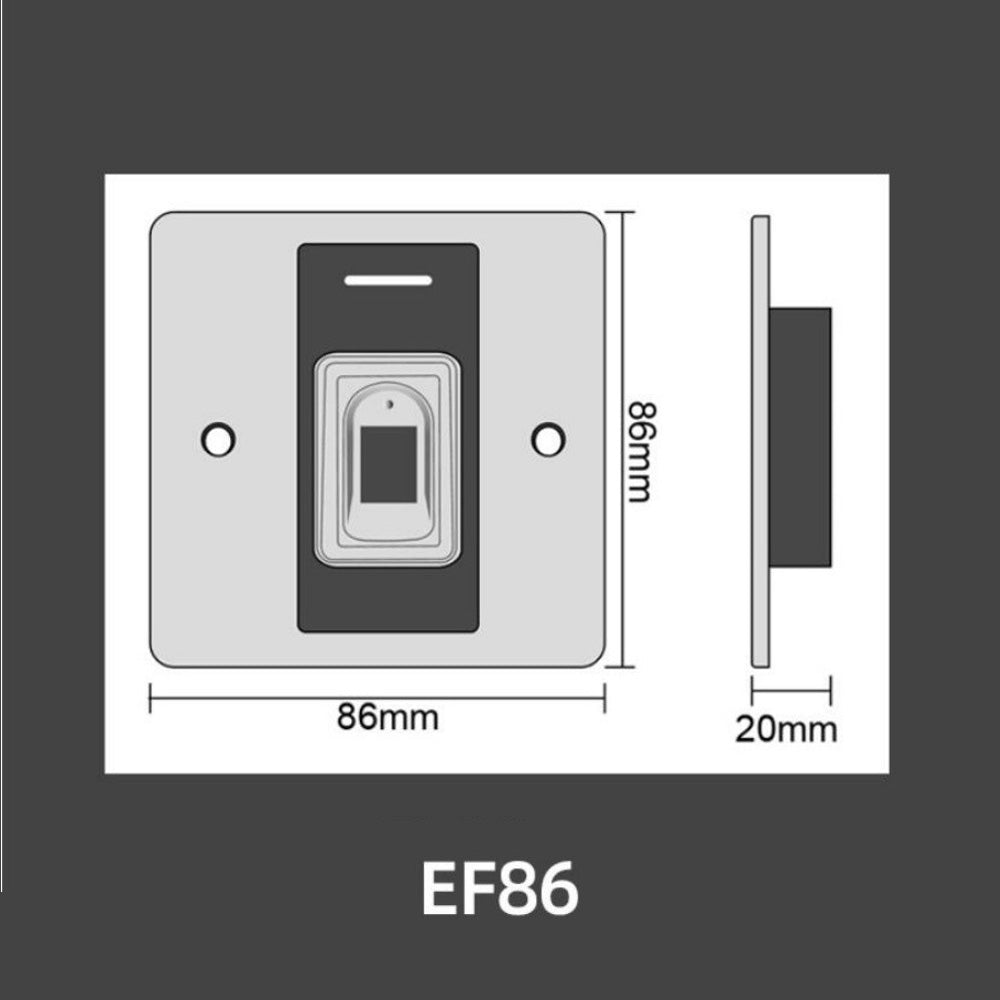

EF86: 86mm*86mm*20mm
Wiring
| No. | Color | Marks | Description |
| 1 | Green | D0 | Wiegand input (Wiegand output as reader mode) |
| 2 | White | D1 | Wiegand input (Wiegand output as reader mode) |
| 3 | Grey | ALARM | Alarm signal MOS tube drain output end (optional) |
| 4 | Yellow | OPEN/ BEEP | Exit button input end (Beeper input as reader mode) |
| 5 | Brown | D_IN/ LED | Door contact switch input end (LED input as reader mode) (optional) |
| 6 | Red | +12V | Positive power supply |
| 7 | Black | GND | Negative power supply |
| 8 | Blue | NO | Relay NO end |
| 9 | Purple | COM | Relay COM end |
| 10 | Orange | NC | Relay NC end |
Diagram
Package

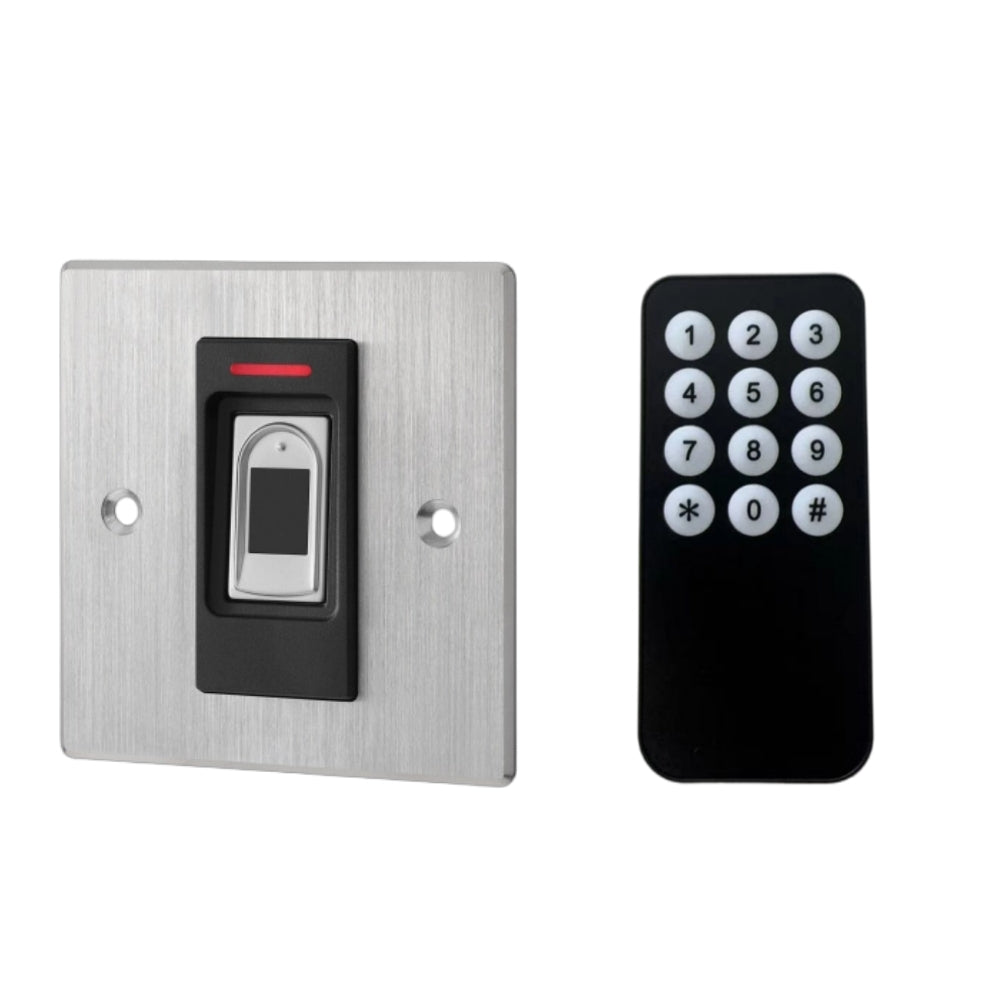

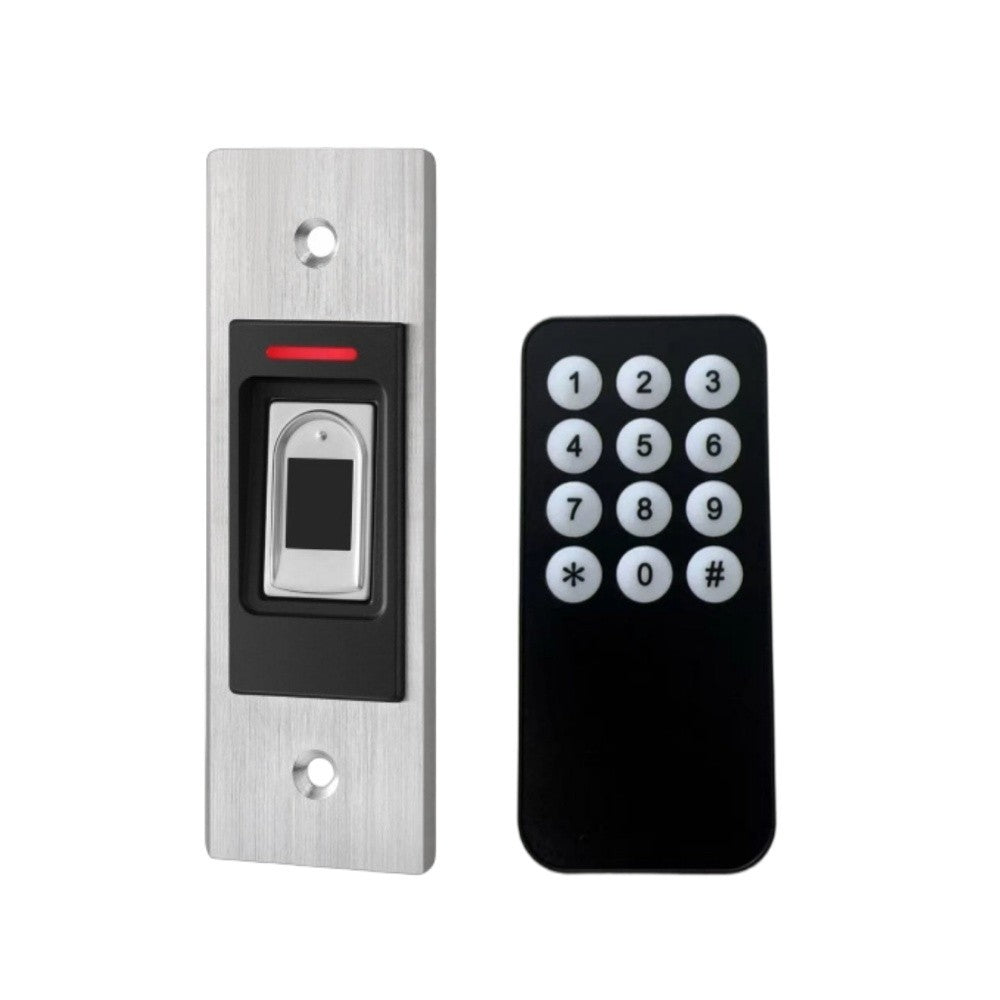

- 1 x standalone access control
- 1 x remote control
- 1 x Add card
- 1 x Delete card
- 1 x Set card
