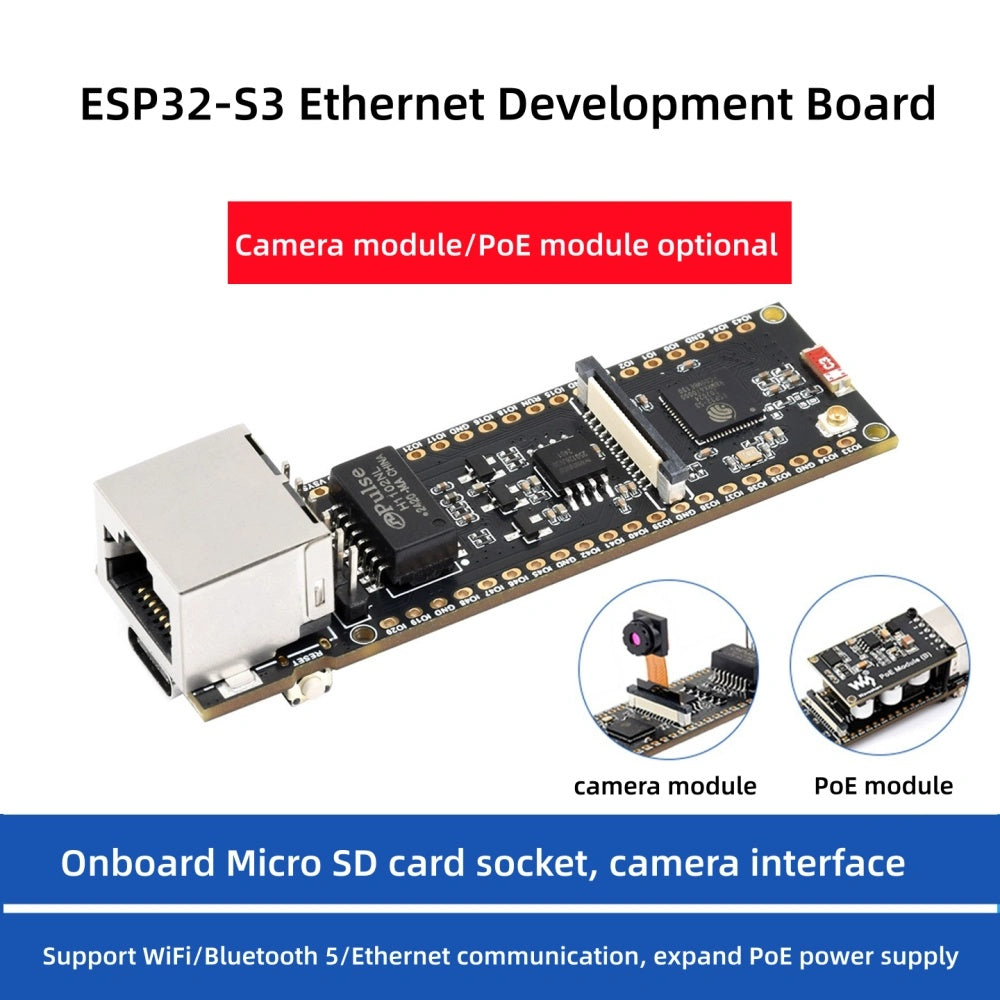

ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet port, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor, ESP32 Ethernet Development Board

ESP32-S3 ETH Development Board

Supports Wi-Fi, Bluetooth, and Ethernet communication, Optional For PoE Function

Onboard TF card slot, camera interface and Pico-compatible header

Features

This is an ETH development board based on ESP32-S3R8, supports Wi-Fi and Bluetooth wireless communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.

Key features include:

• Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
• Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna
• Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
• Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
• Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture
• Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• Onboard TF card slot for external TF card storage of pictures or files
• Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

Version options

ESP32-S3-ETH
the ETH development board only

ESP32-S3-ETH-CAM-KIT
ETH development board + OV5640 camera

ESP32-S3-POE-ETH-CAM-KIT
ETH development board + OV5640 camera + PoE module

ESP32-S3 Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz

WIFI and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support

Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Powerful AI Computing Capability & Reliable security features

Easier to develop

Integrates TF card slot, camera interface and Ethernet port

TF card slot

Camera interface

Ethernet port

the PoE module is required

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.

Supports OV2640 / 0V5640 and other mainstream cameras

Optional for OV5640 2MP camera module, suitable for image capture, video monitoring and other applications to meet different needs

What's On Board

interface definition

Compatible with Pico header, can be used with some Raspberry Pi Pico HATs, offering strong compatibility and expandability

Usage Example

outline dimensions
