Rhombus Access Control System

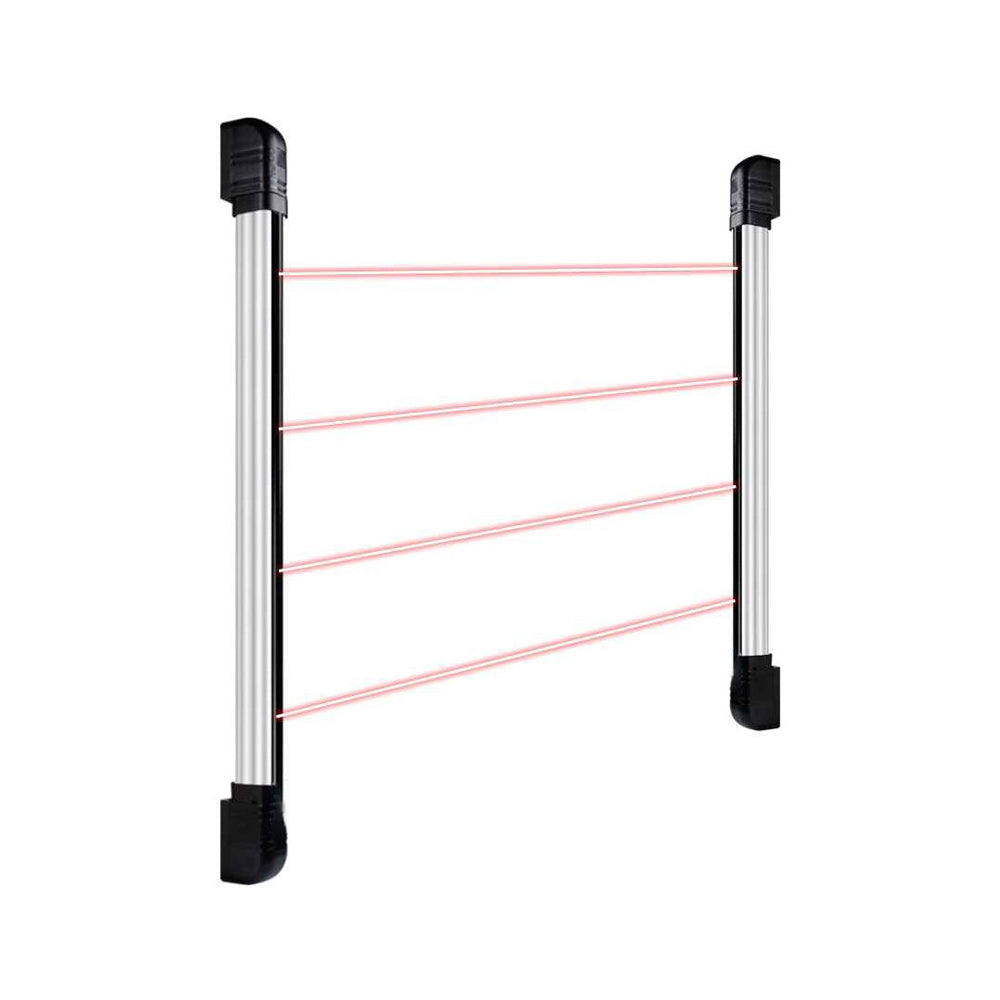

10-100meters range 76 cm height 4 beams Infrared barrier detector
10-100meters range 76 cm height 4 beams Infrared barrier detector
Обычная цена
$59.95 USD
Обычная цена
Цена со скидкой
$59.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Features:
| * Multiple Interactive infrared beams shooting. Adjacently 2 beams interruption detection. | ||||||||
| * NC/NO relay output. | ||||||||
| * Easy alignment with visual LED indicator and audible buzzer | ||||||||
| * High quality aluminum alloys cover. | ||||||||

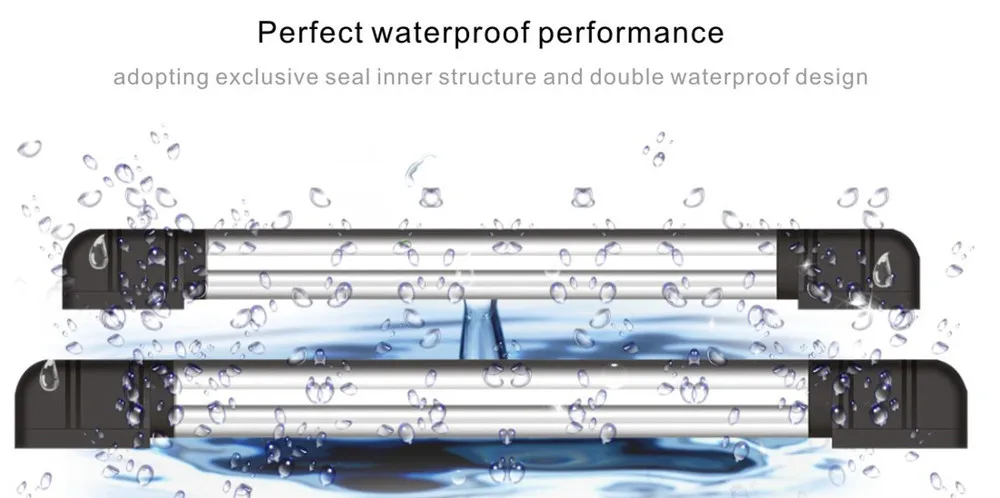

| * Resistant to rain, fog, snow and frost. | ||||||||

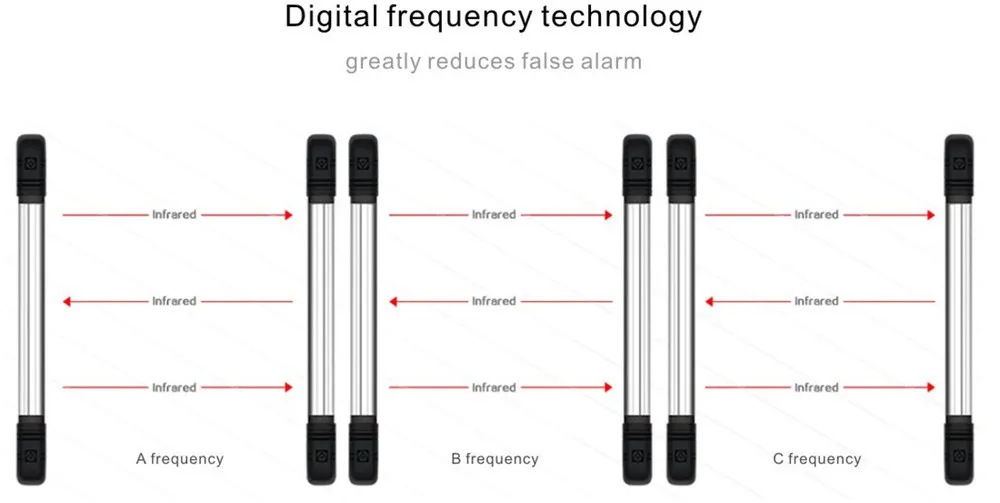

| * Digital frequency conversion. | ||||||||

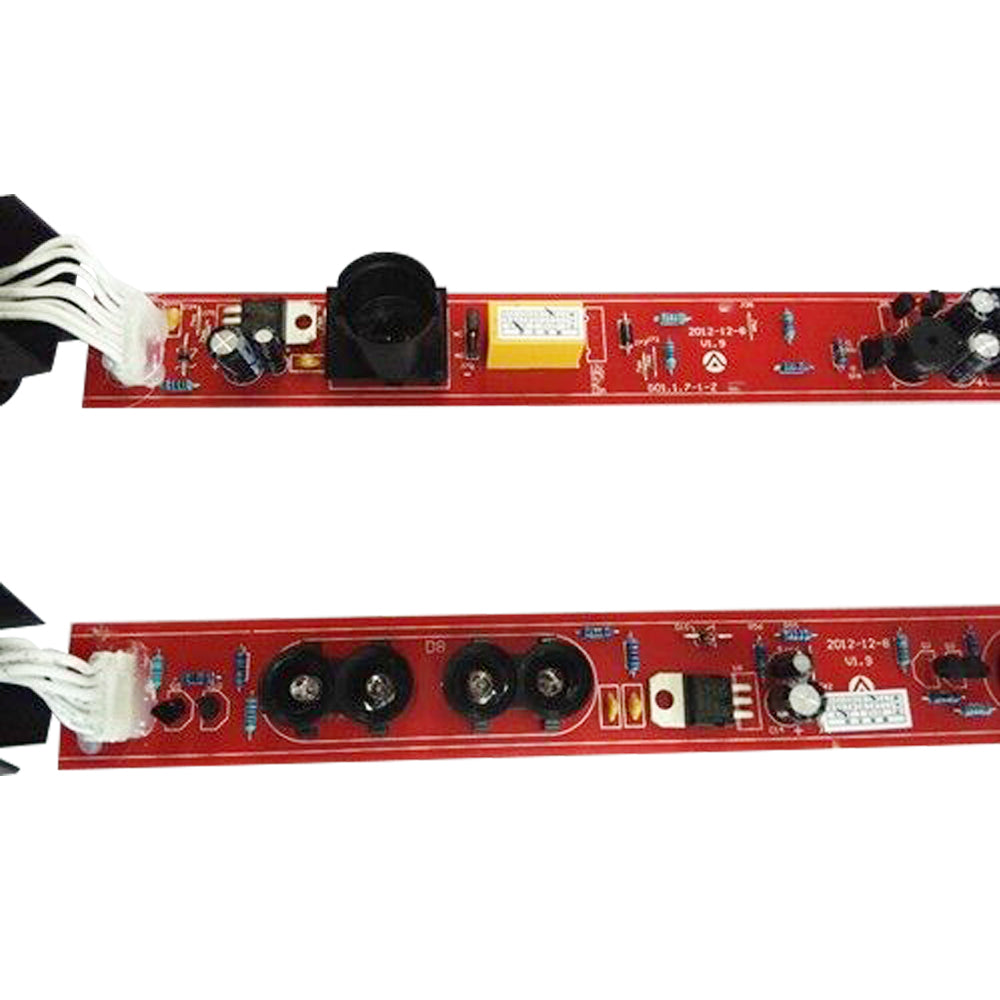

| * CPU microprocessor, good performance against outdoor interference. | ||||||||
| * AGC pure digital circuit design, DSP digital chip programming, really reduce false alarm | ||||||||
|
* Horizontal optical angle can be easy to adjust (180°) |
|
Model |
ABI10-764 |
ABI30-764 |
ABI60-764 |
ABI100-764 |
|
Detecting |
10m
|
30m |
60m |
100m |
|
Height |
76cm |
|||
|
Number of Beams |

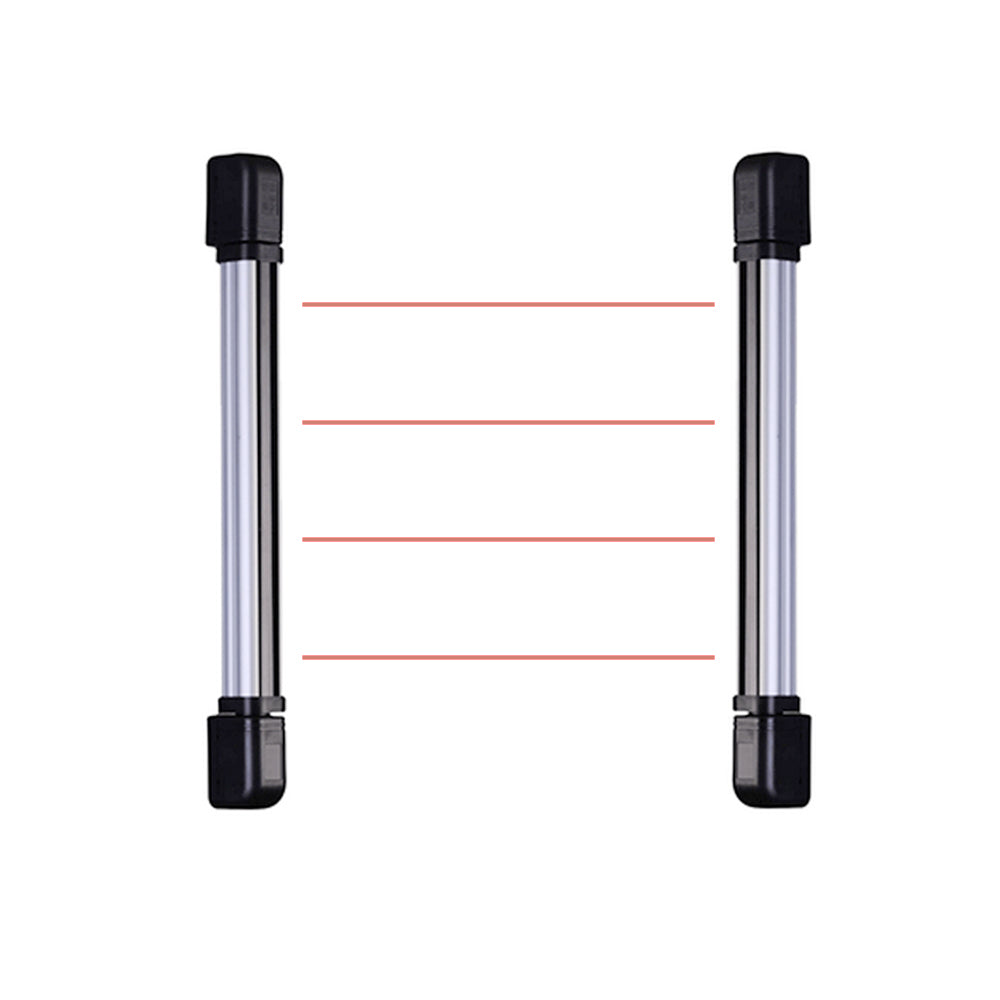

4 beams |
|||
|
Response Speed |
40m/s |
|||
|
Detection method |

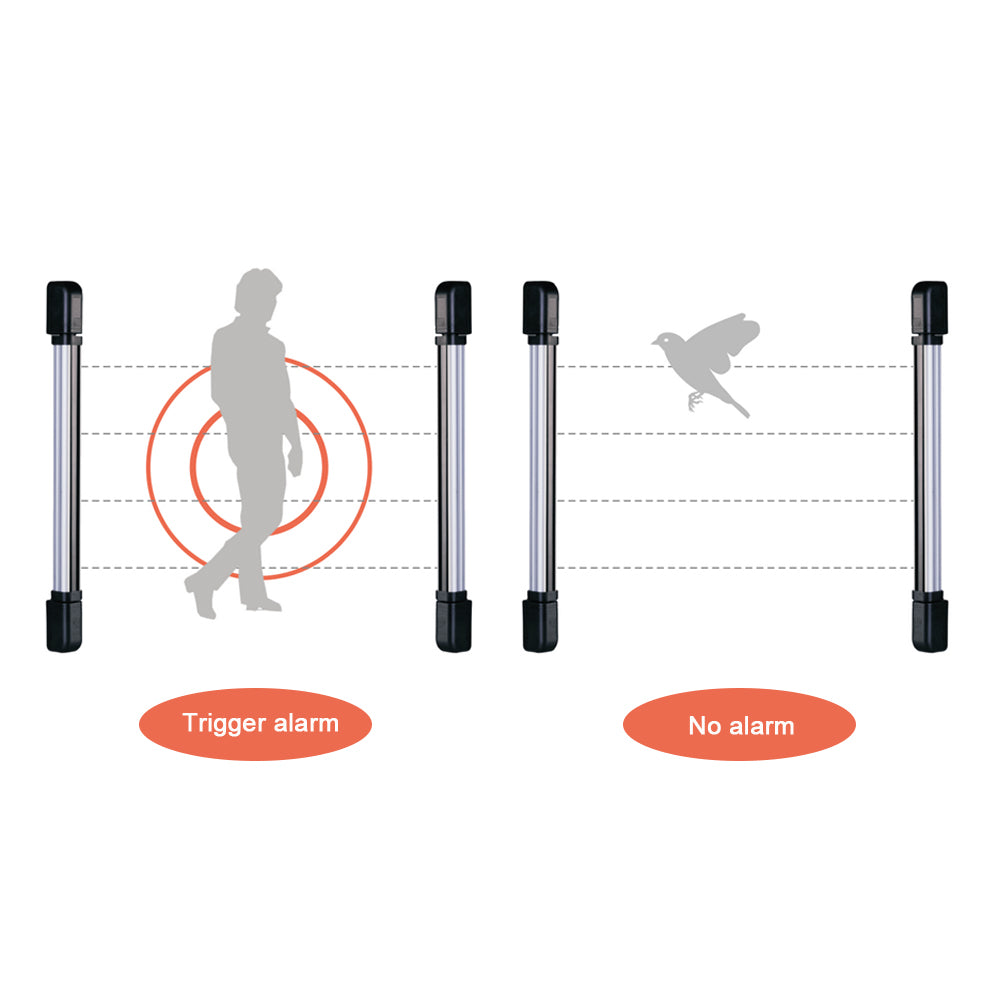

Simultaneous linteruption of adjacent1 infrared beams |
|||
|
Alarm Output |
Switch signal output(NO/NC) |
|||
|
Tamper Output |
NO/NC.1B contact output,DC26V/0.5A Max |
|||
|
Power and Voltage |
DC10-18V |
|||
|
Operation Current |
50-90mA max |
|||
|
Material |
Aluminum,PC engineer plastic |
|||
|
Working Temperature |
-25°c~+55°c |
|||
