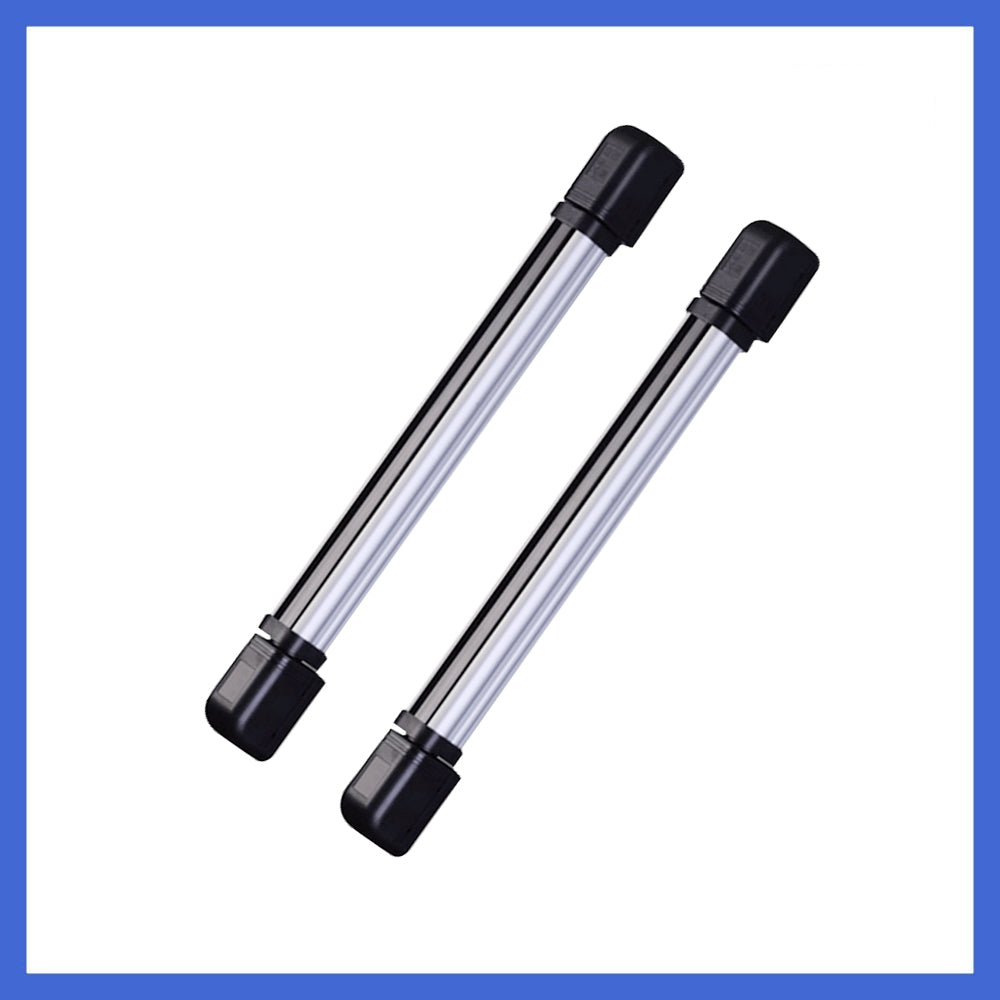

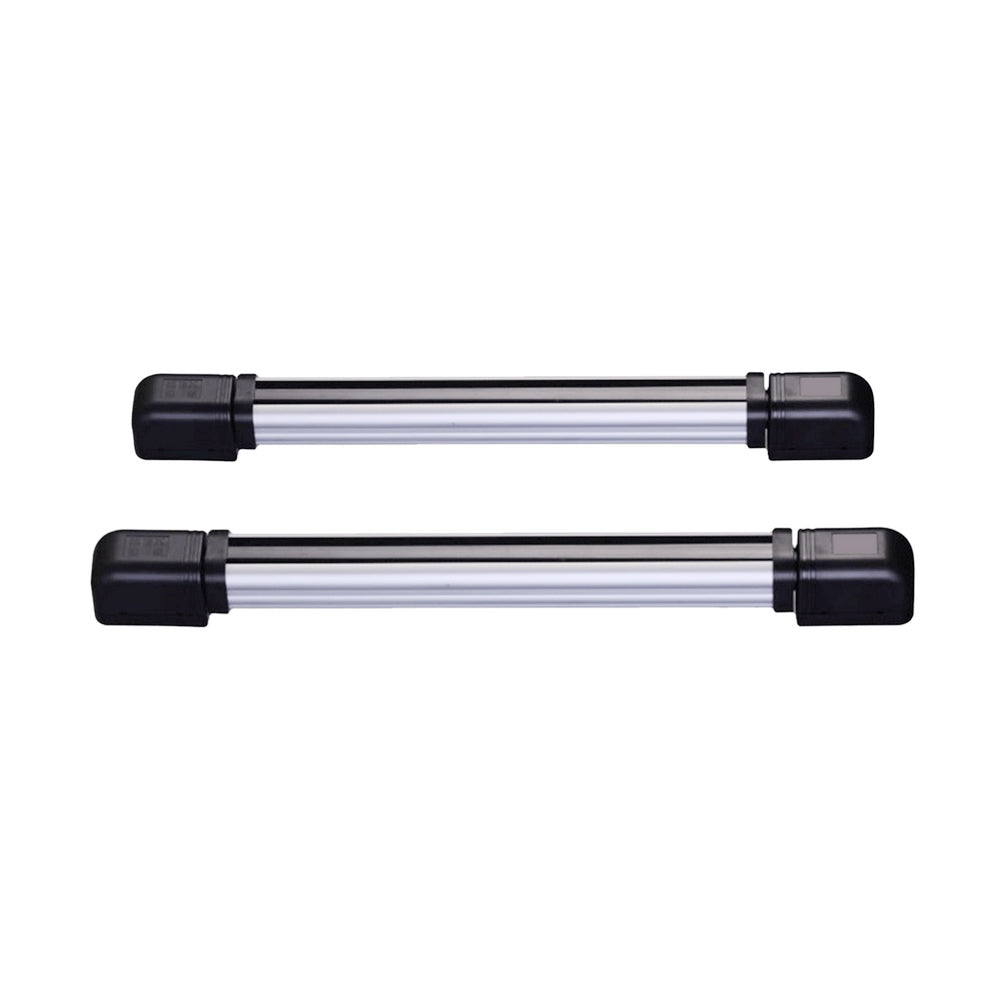

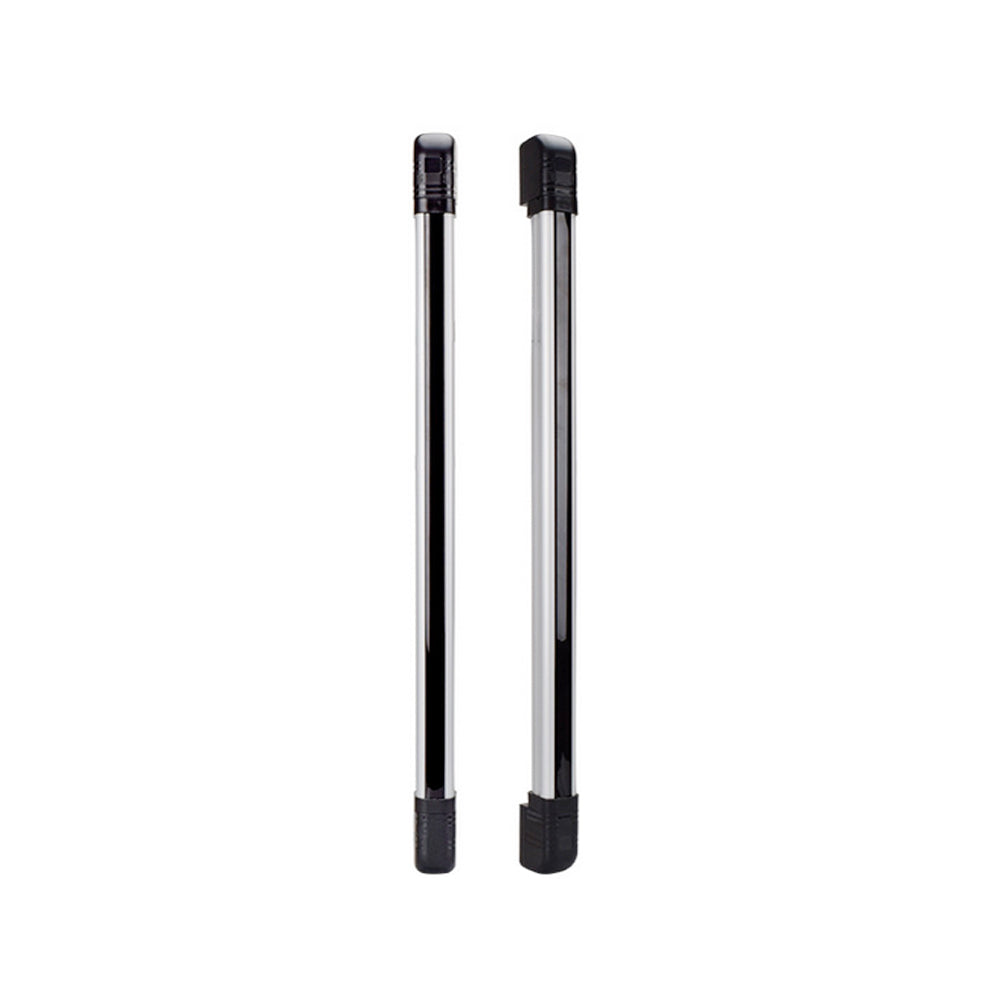

Rhombus Access Control System

10-100 meters range 48 cm height 2 beams Infrared barrier detector range

10-100 meters range 48 cm height 2 beams Infrared barrier detector range

Обычная цена $34.95 USD
Обычная цена Цена со скидкой $34.95 USD
Распродажа Продано
Model


100 meters range 48 cm height 2 beams Infrared barrier detector Item Informatio - Picture 12 of 12
Features:

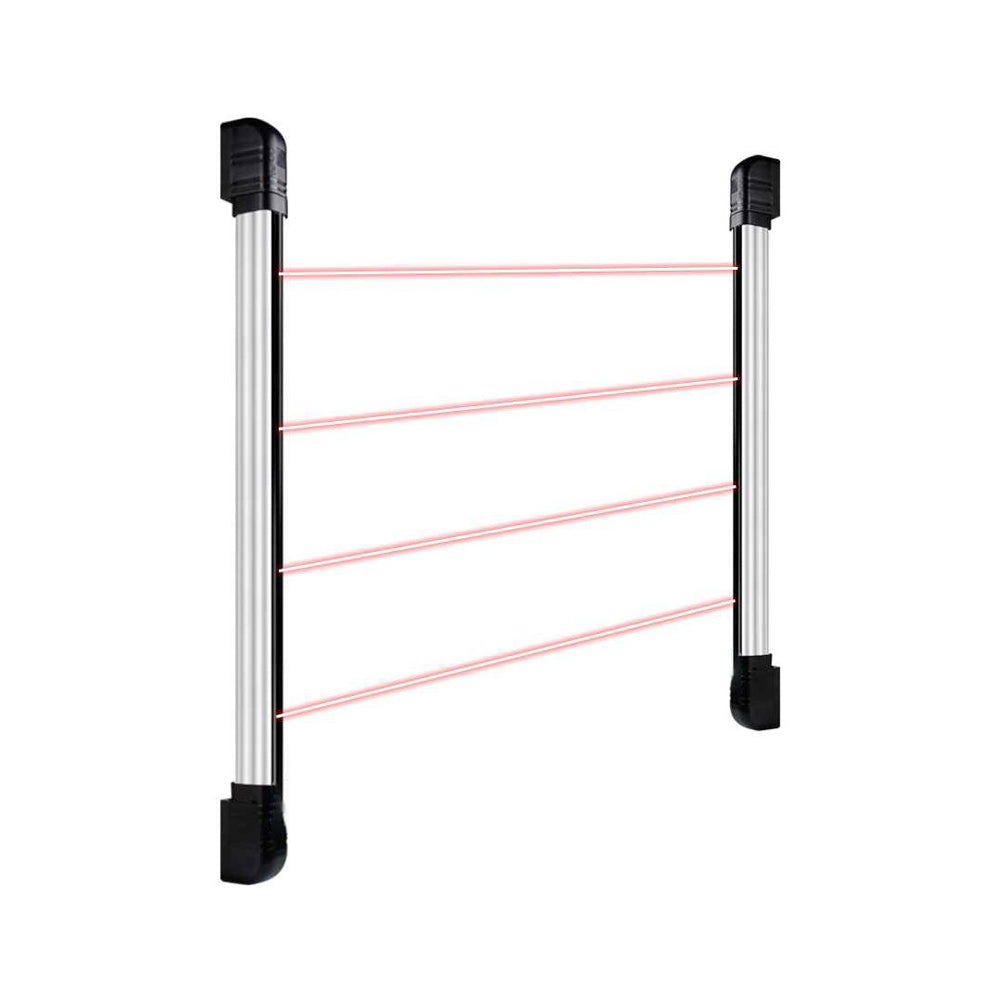

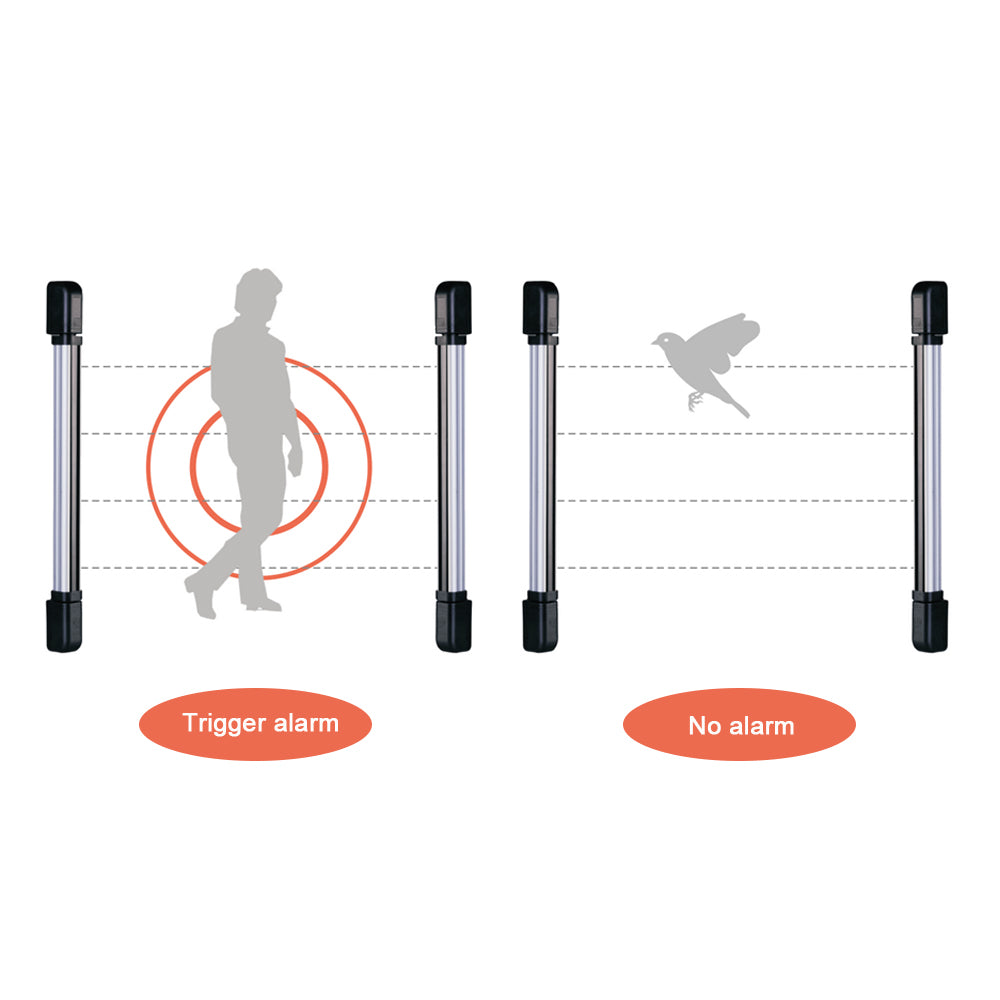

* Multiple Interactive infrared beams shooting. Adjacently 2 beams interruption detection.
* NC/NO relay output.
* Easy alignment with visual LED indicator and audible buzzer
* High quality aluminum alloys cover.
* Resistant to rain, fog, snow and frost.

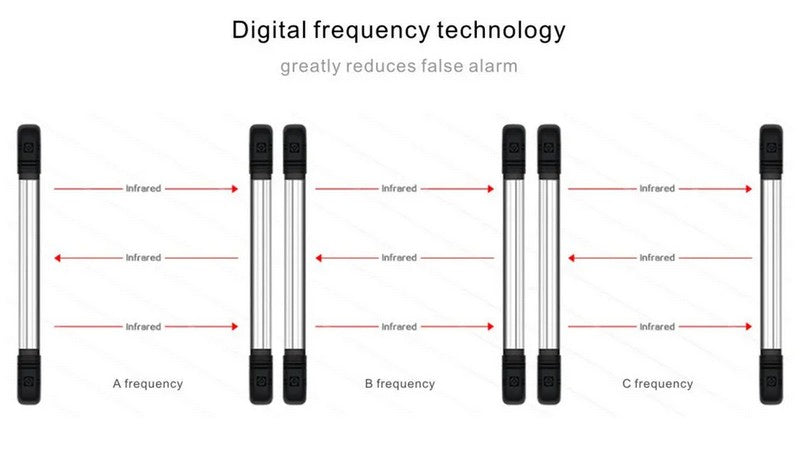

* Digital frequency conversion.

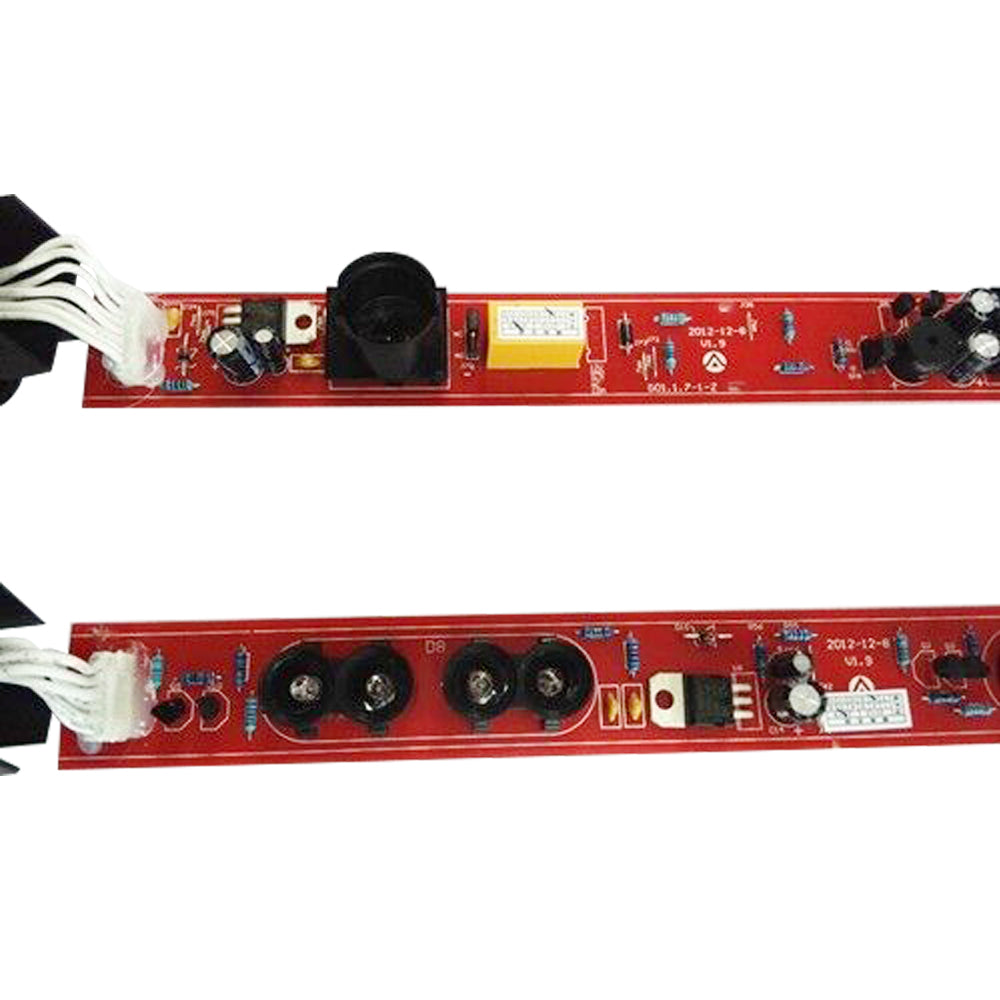

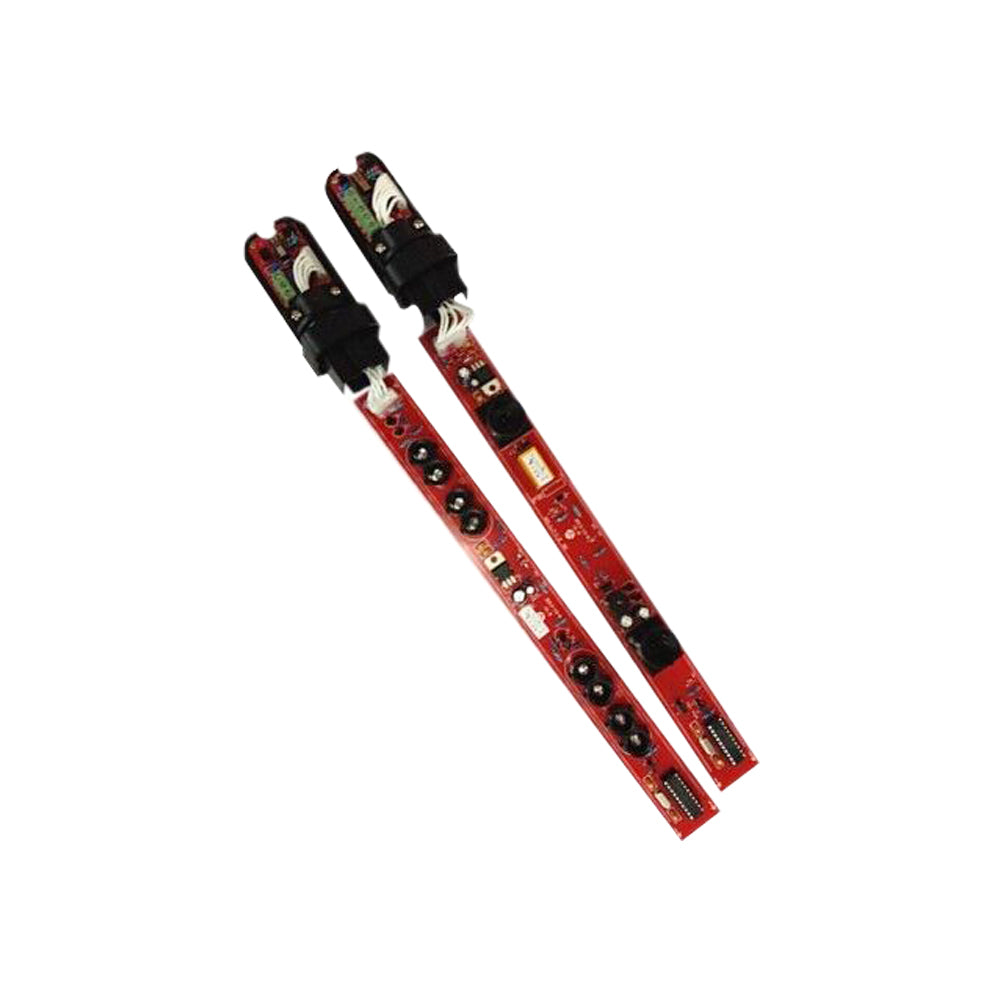

* CPU microprocessor, good performance against outdoor interference.
* AGC pure digital circuit design, DSP digital chip programming, really reduce false alarm

* Horizontal optical angle can be easy to adjust (180°)



Model ABI10-482 ABI30-482 ABI60-482 ABI100-482 ABI10-764 ABI30-764 ABI60-764 ABI100-764
Detecting 10m 30m 60m 100m 10m 30m 60m 100m
Height 48cm 76cm

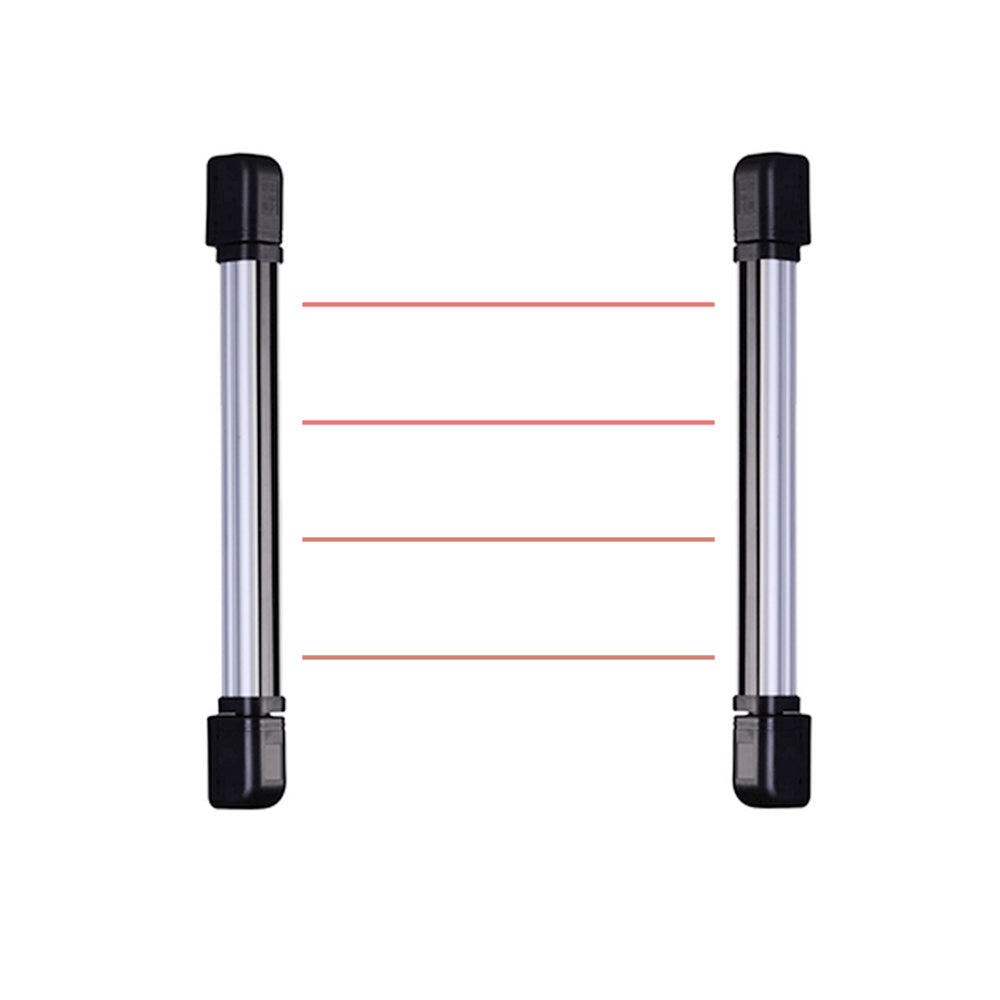

Number of Beams 2 beams 4 beams
Response Speed 40m/s
Detection method Simultaneous linteruption of adjacent1 infrared beams

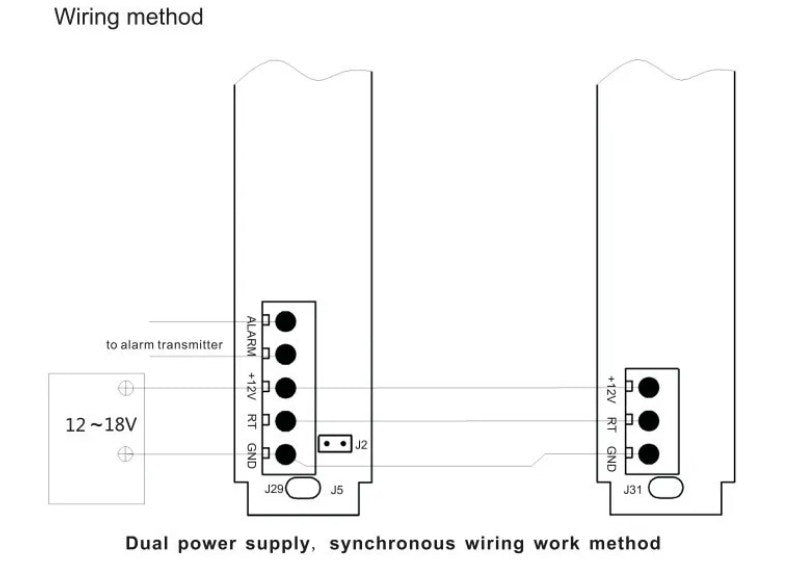

Alarm Output Switch signal output(NO/NC)
Tamper Output NO/NC.1B contact output,DC26V/0.5A Max
Power and Voltage DC10-18V
Operation Current 50-90mA max
Material Aluminum,PC engineer plastic
Working Temperature -25°c~+55°c
