100Lbs 60kg 12V embedded magnetic lock electromagnetic lock cabinet lock door
100Lbs 60kg 12V embedded magnetic lock electromagnetic lock cabinet lock door
Обычная цена
$21.49 USD
Обычная цена
Цена со скидкой
$21.49 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Specification:

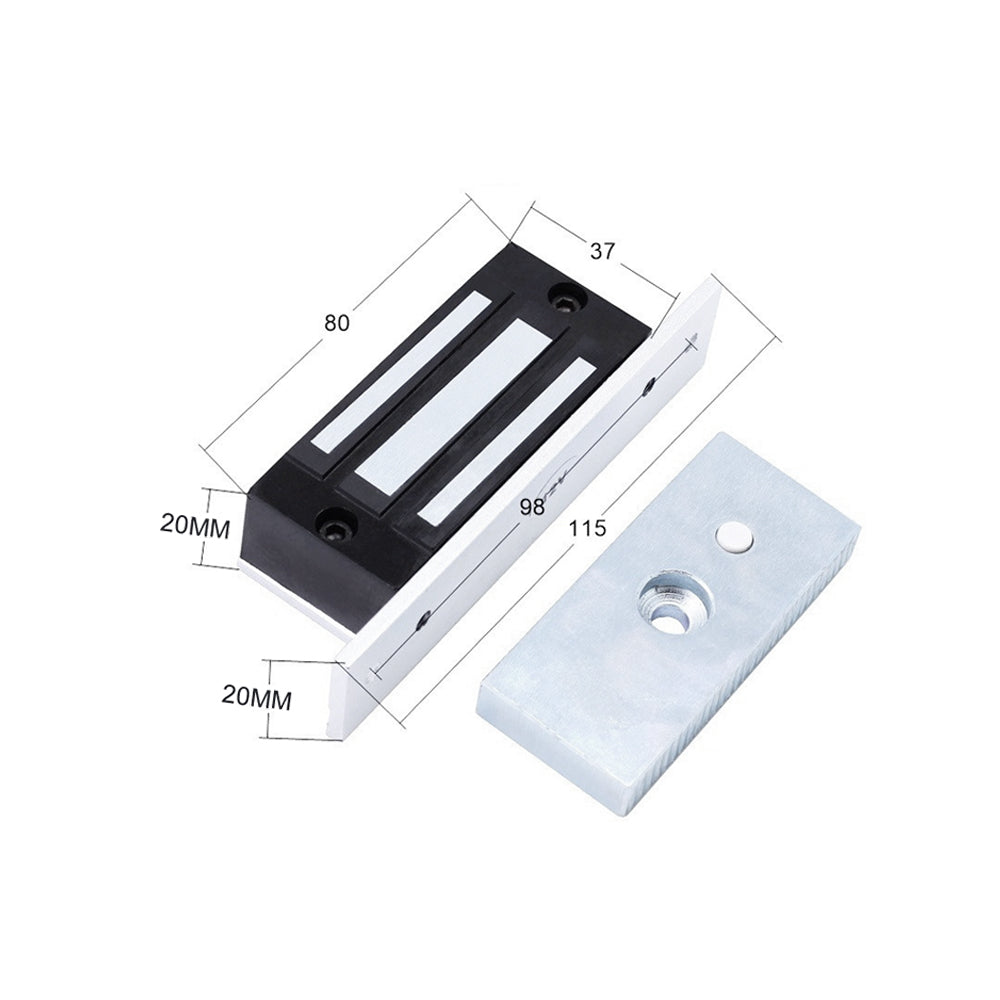

- Lock Size : 80L*38W*25H(mm)
- Holding Force :60KG(120LBS)
- Input Voltage：DC12V
- Lock weight: 0.6KG
- Mode: NC (locked whilst power supply is operating), fail safe mode
- Opening Mode: 90 degree swinging door
- Application: Wooden Door,Glass Door;
- Metal Door, Fire Proof Door.
- Type: Power to lock, Power lock.
Features:
- Easy installation
- Low energy consumption (DC 12V)
- Silent and continuous duty operation
- Applicable to wide variety of swing and sliding door
- Interface seamlessly to controller readers
- Instantaneous release in the event of emergency

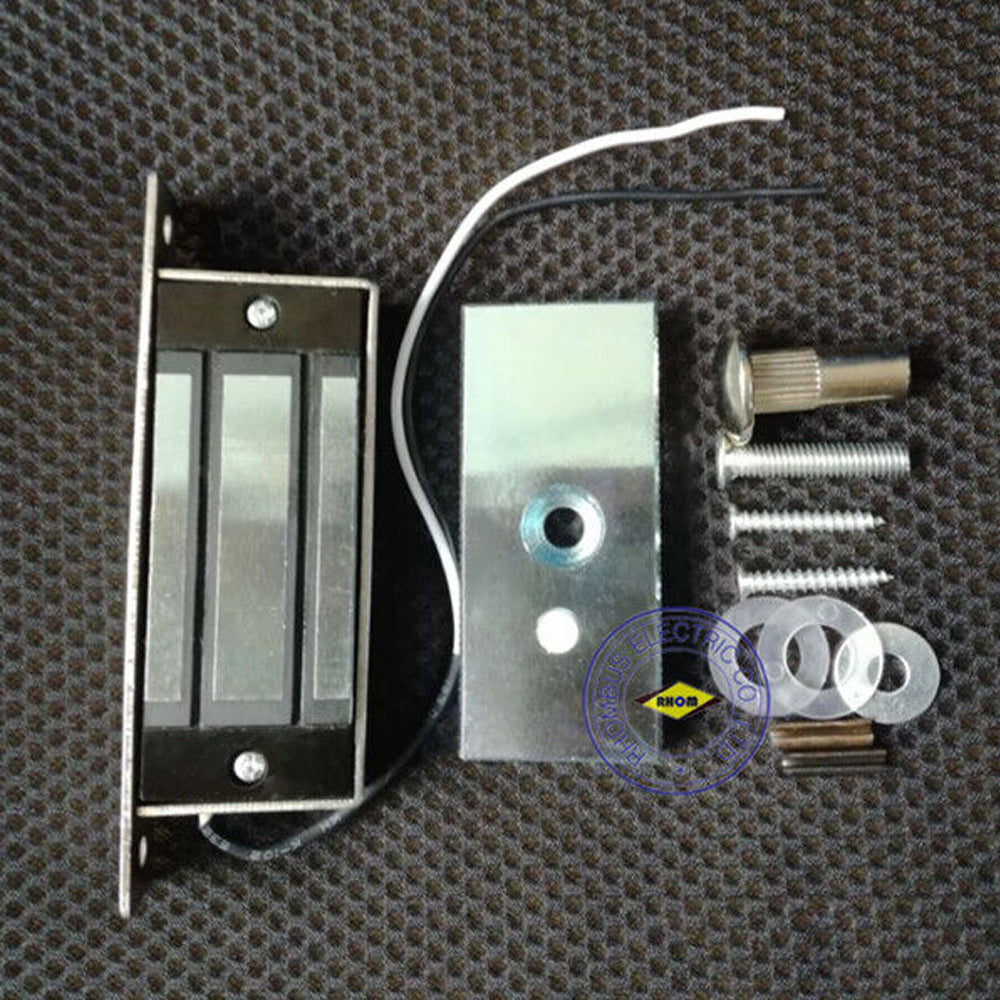

Package included
- 1 X Magnetic Door Lock 60kg Strong Force(NC mode)
- 1 X Screws & Installation Kit
- 1 X Installation Manual
Size：
We list all the magnetic locks' specificaiont in this page so as to you can check and contrast paralleled
locks conveniently.If you can not decide which model you need,don't hesitate contact us ,I am waitingfor your requirement with pleasure.
Description of all magnetic lock models
| Lock Model | FCL-60KG(this is it) | FCL-180KG | FCL-180MS | FCL-180KGS | FCL-280KG | FCL-280MS | FCL-280KGS | FCL-600KG | FCL-600KGS |
| Voltage | 12V/24V +10% | ||||||||
| Current | 300mA/DC12V 150mA/DC24 | 600/DC12V 300/DC24V |
480mA/DC12V 240mA/DC24V |
960mA/DC12V 240mA/DC24V |
420mA/DC12V 210mA/DC24V |
840mA/DC12V 420mA/DC24V |
|||
| Max Straight direction pull |
60kg (120Lbs) |
180kg (300Lbs) |
180kg (300Lbs) |
180kg (300Lbs)*2 |
280kg (600Lbs) |
280kg (600Lbs) |
280kgx2 (600Lbsx2) |
600kg (1200Lbs) |
600kgx2 (1200Lbsx2) |
| working Temperature |
-10~+55°c | ||||||||
| Moisture | 0~95% | ||||||||
| Durability | 500,000 times | 200,000 times | |||||||
| Weight | 0.5kg | 1.2kg | 1.2kg | 2.4kg | 2kg | 2kg | 4kg | 4.5kg | 9kg |
| Dimension (mm)Lock: |
80*37*24 | 170*35*21 | 190*32*21 | 340*35*21 | 250*42*25 | 231*41*24 | 500*42*25 | 266*67*39 | 532*67*39 |
| Dimension (mm)Iron Block: |
75*33*11 | 130*33*9.3 | 130*33*9.3 | 130*33*9.3 | 180*38*11 | 180*38*11 | 180*38*11 | 185*60*13 | 185*60*13 |
| Suitable Door | File cabinet, lockerWardrobe |
single Glass , wooden, fire doors |
single Glass , wooden, fire doors |
Double Glass , wooden, fire doors |
single Glass , wooden, fire doors |
single Glass , wooden, fire doors |
Double Glass , wooden, fire doors |
single Glass , wooden, fire doors |
Double Glass , wooden, fire doors |
| Installation | visible | visible | invisible | visible | visible | invisible | visible | visible | visible |
