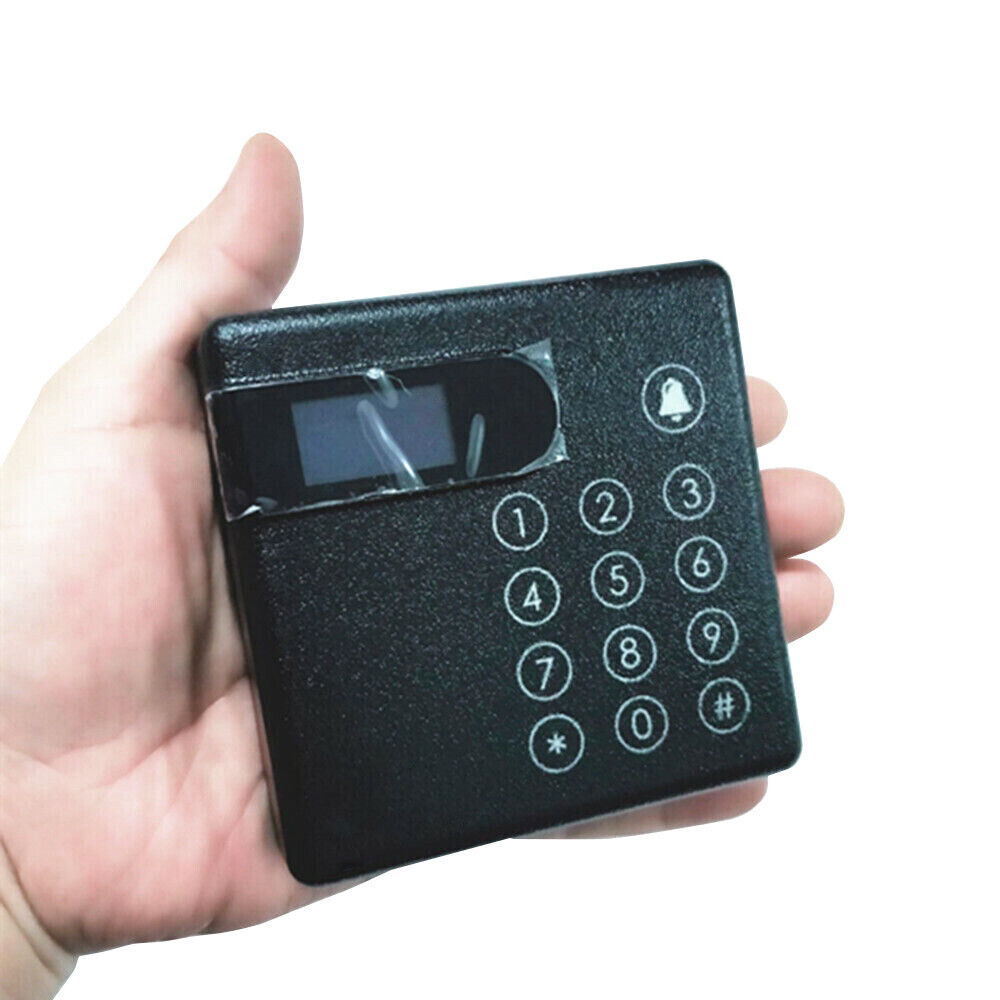

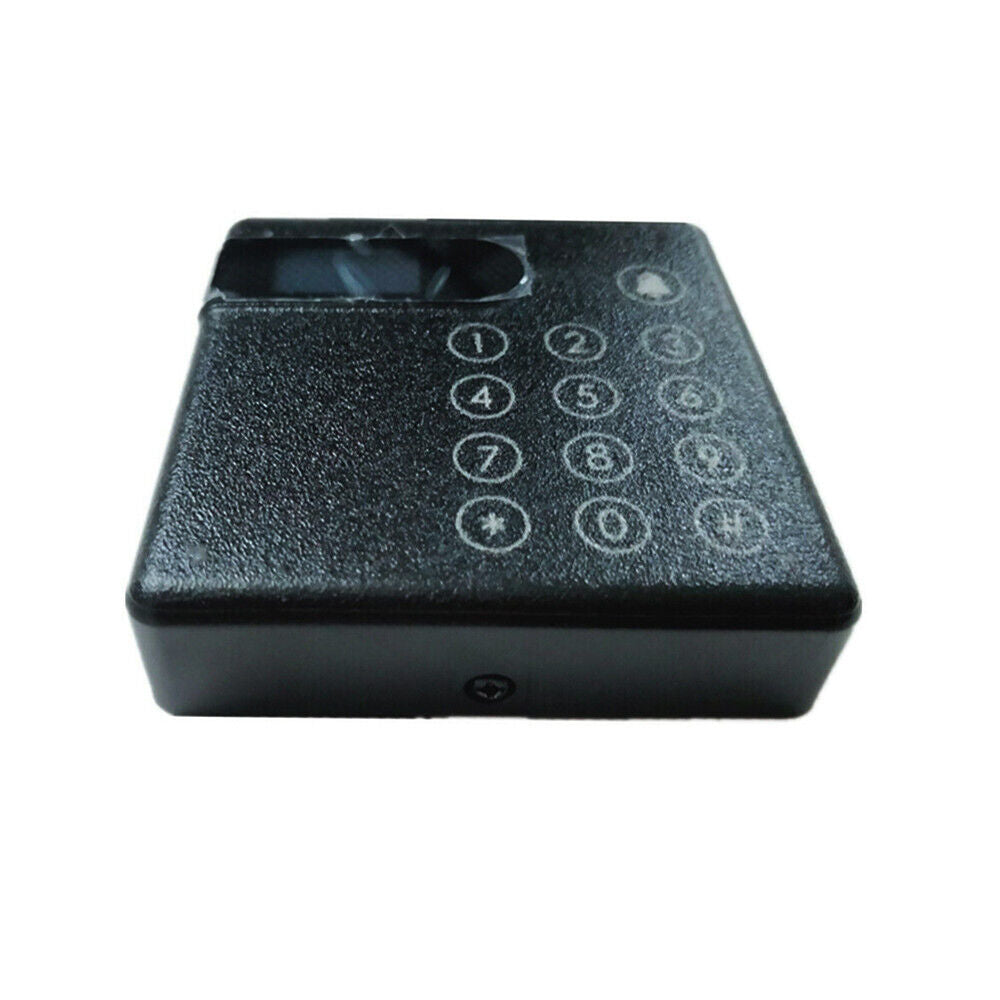

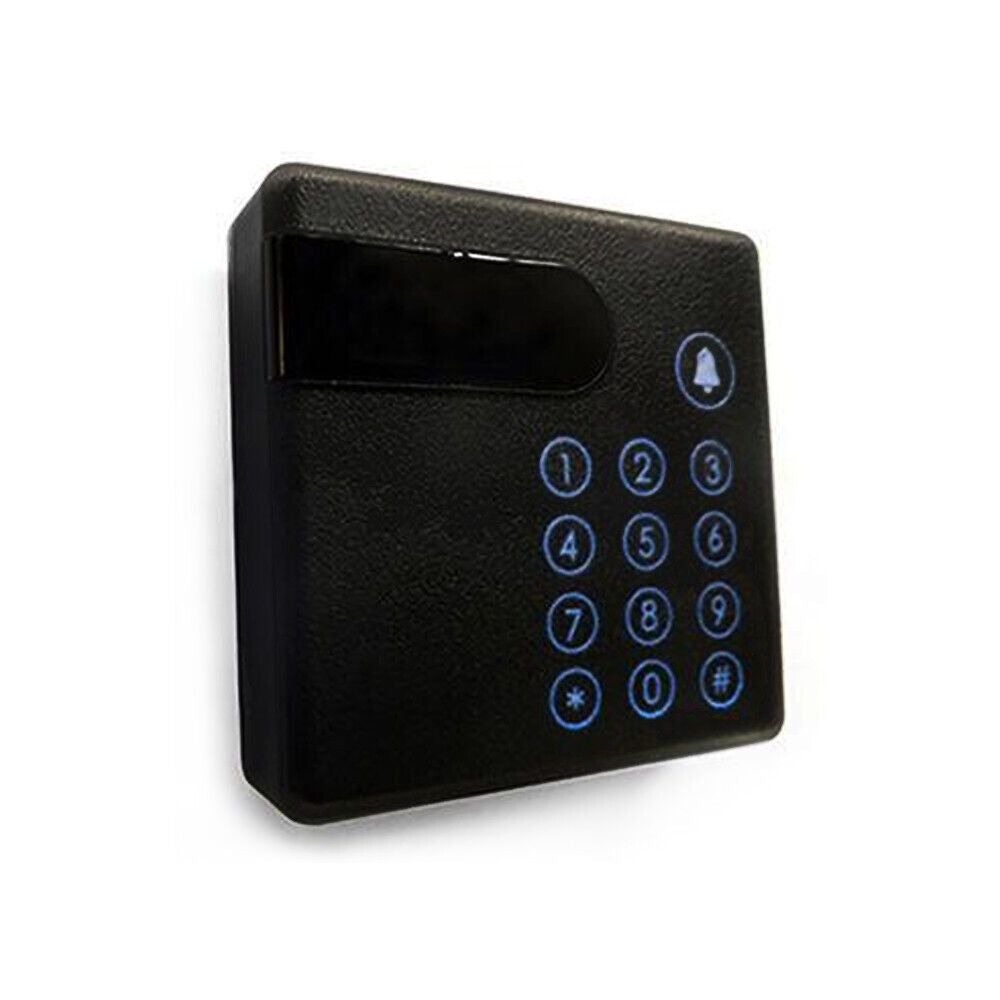

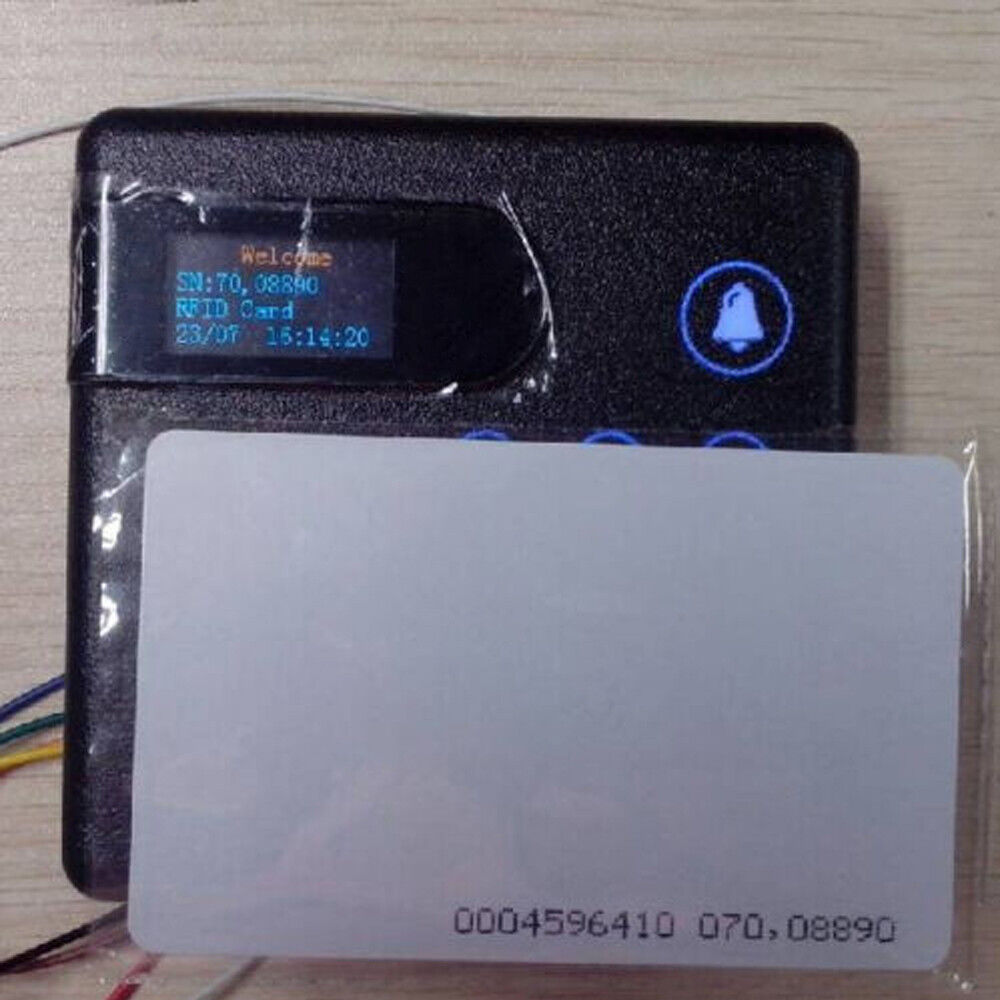

125Khz EM LCD Display Greeting Word RFID WG26 Keypad Access Control Card Reader
125Khz EM LCD Display Greeting Word RFID WG26 Keypad Access Control Card Reader
Обычная цена
$44.95 USD
Обычная цена
Цена со скидкой
$44.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Note:The item is only a EM4100 keypad Wiegand READER!Not a standalone access controller!
In another word,it can not open/close a lock directly!

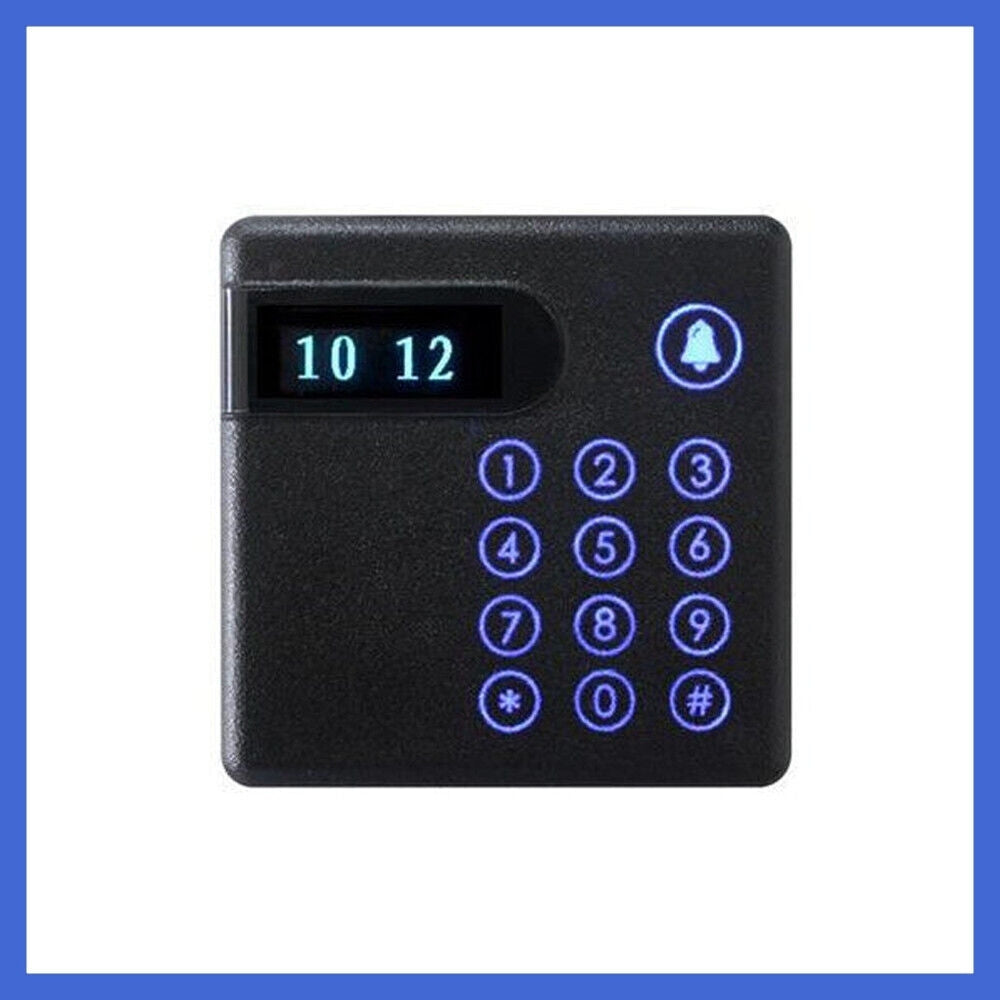

Do you want to show your company name
In another word,it can not open/close a lock directly!
Do you want to show your company name
on the reader ? Yes , you can !
please contact the reader to PC via RS485,you can calibrate the clock and edit the charactors
please contact the reader to PC via RS485,you can calibrate the clock and edit the charactors
those showing what you like.
download the software from: http://zl.hwpan.com/u40102105/Gregzhong/JT/8701syn.exe
download the software from: http://zl.hwpan.com/u40102105/Gregzhong/JT/8701syn.exe
|
Detailed Description: |
|
| Specification | |
| decode time | <0.2s |
| Communication | Weigand 26/34 |
| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 80m |
| Currency | <100MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |

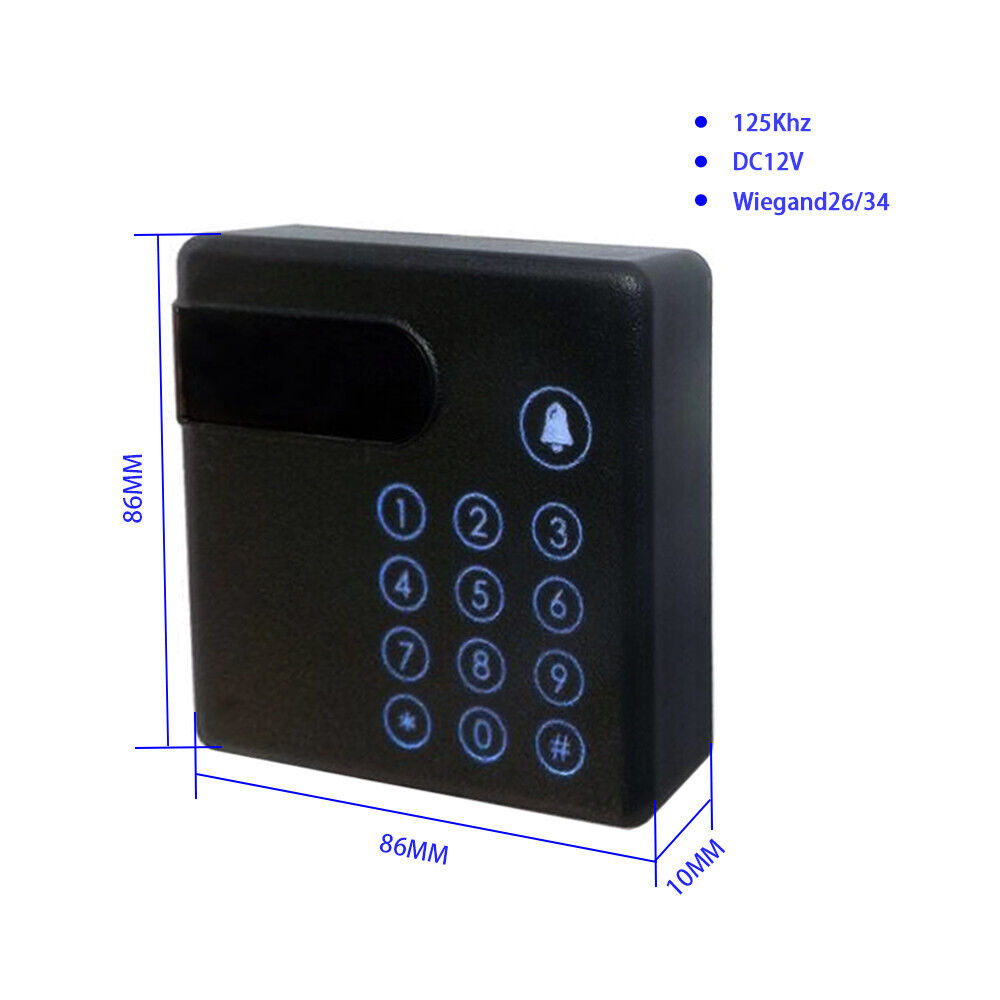

| Dimension (LxWxH mm) | 86×86×10 |
| Package | plastic casing &epoxy saturated |
| Weight (kg) | 0.2 |
| Color | Black |

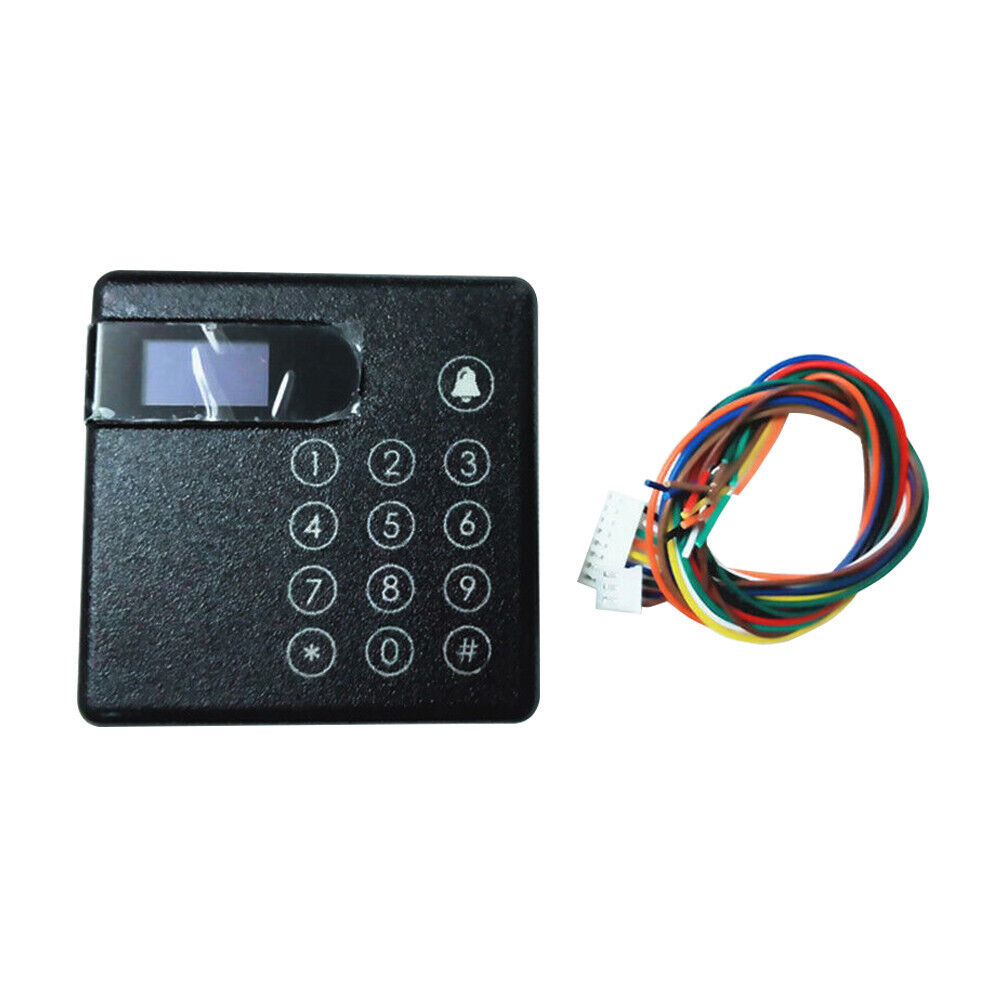

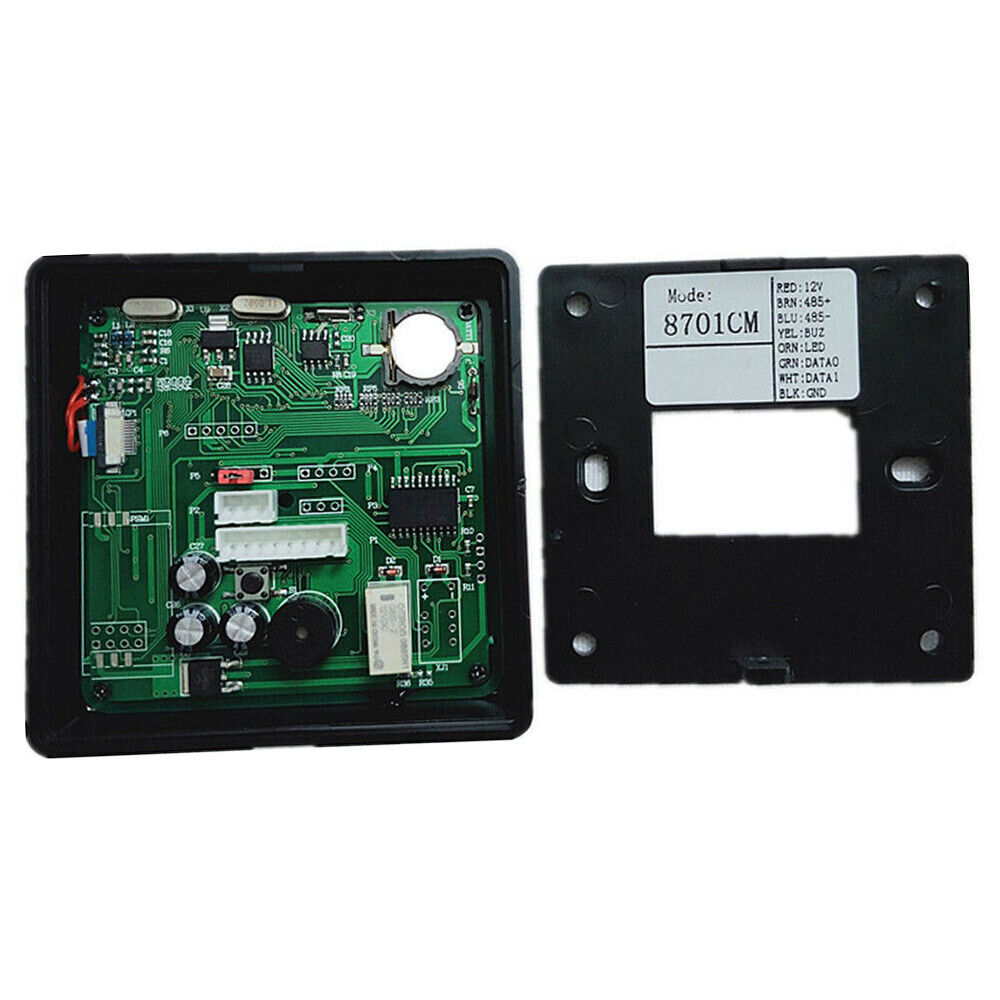

| PIN description | |
| Red | DC12V |
| Black | GND |
| Green | DATA0 |
| White | DATA1 |
| Yellow | BUZZER |
| Orange | LED |
| Brown | 485+ |
| Blue | 485- |
