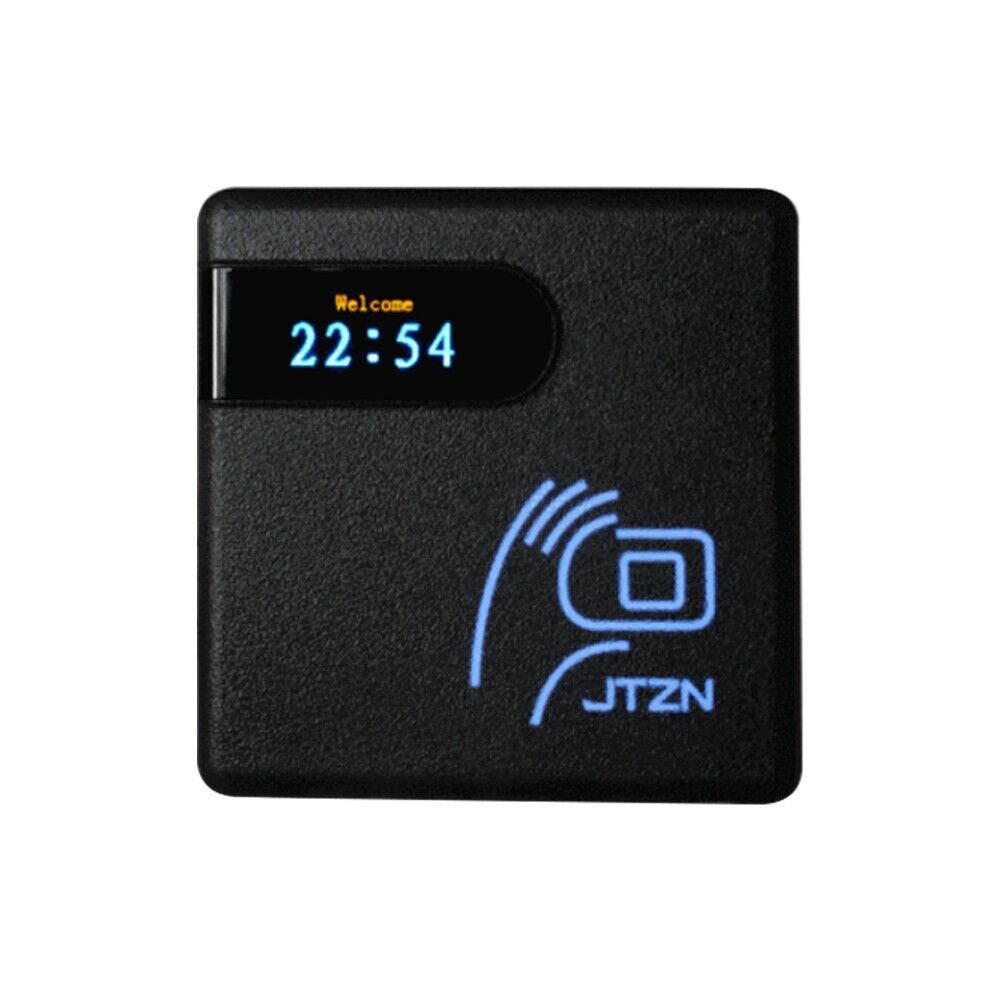

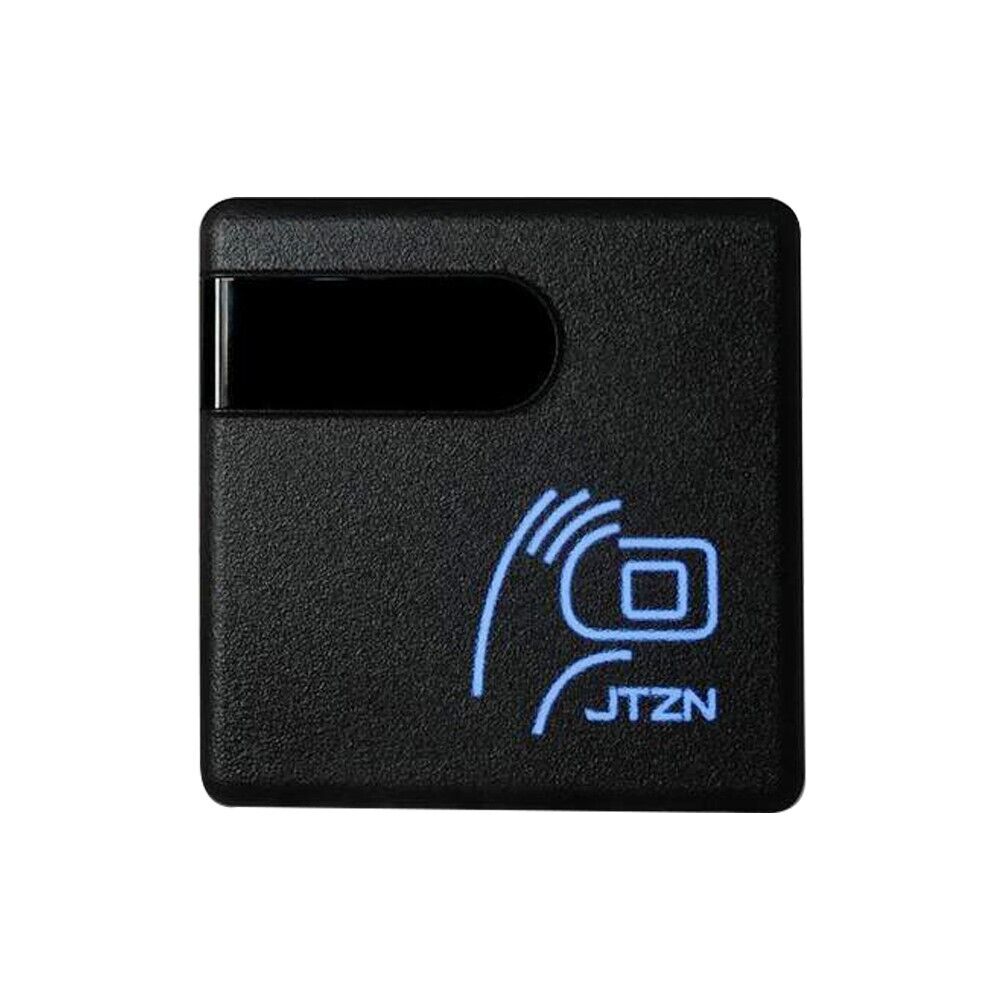

125Khz EM RFID LCD display Greeting words WG26/34 Access Control Card READER
125Khz EM RFID LCD display Greeting words WG26/34 Access Control Card READER
Обычная цена
$41.95 USD
Обычная цена
Цена со скидкой
$41.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза

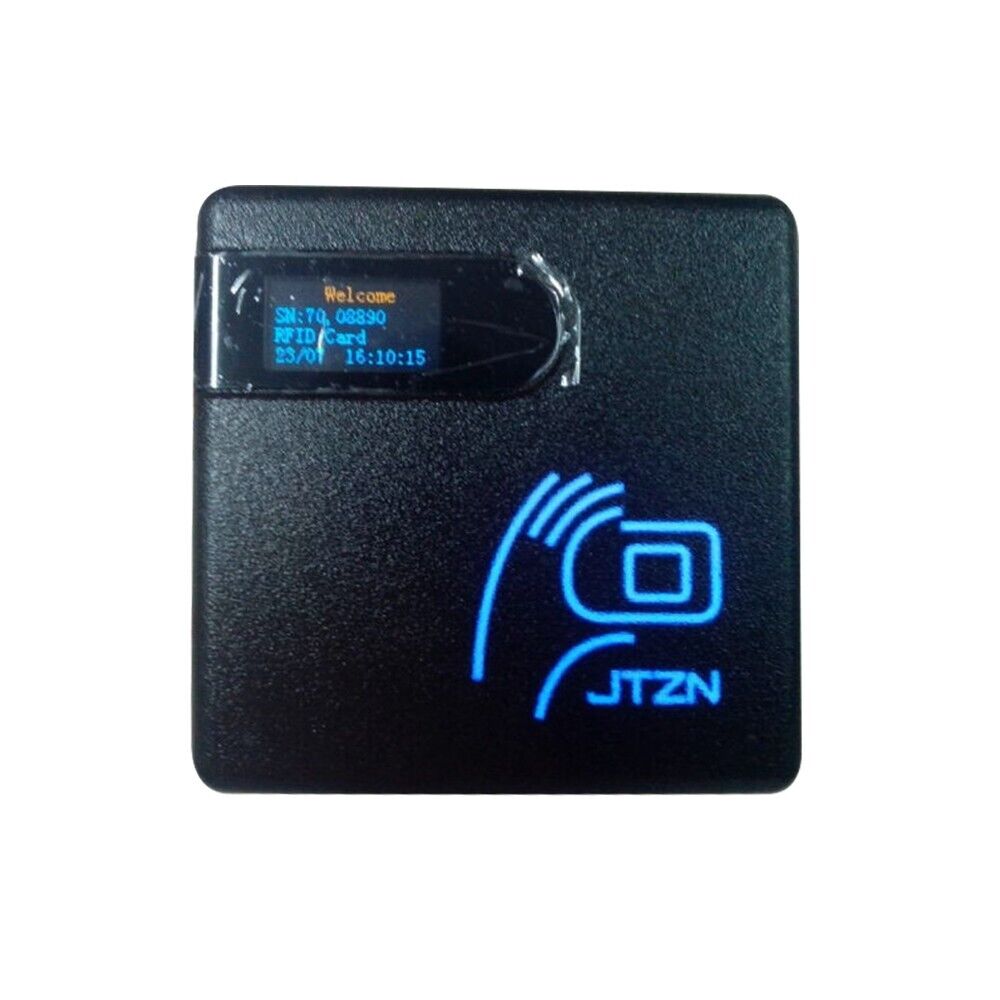

Do you want to show your company name on the reader?OK,you can!
please contact the reader to PC via RS485,you can calibrate the clock and edit the charactors
those showing what you like.download the software from:
zl（dot）hwpan（dot）com/u40102105/Gregzhong/jingtang/clockanddisplay.exe
<
|
Detailed Description:
|
|
| Specification | |
| decode time | <0.2s |
| Communication | Weigand 26/34 |

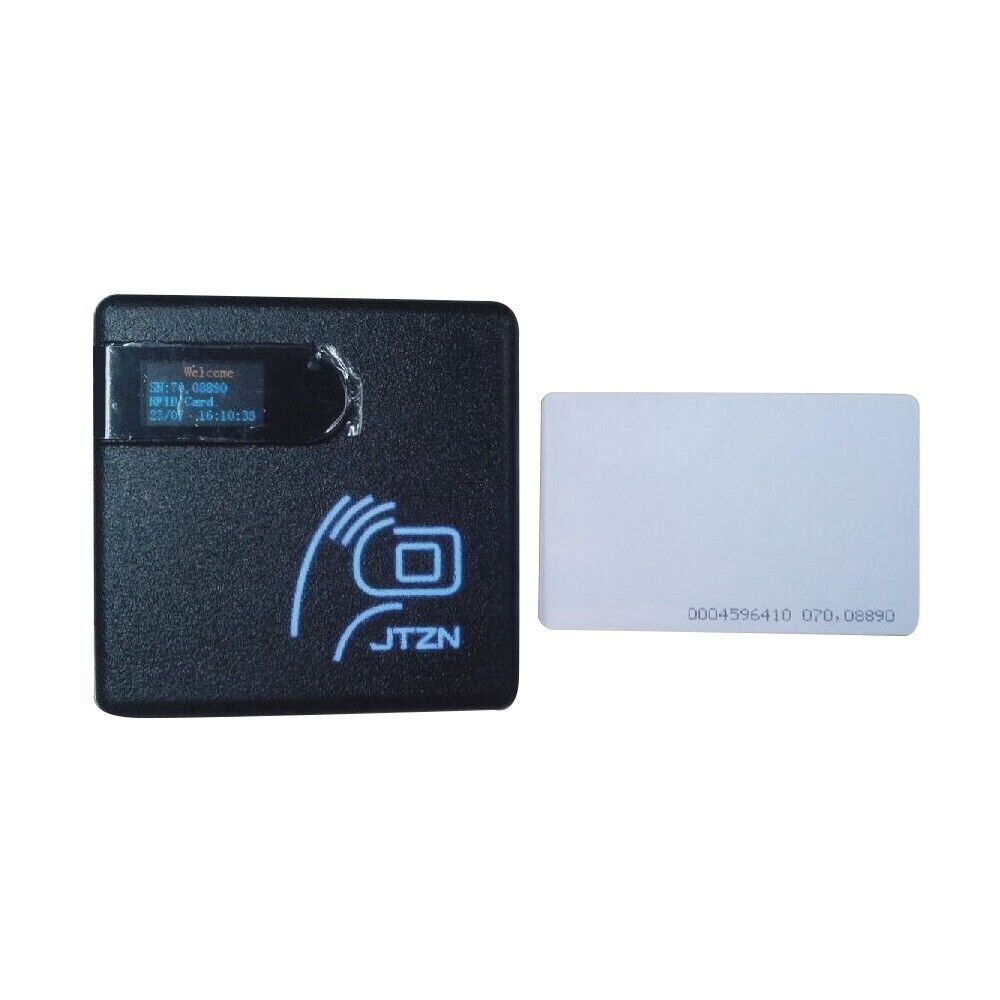

| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 80m |
| Currency | <100MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |

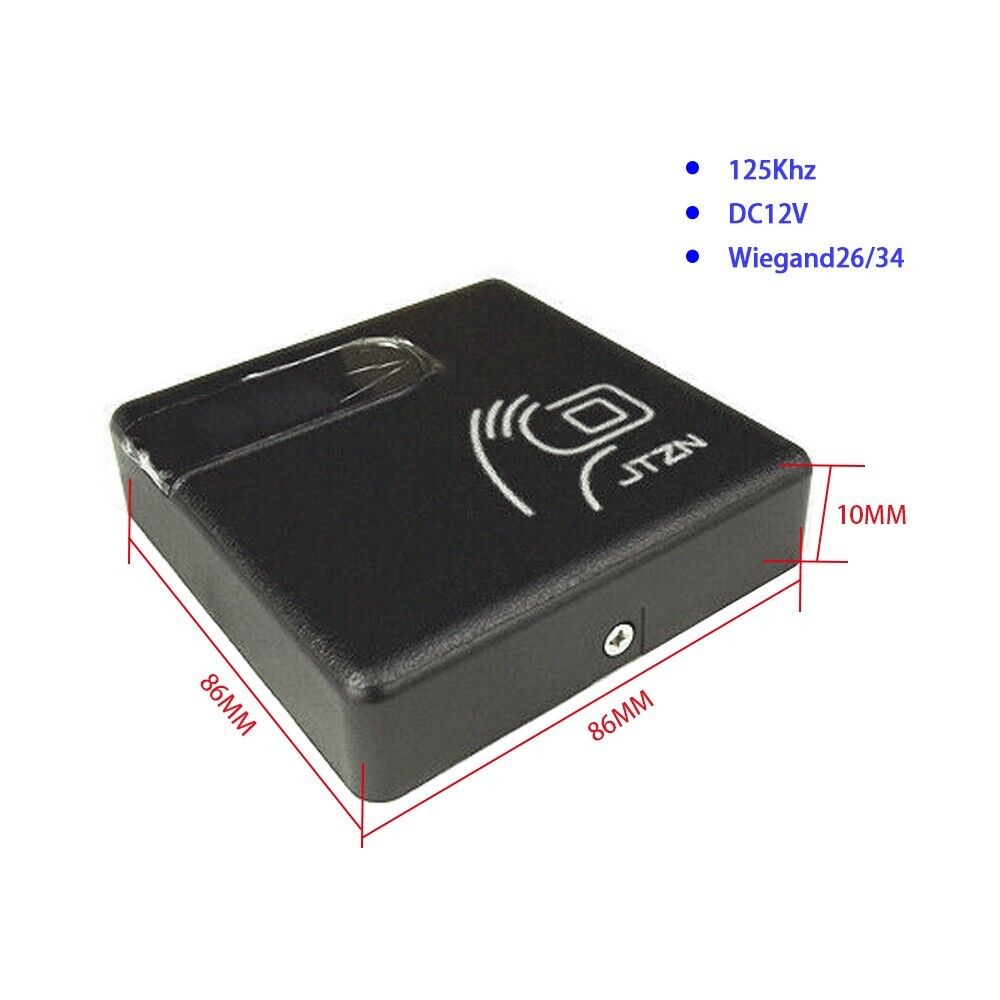

| Dimension (LxWxH mm) | 86*86*10 |
| Package | plastic casing &epoxy saturated |
| Weight (kg) | 0.2 |
| Colour | Black |
<
|

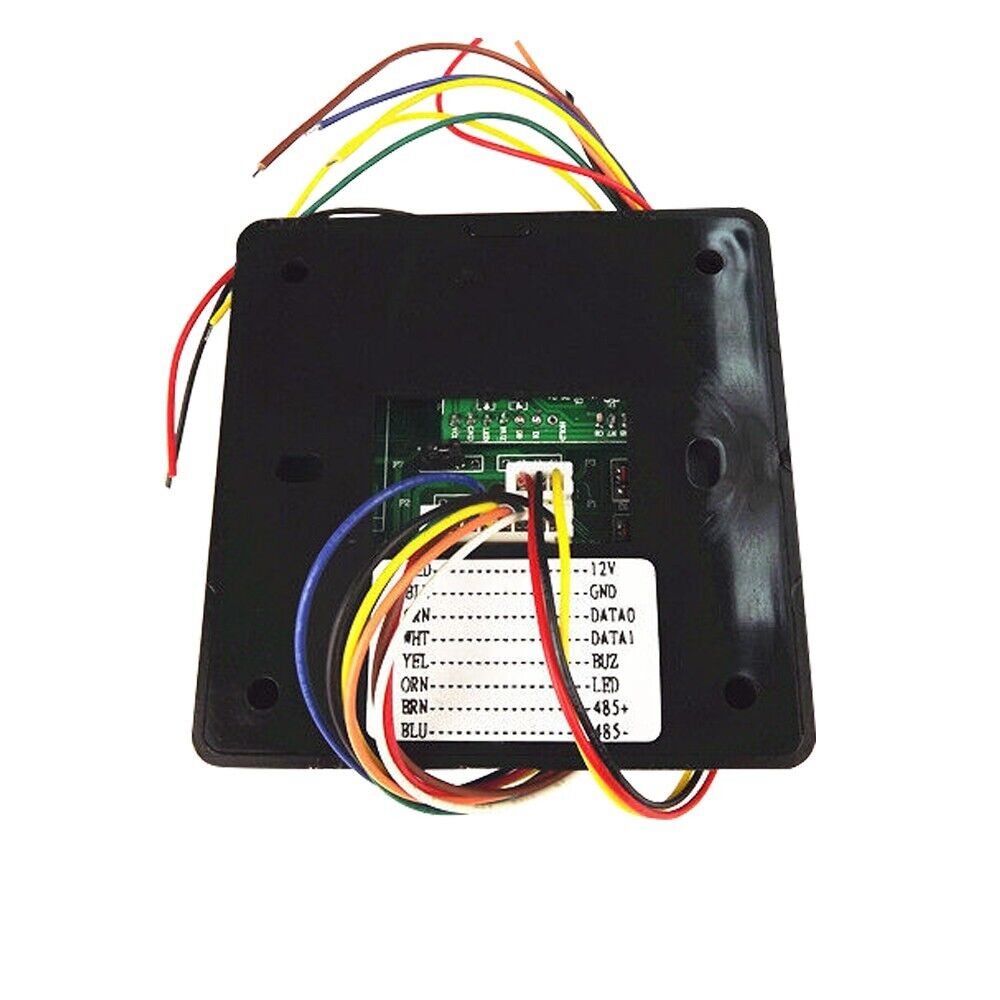

PIN description |
|
| Red | DC12V |
| Black | GND |
| Green | DATA0 |
| White | DATA1 |
| Yellow | BUZZER |
| Orange | LED |
| Brown | 485+ |
| Blue | 485- |
| P1 | |
| Red | DC12V |
| Black | GND |
| Yellow | Anti-disamount alarm |
