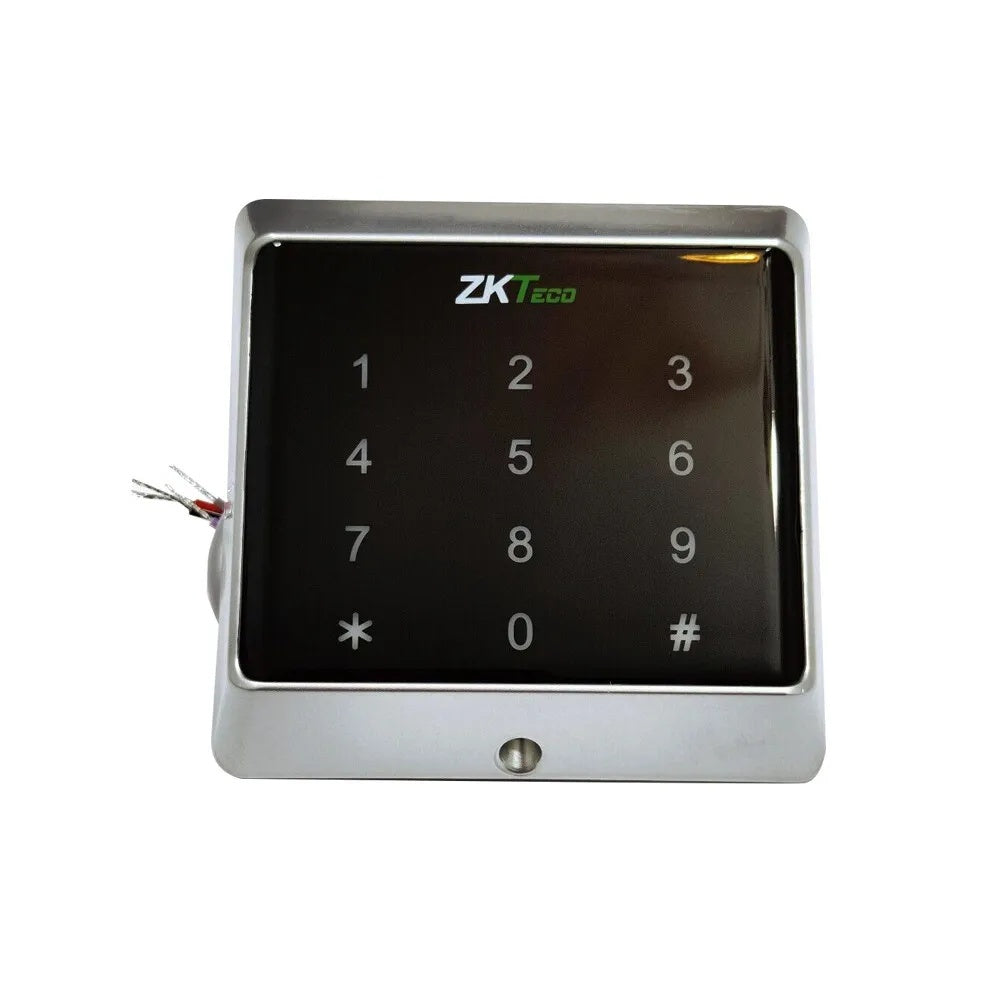

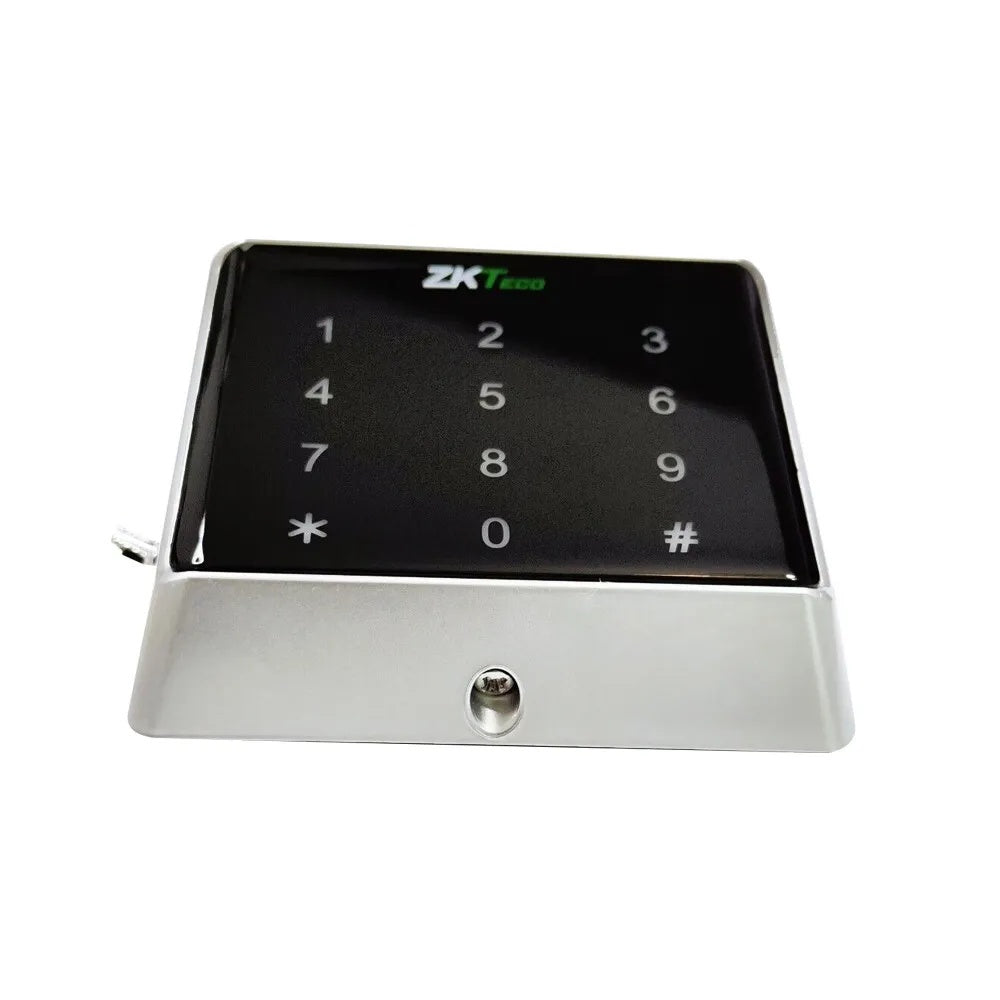

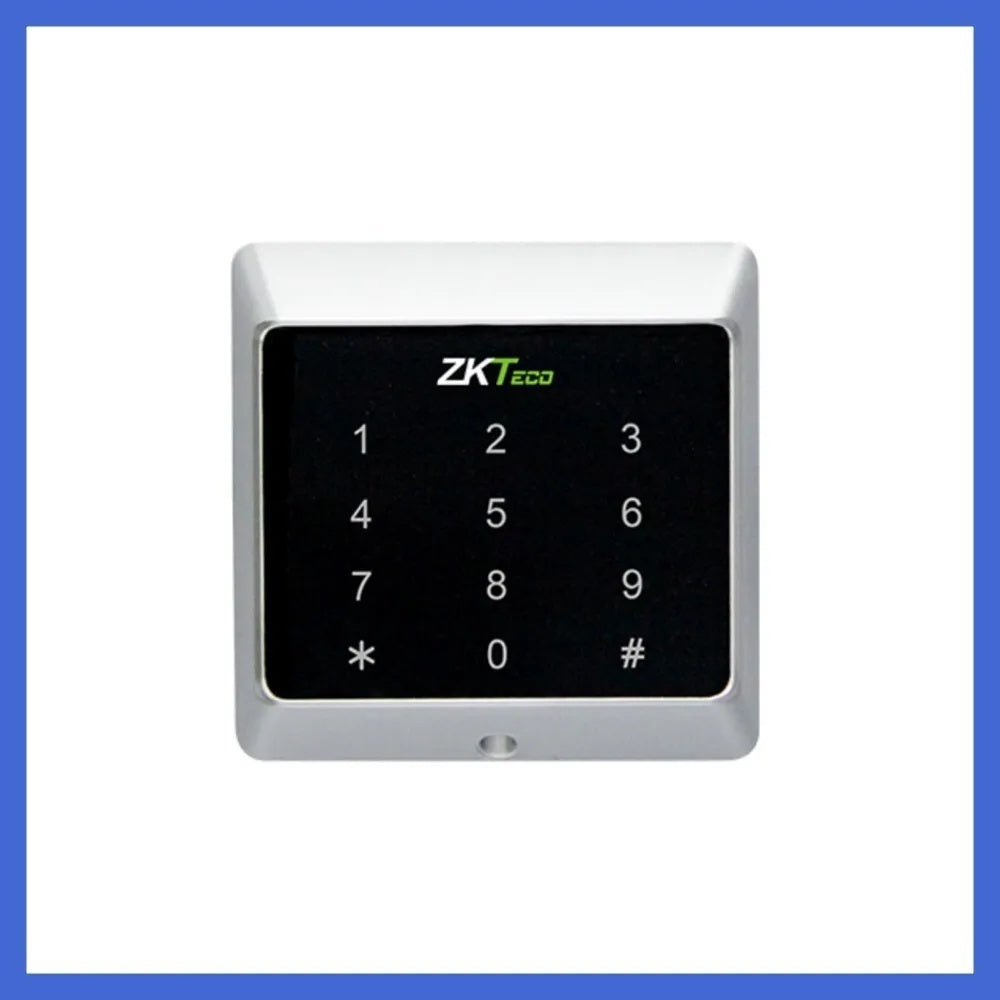

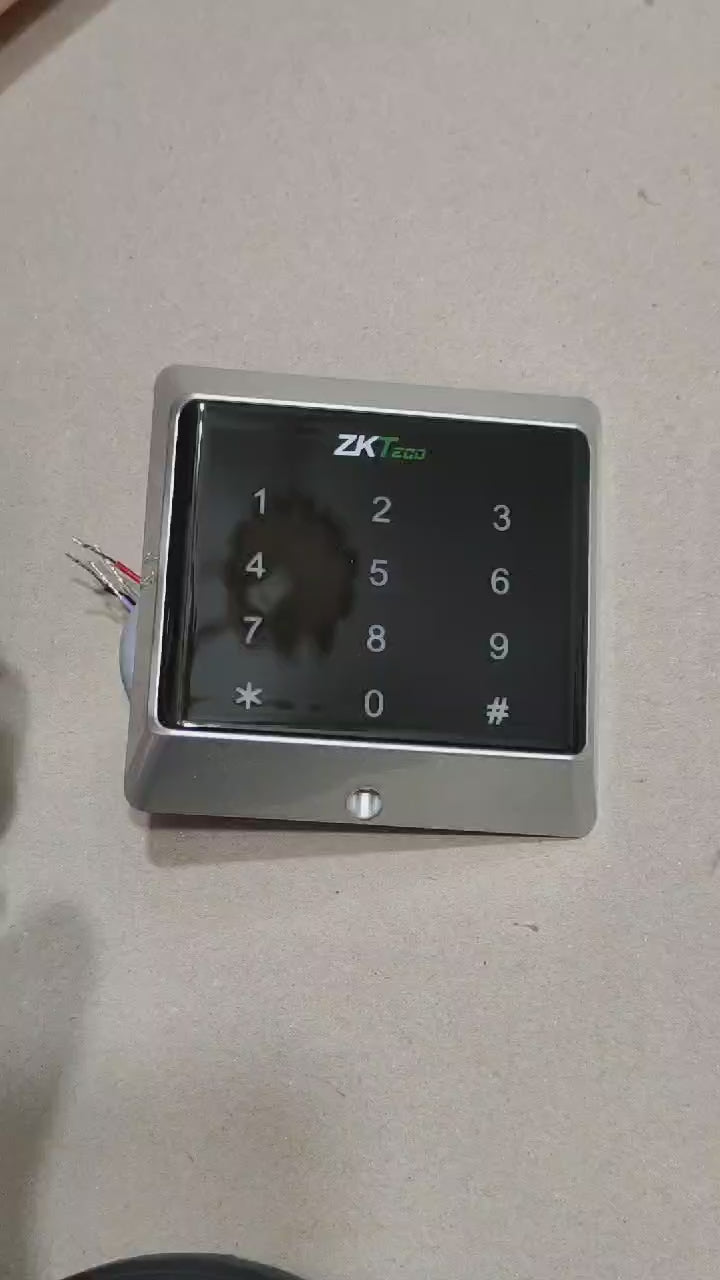

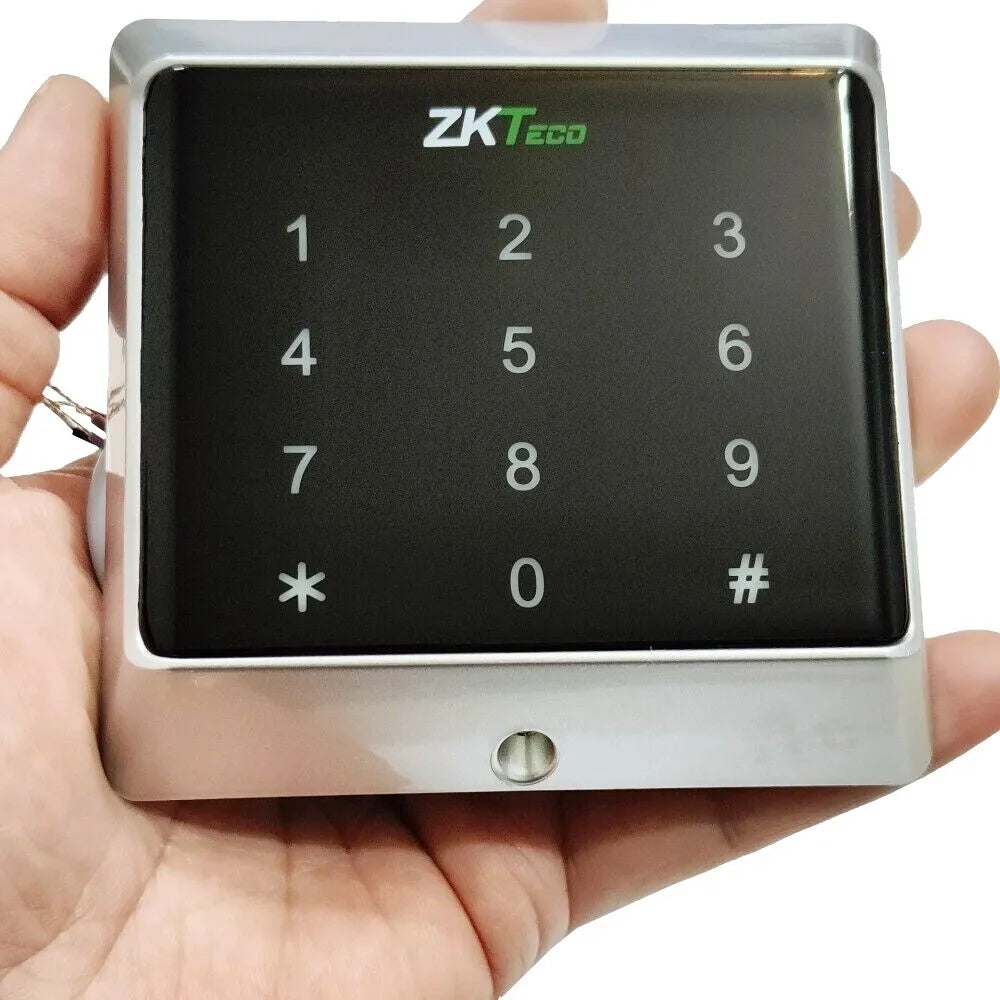

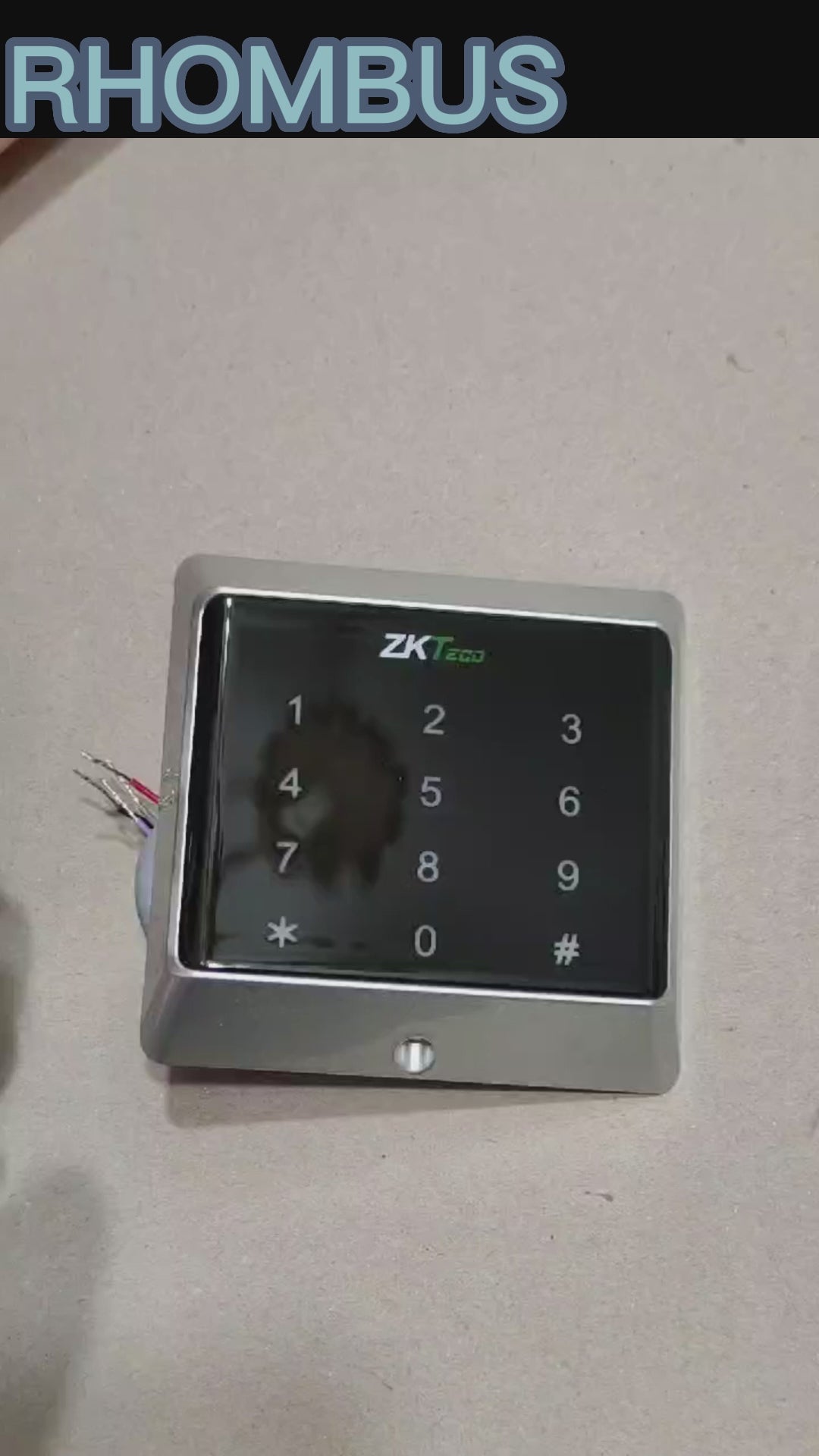

125Khz EM4100/4102 EM/ID WG26/34 dual Led 9V12V Reliable keypad RF contactless READER

Specification

• Decode time: <0.2s
• Communication:Weigand 26/34
• Frequency :125KHz
• Card type: EM card, EM compatible card ,EM4100\4102
• Induction Distance:0-3cm
• Power supply:DC9-12V
•  DATA transfer range:Max 80m
•  Currency:<200MA
• Working Temperature :0~70°C
• Working Humidity:Less than 80%

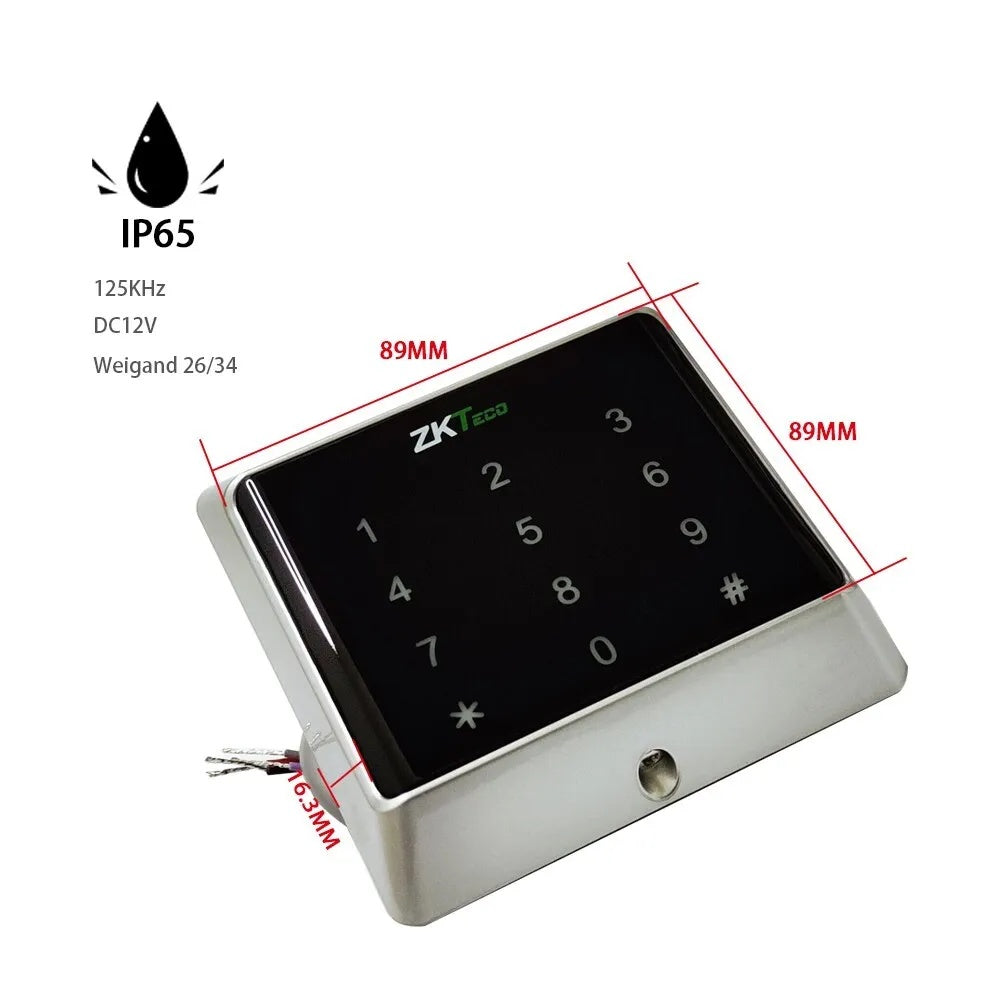

• Dimension (LxWxH mm) :89*89.5*16.3mm
• Package:plastic casing &epoxy saturated
• Weight (kg) ：0.2
• Colour:Black

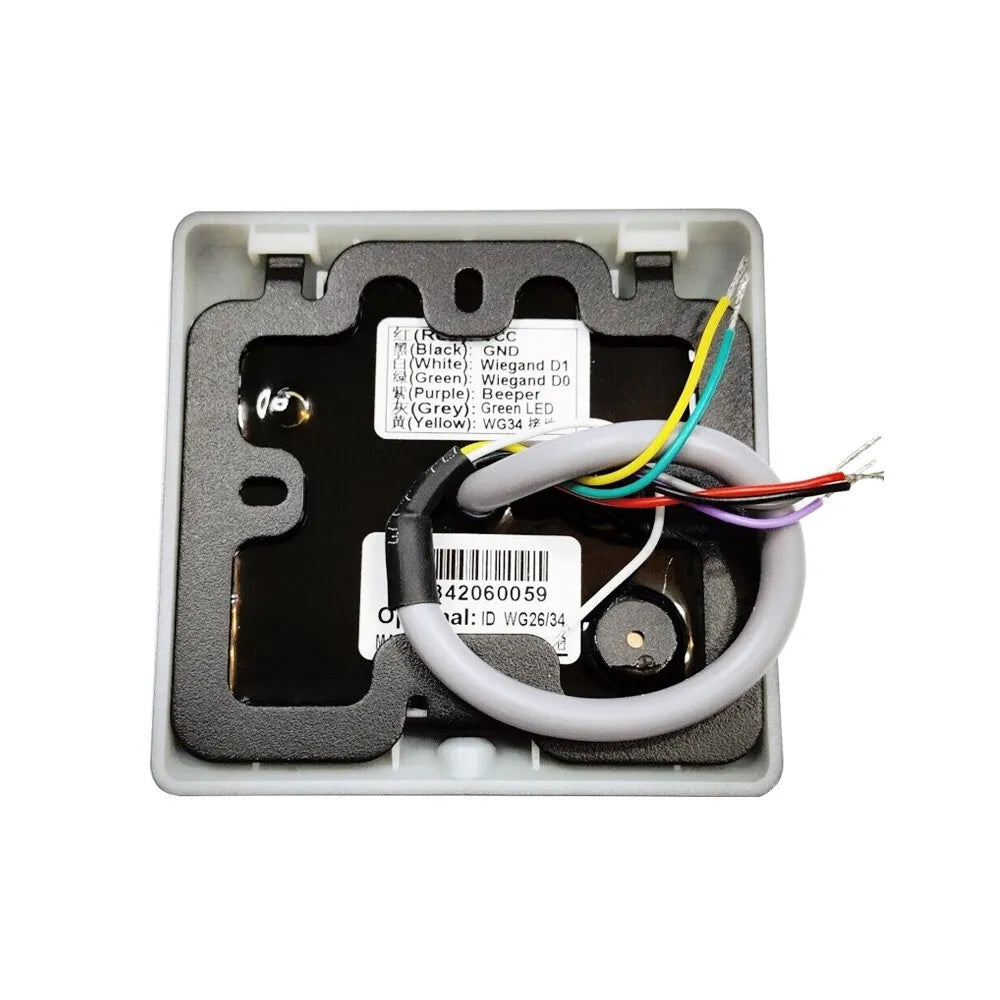

PIN description

• RED--- DC12V
• BLACK--- GND
• WHITE ---WG data0
• GREEN--- WG data1
• PURPLE--- BUZZER
• GREY--- LED YELLOW--- Connect GND to WG34

Package:

• 1x RFID reader
