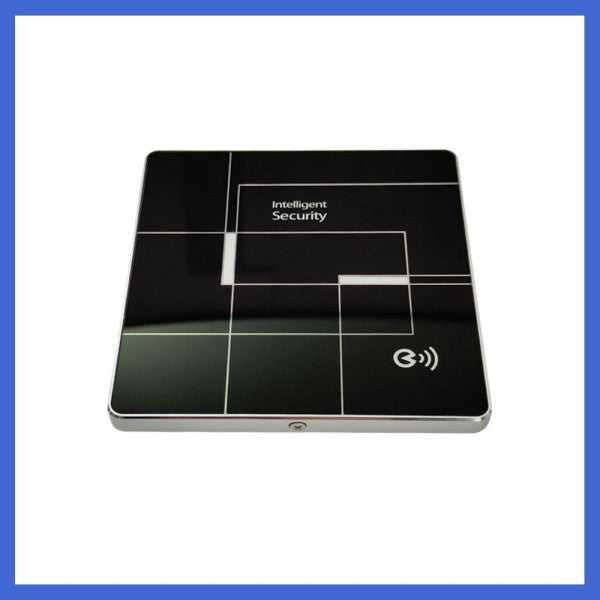

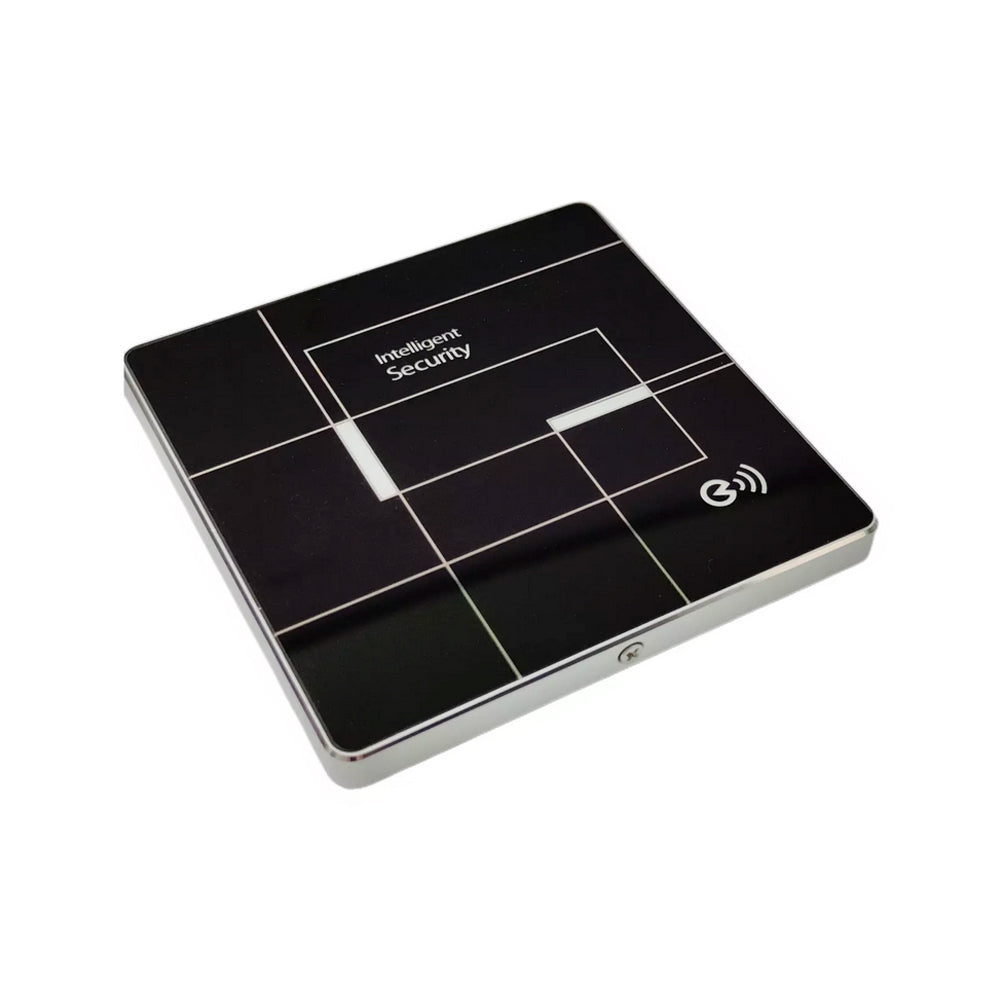

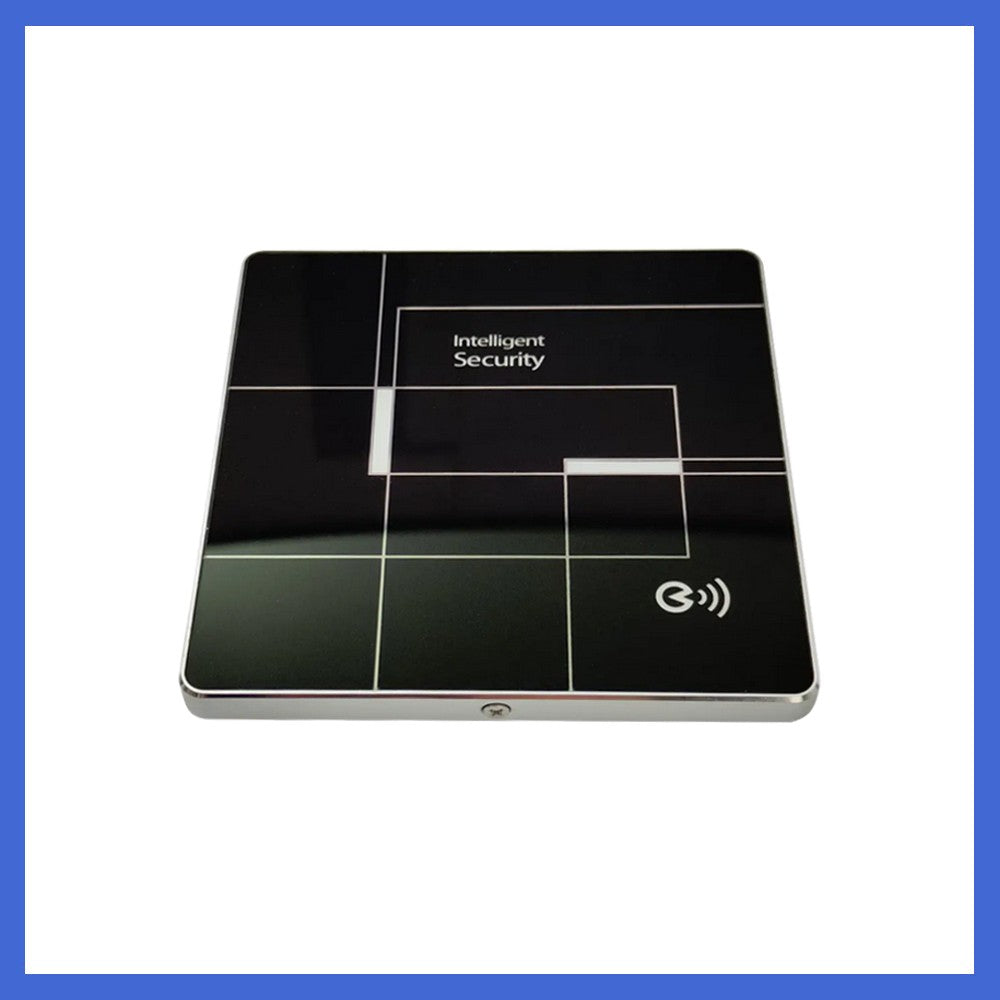

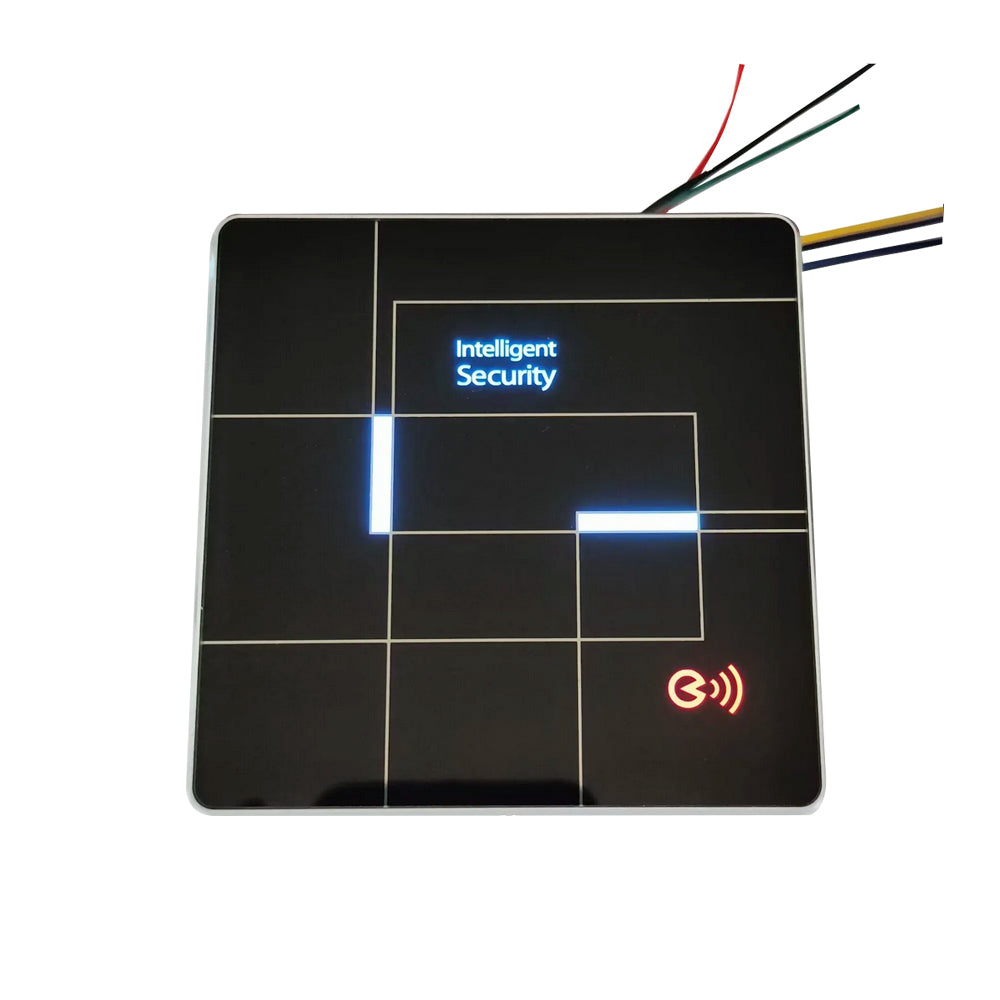

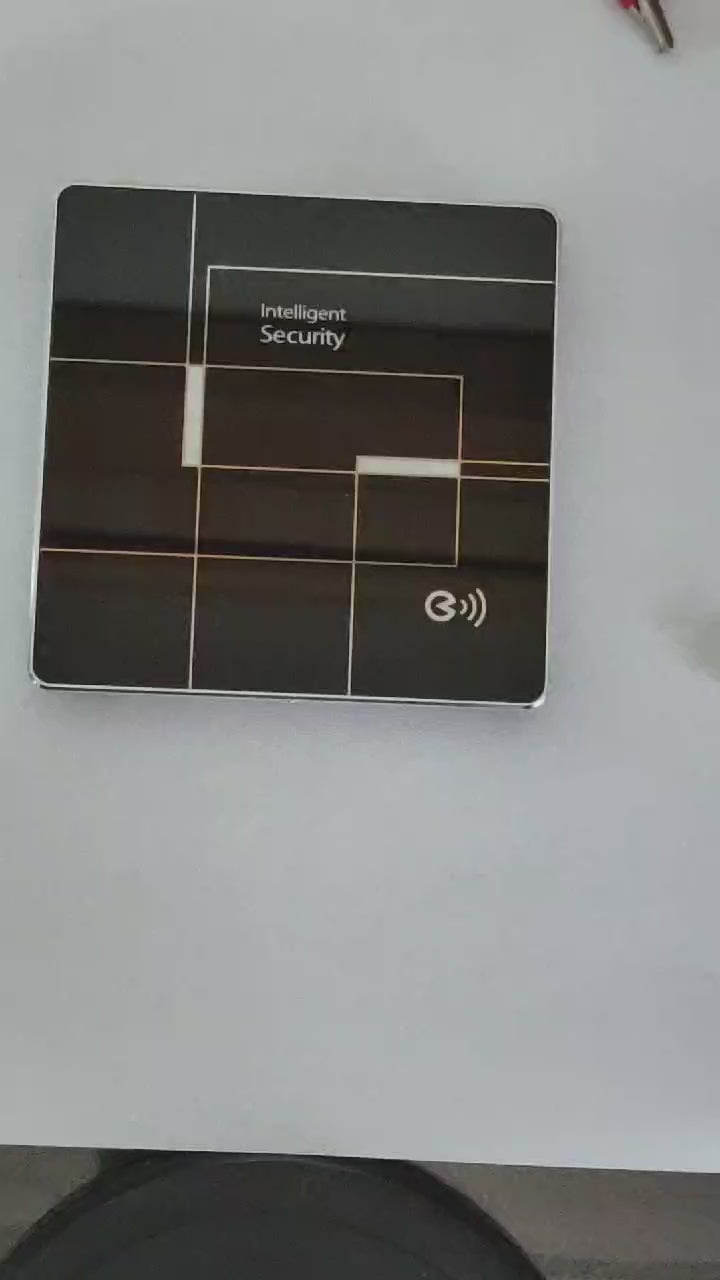

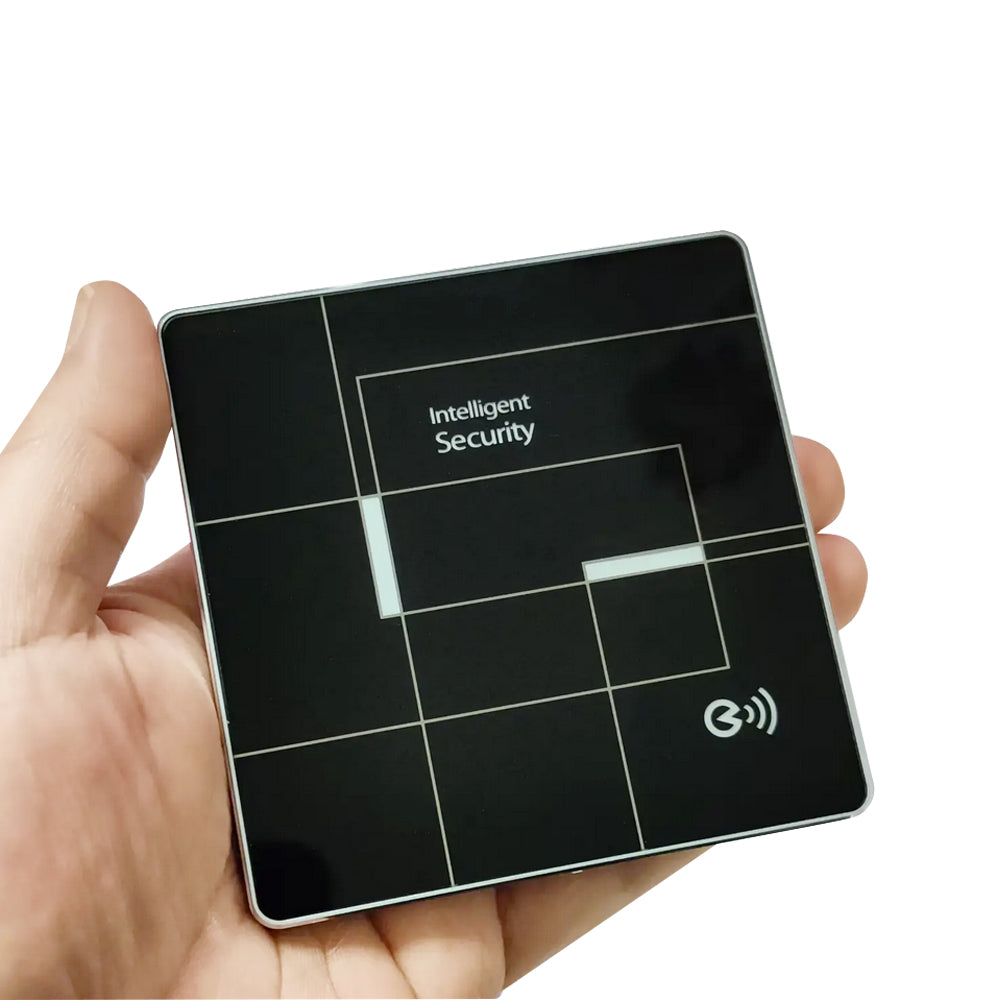

125Khz EM4100/4102 Metal wiegand26/34 dual Led contactless Access Control RFID READER
125Khz EM4100/4102 Metal wiegand26/34 dual Led contactless Access Control RFID READER
Обычная цена
$26.95 USD
Обычная цена
Цена со скидкой
$26.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
|
Specificatio n |
|
| decode time | <0.2s |
| Communication | Weigand 26/34 |
| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 100m |
| Currency | <40MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |
| Dimension (LxWxH mm)86 | 86*86*6.9mm |
| Material | metal frame+glass cover |
| Weight (kg) | 0.2 |
| Colour | Black |

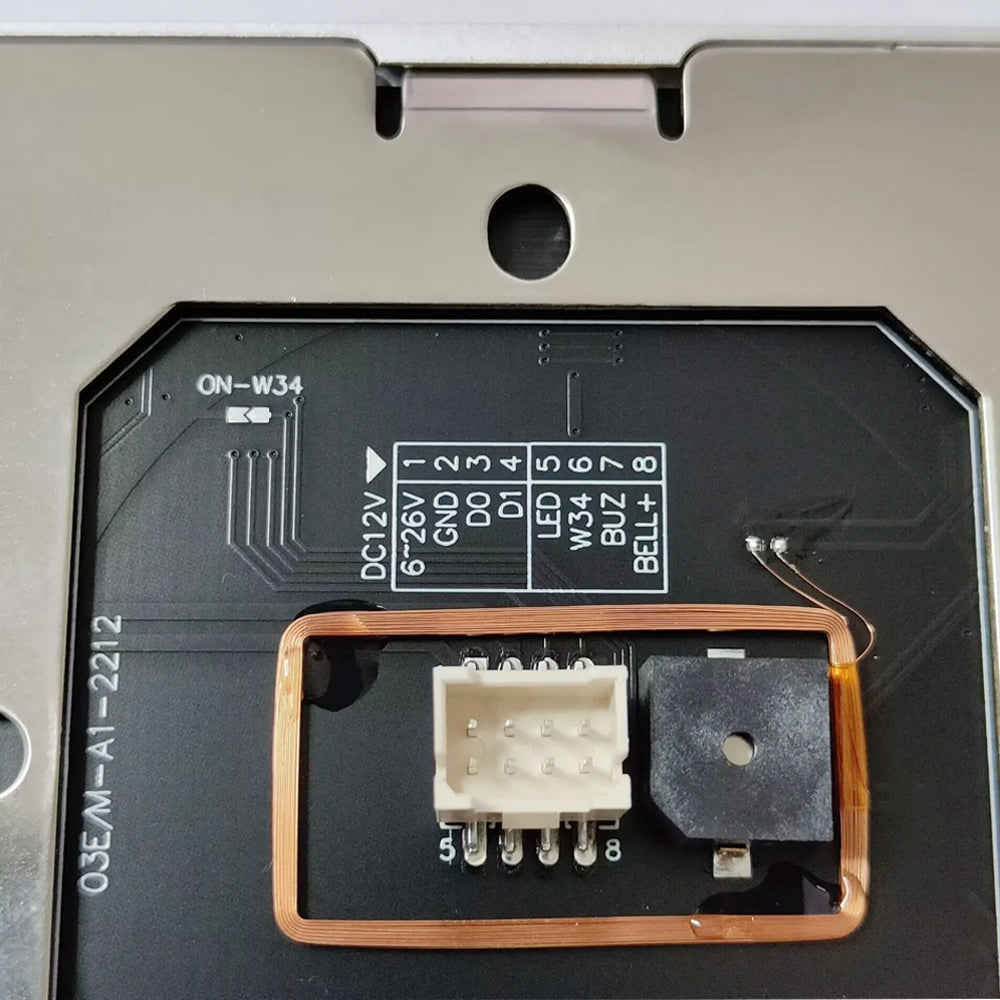

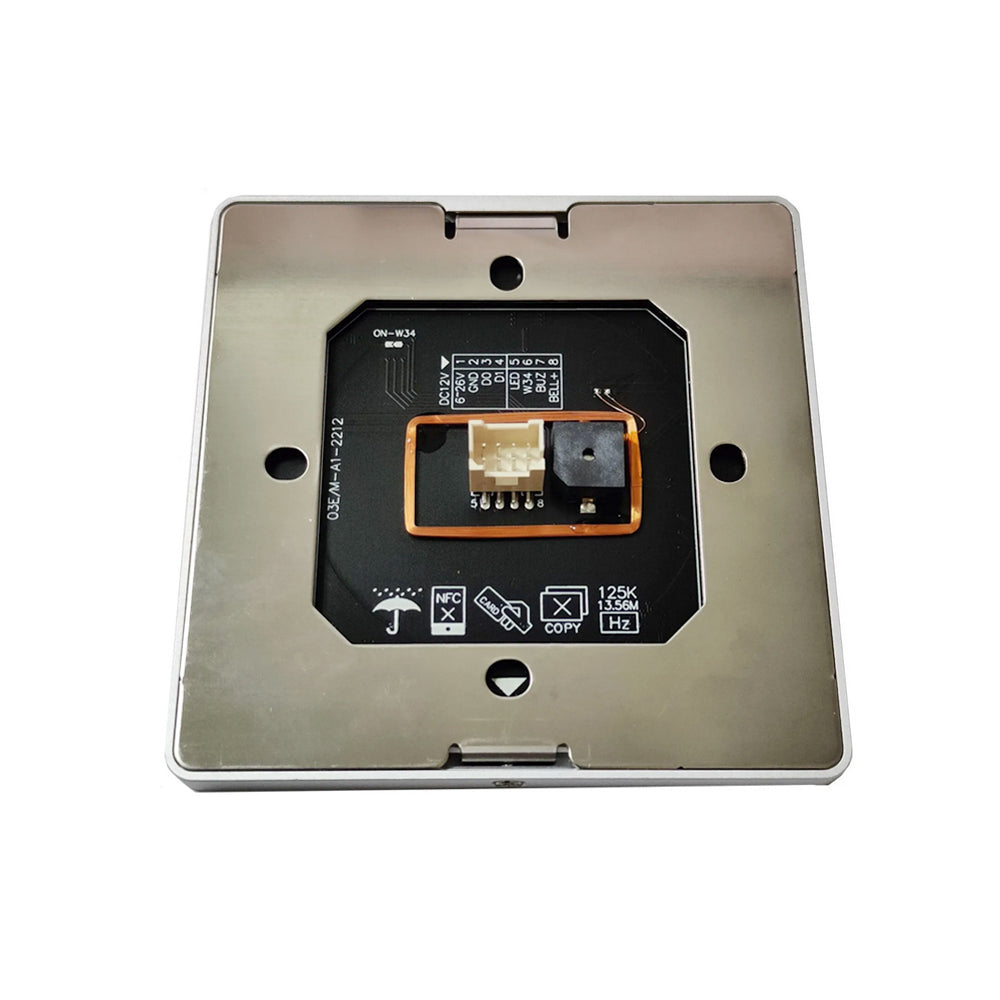

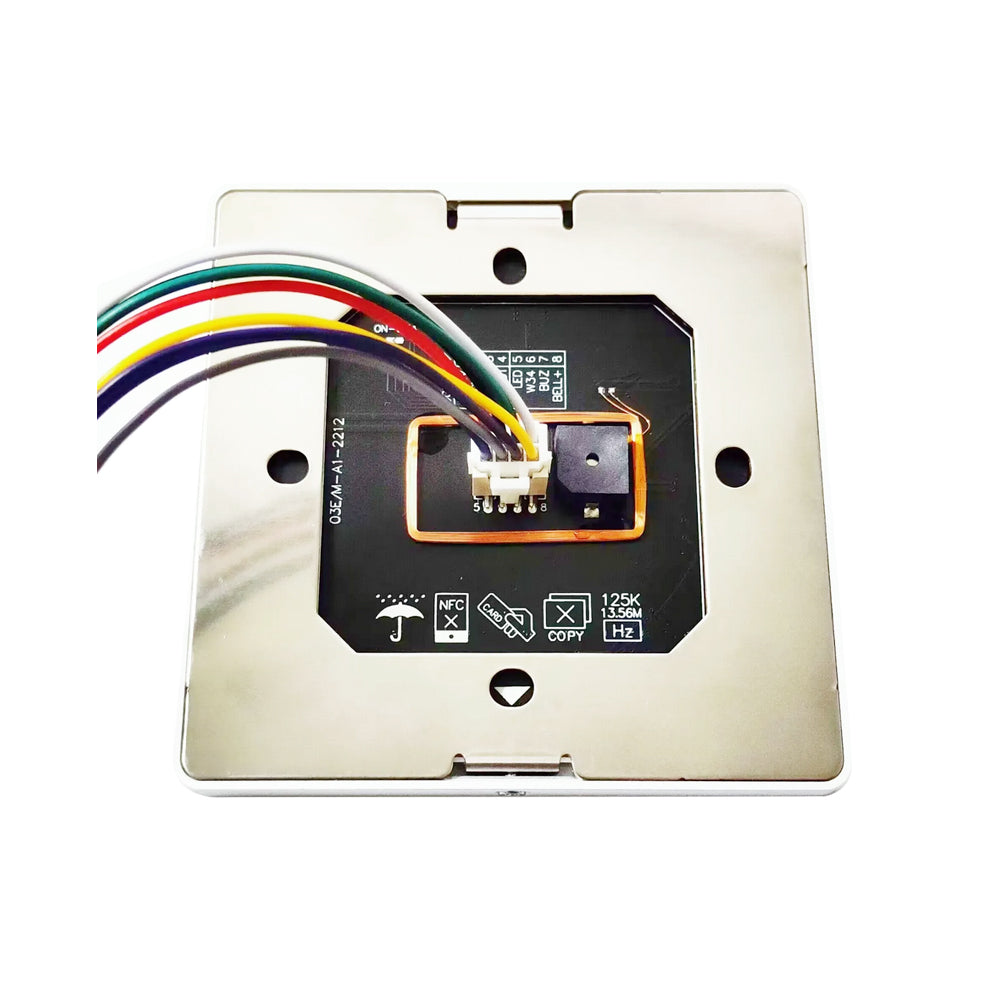

PIN description
|
in |
Color |
Description |
|
1 |
RED |
DC12V |
|
2 |
BLACK |
GND |
|
3 |
GREEN |
WG data0(RS485+) |
|
4 |
WHITE |
WG data1(RS485-) |
|
5 |
BLUE |
LED |
|
6 |
Grey |
Select, No Contact means WG26,Connect to GND means WG34 output |
|
7 |
Purple |
BUZZER |
|
8 |
YELLOW |
BELL |
