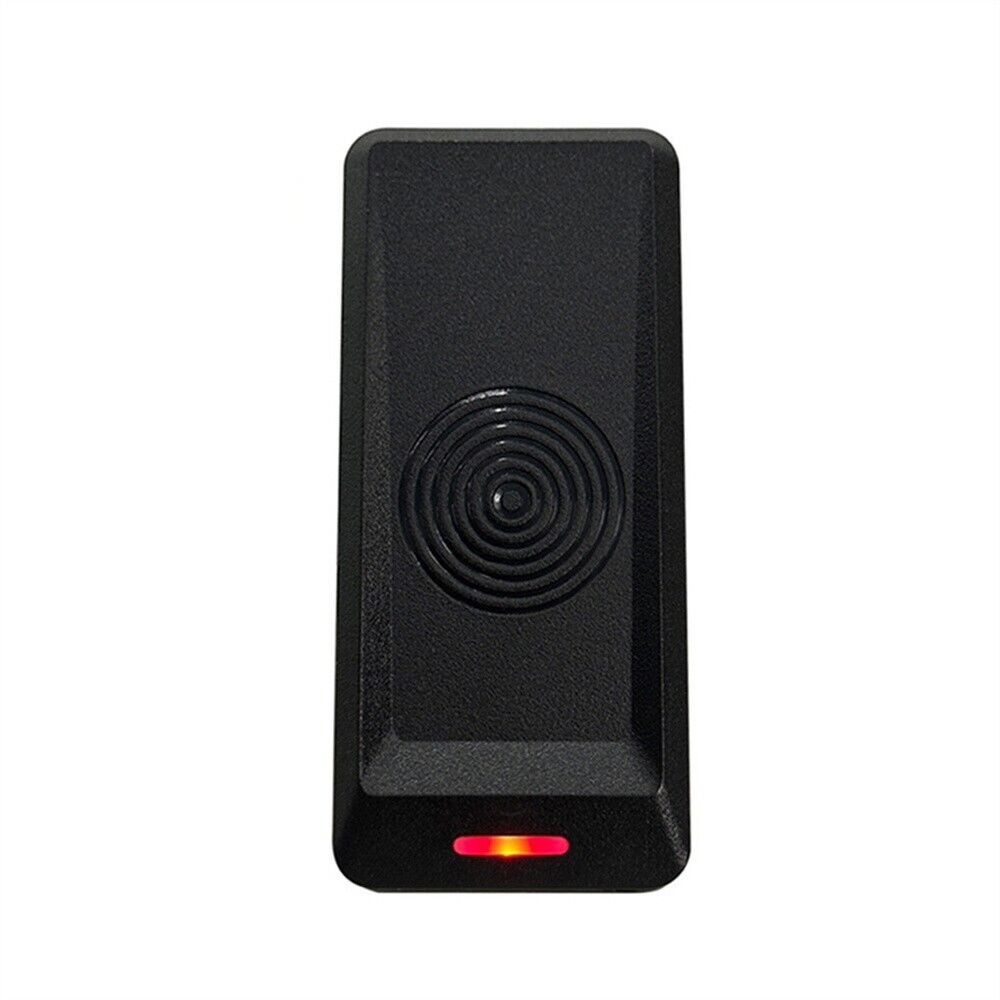

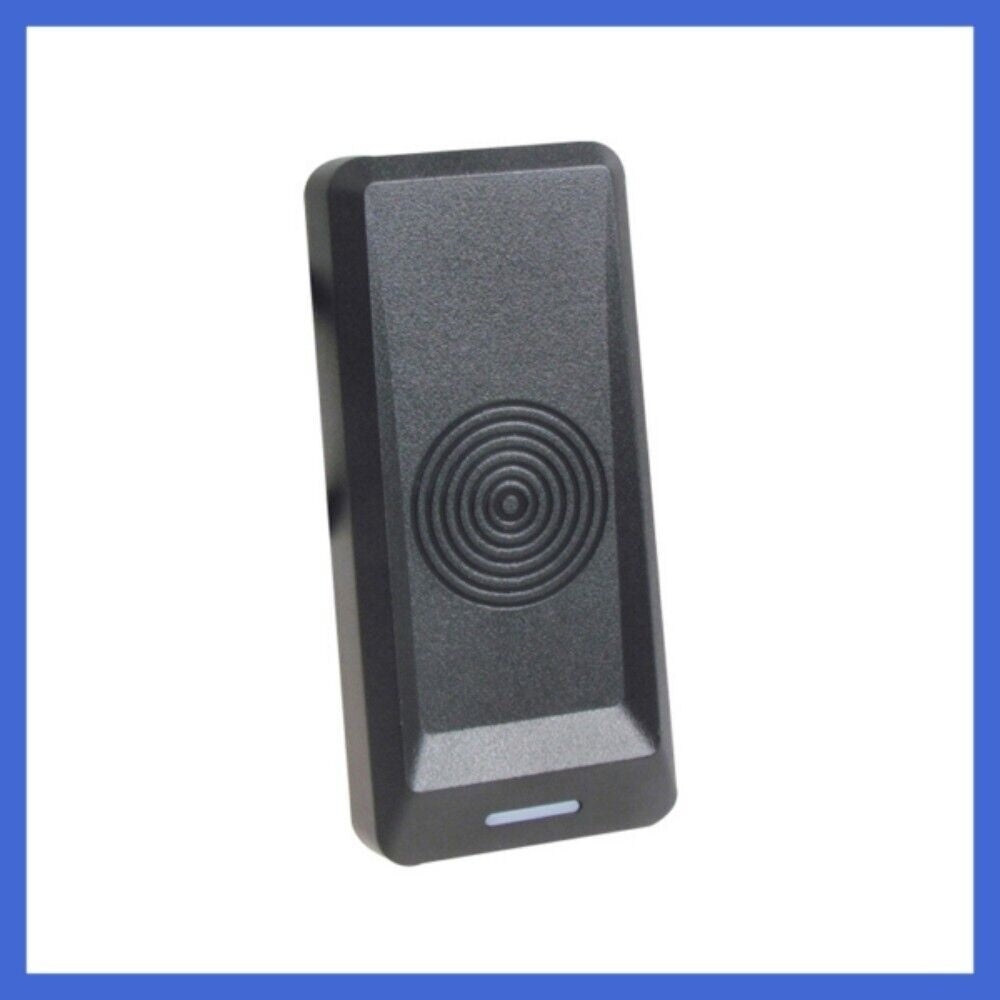

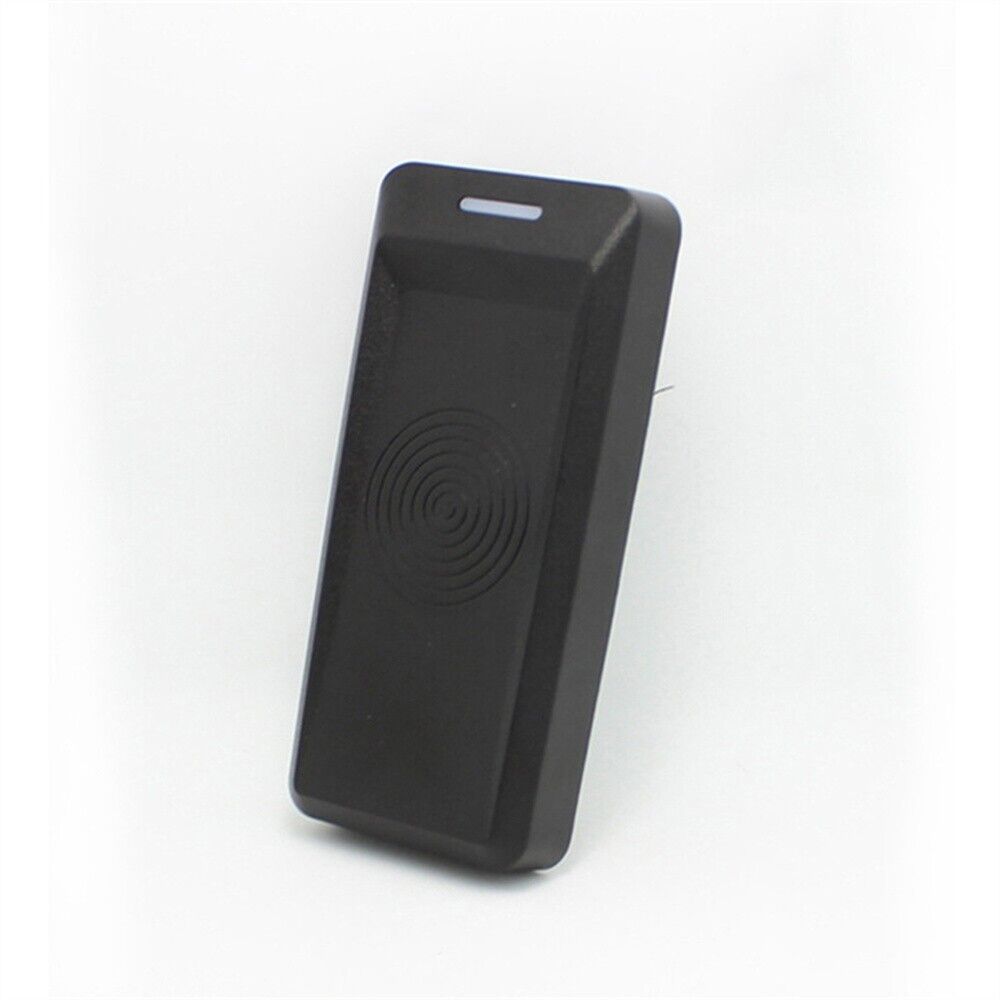

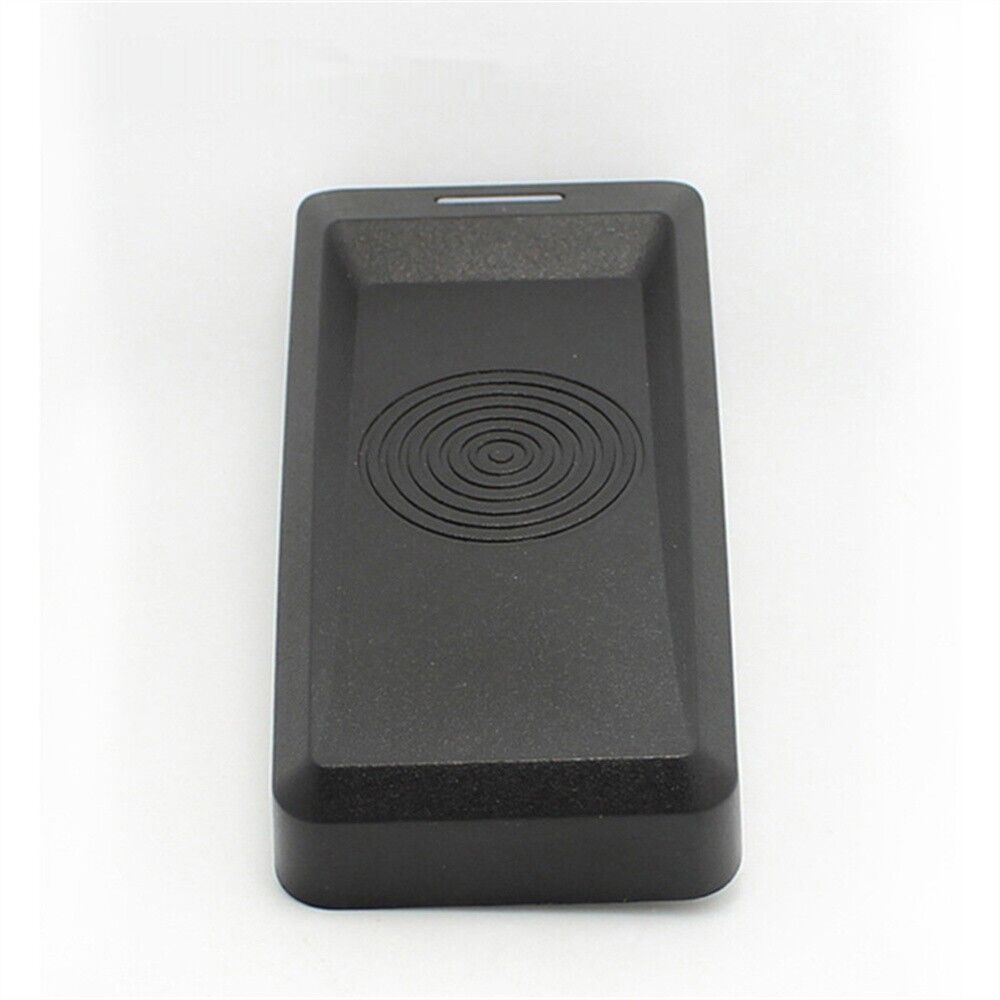

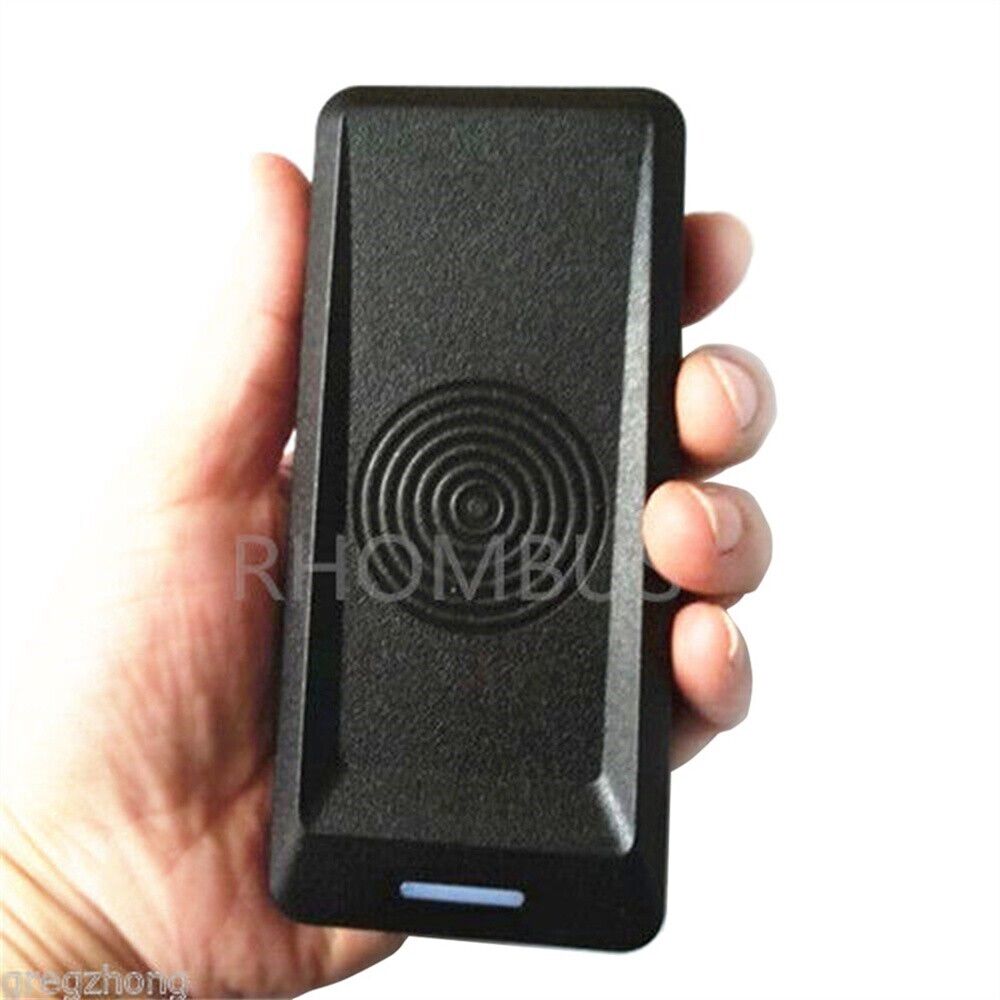

125Khz EM4100/4102 RFID wiegand26/34 dual Led contactless Access Control READER
125Khz EM4100/4102 RFID wiegand26/34 dual Led contactless Access Control READER
Не удалось загрузить сведения о доступности самовывоза
|
Detailed Description: |
|
|
Specification |
|
| decode time | <0.2s |
| Communication | Weigand 26/34 |
| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 100m |
| Currency | <40MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |

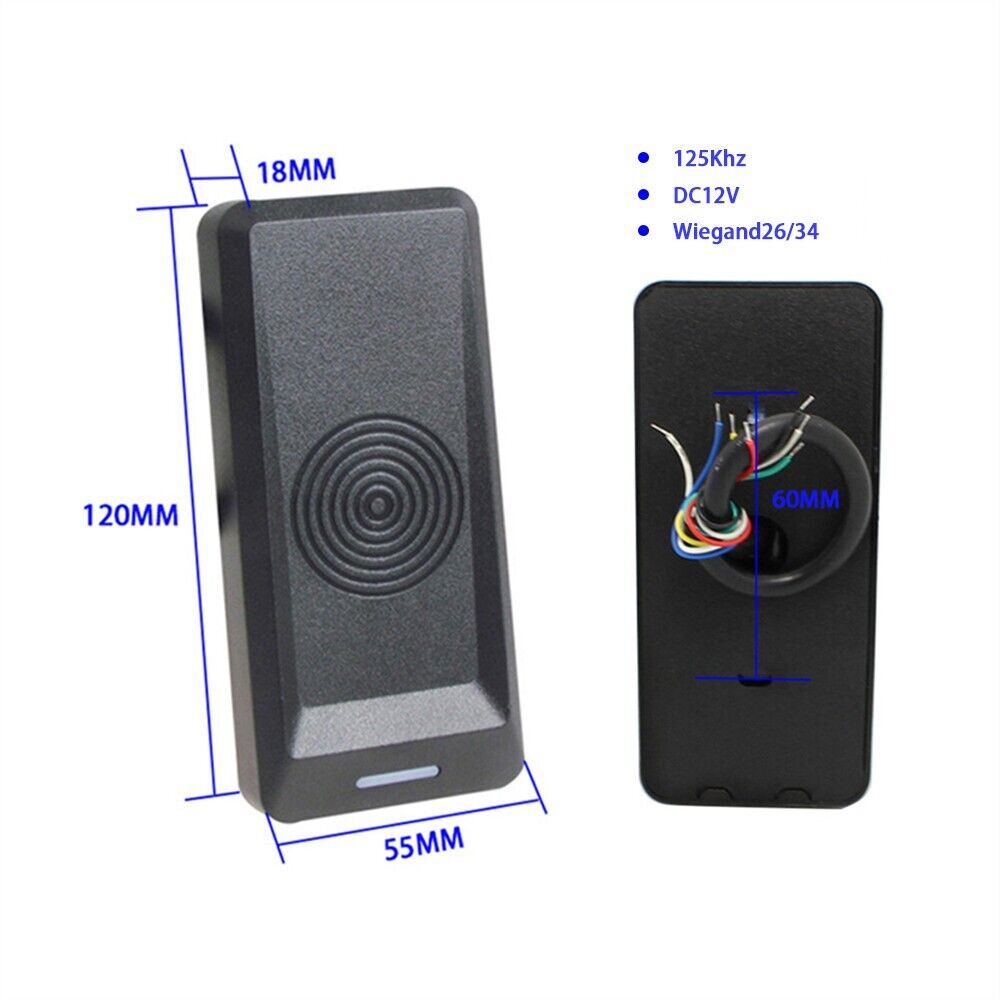

| Dimension (LxWxH mm) | 120*55*18 |
| Package | plastic casing &epoxy saturated |
| Weight (kg) | 0.2 |
Color black

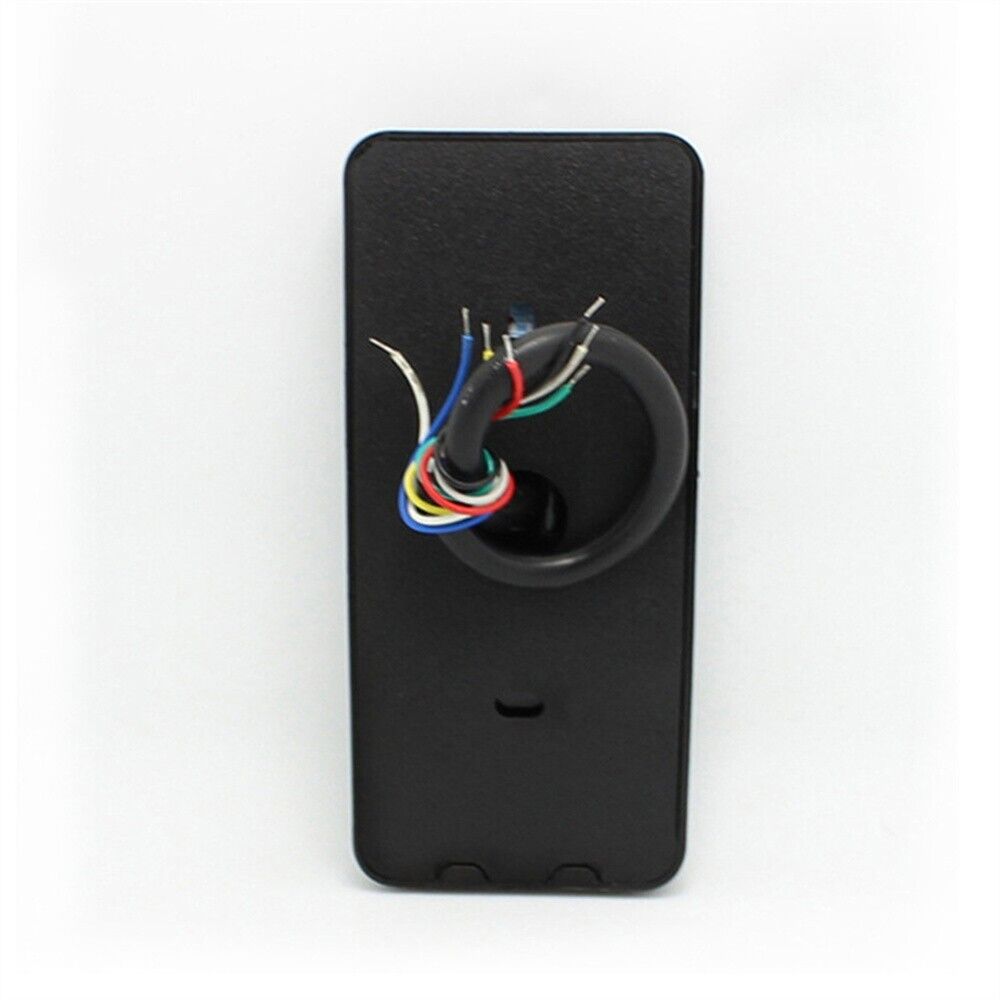

PIN description
|
Pin |
Color |
Description |
|
1 |
RED |
DC12V |
|
2 |
BLACK | GND |
|
3 |
GREEN |
WG data0(RS485+) |
|
4 |
WHITE |
WG data1(RS485-) |
|
5 |
BLUE |
LED |
|
6 |
YELLOW |
BEEP |
About Wiegand
Wiegand 26bits Format Interface
Wiegand 26bits Format Interface comprises of 26bits data including 24 user bits and 2 parity check bits. The 24 user
bits correspond to the latter 40 user bits in tags.
|
Bit |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
|
|
PE |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
D |
PO |
|
|
|
E |
E |
E |
E |
E |
E |
E |
E |
E |
E |
E |
E |
O |
O |
O |
O |
O |
O |
O |
O |
O |
O |
O |
O |
|
|
|
|
D40 |
D41 |
D42 |
D43 |
D50 |
D51 |
D52 |
D53 |
D60 |
D61 |
D62 |
D63 |
D70 |
D71 |
D72 |
D73 |
D80 |
D81 |
D82 |
D83 |
D90 |
D91 |
D92 |
D93 |
|
1. PE as even parity check bit and PO as odd parity check bit;
2. The bits marked with E go for even parity check and the bits marked with O go for odd parity check;
Wiegand 26bits Format Timing
|
SYMBOL |
DESCRIPTION |
VALUE( Typ. ) |
|
THD |
Sending Start Delay |
0.06ms |
|
TSD |
Sending Stop Delay |
2ms |
|
TDW |
Data pulse width |
0.4ms |
|
TIW |
Data pulse interval width |
2ms |
