125Khz EM4100/4102 Waterproof RFID WG26/34 Dual Led Access Control Card Reader

Detail:

decode time<0.2s
Communication:Weigand 26/34
Card type:125KHz EM card , EM compatible card ,EM4100\4102
Induction Distance:10~18cm
Power supply:DC12V
DATA transfer range:Max 80m
Currency:<100MA
Working Temperature:0~70°C
Working Humidity:Less than 80%

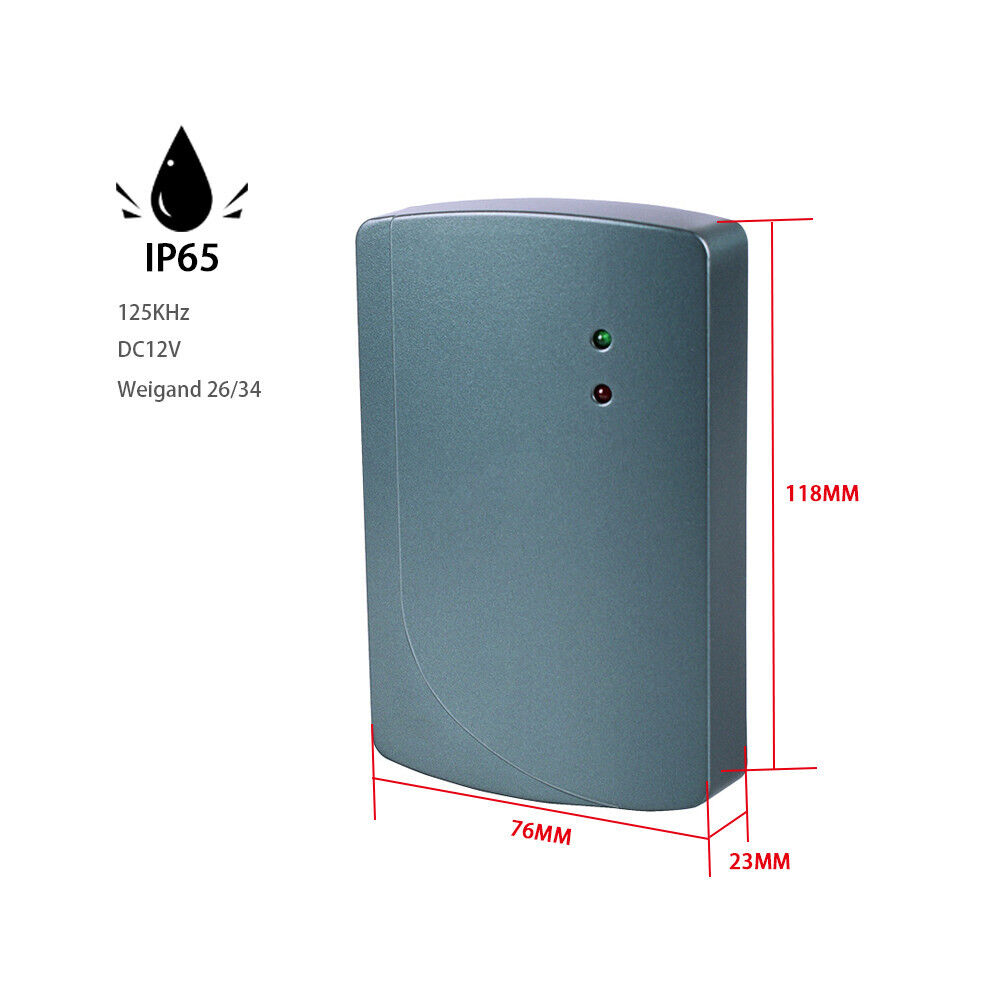

Dimension (LxWxH mm)118×76×23

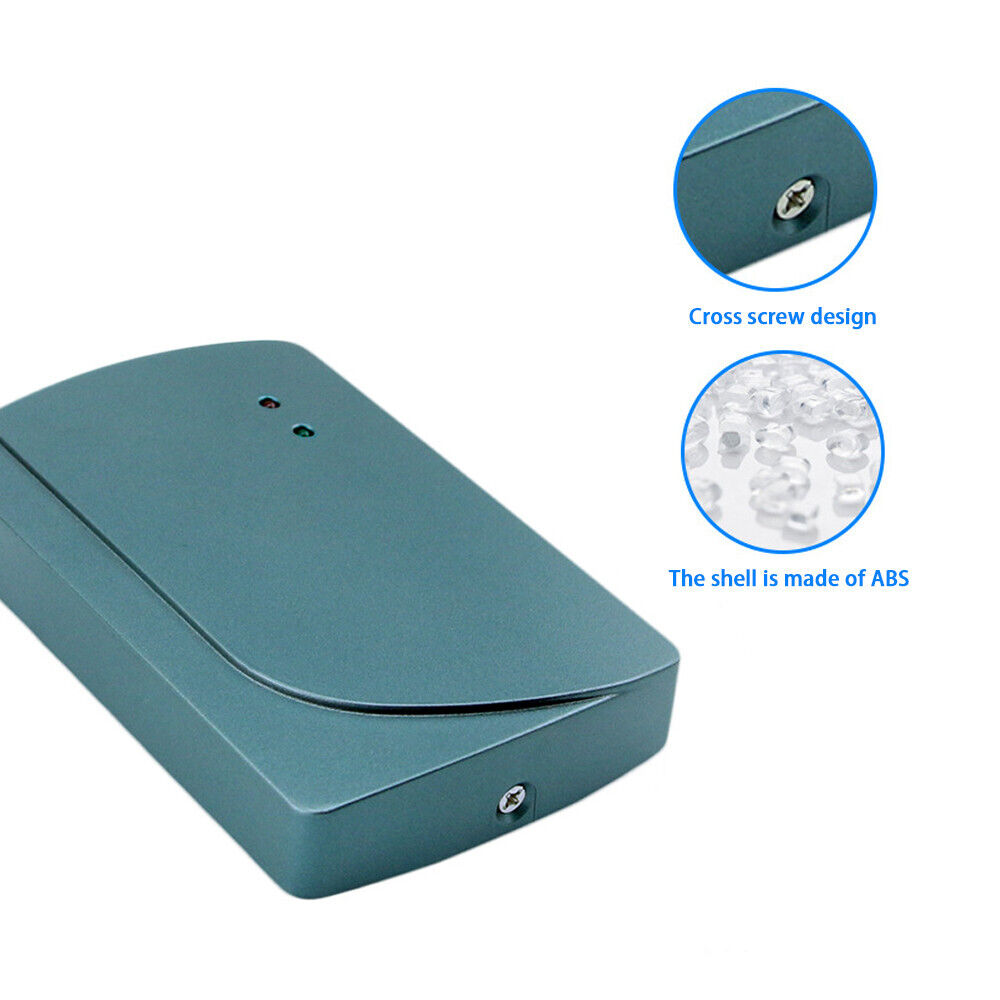

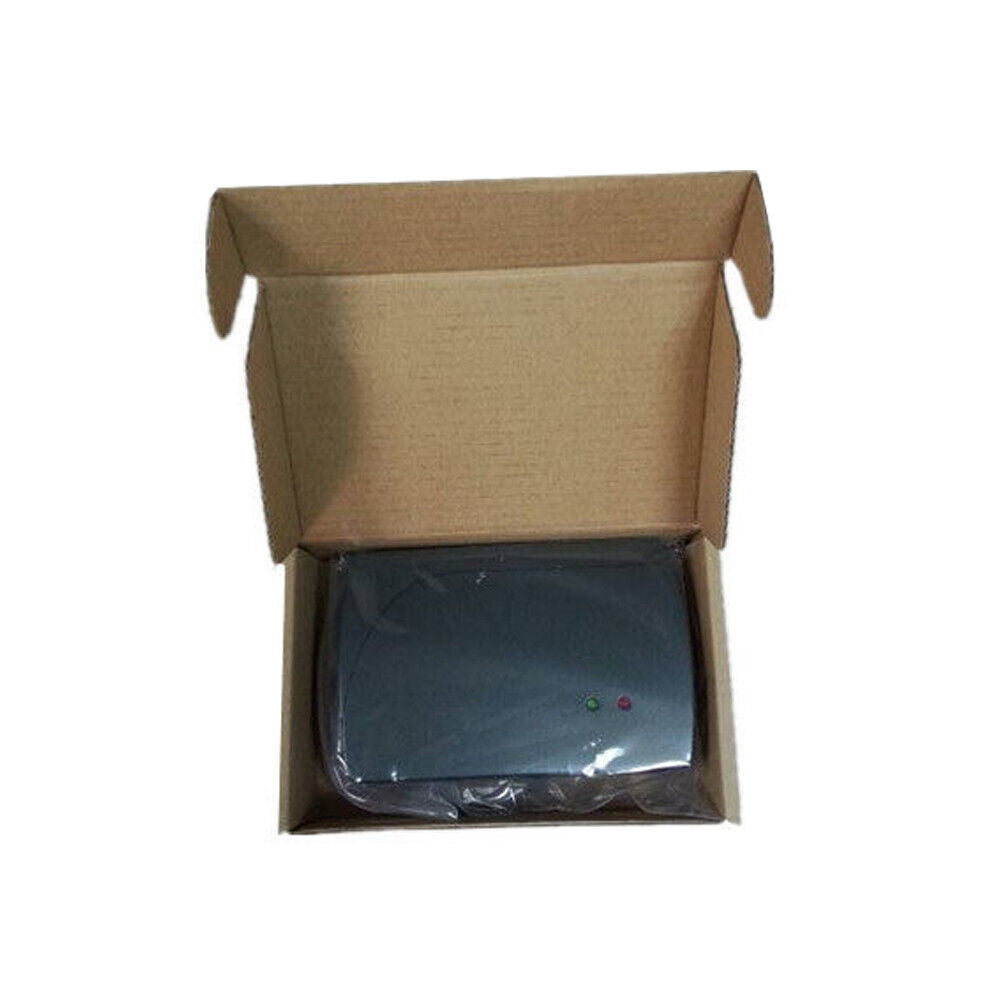

Package: plastic casing &epoxy saturated
Weight (kg):0.2
Color:Milk white

PIN description

RED:DC12V
BLACK:GND
GREEN:WG DATA0
WHITE:WG DATA1
YELLWO:BUZZER
BLUE:LED
BROWN:Select,No Contact means WG26,Connect to GND means WG34 output
