125KHz RS232 COM port Daul Led Epoxy Fulled EM4100/4102 RFID card pigtail READER
125KHz RS232 COM port Daul Led Epoxy Fulled EM4100/4102 RFID card pigtail READER
Обычная цена
$15.49 USD
Обычная цена
Цена со скидкой
$15.49 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
It is a Com port RS232 output
|
Detailed Description: |
|
|
Specification |
|
| decode time | <0.2s |
| Communication | RS232 Baud Rate 9600, N, 8, 1 |
| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 100m |
| Currency | <40MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |

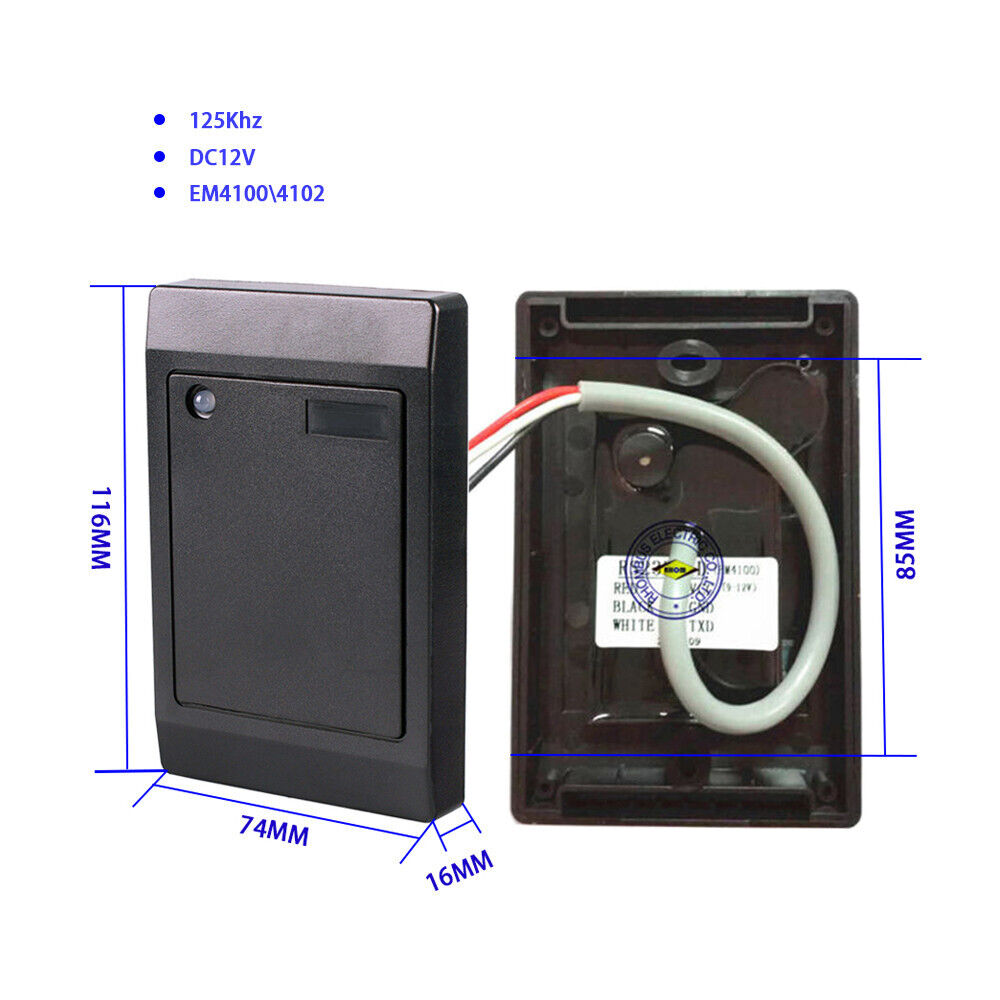

| Dimension (LxWxH mm) | 116*74*16 |
| Package | plastic casing &epoxy saturated |
| Weight (kg) | 0.2 |
Color Black

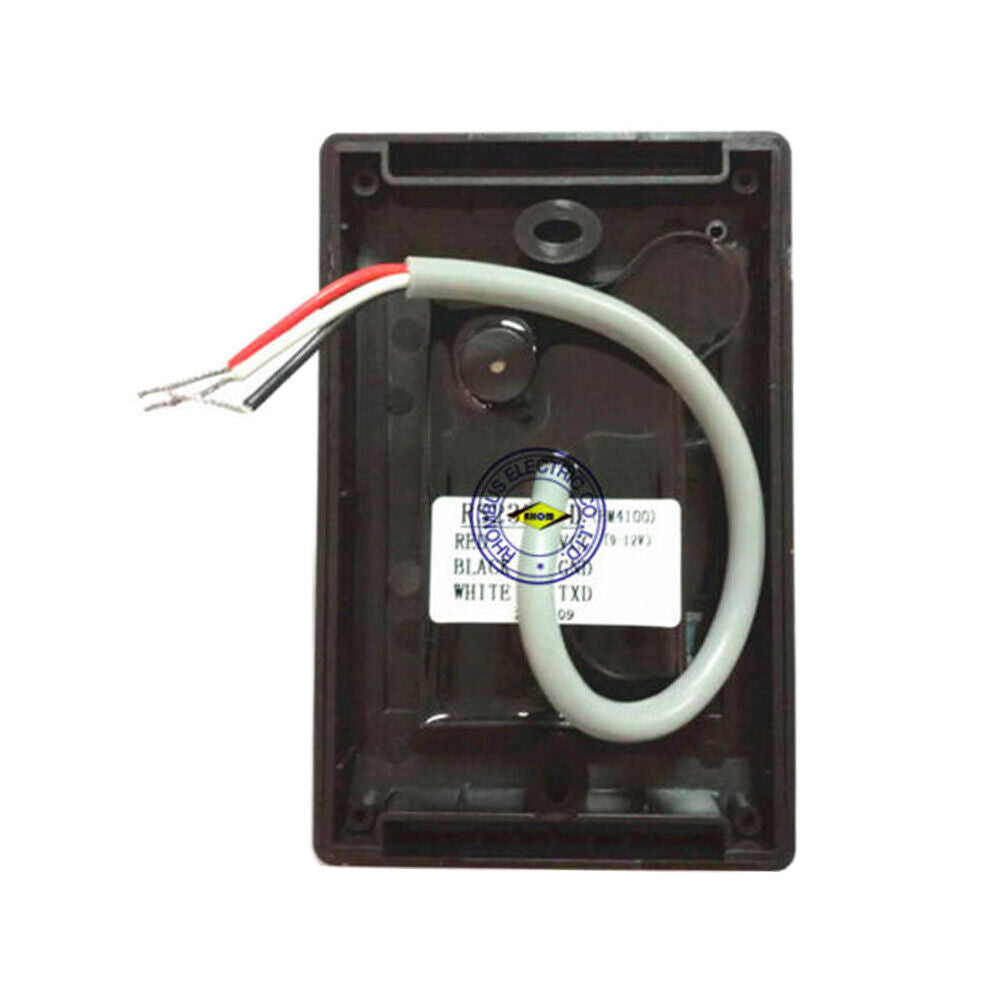

PIN description
|
Pin |
Color |
Description |
|
1 |
RED |
DC9-15V |
|
2 |
BLACK |
GND |
|
3 |
WHITE |
TXD |
RS232 Data Structure (Serial ASCII)
Baud Rate: 9600, N, 8, 1
|
STX (02 HEX) |
DATA (10 HEX) |
CR |
LF |
ETX (03 HEX) |
The start character is factory defined as an ‘STX’ (02 HEX). This is followed by 10 Hex characters of data.
The CR/LF characters serve to bring the received screen text back to the left hand side and on the line below
after the data bytes have been sent. The ‘ETX’ (03 HEX) character denotes the end of the current transmission.
