13.56Mhz Mifare1 S50 Waterproof RFID WG26/34 Dual Led Access Control Card Reader
13.56Mhz Mifare1 S50 Waterproof RFID WG26/34 Dual Led Access Control Card Reader
Обычная цена
$18.95 USD
Обычная цена
Цена со скидкой
$18.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Detail:
decode time<0.2s
Communication:Weigand 26/34
Card type:Mf S50/S70 13.56Mhz IC card
Induction Distance:10~18cm
Power supply:DC12V
DATA transfer range:Max 80m
Currency:<100MA
Working Temperature:0~70°C
Working Humidity:Less than 80%

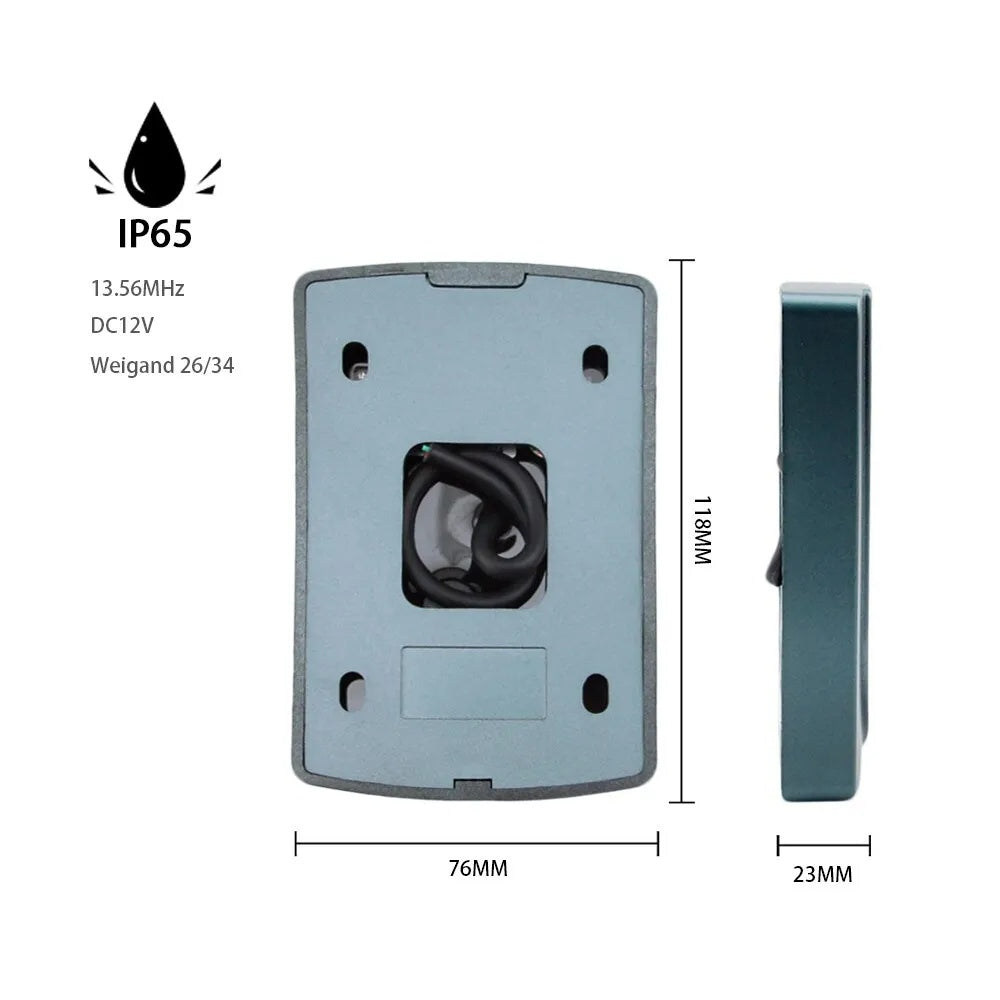

Dimension (LxWxH mm):118×76×23
Package: plastic casing &epoxy saturated
Weight (kg):0.2
Color:dark green
PIN description
RED:DC12V
BLACK:GND
GREEN:WG DATA0
WHITE:WG DATA1
YELLWO:BUZZER
BLUE:LED
BROWN:Select,No Contact means WG26,Connect to GND means WG34 output
