13.56Mhz,wiegand26 dual Led 9V 12V epoxy packaged RF contactless MF1 IC card KO Knock out boxREADER
13.56Mhz,wiegand26 dual Led 9V 12V epoxy packaged RF contactless MF1 IC card KO Knock out boxREADER
Обычная цена
$18.95 USD
Обычная цена
Цена со скидкой
$18.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
|
Model |
203M |
|
Specification |
|
|
decode time |
<0.2s |
|
Communication |
Weigand 26 |
|
Card type |
MF1 S50 S70 13.56Mhz |
|
Induction Distance |
10~18cm |
|
Power supply |
DC12V |
|
DATA transfer range |
Max 80m |
|
Currency |
<100MA |
|
Working Temperature |
0~70°C |
|
Working Humidity |
Less than 80% |
|
Warranty |
|
|
Warranty |
24 months |
|
Physical |
|
|
Dimension (LxWxH mm) |
88*88*18 |
|
Package |
plastic casing &epoxy saturated |
|
Color |
black/white |
|
Weight (kg) |
0.25 |
|
Images |
|
|

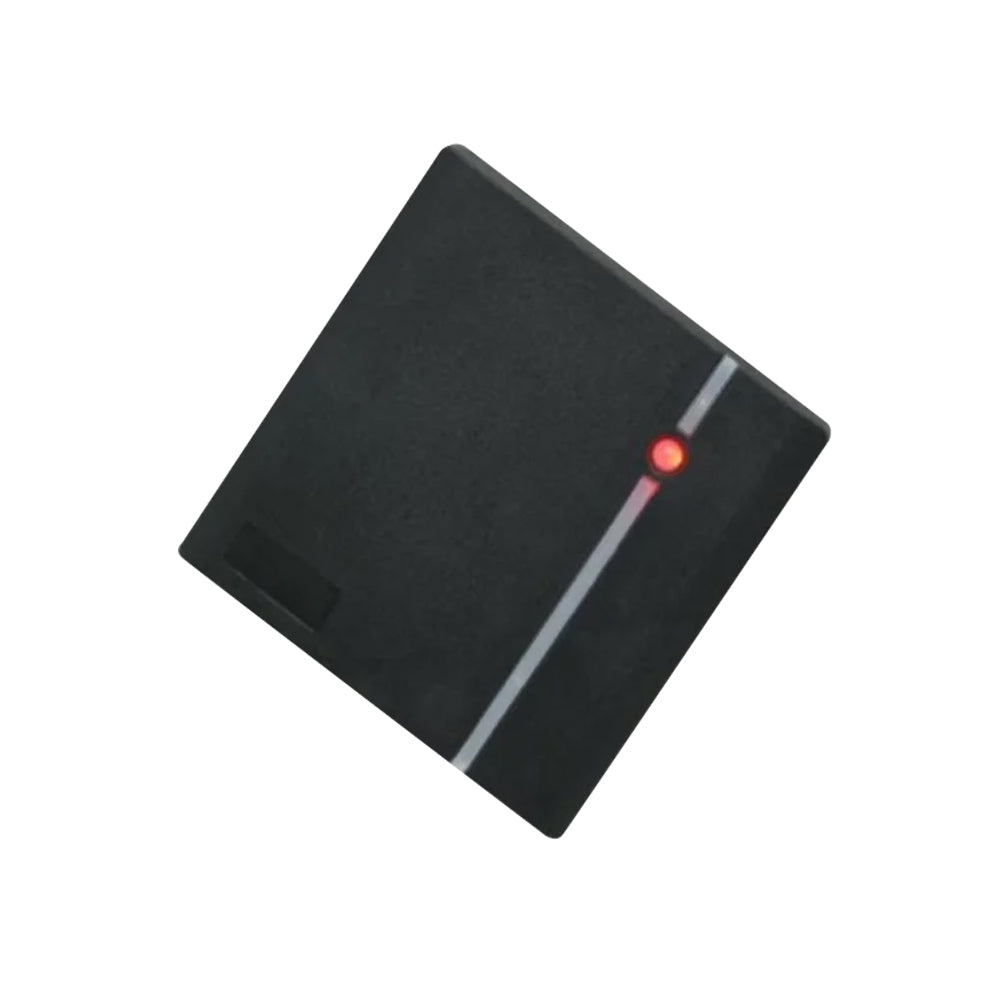

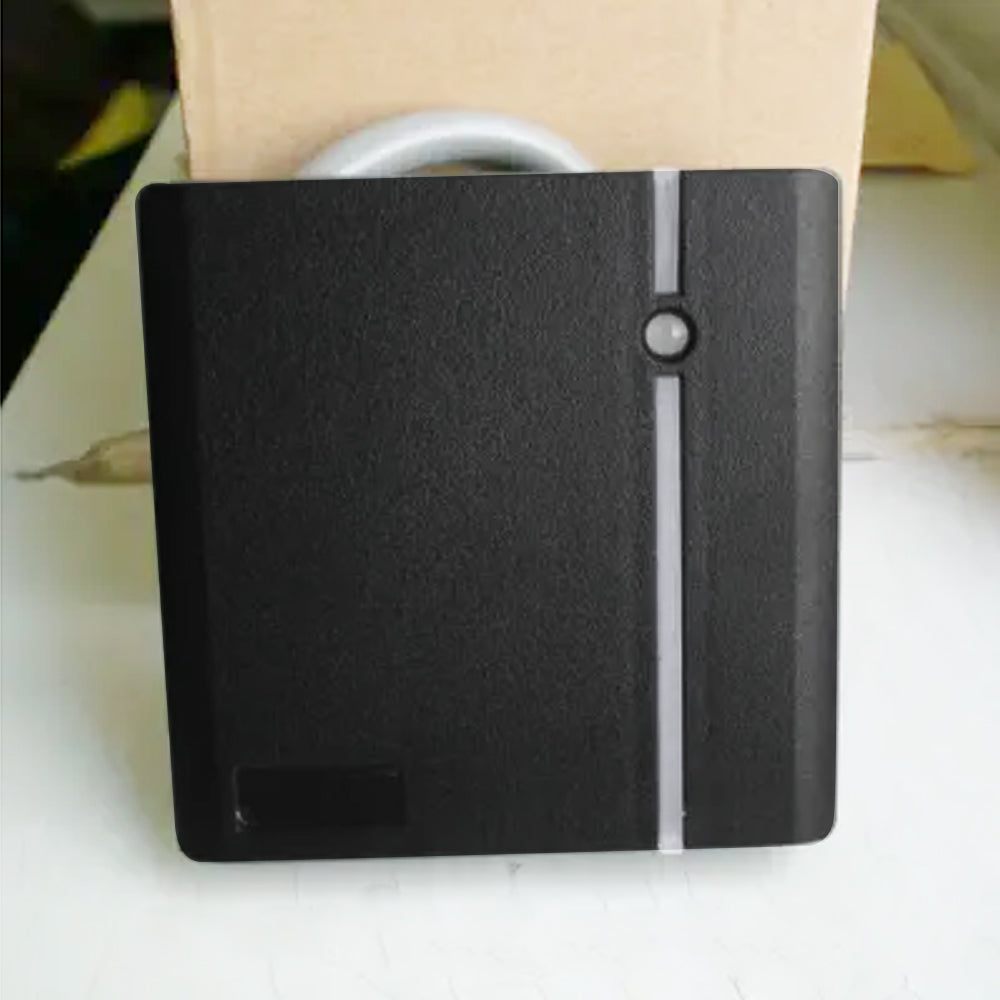

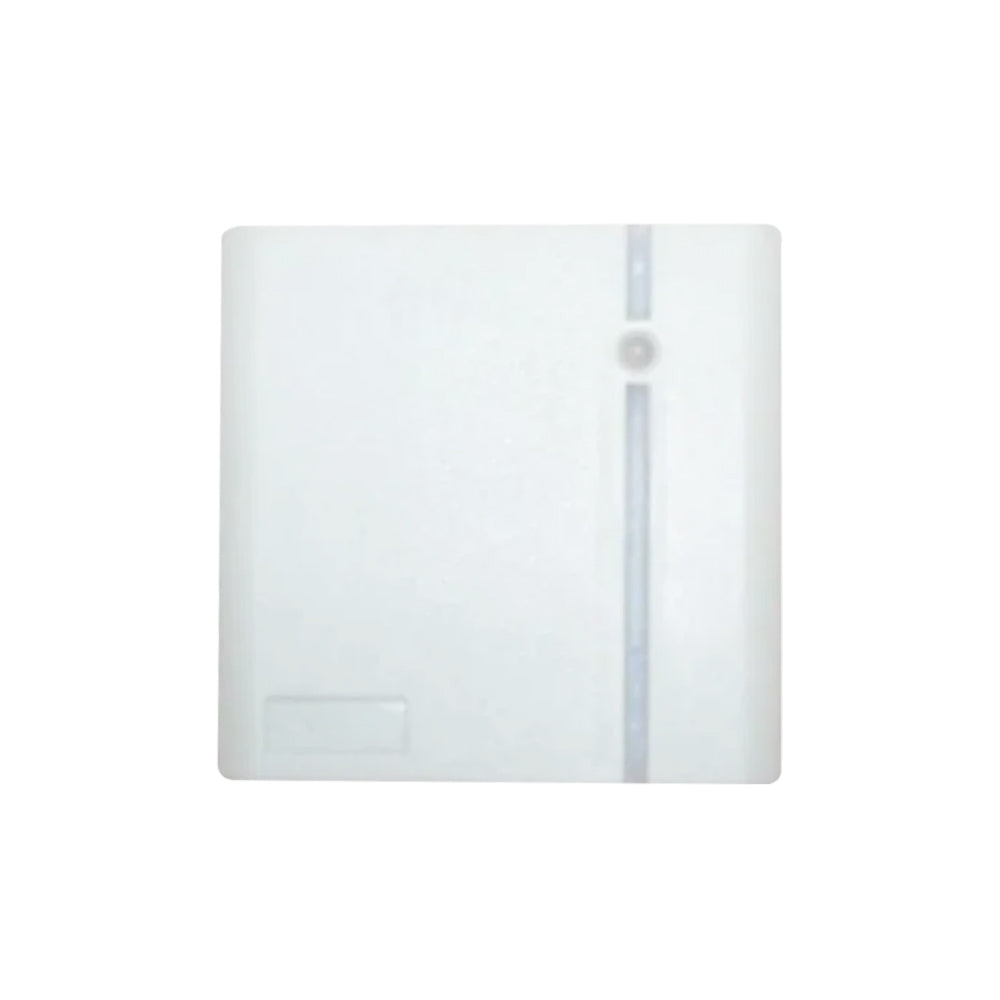

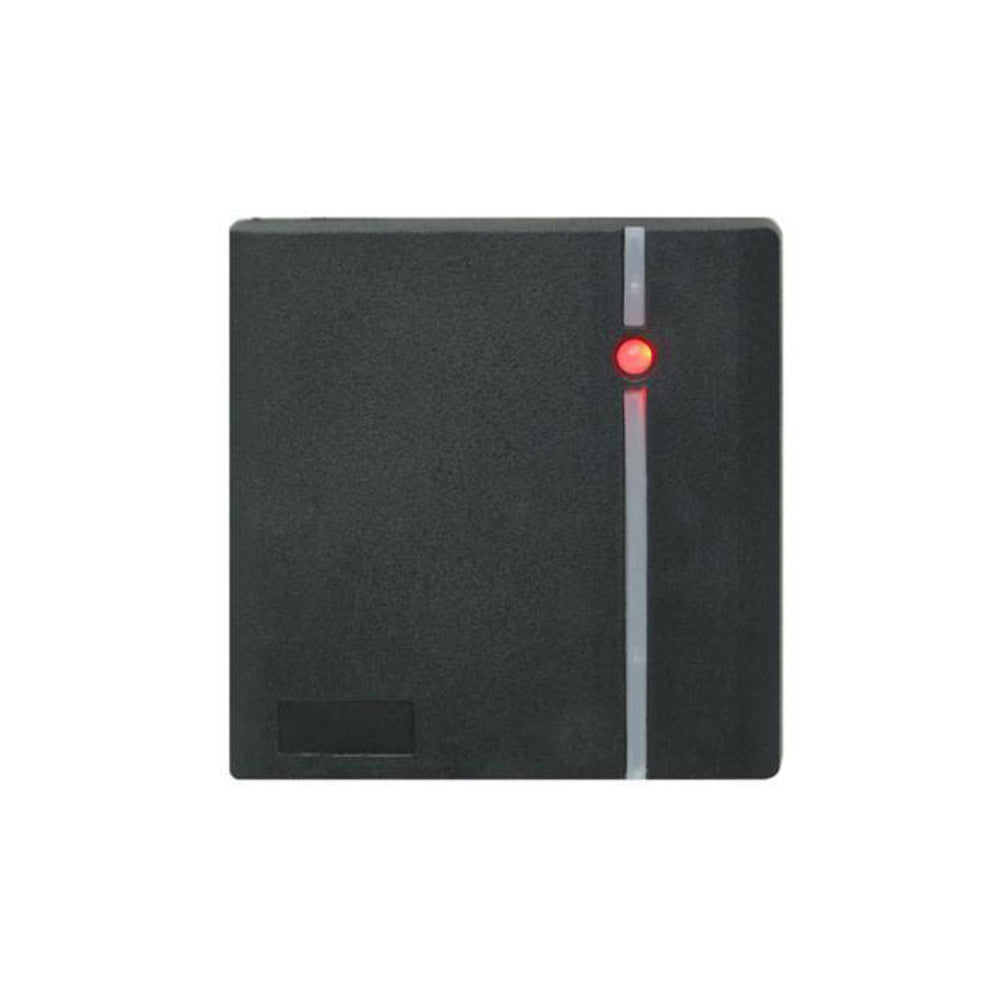

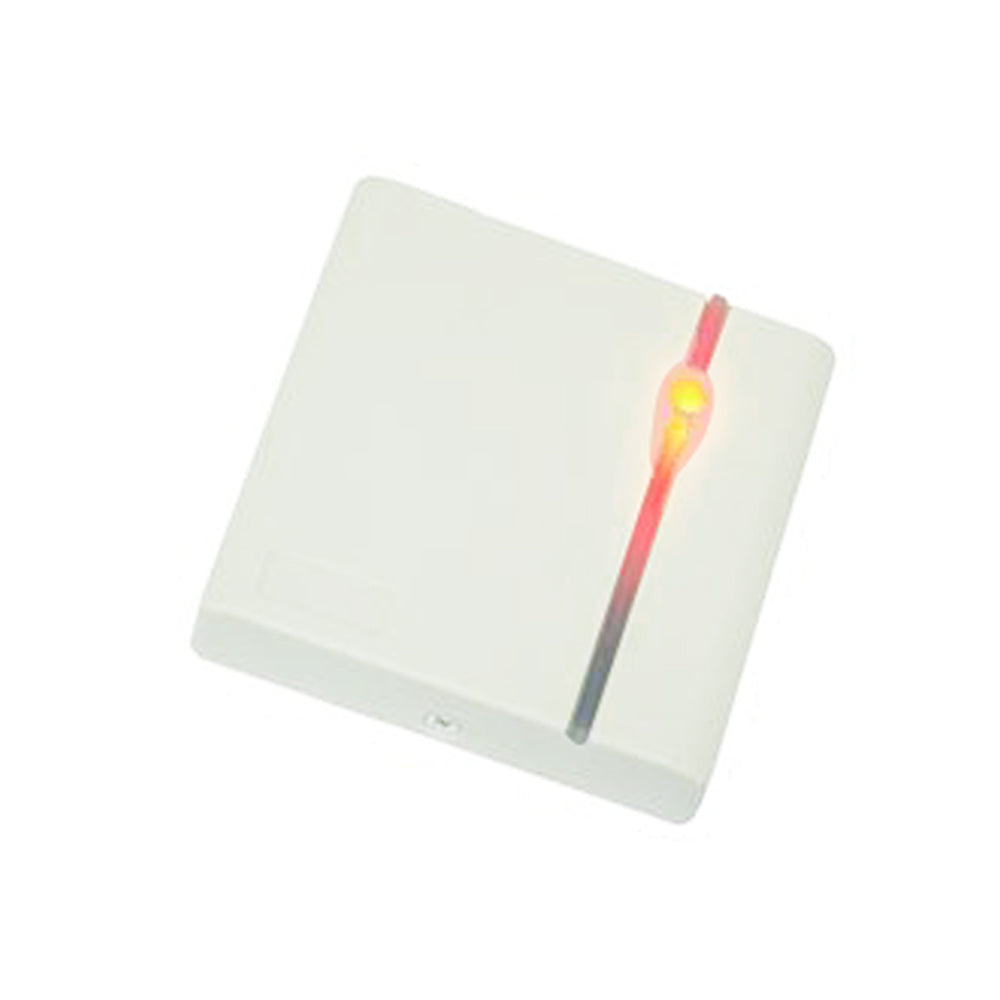

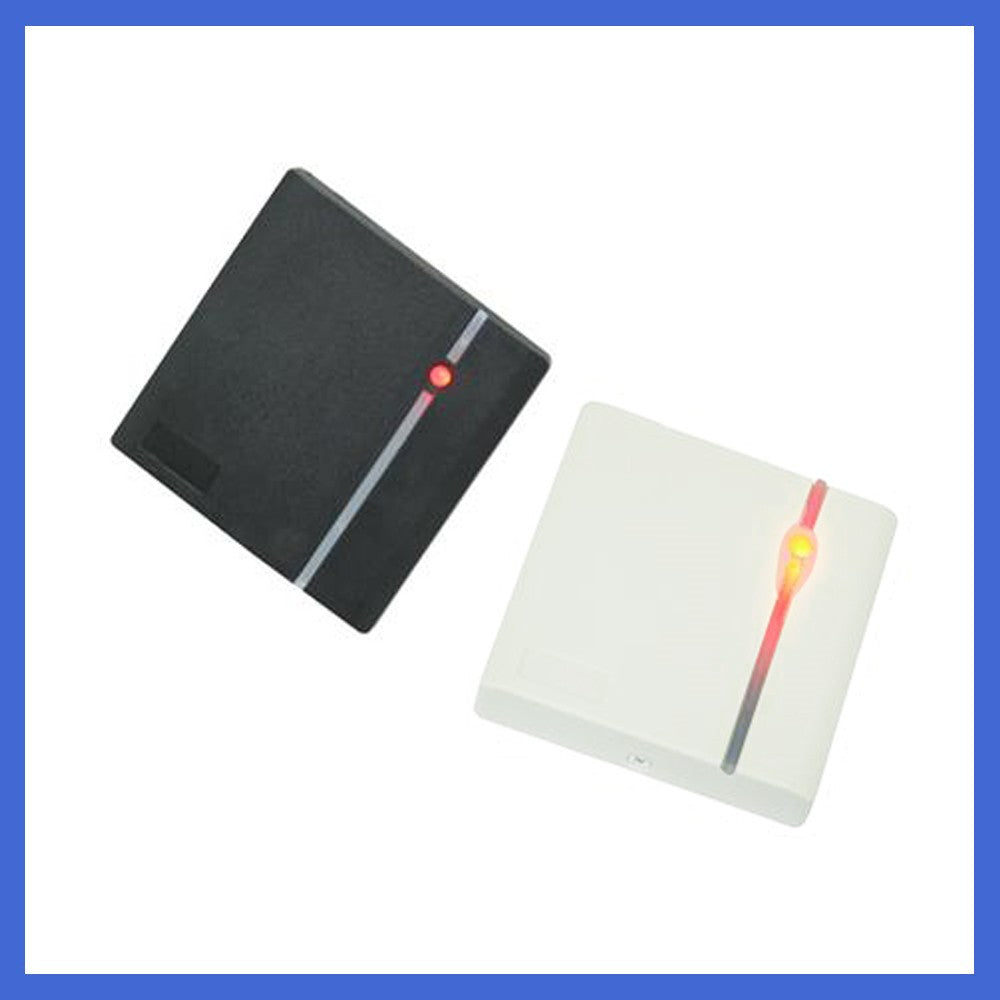

Overall view: |
|
|
Overall view2: |
|
PIN description
special services:
we can provide not only the standard products,but also customized things,for example,color/Logo/Label/DATA format&package etc,if you think it is necessary!
