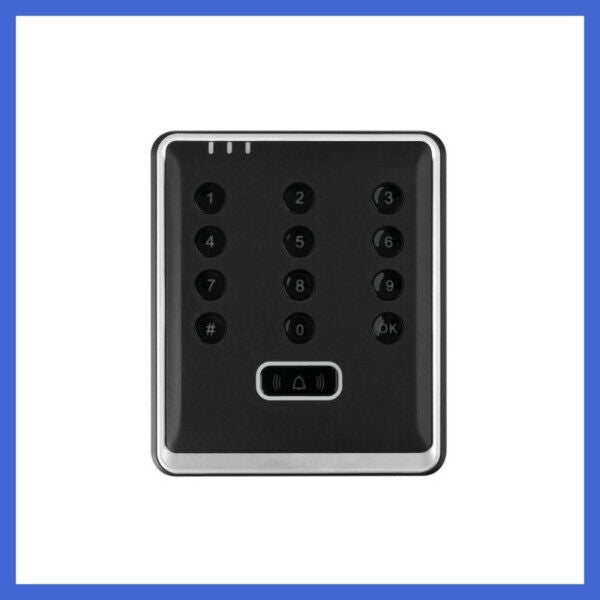

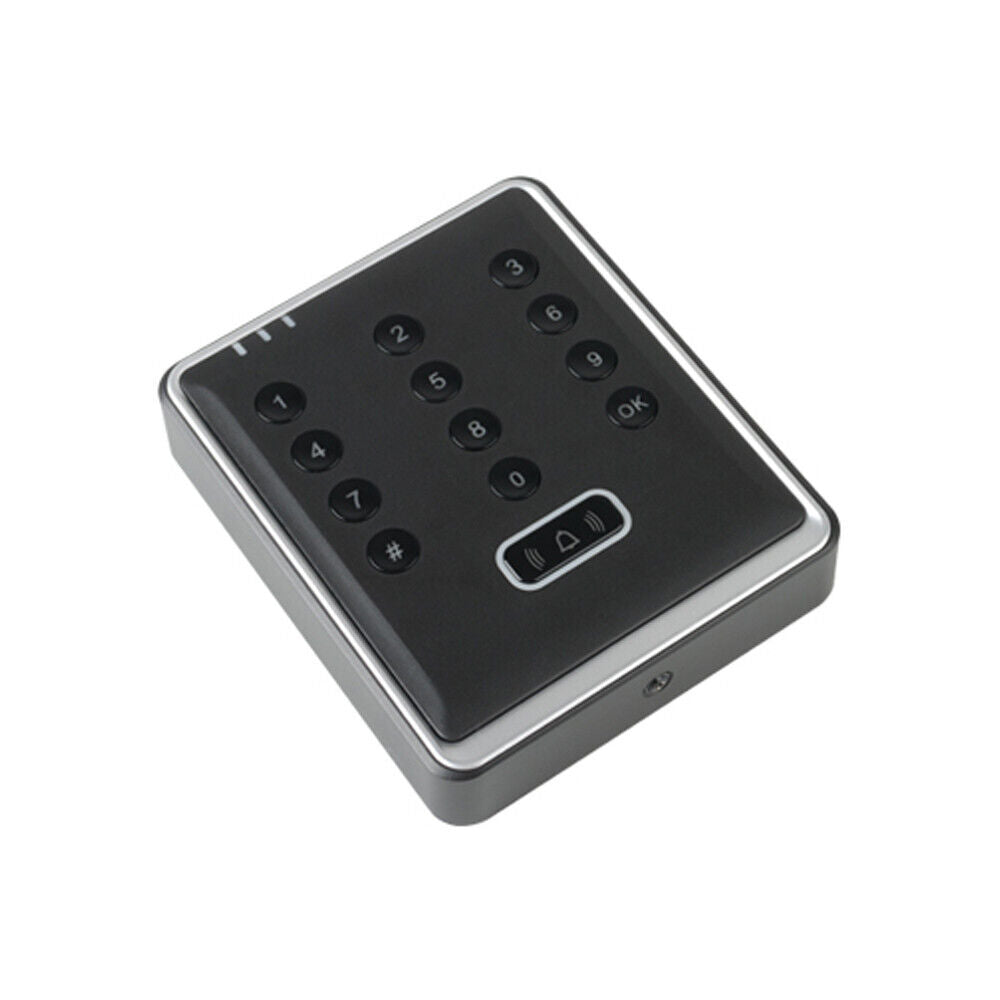

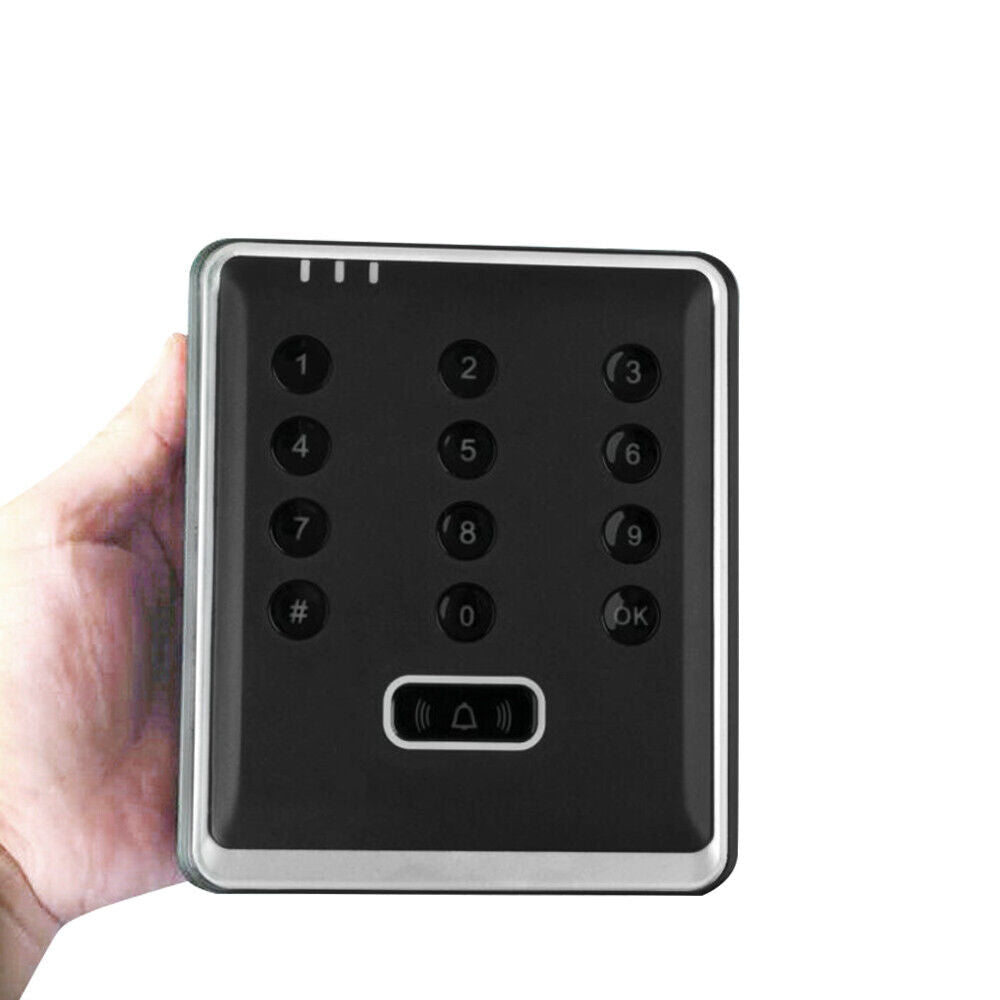

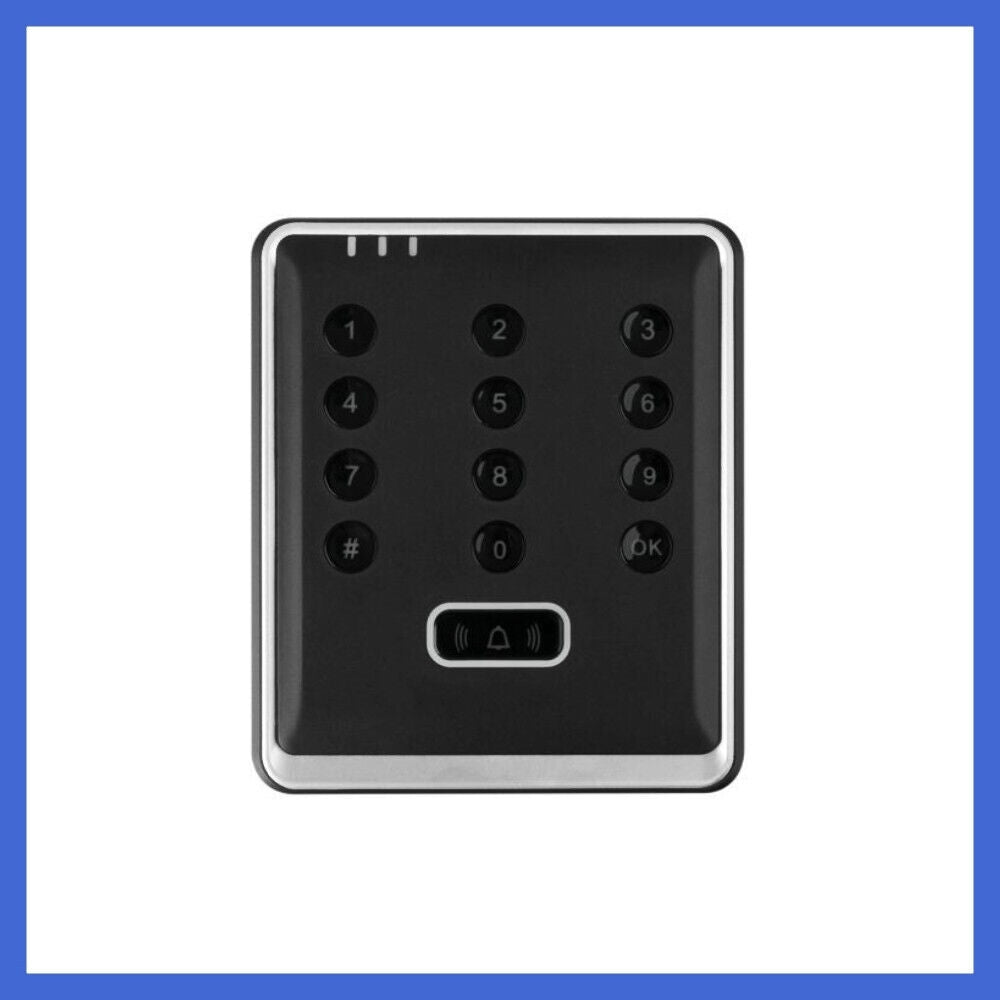

Rhombus Access Control System

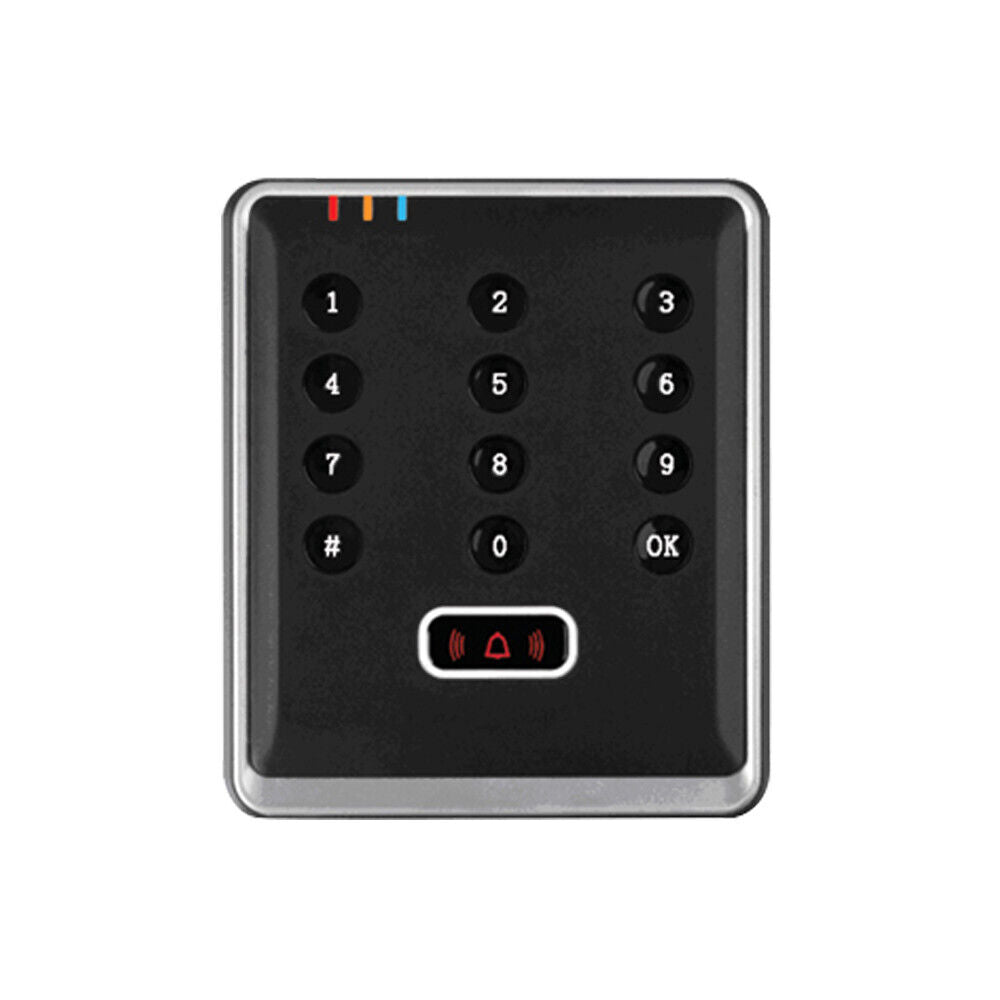

1K User EM 125Khz extendable data backupable Pin code standalone access control
1K User EM 125Khz extendable data backupable Pin code standalone access control
Не удалось загрузить сведения о доступности самовывоза
Product Description
Features:
1. Data backup.you can backup all the enrollments data into a memory IC and then restore to other same devices.
2. Delete/Add cards by master card,
3. Anti-probe the password
4. Add ID cards by the room number,such as can name cards to the controller as "201"(201 is a room number),emember the cards but not its
real number so that you don't have to remember all the cards' number especially when a card lost.
5. Capacity can be extended up to 16K if you need.
6. Reader frequency ID model:125KHz

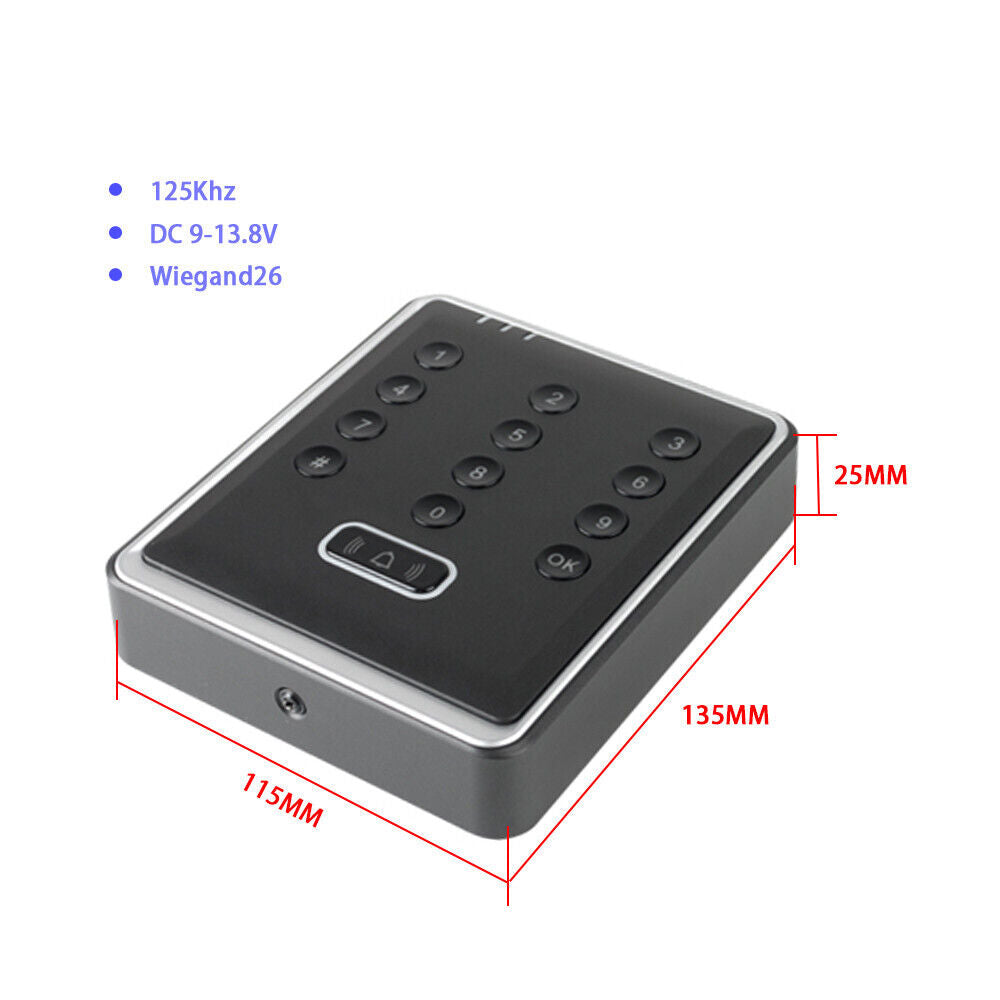

7.Size:11.5x13.5x2.5 cm
All models support: open the door by password, by card + password , manage the device by master card, data backup and restore by memory IC.
Extendable Optional:Remote control,RFID reader
Card Type:
|
Card type |
function |
|
1 |
Common use card |
|
2 |
Daytime using card,invalid during evening |
|
3 |
Password attached card,must typing in PW after card reading whenever |
|
4 |
Password attached during evening.Only card reading is valid during daytime |

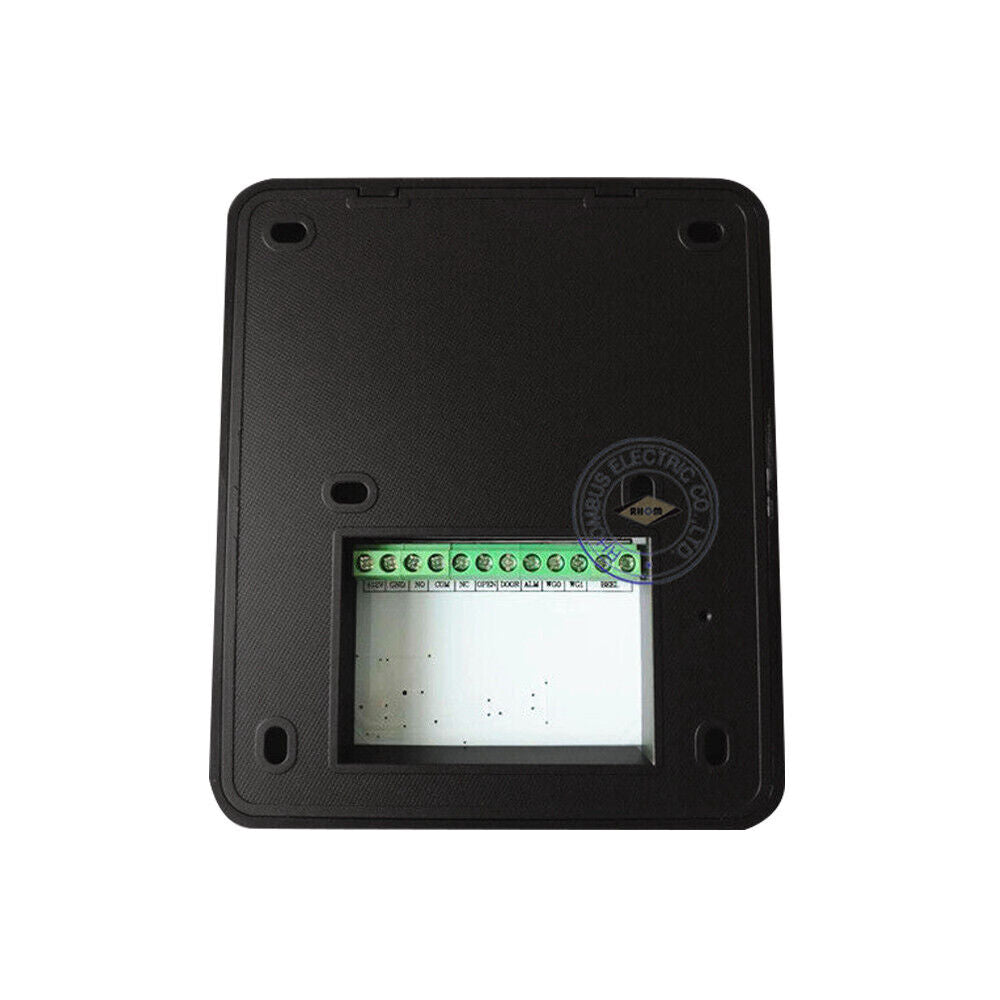

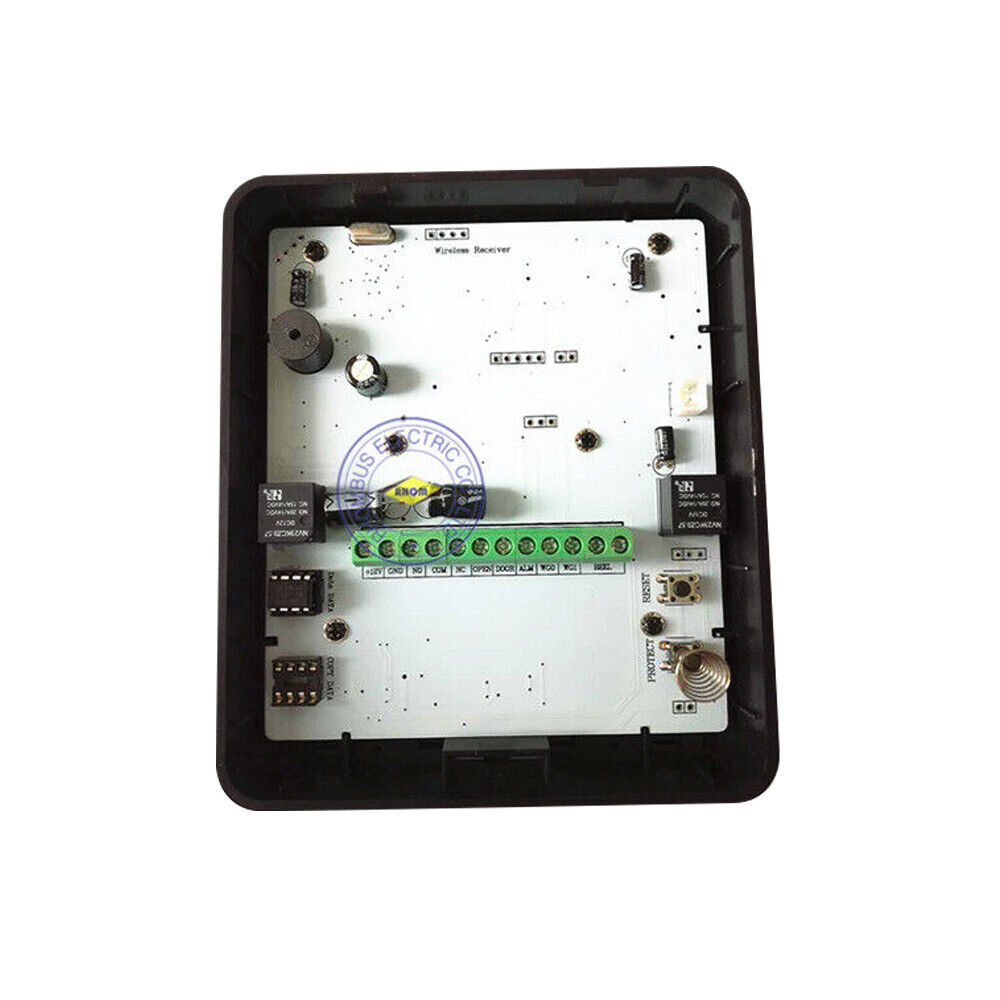

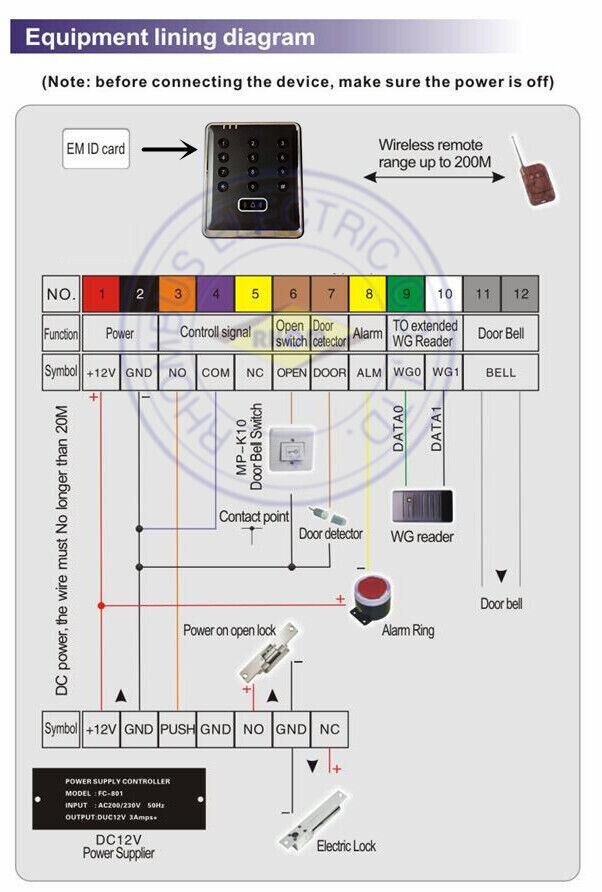

Pin Description and wiring diagram:
|
PIN |
Symbol |
Description |
|
1 |
+12 V |
DC9-13.8V |
|
2 |
GND |
Ground |
|
3 |
NO |
normally open of relays, capacity DC10A/30V |
|
4 |
COM |
common point of relays, capacity DC10A/30V |
|
5 |
NC |
normally close of relays, capacity DC10A/30V |
|
6 |
OPEN |
Connect to open switch |
|
7 |
DOOR |
Connect to door magnetic sensor |
|
8 |
ALM |
Alarm bell output port, current load 100mA |
|
9 |
WG0 |
Wiegand 26 reader data lines (data 0),when a reader extended |
|
10 |
WG1 |
Wiegand 26 reader data lines (data 1) ,when a reader extended |
|
11 |
BELL |
doorbell switch, |
Operation manual:
|
Function |
Key |
|
Log In |
0*password# .Default administrative password:1234 |
|
Log off |
0*# |
|
The functions below should be operated in a Log in status |
|
|
Change password |
1*newpassword# (password should be 4~6 bits) |
|
Dispatch user PW |
2*userpassword#(user password should be 4~6 bits) |
|
Delete user PW |
3*user password# |
|
Delete all user PWs |
3*9*9# |
|
Dispatch type 1card |
4*1# card reading(if more cards,can read card continuously) |
|
Dispatch type 2 card |
4*2# card reading(if more cards,can read card continuously) |
|
Dispatch type 3 card |
4*3# card reading(if more cards,can read card continuously) |
|
Dispatch type 4 card |
4*4# card reading(if more cards,can read card continuously) |
|
Dispatch a remote |
4*5# pressing any key of the remote,the device beep once means OK. |
|
Delete cards |
5*card number# (card number is a 10 bits printed on card) |
|
Delete all cards |
5*9*9# (the device beep once means finished) |
|
Delete a card type |
6*card type# |
|
Delete all cards&PW |
6*9*9# |
|
Setup to night mode |
7*password# |
|
Setup to Normal Open |
8*password#(conveniently for going to work every morning) |
|
Setup open delay |
9*seconds# (seconds is a 0~99 digit means the duration of delay) |
|
Setup fault PW times |
10*fault times#(a 2~9 digit,means fault PW entering times,default is 5) |
|
Setup device suspend time |
11*suspend time#(1~99 ,means 1~99 seconds,default is 10) |
|
Restore the Manufacture setup |
12*# |
|
Setup stress PW |
13*stress PW#(4~6 bit) |
|
The functions below should be operated in a normal status |
|
|
PW open |
PW # |
|
Card open |
Card reading,(if a PW needed,press the PW) |
|
On/Off the night mode |
7*PW # |
|
On/Off NO status |
8*PW # |
|
Modify the user PW |
after card reading,press *1* new password# during green light flashing |
|
Turn on the Stressing Alarm |
Stress PW# |
|
Turn off the Alarming |
Read any authorized user card |
|
Others |
|
