2.4G active card keyfob / 2.4G portable electronic tag

Description:

Main features

• The tag ID number is 4 bytes;
• It has read-only type;
• The battery is replaceable;
• Long label life;
• The reading distance is far

Technical parameters:

• Product model: RH-TAG09
• Working frequency: 2.4ghz-2.45ghz (factory setting)
• Working mode: active
• Transmitting power: less than 1mW (0dbm)

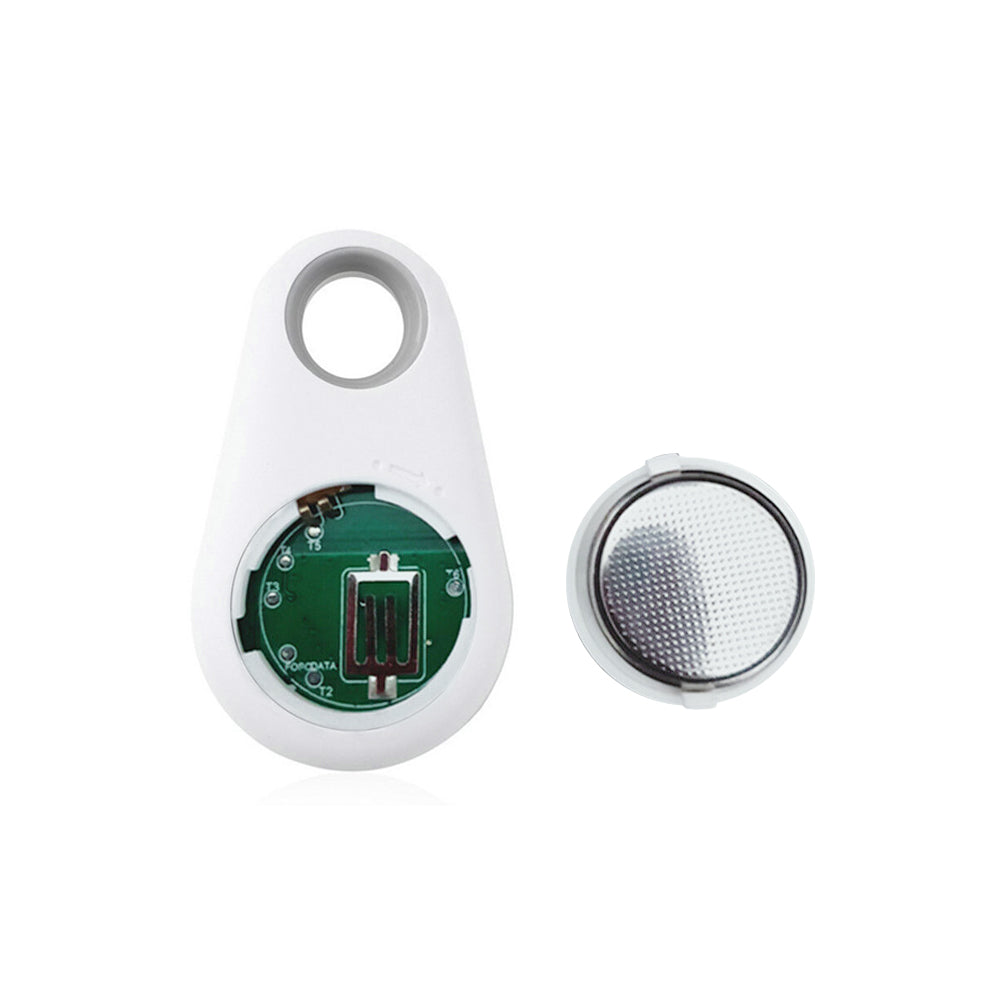

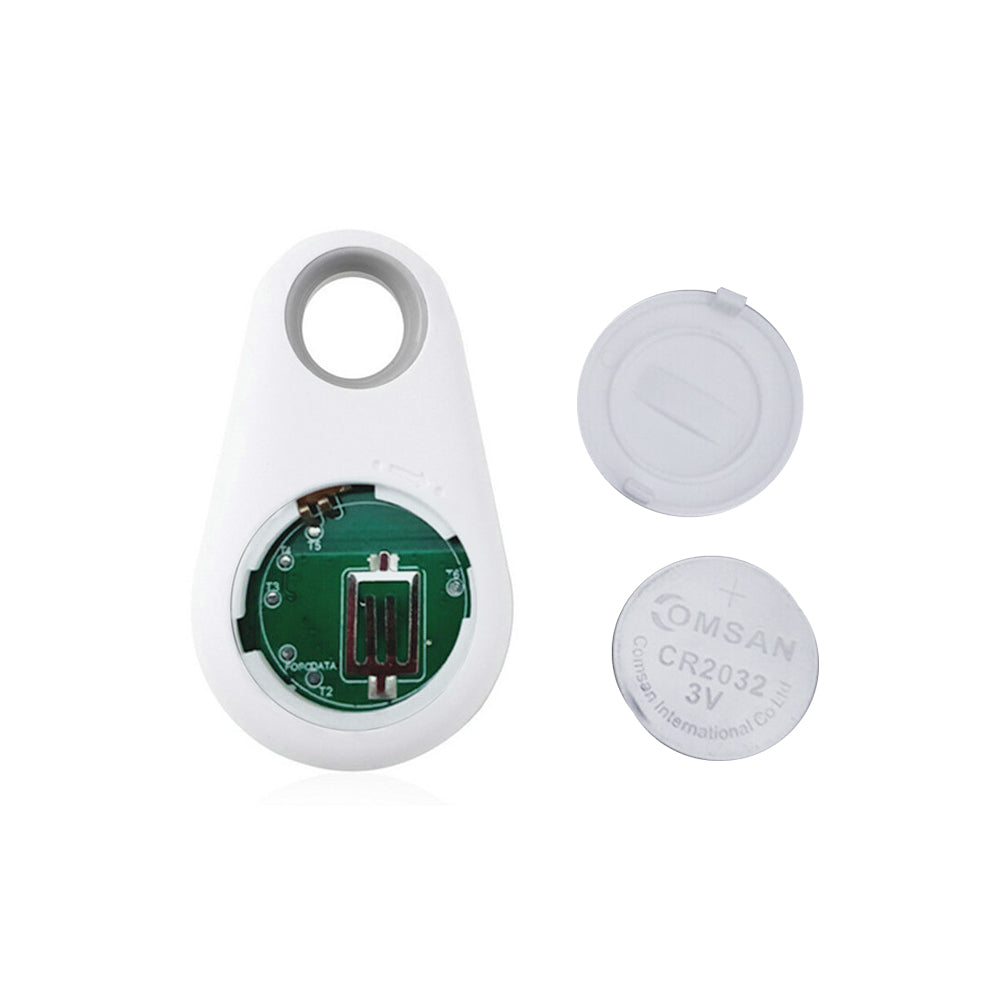

• Battery: CR2032 x 1 (battery replaceable)
• Static current: < 1uA
• Working current: 12mA (pulse mode)
• Launch time: 0.25ms
• Read mode: read only
• Reading and writing distance: 0-80m
• Working years: 3 years (theoretical value)
• Working voltage: 3V
• Query time: 1s
• Collision ability: it has strong anti-collision ability
• Working temperature: - 25 ~ 70 ℃
• Storage temperature: - 40 ~ 85 ℃
• Working humidity: < 95%

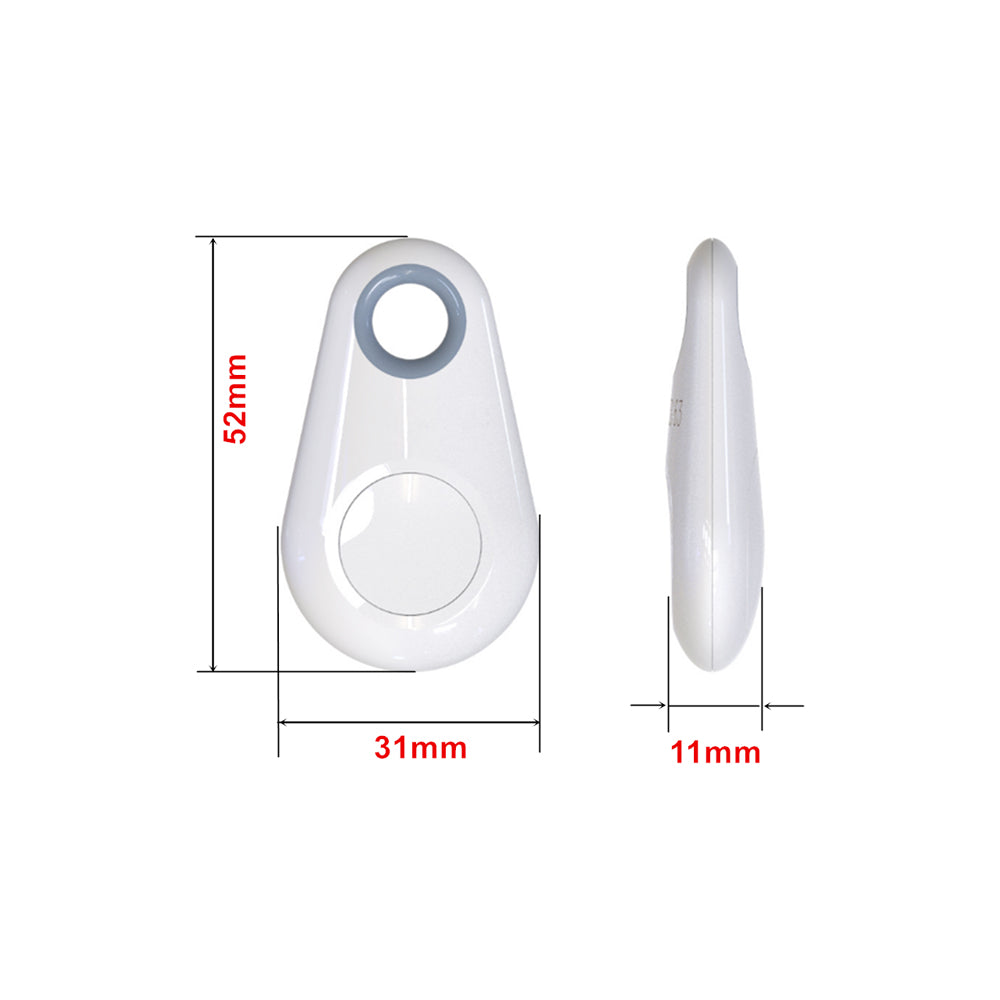

• Dimension: 52mm x 31mm 下11mm

Package:

• 10 x 2.4GHz Active Card
• 20 x2.4GHz Active Card
