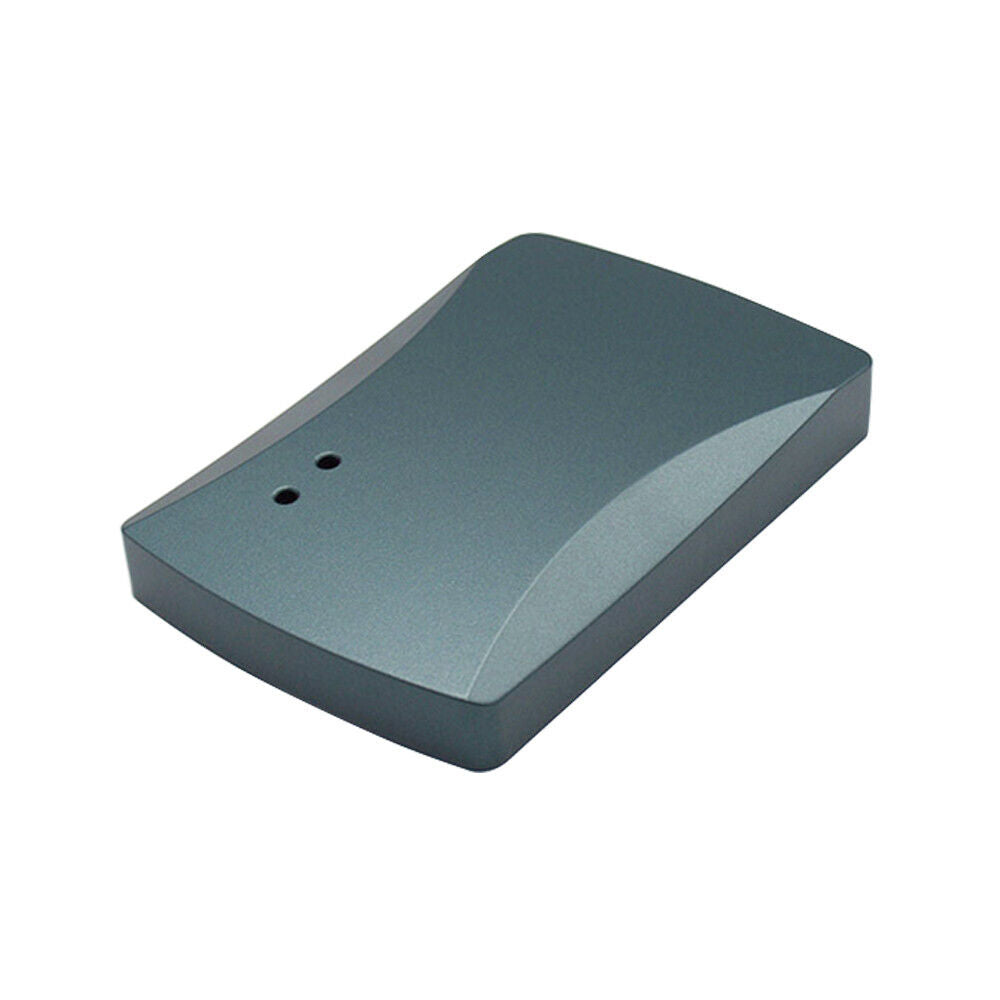

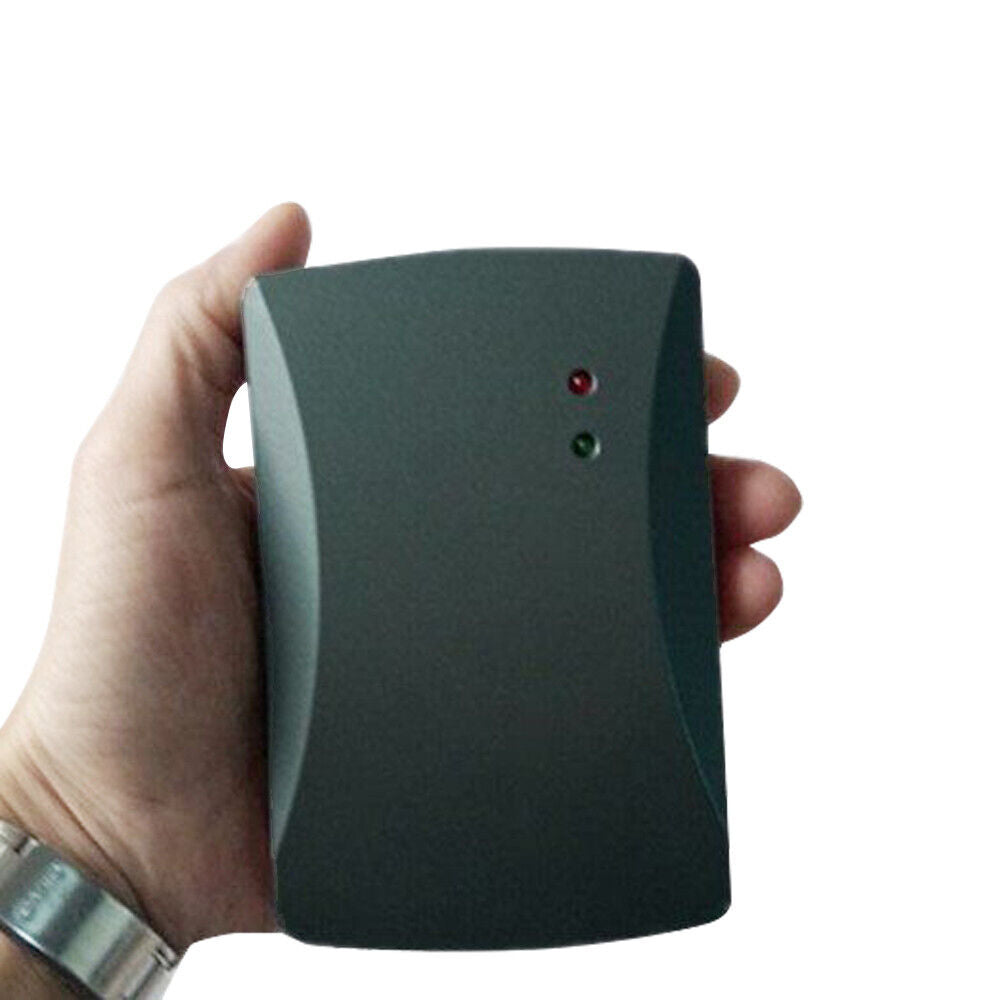

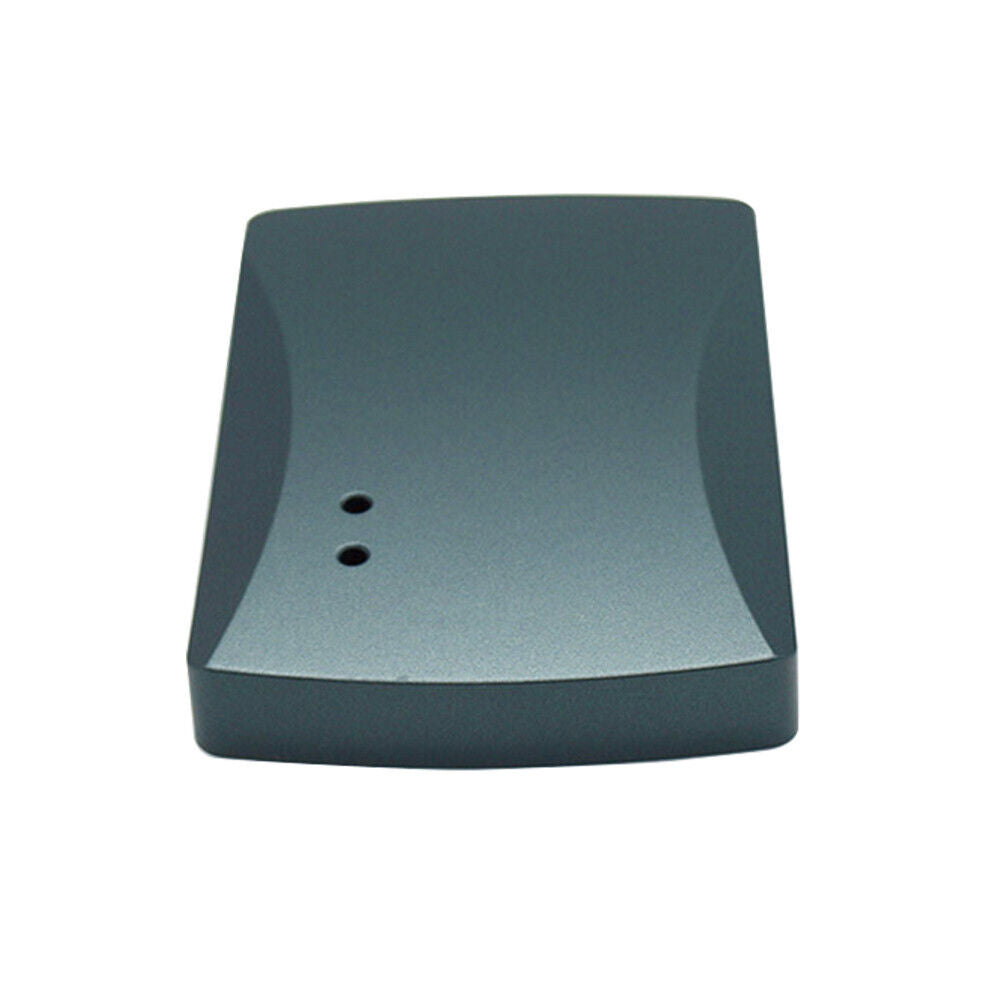

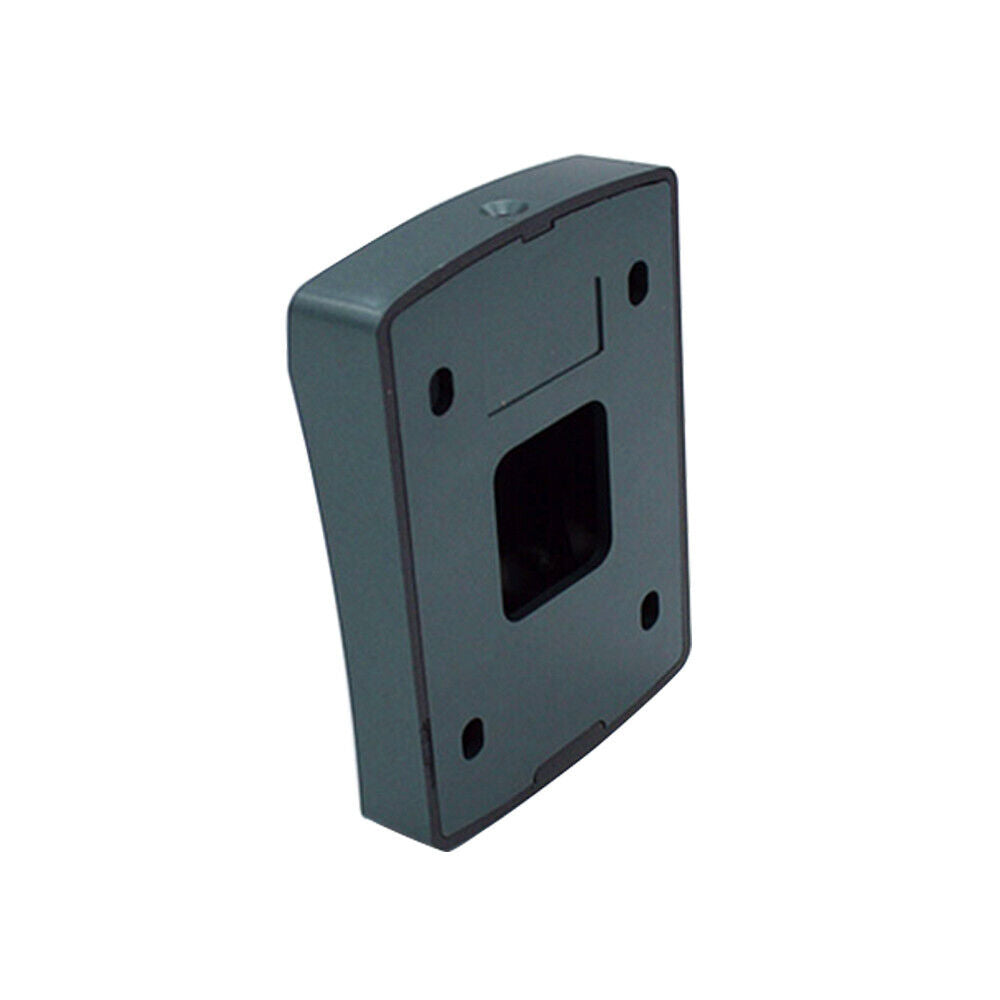

2K user EM4100 125Khz card reader Ext EM Epoxy Standalone Access Controller
2K user EM4100 125Khz card reader Ext EM Epoxy Standalone Access Controller
Не удалось загрузить сведения о доступности самовывоза
Product Description
1. Electrical parameters
|
Working voltage |
DC9-12V |
|
Working current |
60mA-80mA |
|
reading distance |
3-10cm |
|
Working temperature |
-40℃ - +70℃ |
|
User capacity |
2000 User |
|
Support card type |
125KHz EM4100 card or compatible cards |
|

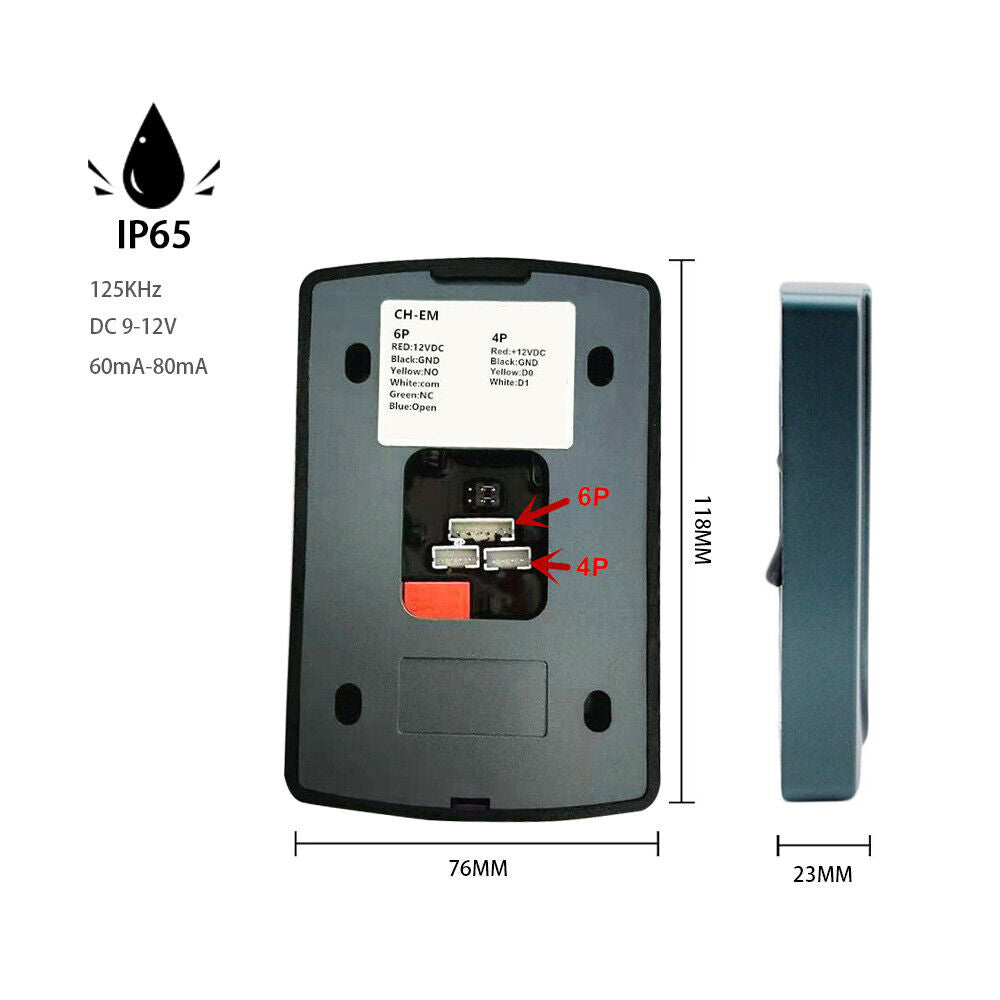

Dimension (LxWxH mm) |
118*76*23 |

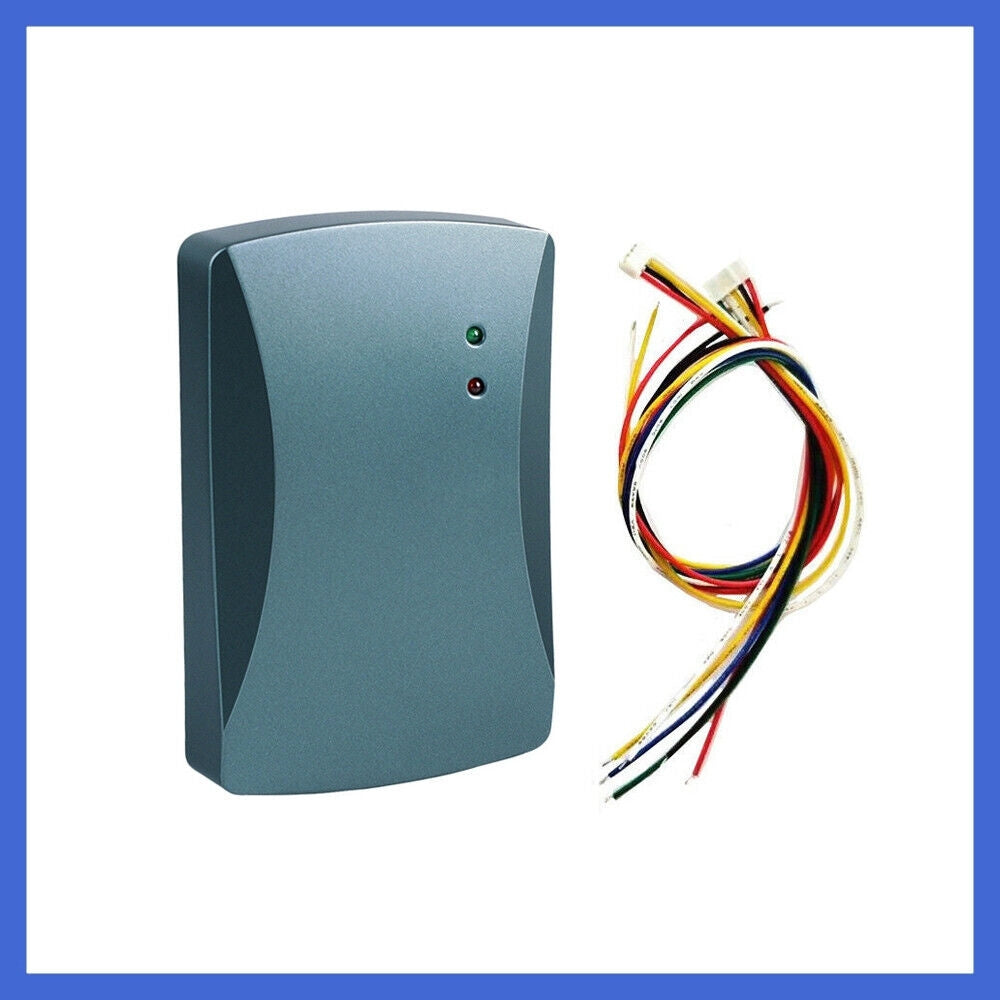

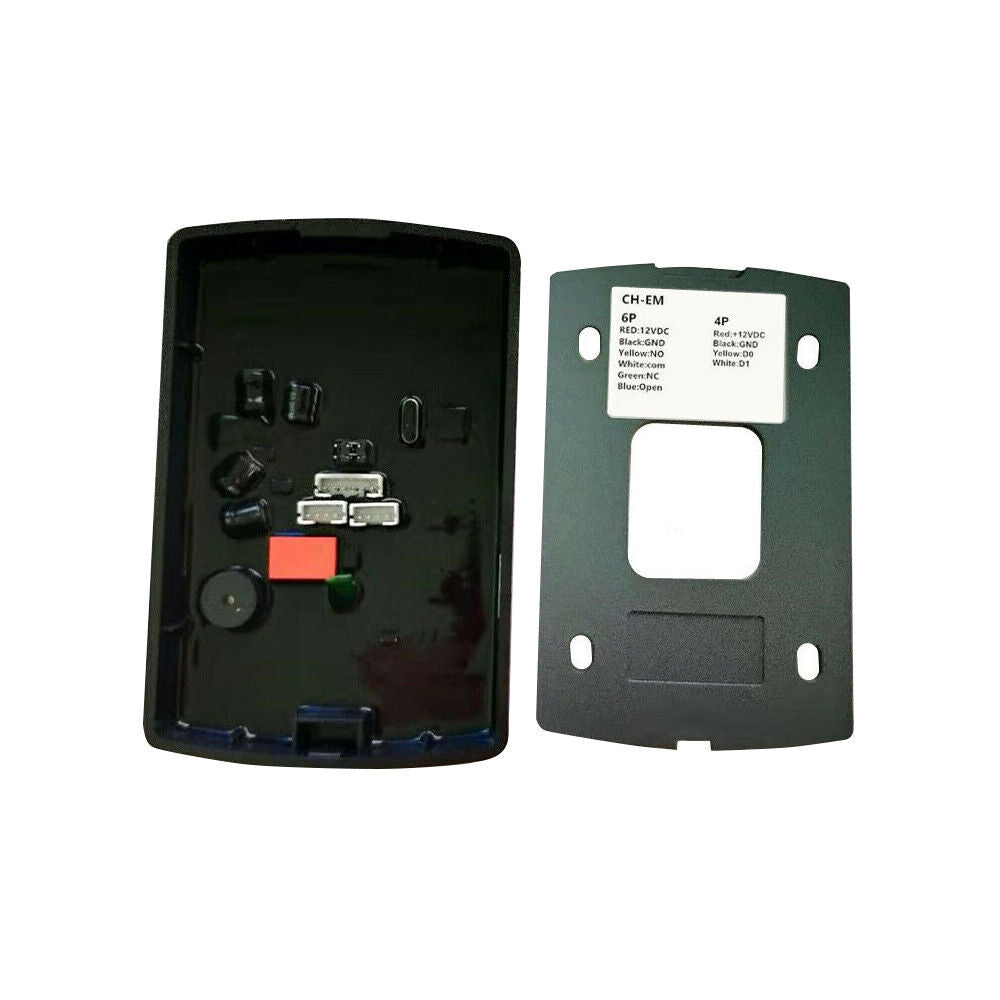

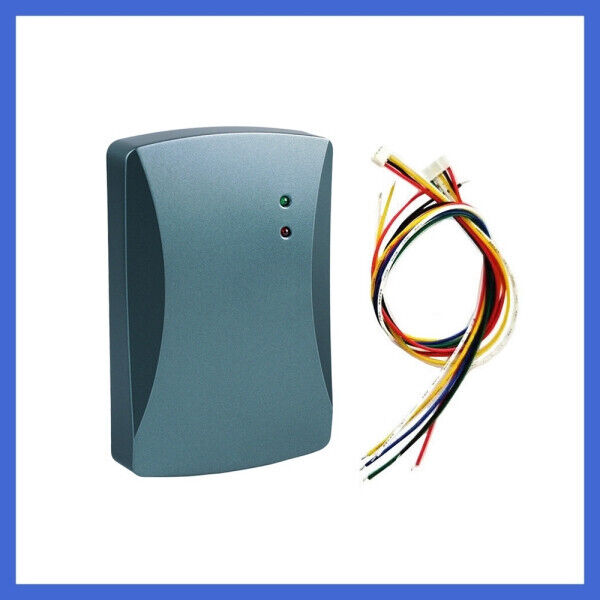

2. Wiring instructions
6P
|
Pin |
Color |
Function |
|
|
1 |
Red |
+12V |
power input |
|
2 |
Black |
GND |
power ground |
|
3 |
Yellow |
NO |
relay normally open |
|
4 |
White |
COM |
relay common terminal |
|
5 |
Green |
NC |
relay normally closed |
|
6 |
Blue |
OPEN |
open button(effective at low level) |
4P
|
Pin |
Color |
Function |
|
|
1 |
Red |
+12V |
power input |
|
2 |
Black |
GND |
power ground |
|
3 |
Yellow |
D0 |
reader signal |
|
4 |
White |
D1 |
reader signal |
3.Short circuit terminal description
|
Terminal position |
Skip cap position |
Status |
|
S1 |
1-2 |
opening time 5S |
|
S1 |
2-3 |
opening time 1s |
|
S2 |
1-2 |
setting management mode |
|
S2 |
2-3 |
normal operation mode |
4. Operating instructions
Add management card
Power off,short-circuit S2 to 1-2 end, power on again, red LED and green LED will flash alternately, read two cards continuously, green light flashes, add successfully, the first card is to add management card, the second card is to delete management card.
Add user card:
In the working state, read the add management card, the green LED flashes, read the card to be added, then read the add management card, and finish.
Delete user card
In the working state, read the delete management card, the red LED flashes, read the card to be deleted, then read the delete management card, and finish.
Delete all cards
In the working state, read the delete management card, the red LED flashes, read the add management card again, wait for 5S and the green LED recovers, that is, the deletion is successful
