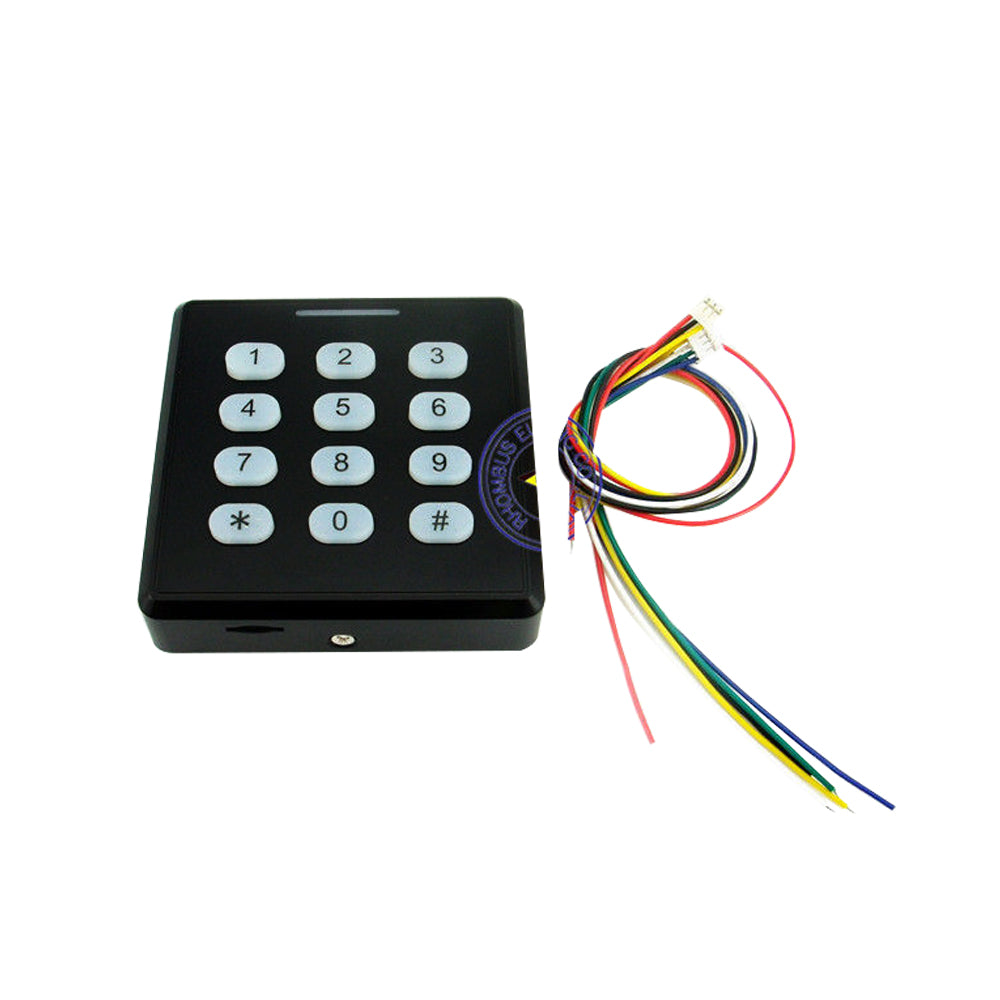

2K user EM4100 125Khz card reader Ext Standalone Access Controller

Name: 2K user EM4100 125Khz card reader Ext Standalone Access Controller
Brand: Rhombus Access Control System
Price: 23.95 USD
Availability: InStock

$23.95 USD

Распродажа Продано

Color black golden silver

Варианты товара

Количество

Specifications:

Voltage:9-30V DC
Max Current:<1A

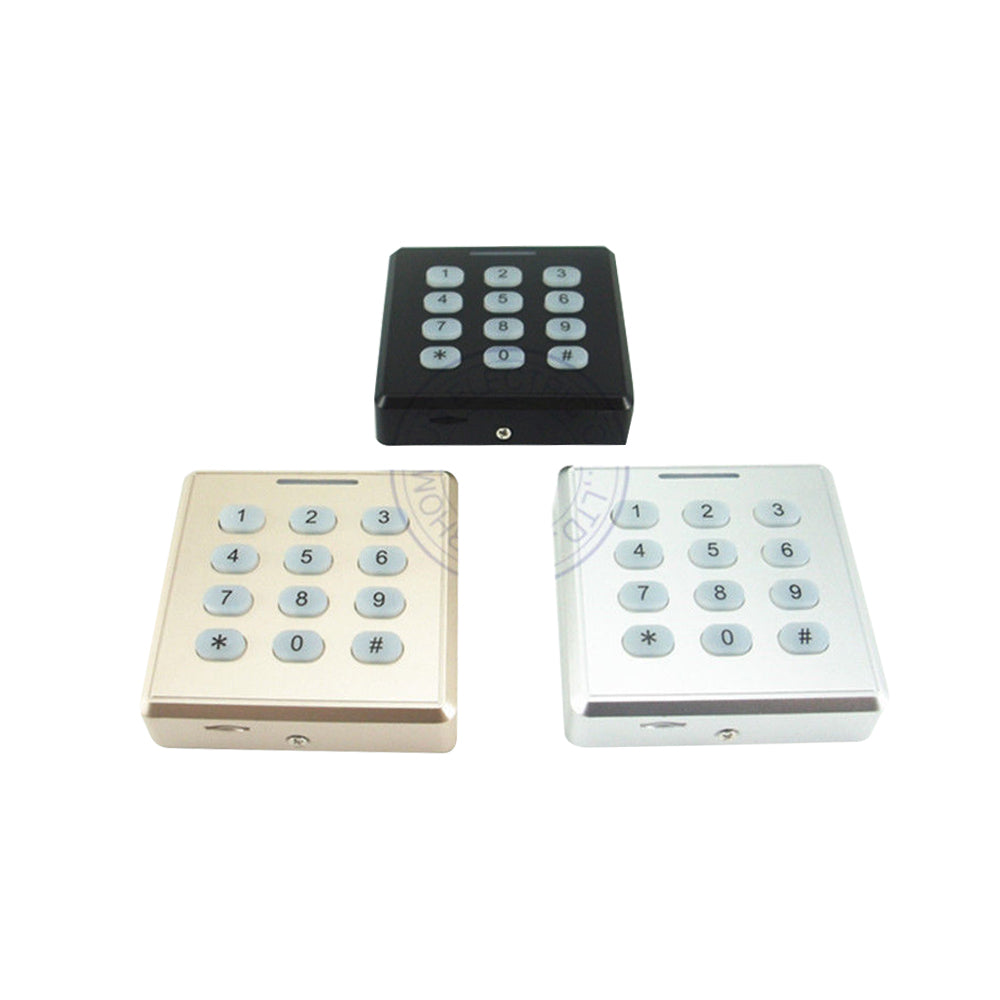

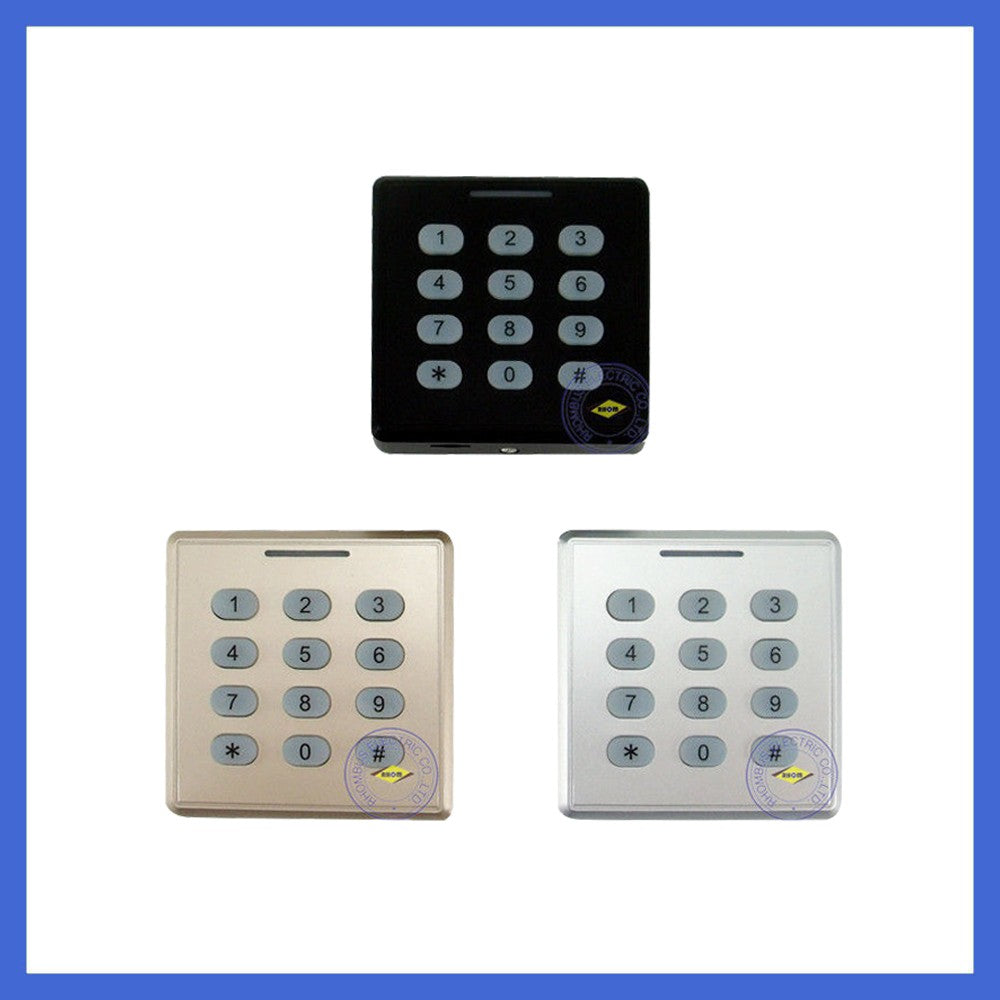

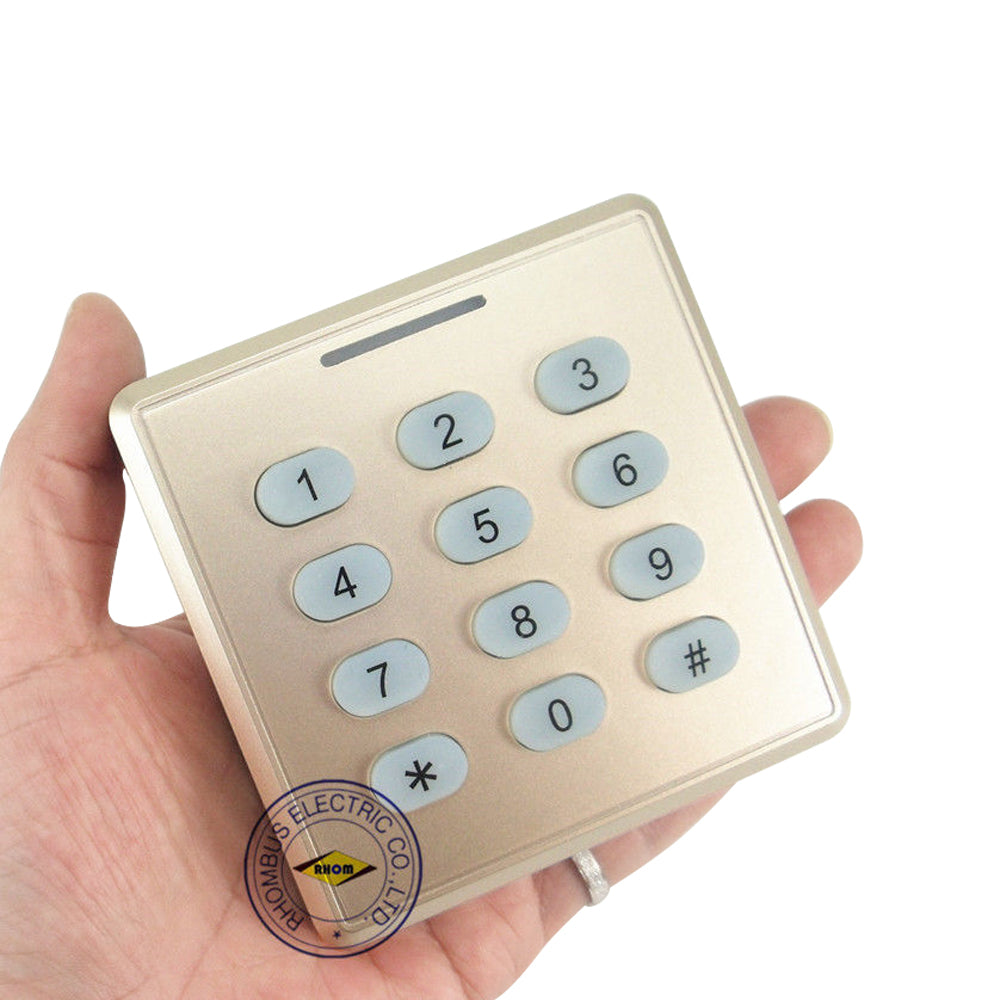

Color: Black, Golden, Silver opitional. Default Black.
Standby Current:<80MA
Working Temp:-40°C~ 65°C
Working Humidity:10%—90%RH
Capacity:2K user(cards or pin codes)
Card type: EM4100 125Khz ID card.
Reading Range:ID 5-10 CM ,IC 2-7 CM
Wiegand Output:output Wiegand 26/34 both card number and pin code.
Wiegand Input:Valid for extended Wiegand 26/34 reader.
Initial Password:889988
Size:86x86x20mm

Function:

Functions	Key-in	Description
Enter “Program Mode”	*889988#	The unit can be programmed only in “program mode”
Change the initial password	1”6 bit new password”#”6 bit new password” #
Open Delay	2”3 bits delay seconds”#	Delay seconds 001-254 seconds
Normal Open	31#	The door keeps unlocked
Quit from Normal Open	30#	The door under controlled
Protection	41#	All Cards&Pin codes invalid
Removal	40#	Under control
Wiegand 26 output reader	52#	The unit outputs WG26
Wiegand 34 output reader	53#	The unit outputs WG34
Open mode(card or pin)	6#	Default mode
Open mode(card+pin)	2#
Backup	8#	Plug in a SD card,backup users.
Restore	9#	Restore users from a SD card
New User Pin	2>pin1 #>pin1#>pin2#>pin2#.....	Add new user pins one by one
New User Card	3>card1>card2>card3 #.....	Add new user cards one by one
New User Card by No.	3>10 bit No.1 #>10 bit No.2#....	Add new user cards by No.
Remove User Pin	4>pin1 #>pin1 #>pin2 #>pin2 #....	Remove user pins one by one
Remove User card	5>card1 #>card2 #>.......	Remove user cards one by one
Remove User card by No.	5>10 bits No.1 #>10 bits No.2#....	Remove user cards by No.
Remove all	6444#	Remove all users cards and pins
Change Pins	7>old pin #>new pin#>New pin#	Change an user pin to new
Set Bundled cards	9>card1>card2>card3......#	Max to 4 cards can be bundled.Unlock only all bundled cards were read
Initialize	Keep pressing “RESET” button	Back to factory default
