3 pcs 13.56Mhz 3V-5V 14443 Mifare1 S50/S70 separated coil antenna Reader Writer
3 pcs 13.56Mhz 3V-5V 14443 Mifare1 S50/S70 separated coil antenna Reader Writer
Не удалось загрузить сведения о доступности самовывоза
|
Model No. |

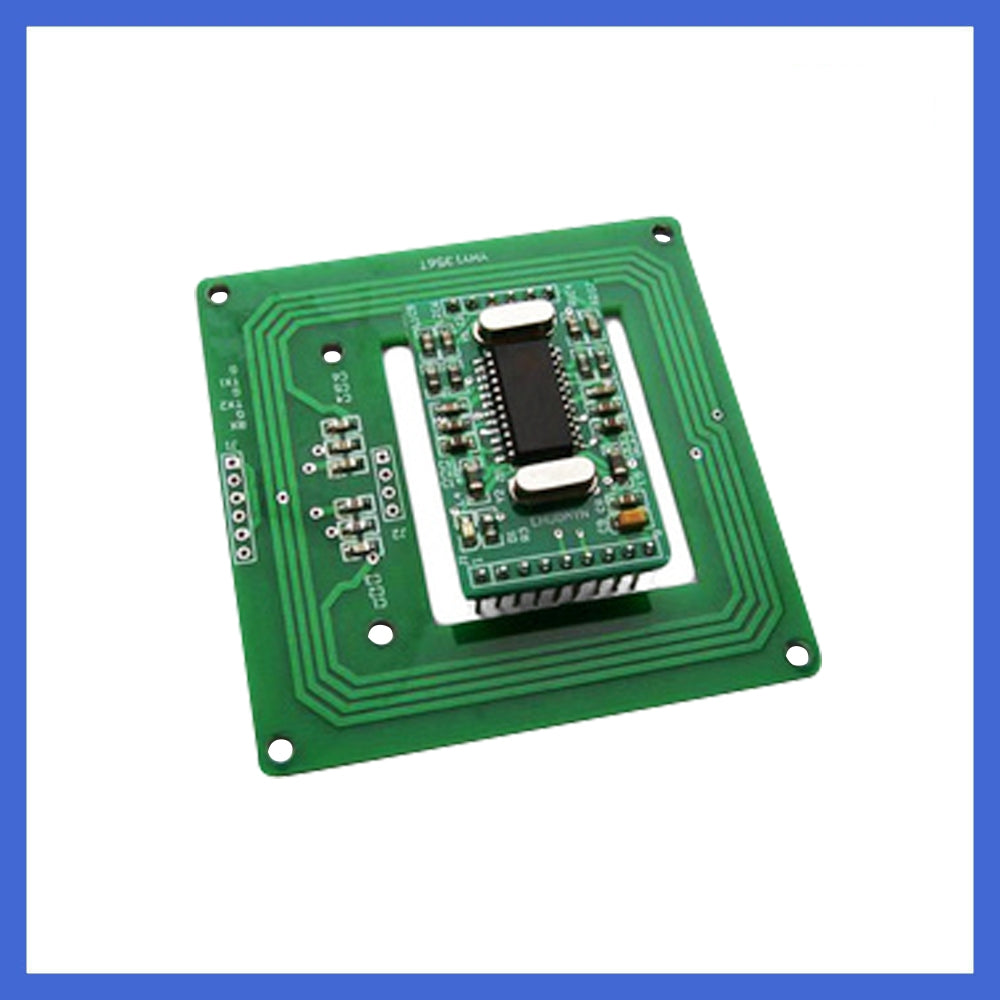

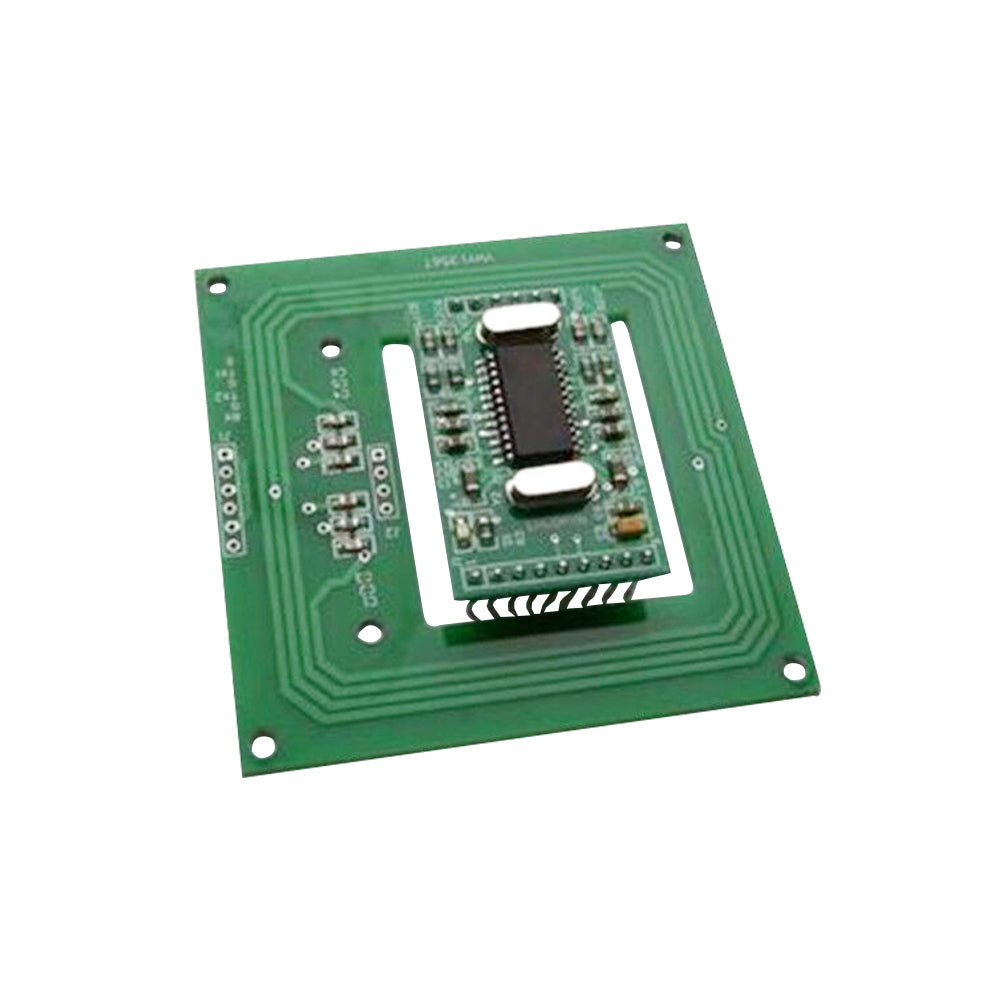

YHY502CG+YHY1356T |
|
|
|
|

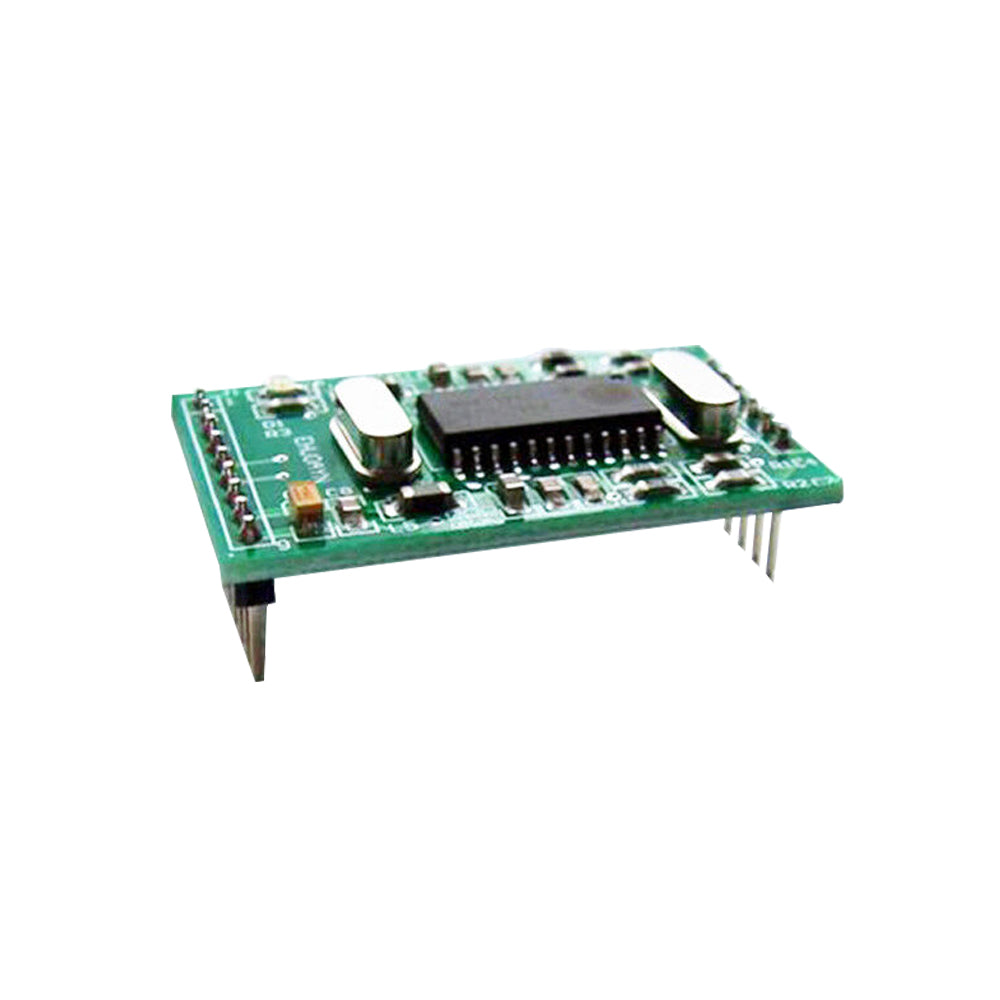

YHY502CG Specification: |
|
|
Complete Read/Write module except antenna; |
|
|
Auto checks for presence of tags and output interrupt information |
|
|
Contactless operating frequency 13.56 MHz |
|
|
Supports ISO14443A /MIFARE® , Mifare® Classic1K,Mifare® Classic 4K |
|
|
RS232 Interface, baud rate19200bps |
|
|
Fast data transfer, Contactless communication up to 106KHz |
|
|
Secure Encrypted contactless communication |
|
|
Ideal for emoney, secure access and fast data collection applications |
|
|
Typical Operating Distance: 0-- 60 mm |
|
|
Operating Voltage DC 3.0-5.5V |
|
|
Watchdog timer |
|
|
1 LED indicator, 2 I/O pins for external use |
|
|
512 bytes eeprom |
|
|
Unique serial number on each device |
|
|
Size: 40mm × 25mm × 6mm |
|
|
Weight |
12g |
|

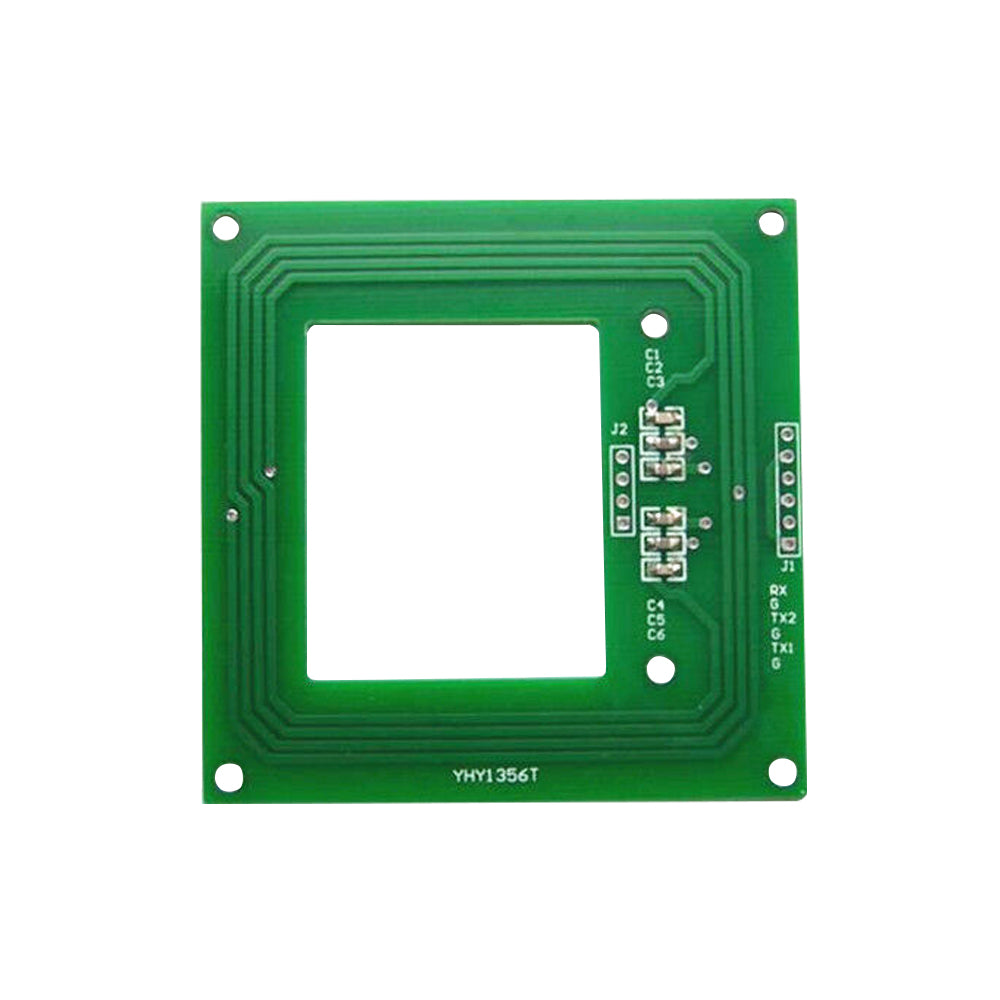

YHY1356T RFID Antenna Specification: |
|
|
Size: 70mm × 70mm |
|
|
Reading distance:0-100mm ((for ISO card size) |
|
|
Each Package Included: |
|
Package:
- 3 pcs rfid module
IN ORDER TO Compare all the Mifare1 reader& writer's specifications,the form below lists all the modules,
you can finally find something you need!
|
Model |
YHY502CG(This is it) |
YHY630CTU |
|||
|
Standards & Protocols |
|||||
|
ISO 14443 A |
√ |
√ |
√ |
√ |
|
|
ISO 14443 B |
|
|
|
|
|
|
ISO 15693 |
|
|
|
|
√ |
|
Mifare®Classic protocol |
√ |
√ |
√ |
√ |
|
|
Carrier frequency |
13.56MHz |
13.56MHz |
13.56MHz |
13.56MHz |
13.56MHz |
|
Tag supported |
|||||
|
Mifare 1k |
√ |
√ |
√ |
√ |
|
|
Mifare 4k |
√ |
√ |
√ |
√ |
|
|
I.CODE SLI |
|
|
|
|
√ |
|
Tag_it2k HF-1 |
|
|
|
|
√ |
|
Product Features |
|||||
|
Operating distance typ.[mm] |
60 |
60 |
50 |
50 |
90 |
|
Host interface |
|||||
|
TTL RS232 |
√ |
√ |
|
√ |
|
|
RS232 |
|
|
√ |
|
|
|
USB |
|
|
|
|
√ |
|
Other Main Features |
|||||
|
Supply Voltage (V) |
3.3/ 5.5 |
3.3/ 5.5 |
3.3/ 5.5 |
3.3 |
5 |
|
Auto Detecting |
√ |
√ |
√ |
√ |
|
|
Integrated Antenna |
|
√ |
√ |
√ |
√ |
|
Reader & Writer |
√ |
√ |
√ |
√ |
√ |
|
Size(mm) |
40 ×25× 6 |
58 ×35× 6 |
58 ×35× 6 |
58 ×35× 6 |
66 ×81× 8 |
|
Weight(g) |
12 |
10 |
12 |
10 |
20 |
|
Temperature range [°C] |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
0 ~ 60 |
|

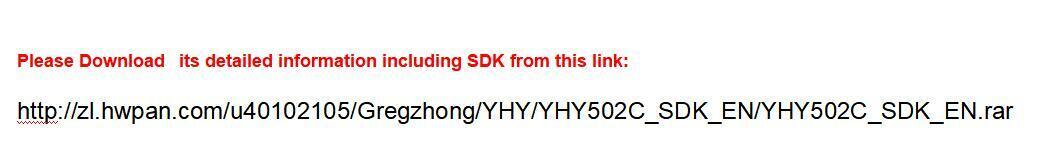

Software Development Kit(SDK) |
√ |
√ |
√ |
√ |
√ |
