Rhombus Access Control System

3 pcs 13.56MHz Mifare1 S50/S70 Serial No. read only wiegand 26 with coil module

3 pcs 13.56MHz Mifare1 S50/S70 Serial No. read only wiegand 26 with coil module

$31.95 USD
$31.95 USD
Распродажа Продано





Detailed Description:


General
Brand FCARD
Model FC500
Specification
Response time 65~100ms
Communication Weigand 26
Card type MIFARE1 S50 S70
Induction Distance 5~10cm
Induction Type mifare1 card
Power supply DC5V
Working Temperature  0~70°C
Working Humidity  Less than 80%
Warranty
Warranty 24 months
Physical
Dimension (LxWxH mm)

36*21.5*8mm disposed

(3*25*8mm with epoxy&plastic casing)
Weight (kg) 0.05
 Accessory  a 4*5cm antenna PCB
Images

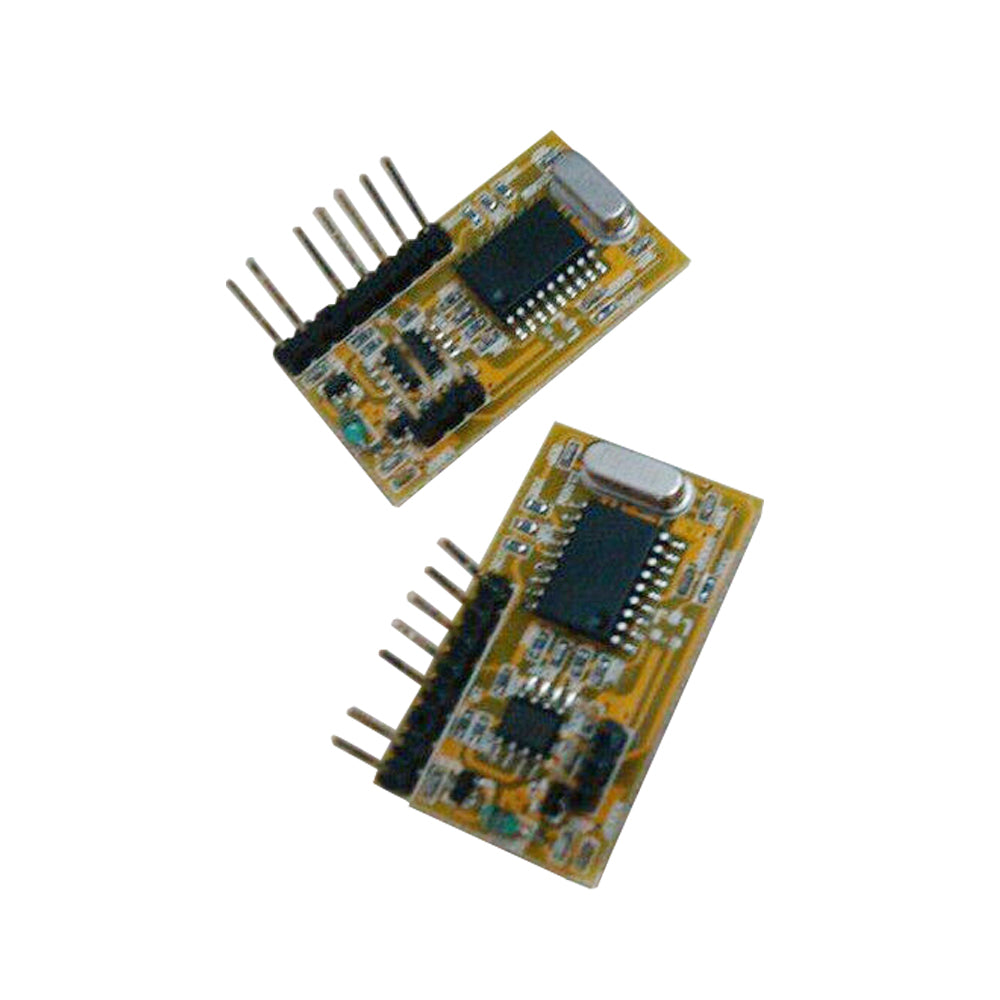

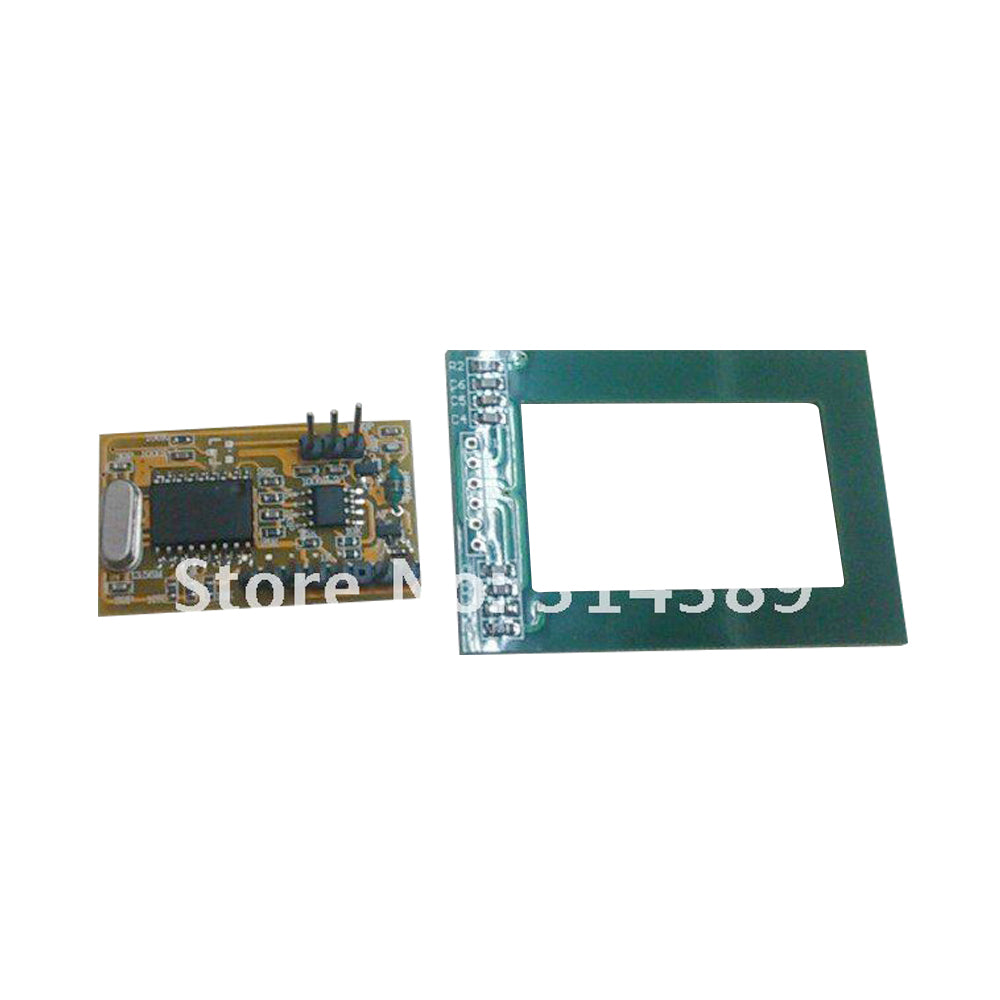

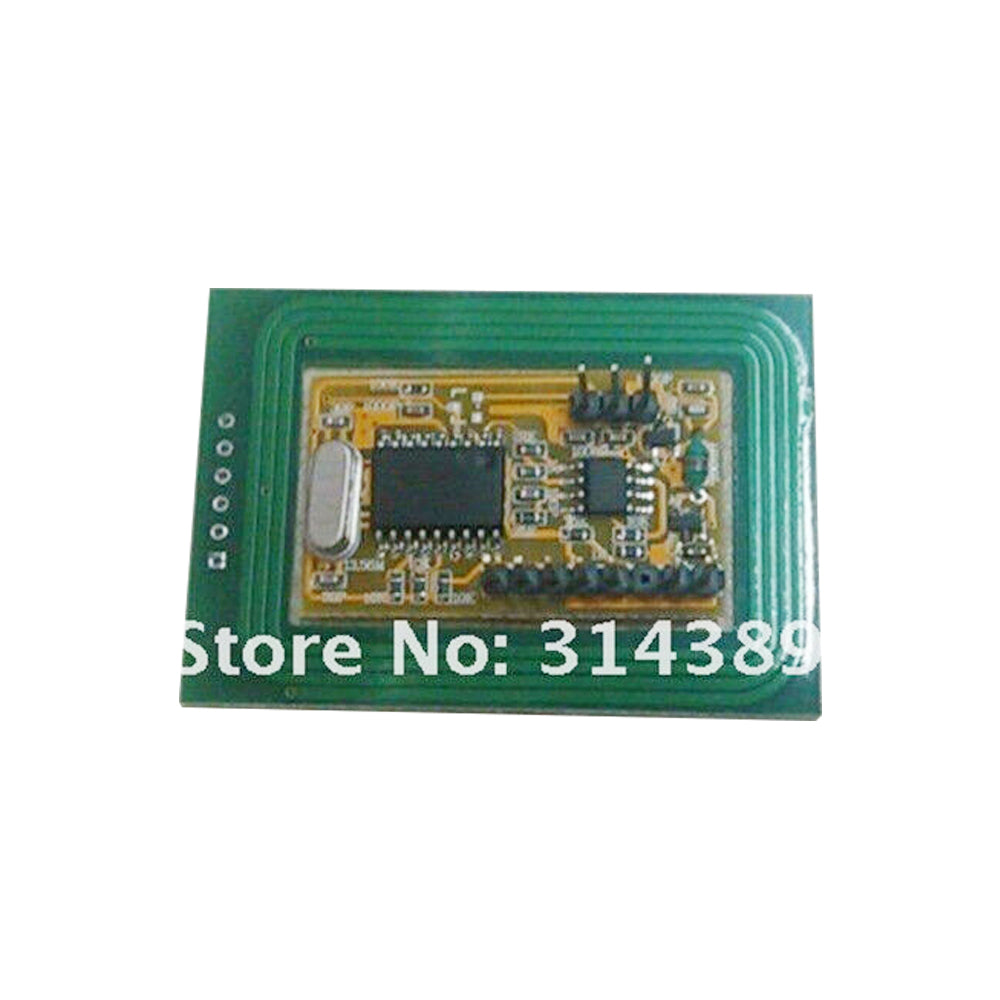

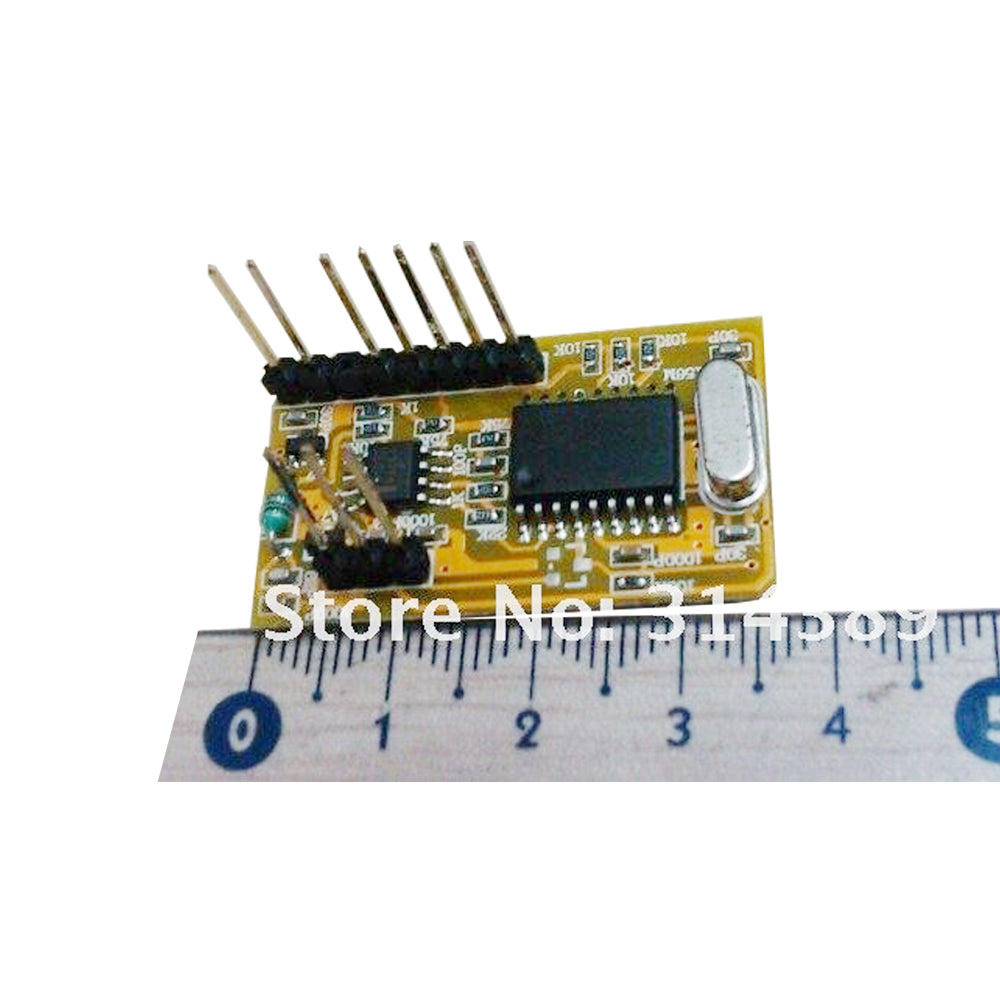

Disposed view: 3 pcs 13.56MHz Mifare1 S50/S70 Serial No. read only wiegand 26 with coil module - Picture 4 of 9

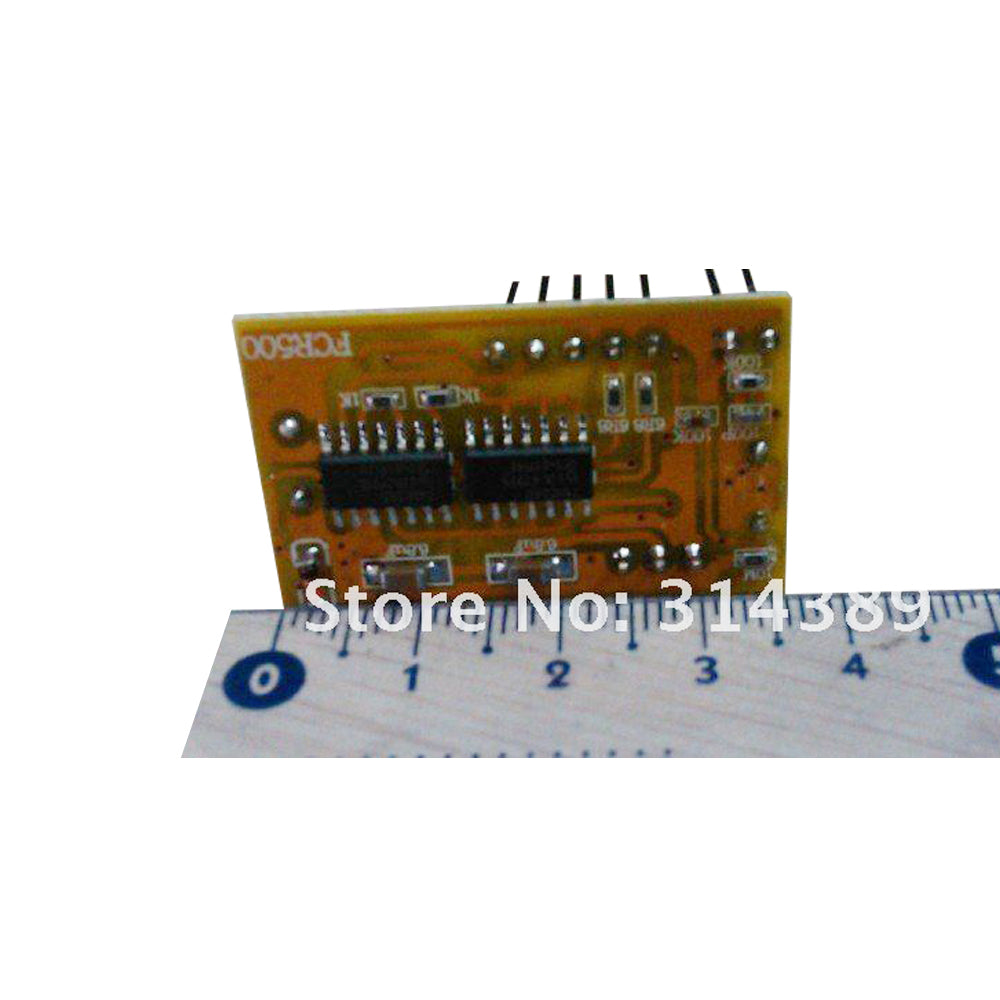

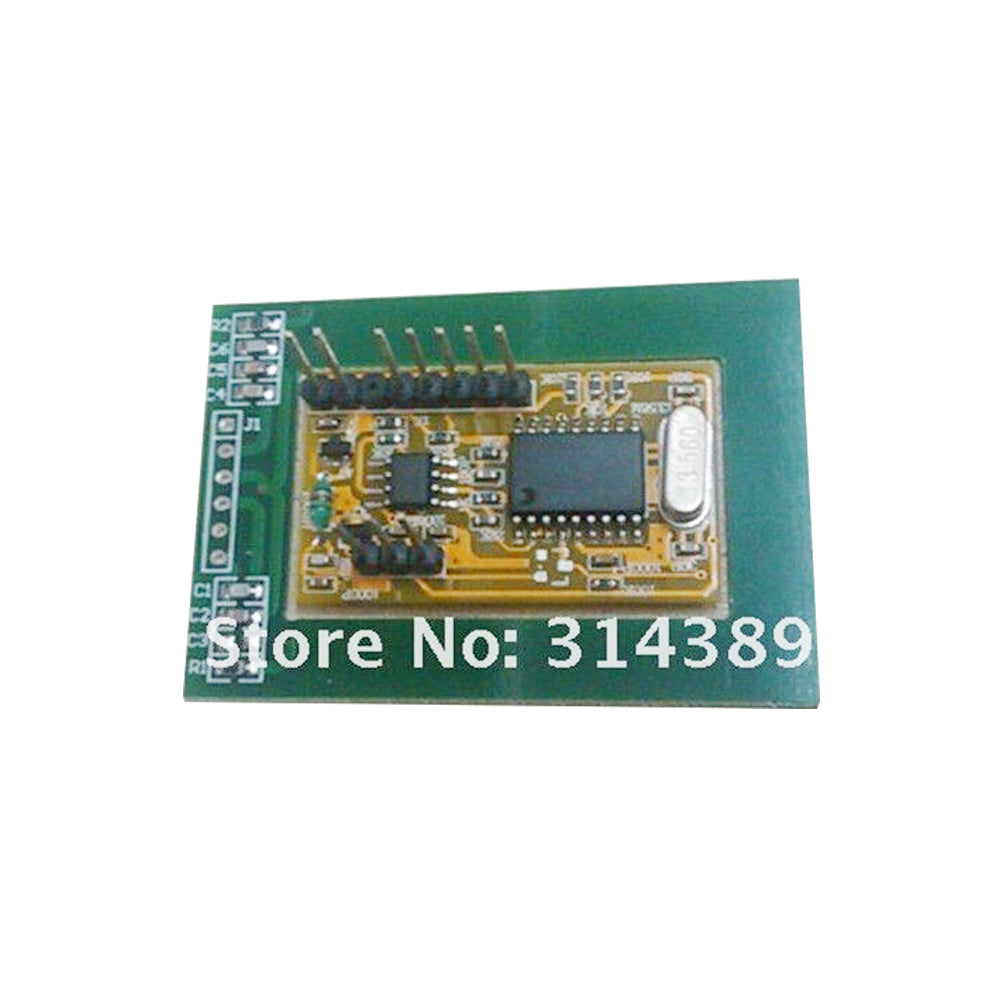

Bottom view:  3 pcs 13.56MHz Mifare1 S50/S70 Serial No. read only wiegand 26 with coil module - Picture 7 of 9

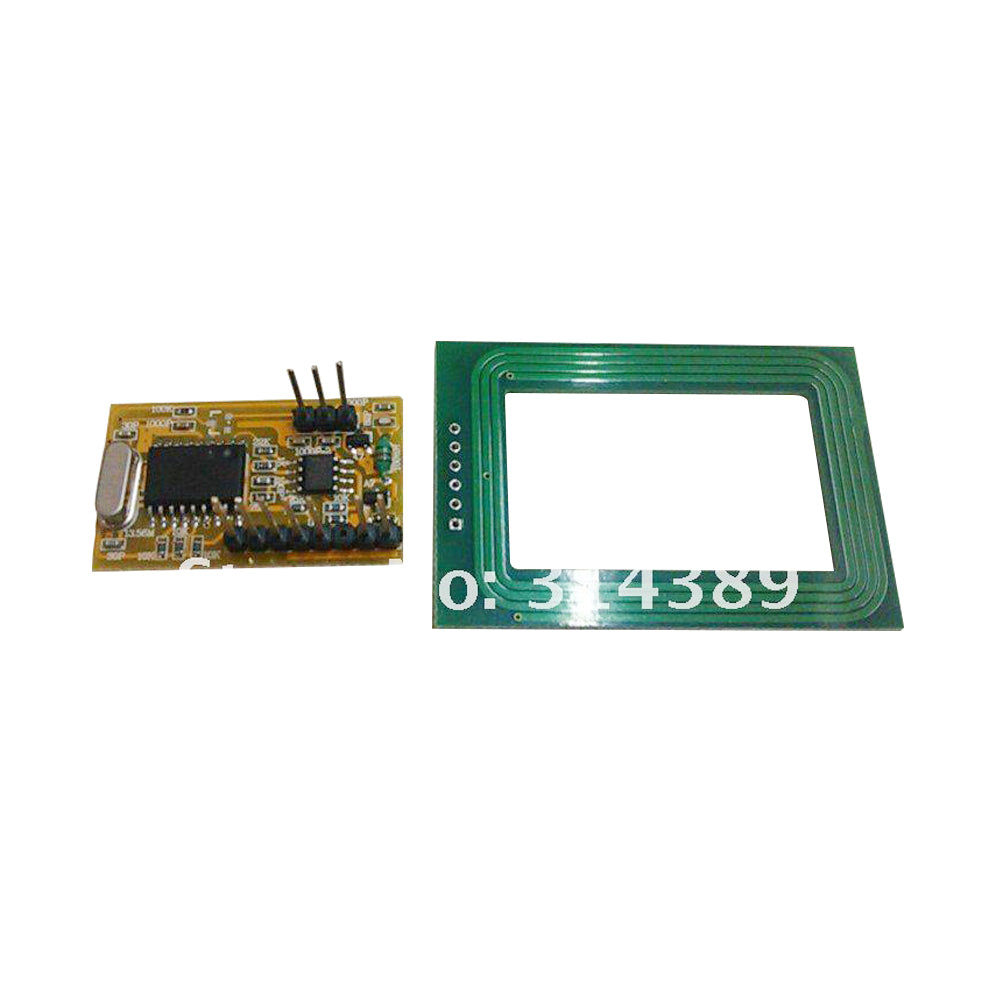

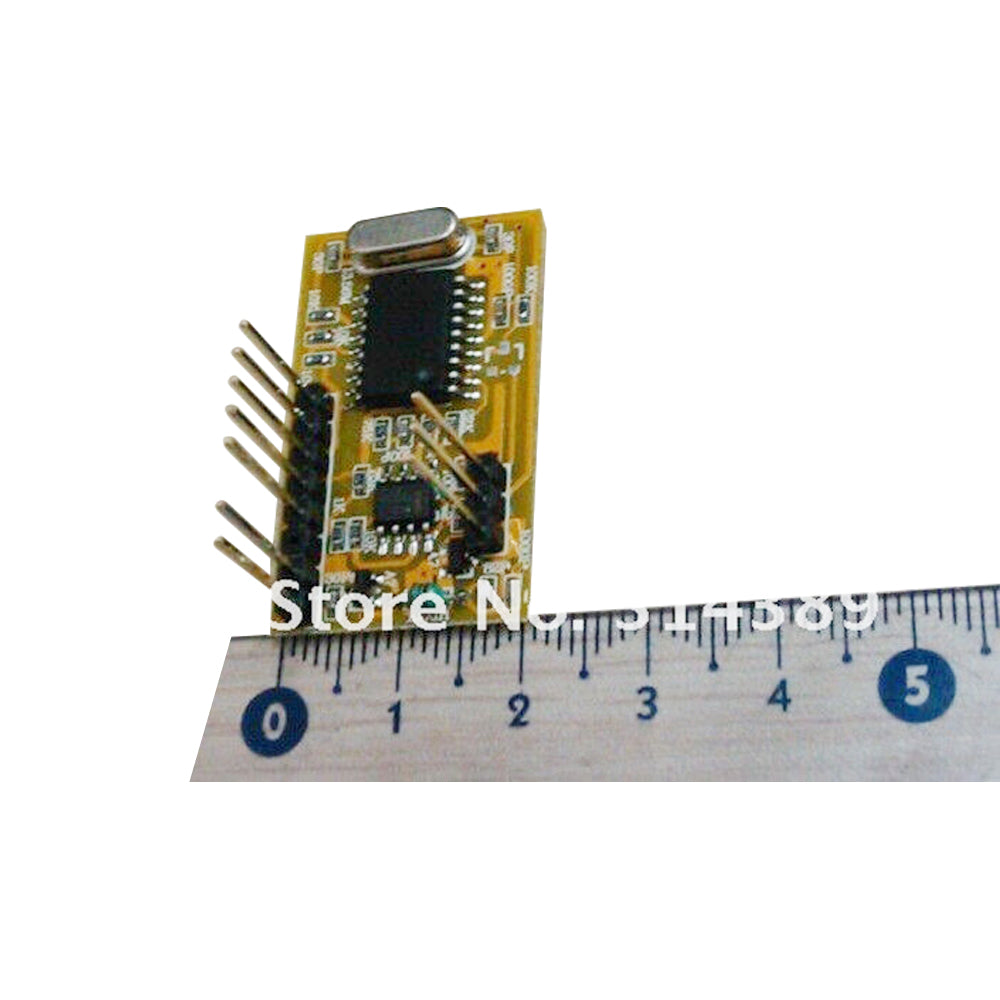

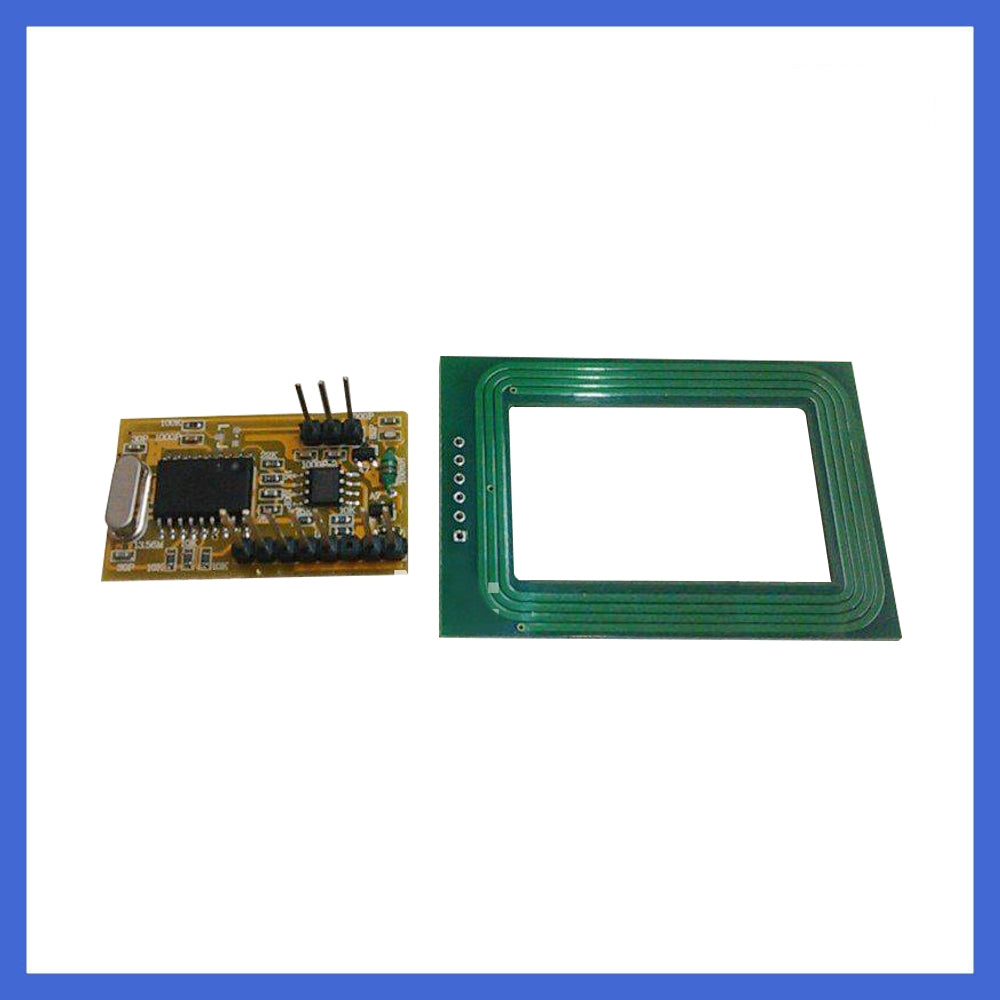

coils&antenna 3 pcs 13.56MHz Mifare1 S50/S70 Serial No. read only wiegand 26 with coil module - Picture 3 of 9





Note:We can provide a 5*3.5mm coil every module.if you need other dimension's coil,we should discuss about details.

PIN description

Pin

Symbol

Description

1

 WD0

WG26 DATA0

2

WD1

WG26 DATA1

3

HOLD

WG26 HOLD

4

TX1

To antenna's  TX1

5

 TX2

To antenna's TX2

6

AGND

Analog GND

7

RX

 To antenna's RX

8

DGND

Digital GND

9

DVCC

+5v

10

NRST

Reset ,low level valid
