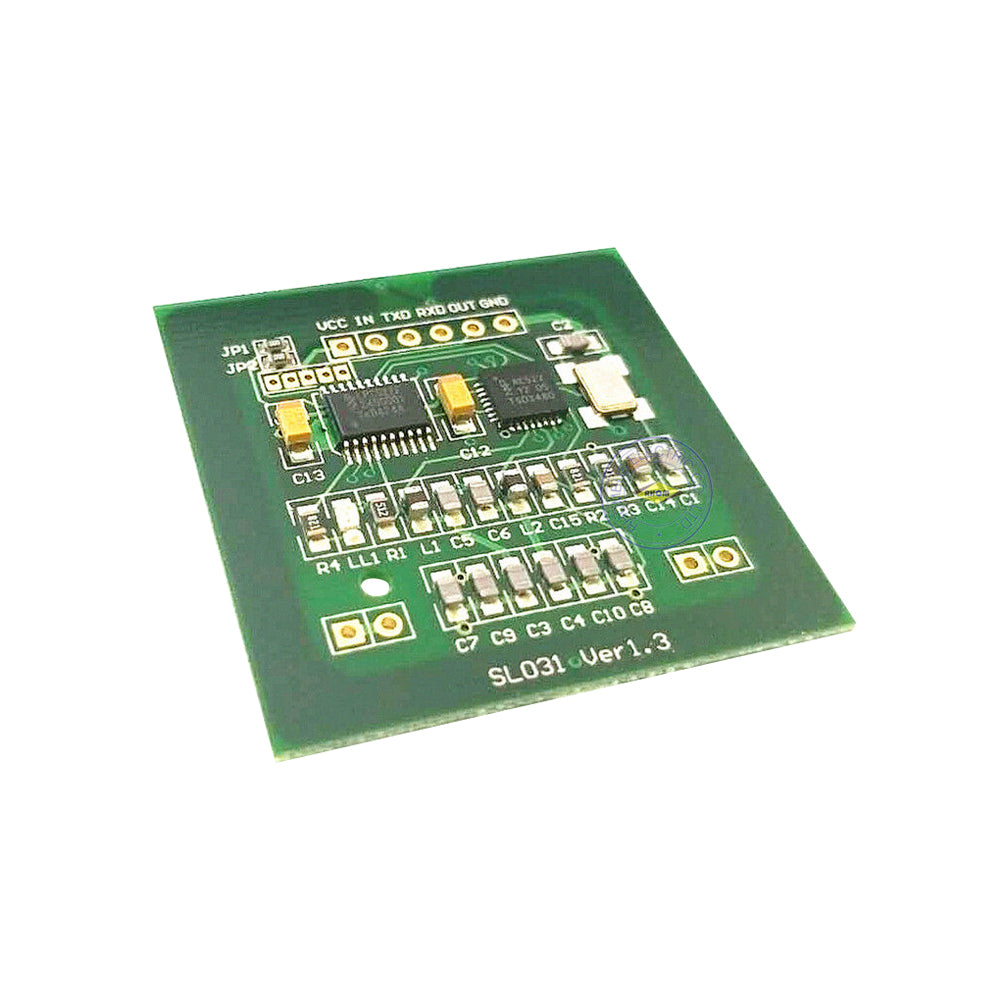

3 pcs Mifare1 ISO14443A TTL RS232 3.3V Antenna built-in Read & Write module

3 pcs Mifare1 ISO14443A TTL RS232 3.3V Antenna built-in Read & Write module

$36.95 USD
$36.95 USD
Распродажа Продано





MAIN FEATURES

  • Tag supported: Mifare 1k, Mifare 4k, Mifare UltraLight
  • Auto-detecting tag

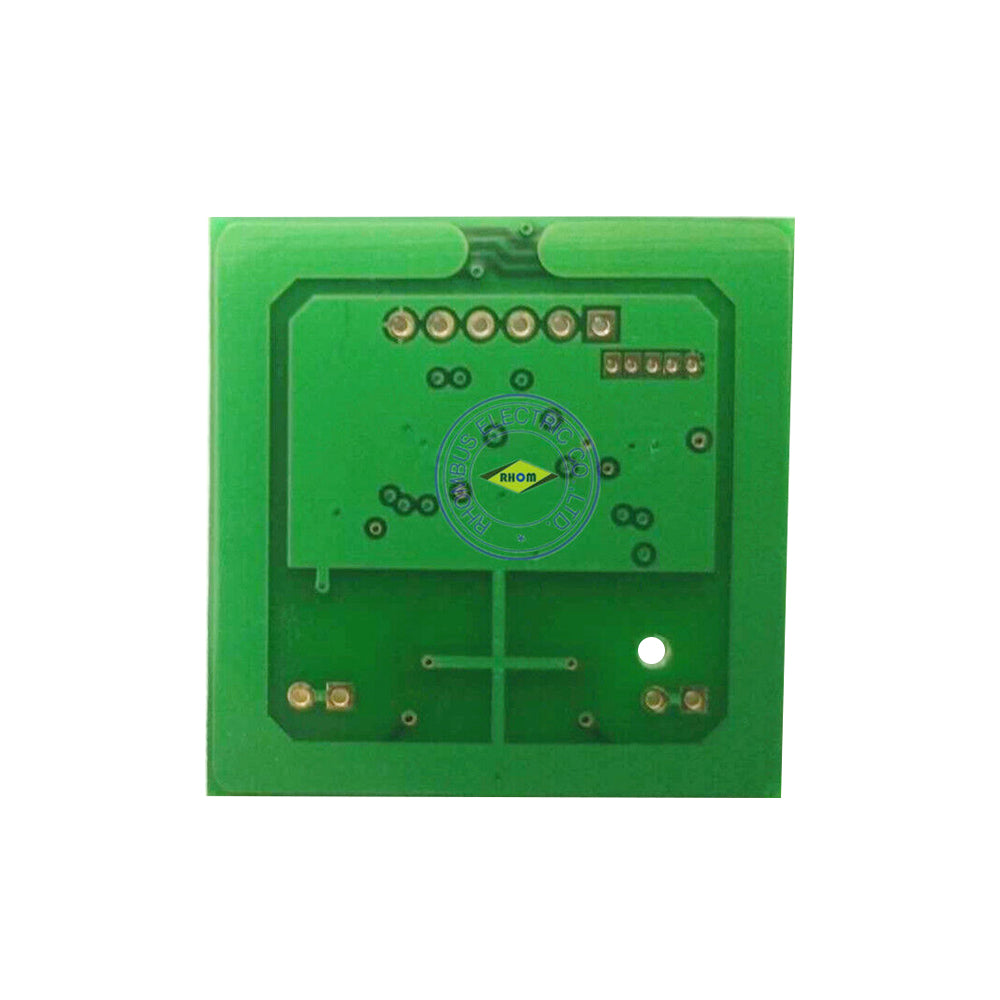

  • Built-in antenna
  • UART interface on CMOS level, baud rate 9,600 ~ 115,200 bps
  • 2.5 ~ 3.6VDC power supply, I/O pins are 5VDC tolerant
  • Work current less than 45mA @3.3V
  • Power down current less than 10uA
  • Operating distance: Up to 50mm, depending on tag
  • Storage temperature: -40 ºC ~ +85 ºC
  • Operating temperature: -25 ºC ~ +70 ºC
  • Dimension: 38 × 38 × 3 mm
  • The OUT pin at low level indicates tag in detective range, and high level indicating tag out

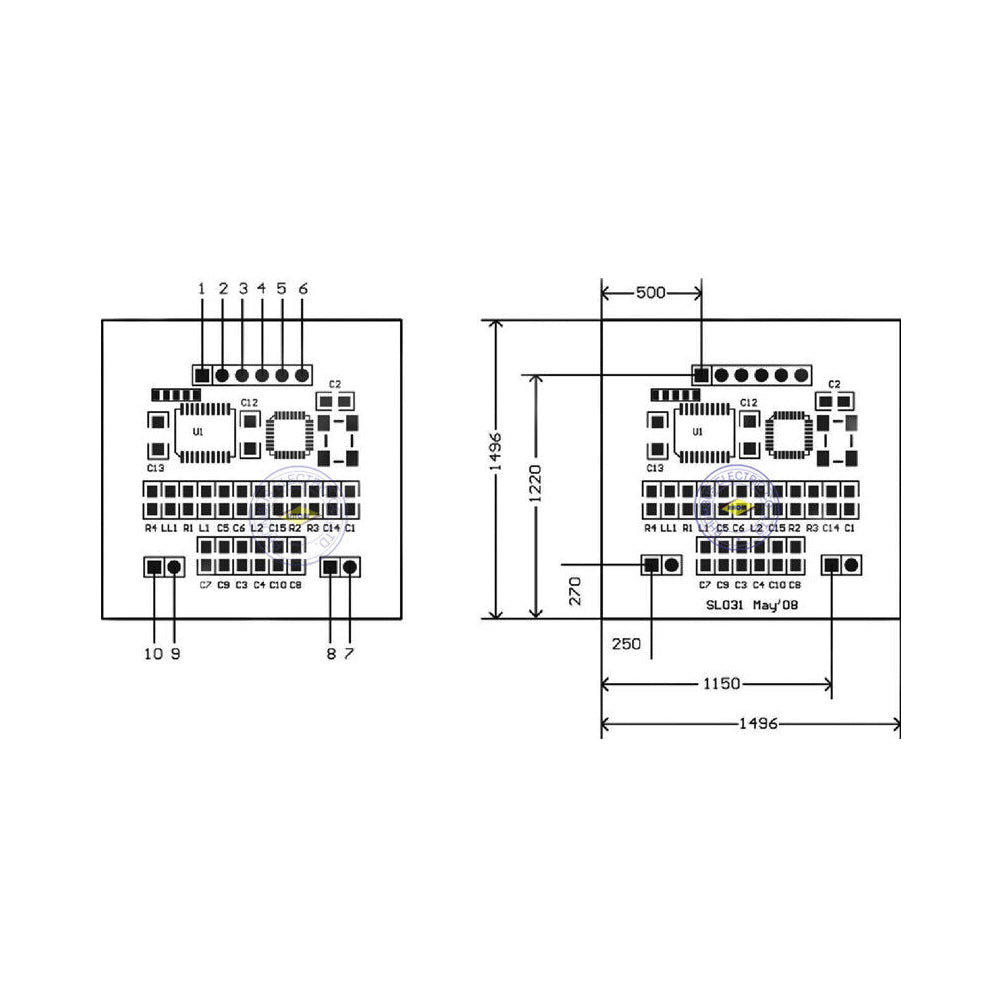

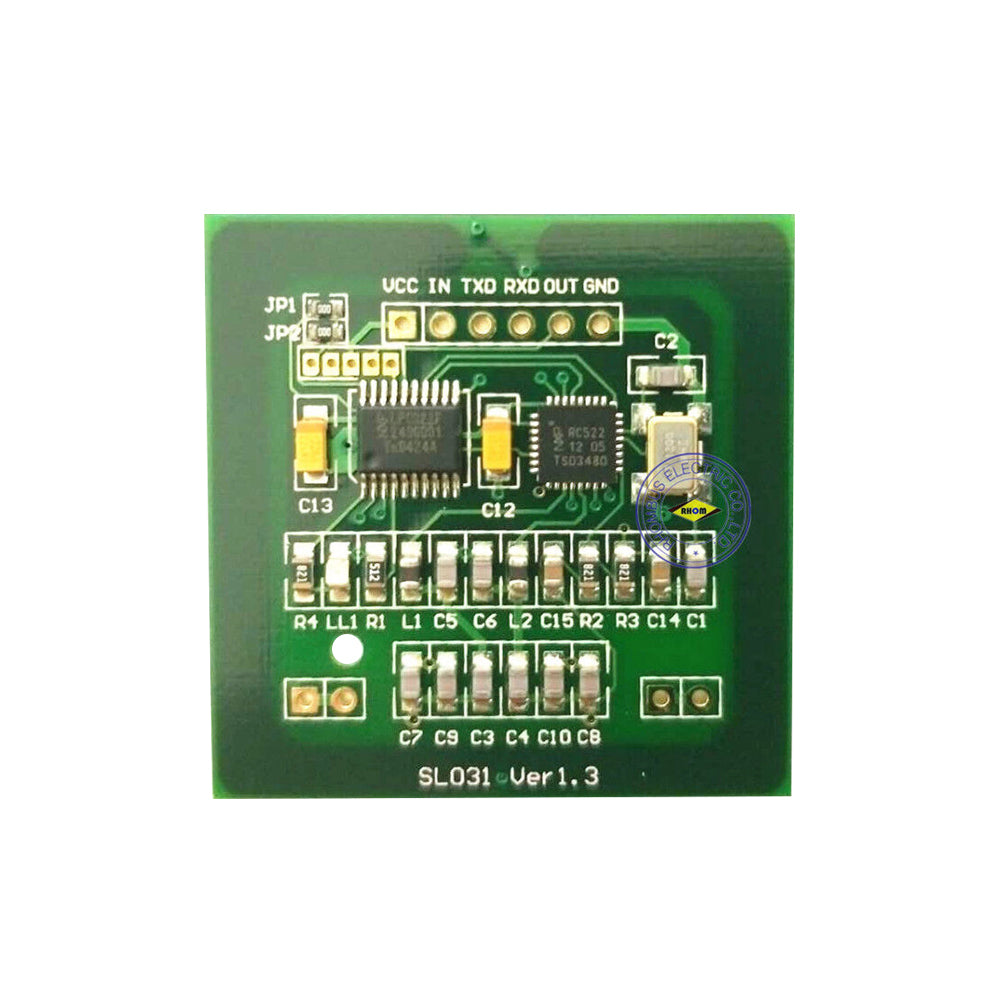

PIN

SYMBOL

TYPE

DESCRIPTION

1

VDD

PWR

Power supply, 2.5 ~ 3.6VDC

2

IN

Input

Falling edge wake up HD0031 from power down







mode







3

TXD

Output

Serial output port

4

RXD

Input

Serial input port







Tag detective signal

5

Out

Output

low level indicating tag in







high level indicating tag out

6

GND

PWR

Ground

7

NC





8

NC





9

NC





10

NC







Package：

3x rfid module
