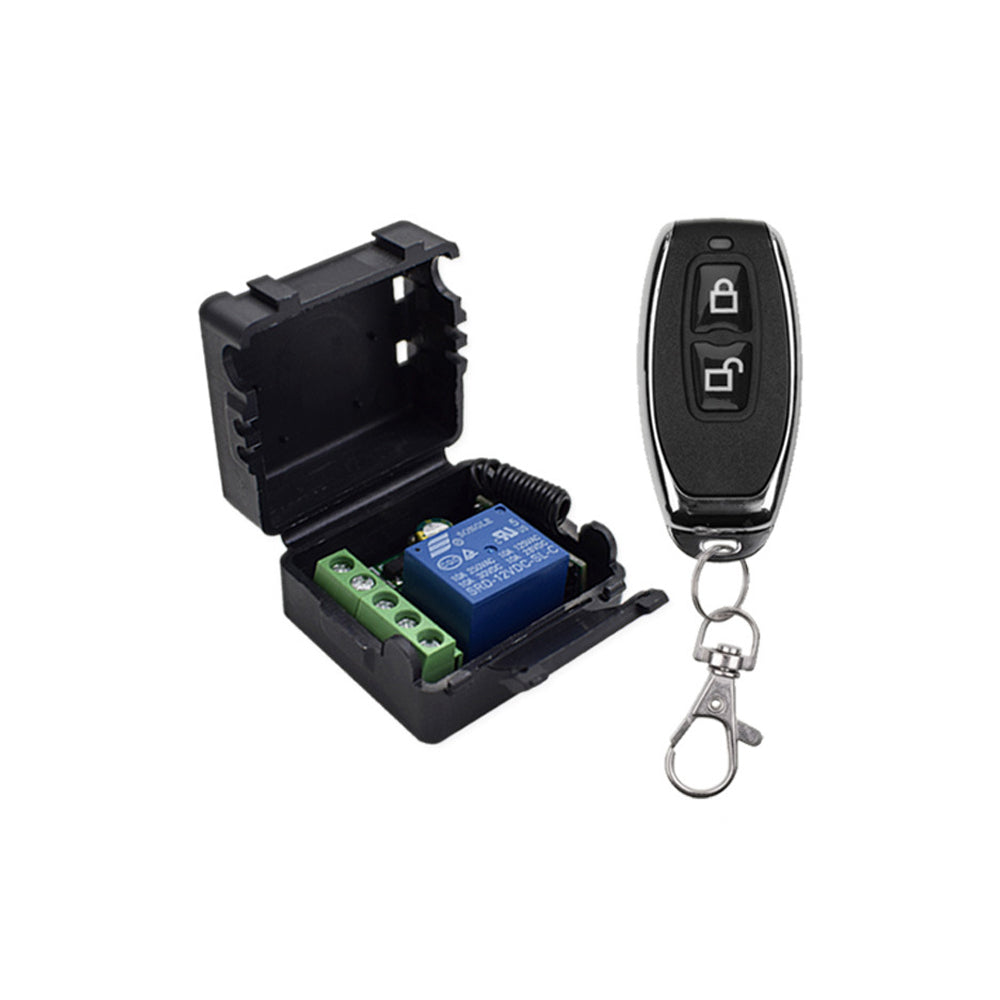

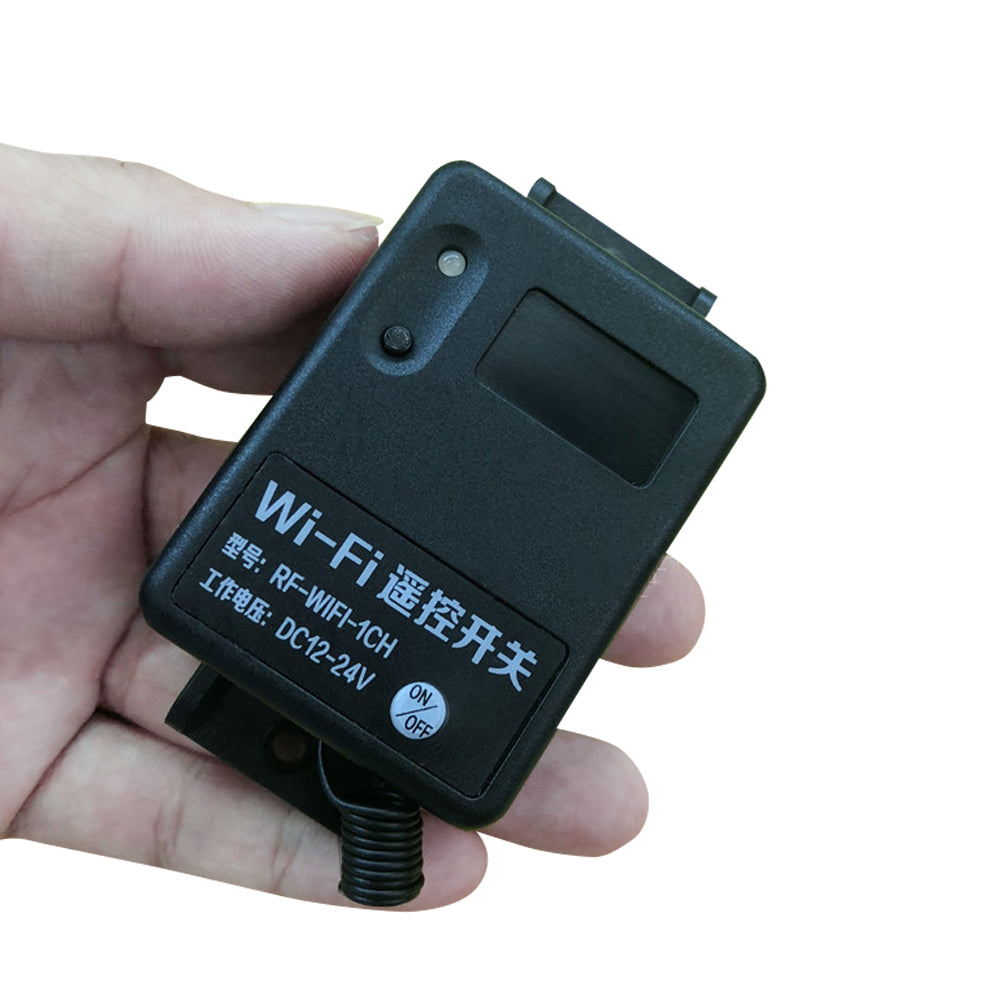

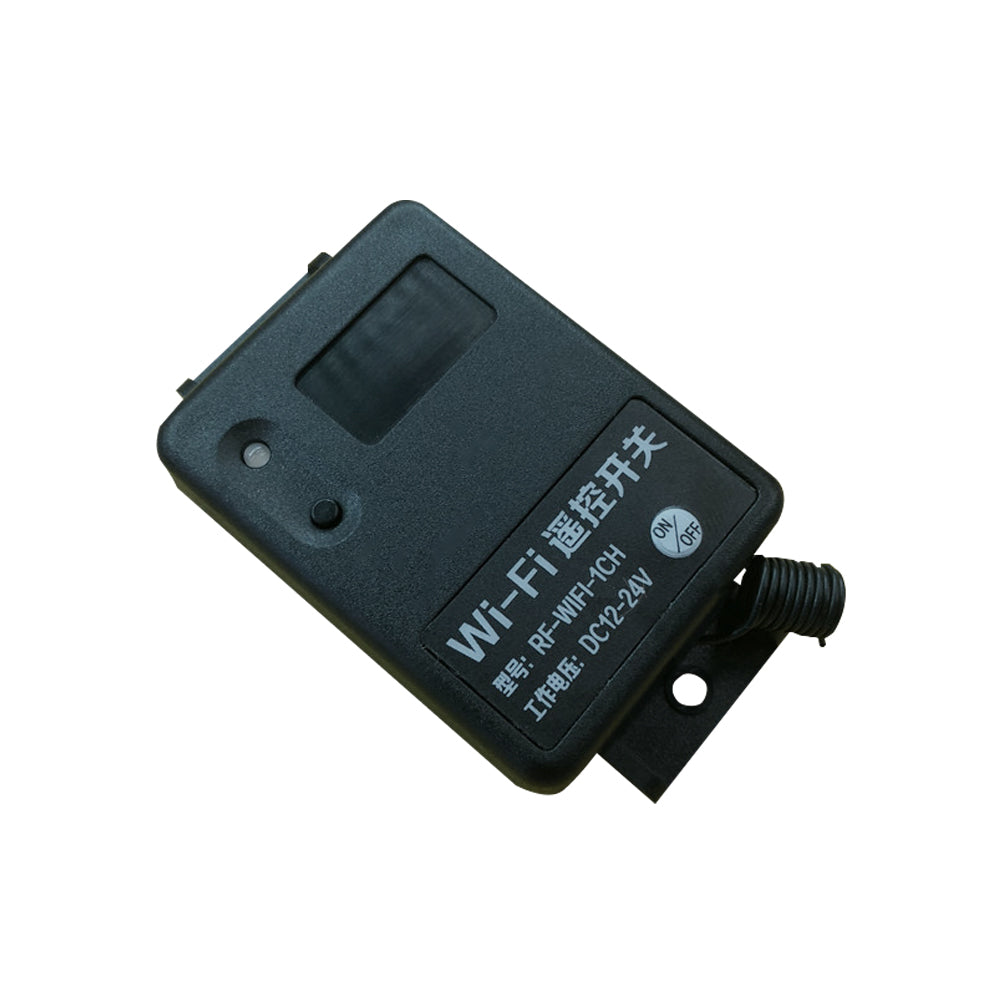

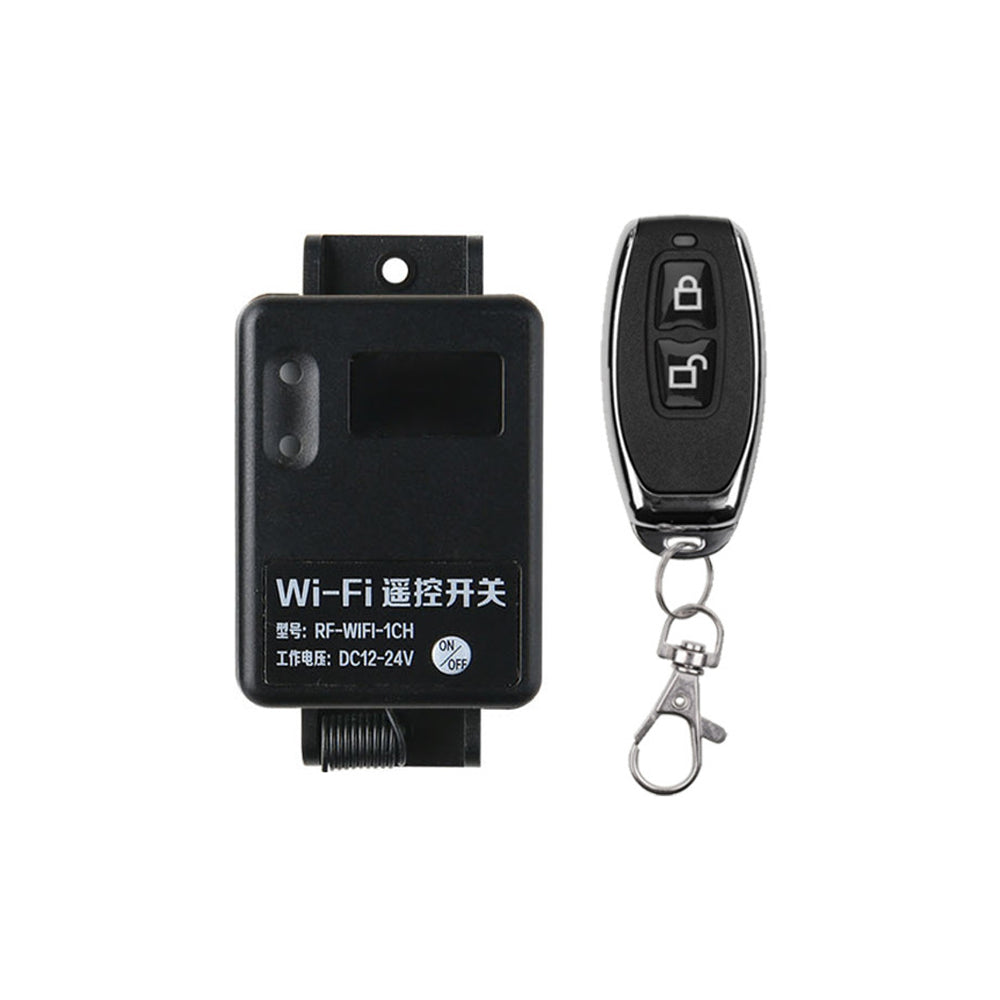

433Mhz 1 Channel 2.4G WiFi RF Remote Control Relay for Home Appliances

433Mhz 1 Channel 2.4G WiFi RF

Remote Control Relay for Home Appliances

Introduction

• Requires 2.4 GHz Wi-Fi connection. Quick & easy installation without the need of a professional
• eWeLink is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP
• Easy Use: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free eWeLink App.You can download the iOS version in App Store and the Android version in Google Play
• Grouping Function: It allows users to assign all added devices to different groups so that they can easily check and manage the devices To use this feature, simply click the drop-down menu on the top of device list
• Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices
• Share Control: Device owners can share control of their own devices to other eWeLink users. Invite your family members to control your smart home together
• Scheduled Timing: User can reset repeat or single timing schedules to turn on/off devices according to your needs.Imaging that the door is off in the evening and on in the morning every day automatically
• Loop Timing: A loop timer allows users to turn on/off the door at preset intervals
• eWeLink provides a multi-language version, which supports Chinese, English, Danish, French, Russian, Italian, Polish, Deutsch, Spanish, Japanese etc.
• eWeLink offers cloud service at a global scale, ranging from Asia, North America, South America to Europe, etc

Specifications:

• Operating Voltage: AC/DC7-36V
• Maximum Load: 1000W
• Operating Frequency: 433 MHz
• Receiver Sensitivity: <=105dBm
• Encoding Type: learning code
• Standby power:<0.1W
• Wireless standards:Wifi 2.4GHz

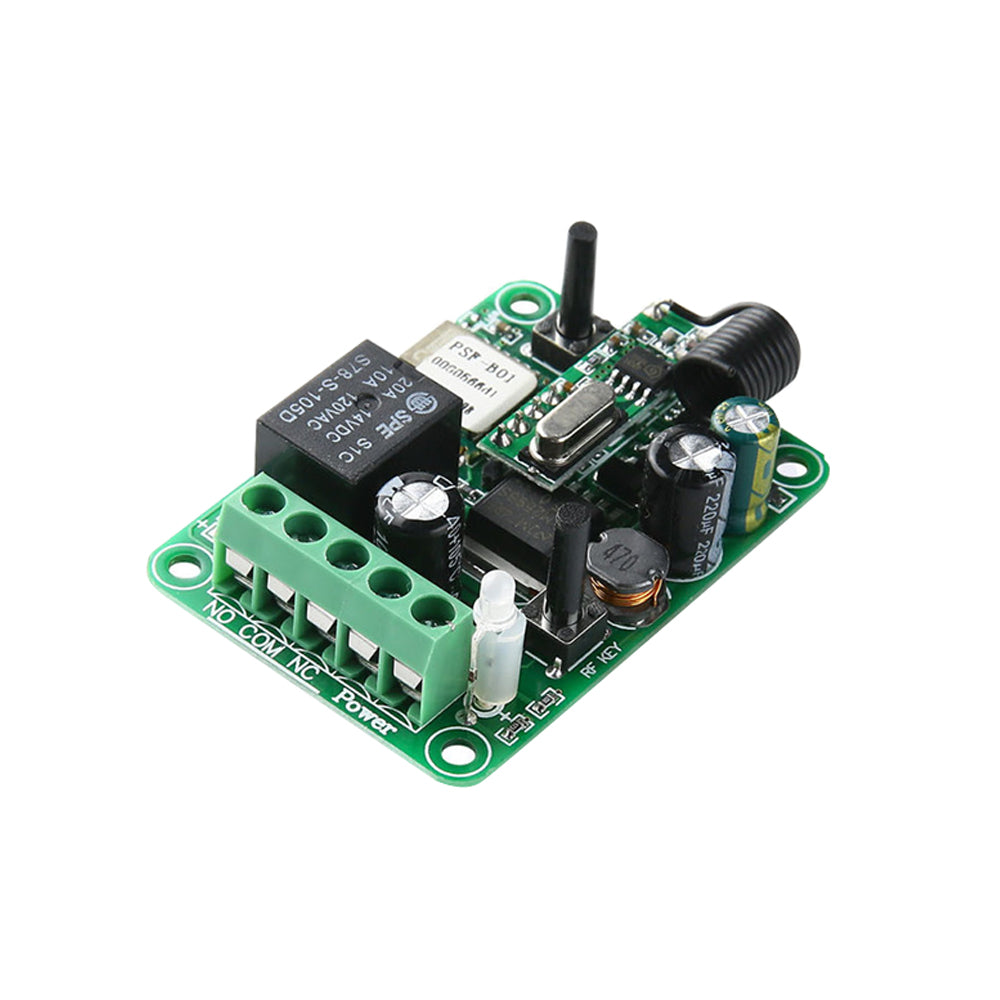

• PCB size: 56x41x20mm
• Shell size: 80x45x25mm
• Output way: Jog/self-lock

Working output way

• Jog: press one button is working . loosen your finger on the same button is stop.
• Self -lock: press one button for one time is working .press the same button again is stop .

How to pairing code and clear code:

Pairing code:

1. Jog(1CH jog):Press the remote control button once, the indicator lights on, and then press the button once, the indicator lights flashing three times,ok !

2. Self -lock（1CH self-lock）,Press the remote control button twice, the indicator lights on, and then press the button once, and the indicator flashes three times

Clear code:

Press the remote control button eight times continuously until the LED is flashing, then release ,OK!

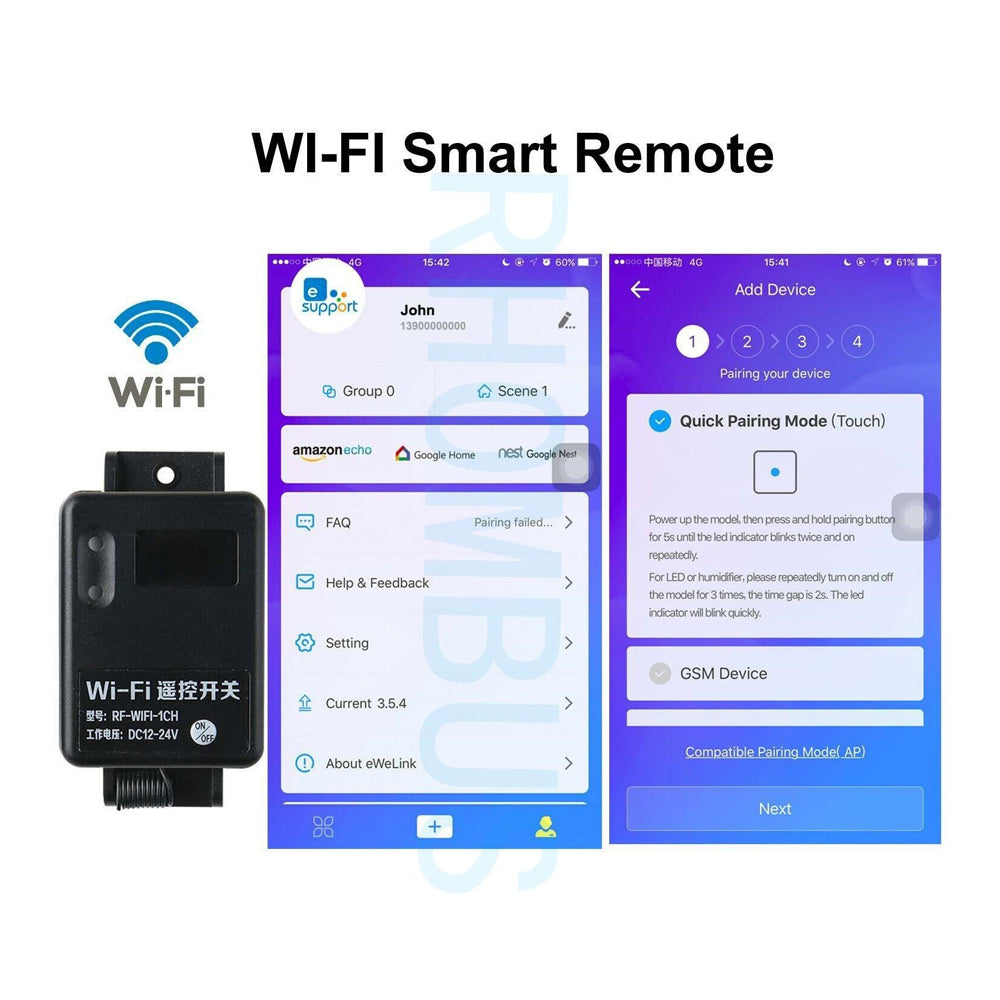

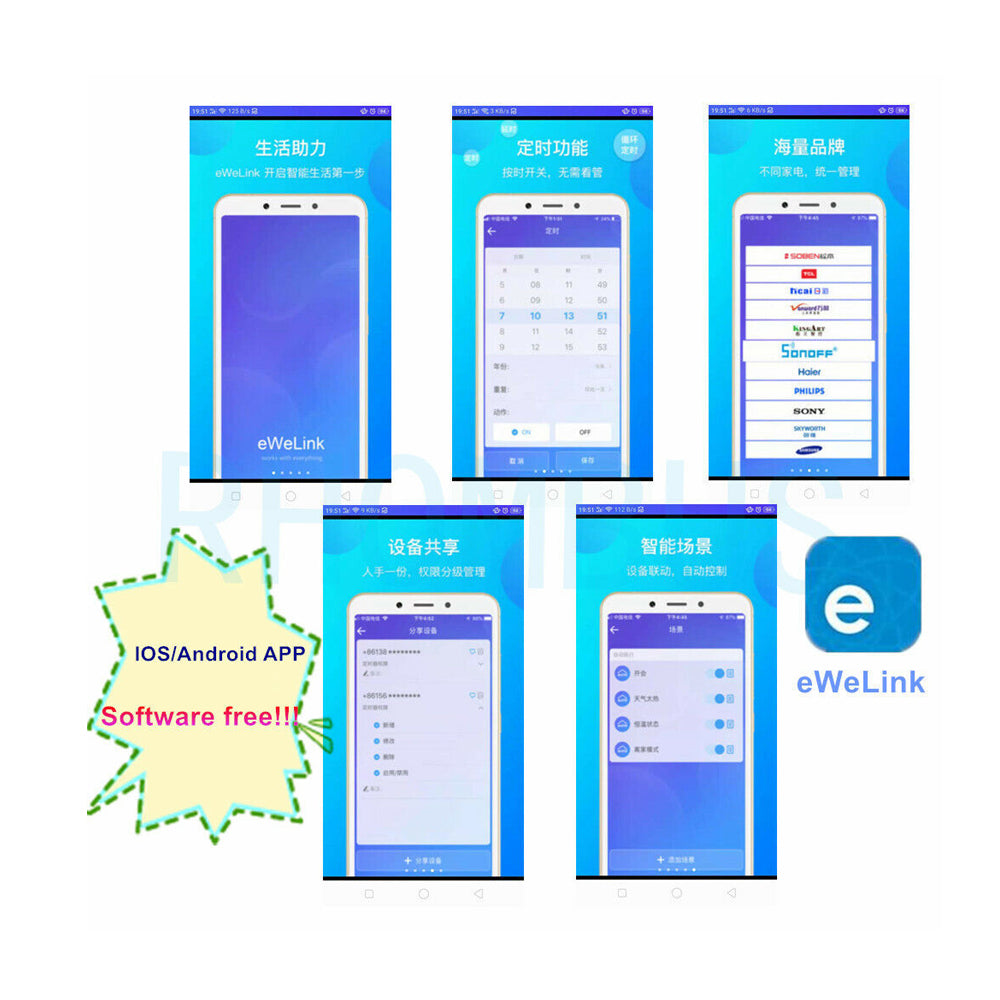

How to download mobile app？

Search eWelink in the app market or mobile app store

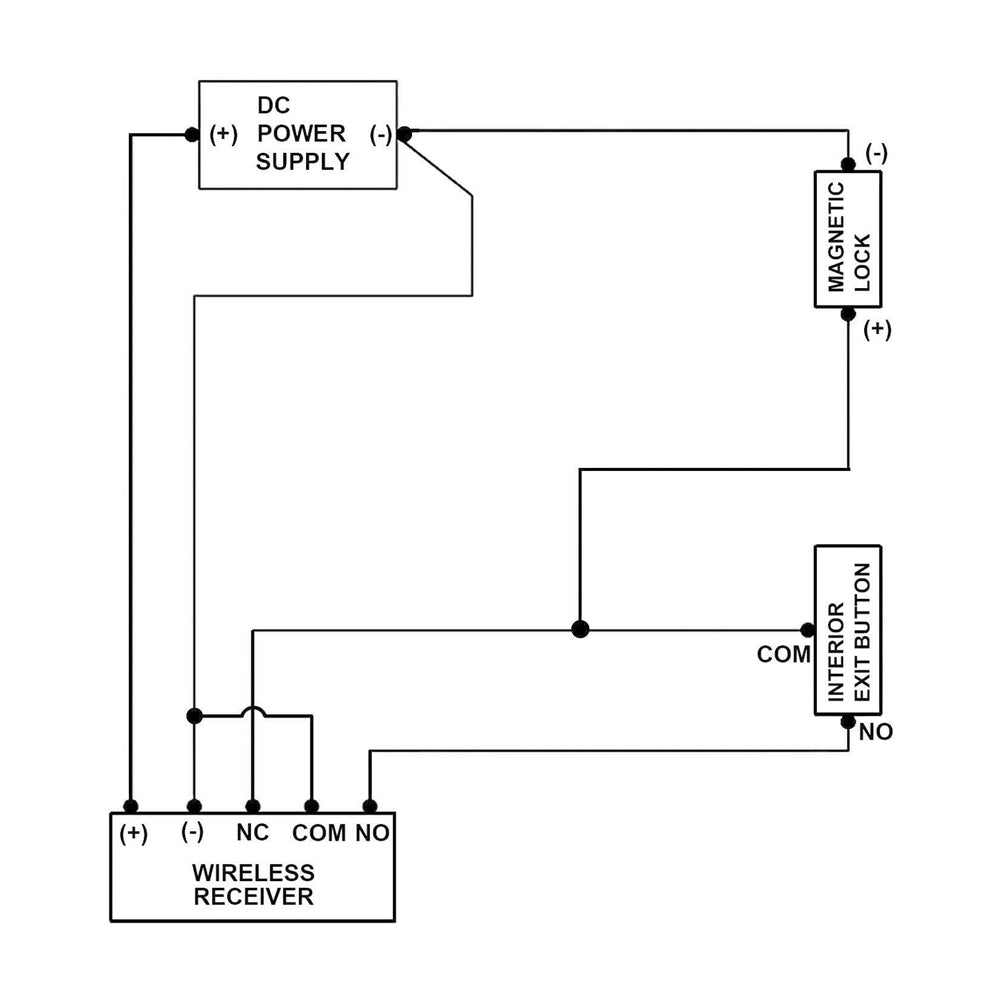

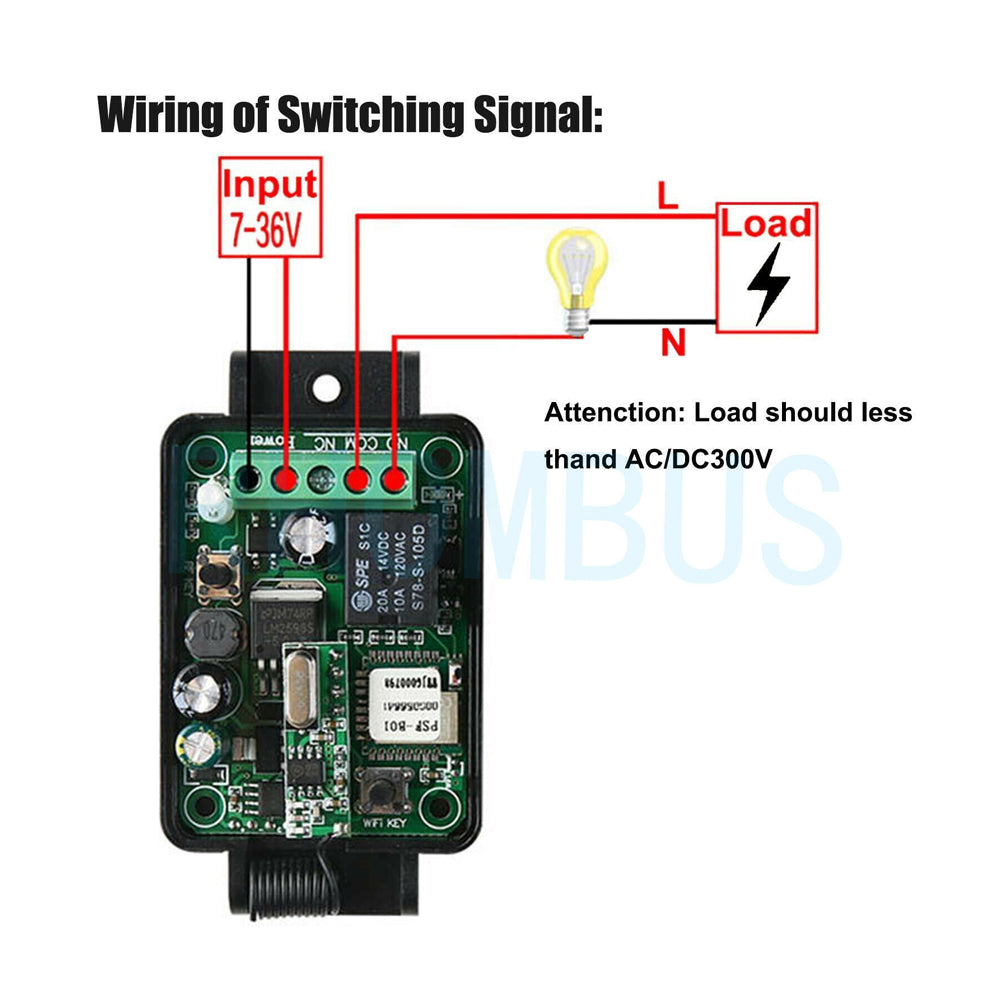

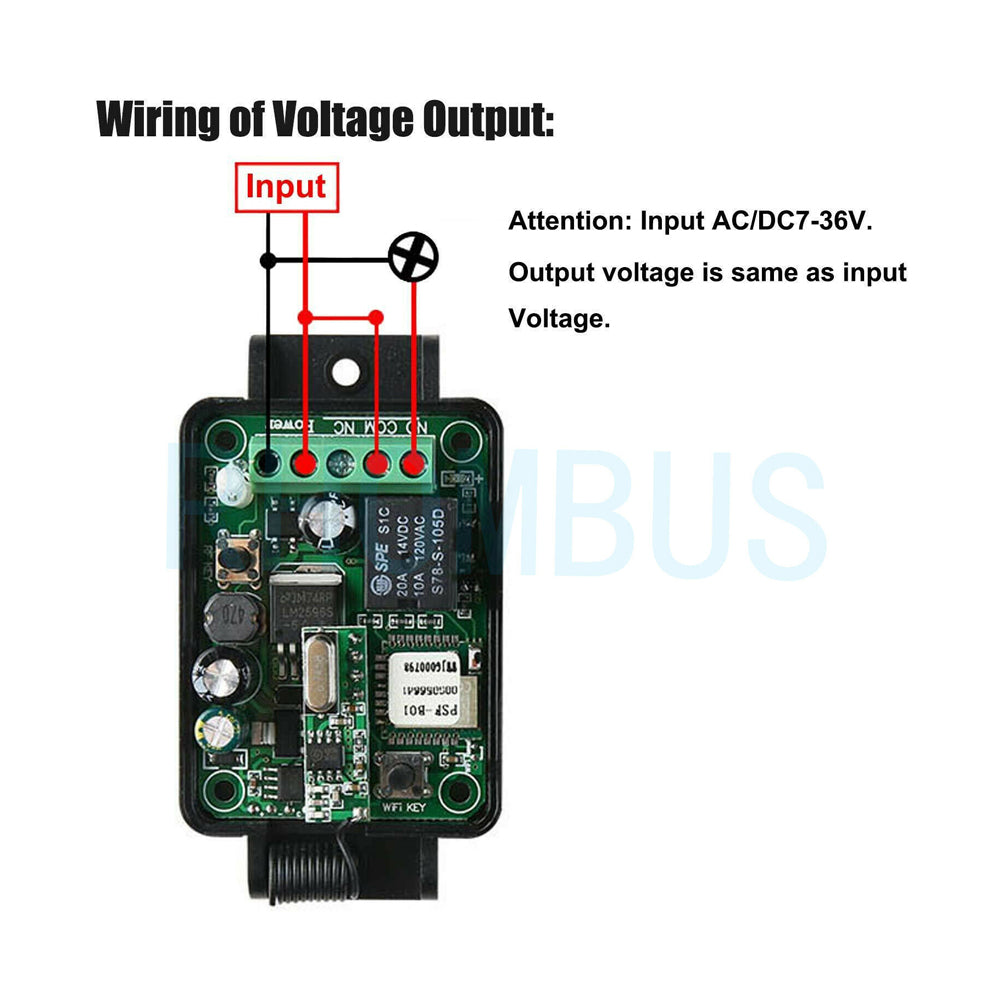

Wiring Diagram

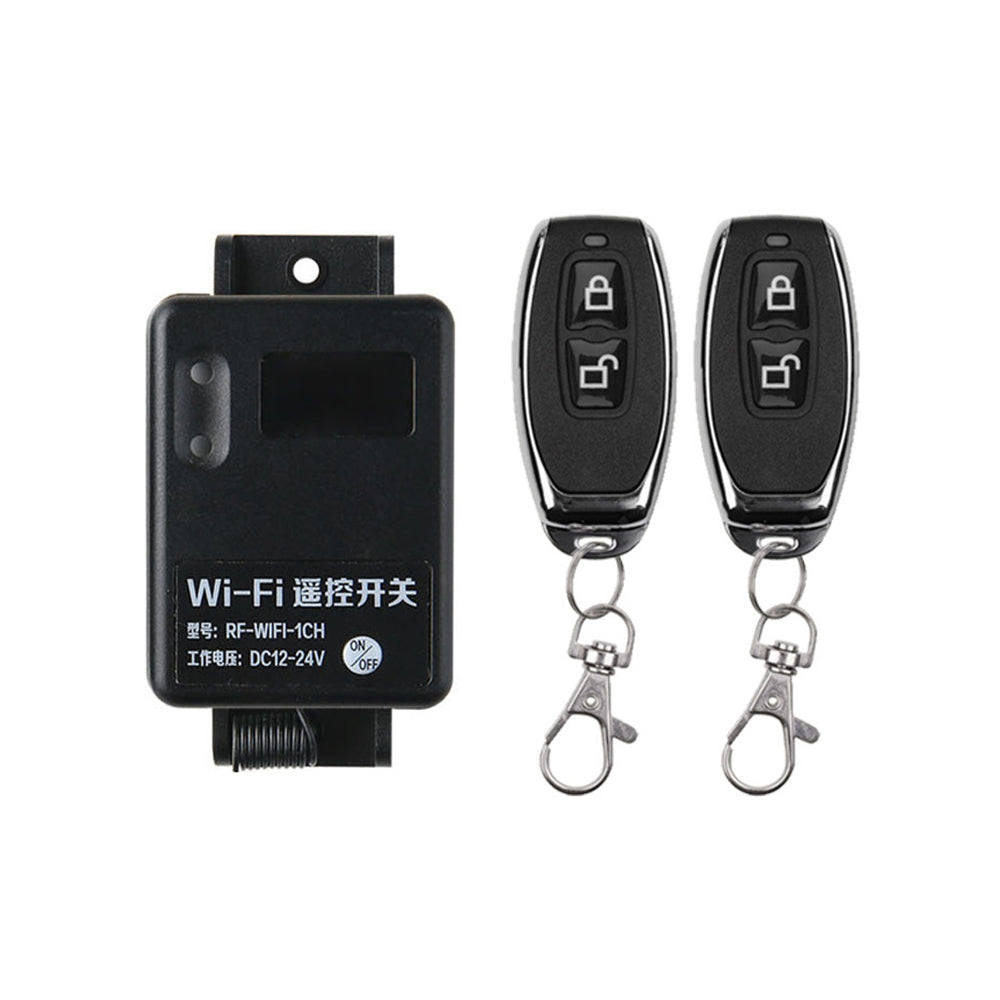

Package includes:
