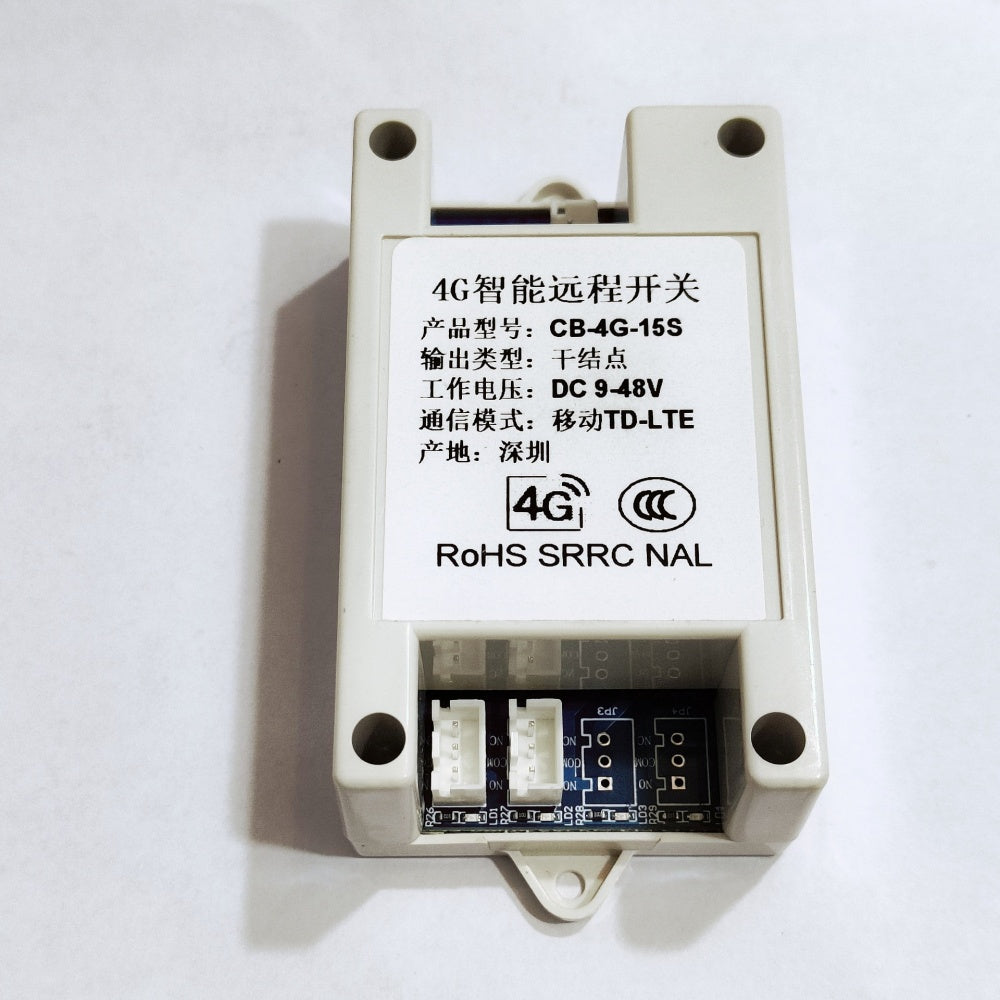

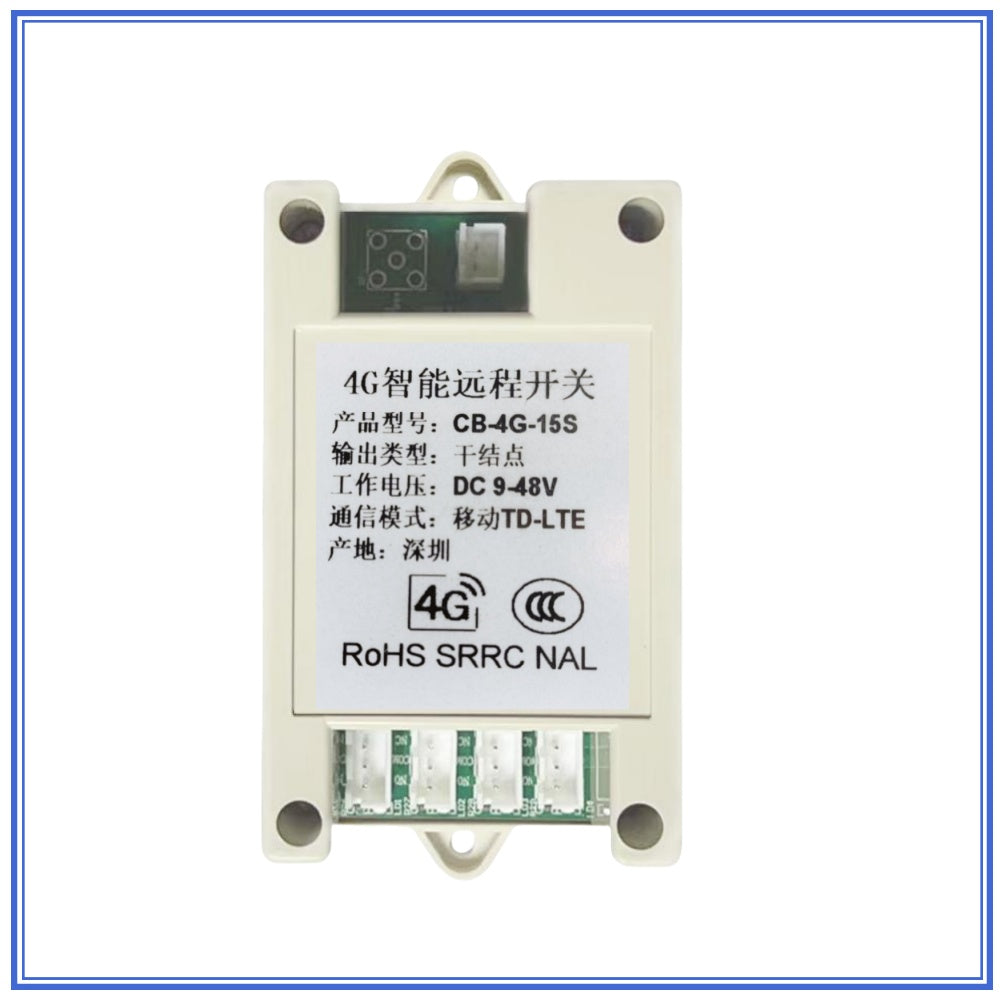

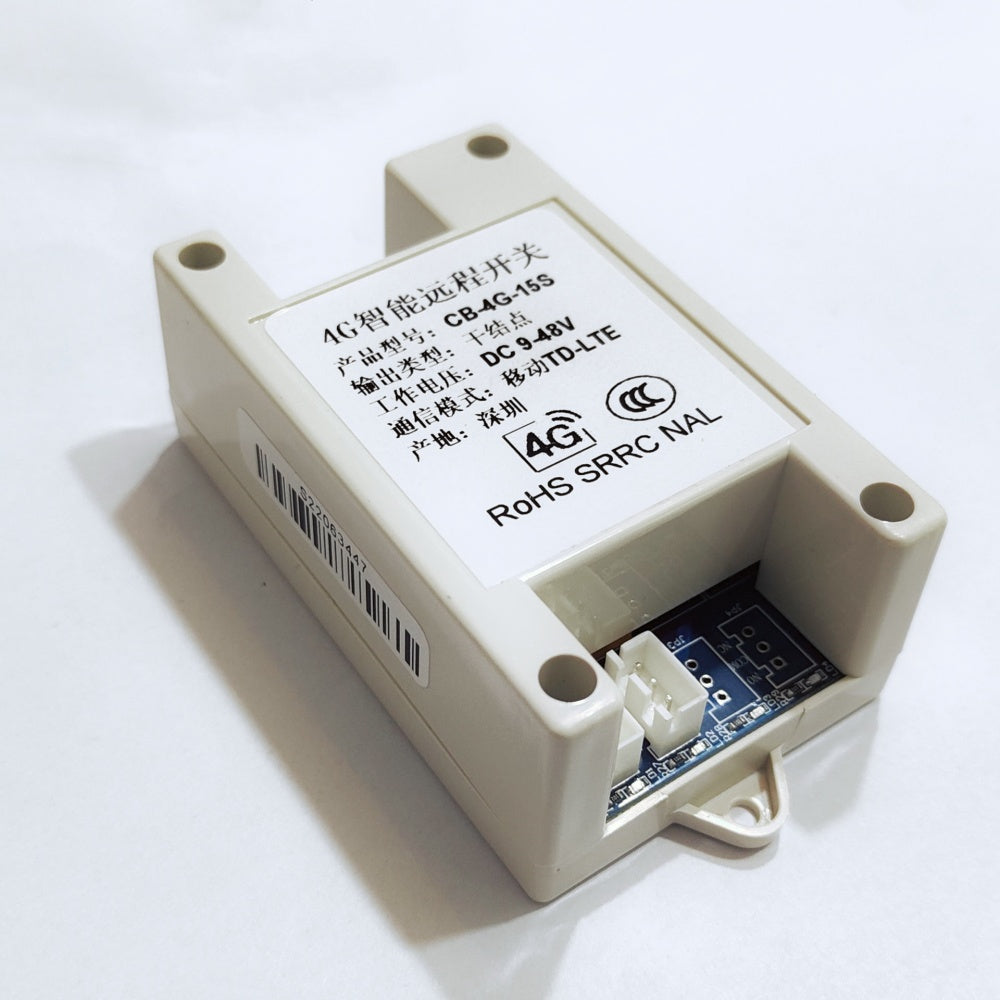

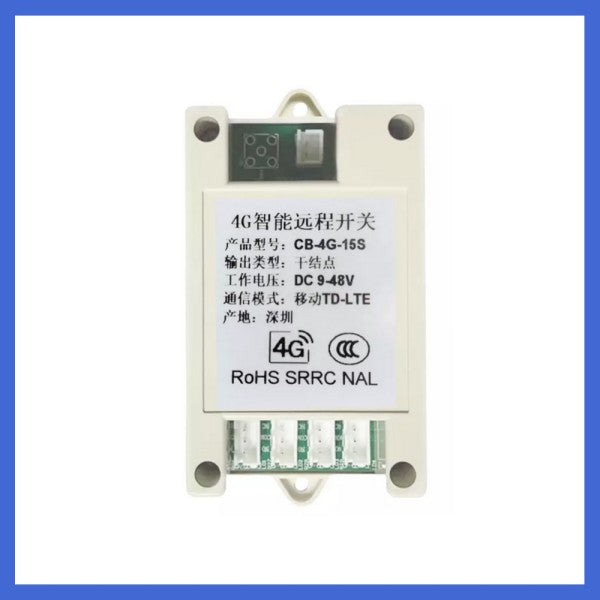

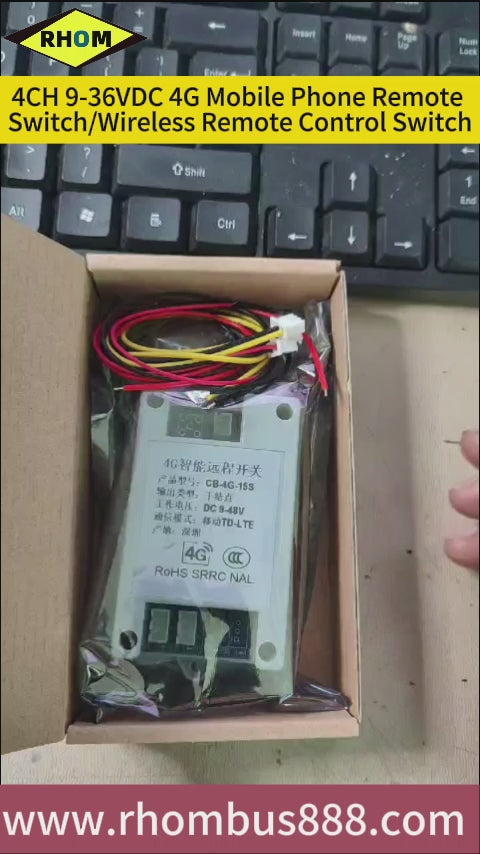

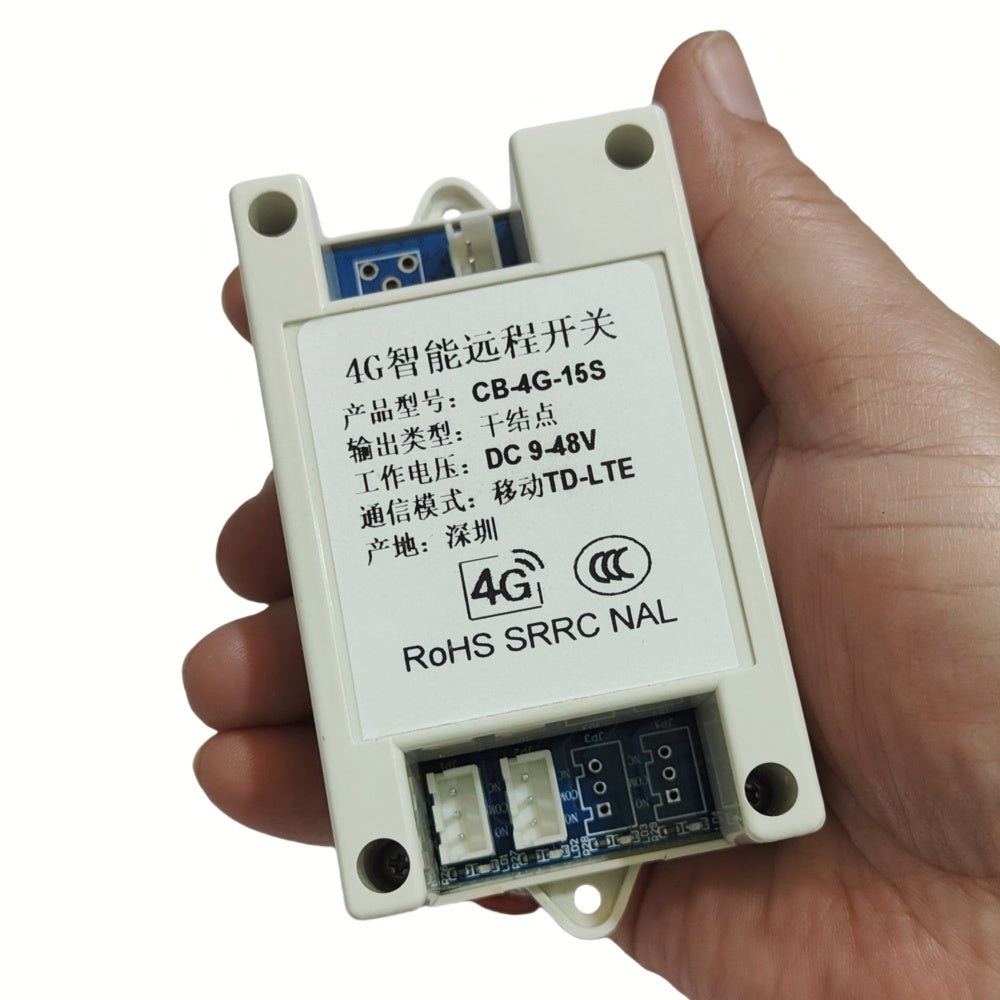

4CH 9-36VDC 4G Mobile Phone Remote Switch/Wireless Remote Control Switch

Electrical parameters:

• Power supply voltage DC9V-36V
• Working current<100mA;
• Working temperature -40 ℃~70 ℃
• Load power ≤ 3A
• Working humidity<90%
• Control ports 1, 2, 3, and 4
• Communication Channel Band5/Band8
• Communication standard 3GPP Release 13 standard
• External antenna with a 3dB cable length of 3 meters (customization required)
• External dimensions of the motherboard: 82mm in length x 50mm in width x 32mm in height;
• Definition of terminal block:

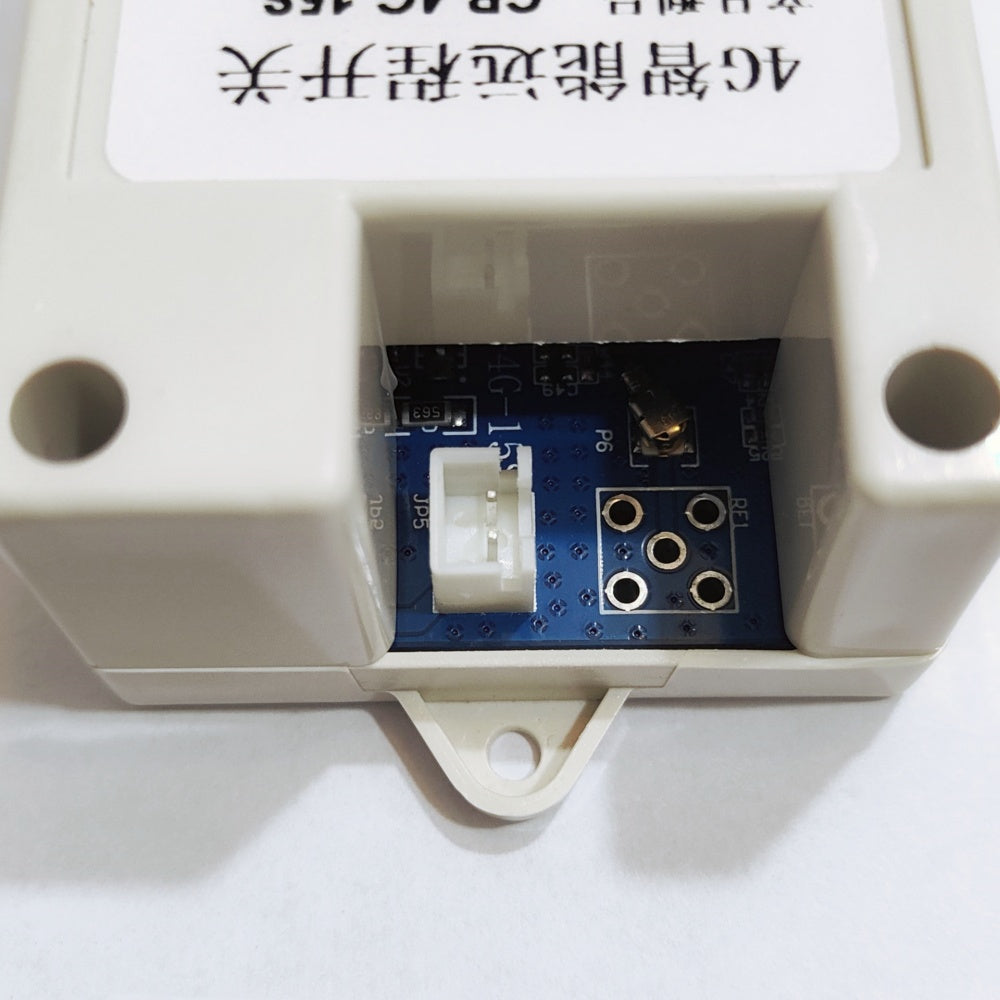

• RF1-- External antenna interface
• Size：50*82*31.5mm

JP5

• Red line - positive pole of module power supply
• Black wire - negative pole of module power supply

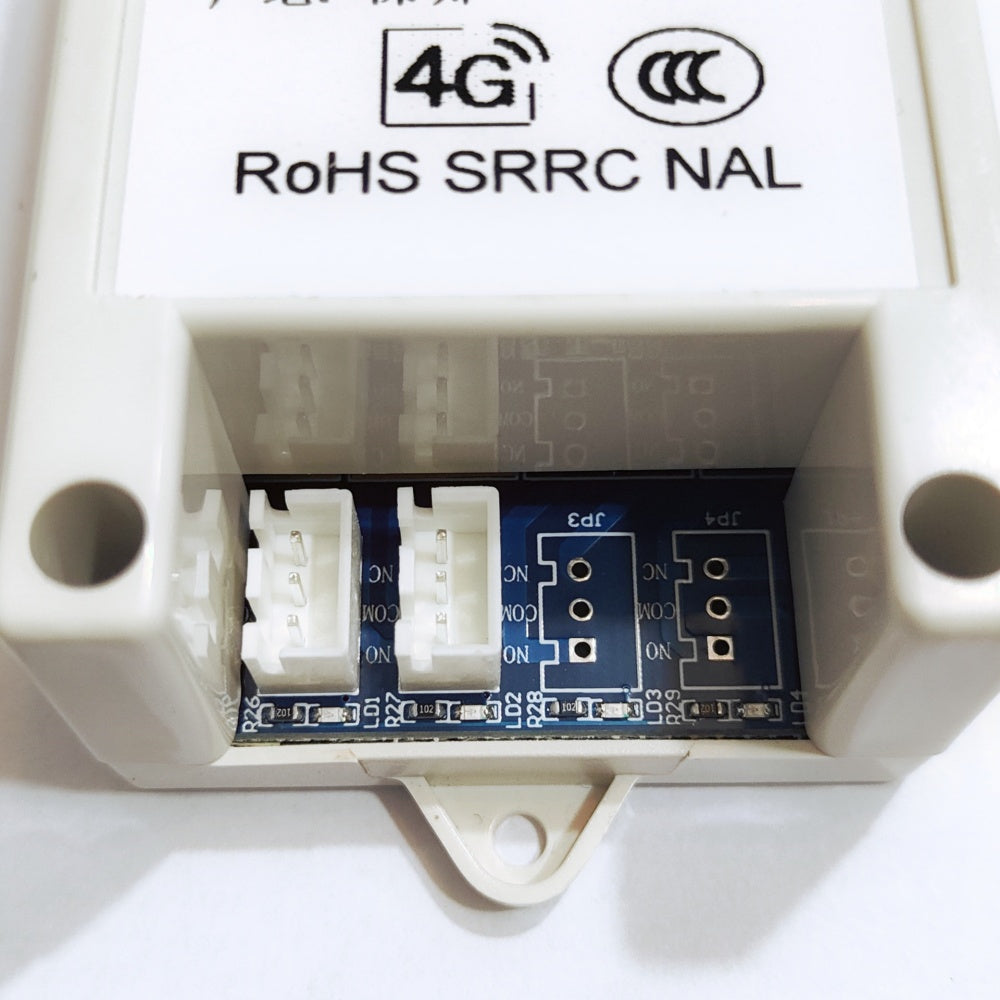

Output interface JP1-JP4

• JP1: (Red NC Normally Closed) (Black COM Common) (Blue NO Normally Open)
• JP2: (Red NC Normally Closed) (Black COM Common) (Blue NO Normally Open)
• JP3: (Red NC Normally Closed) (Black COM Common) (Blue NO Normally Open)
• JP4: (Red NC Normally Closed) (Black COM Common) (Blue NO Normally Open)

Android mobile app: smdevice

App download:   https://goo.su/NosOBX

Package：

1 x Remote Switch

4 x 3pin wire

1 x 2pin wire
