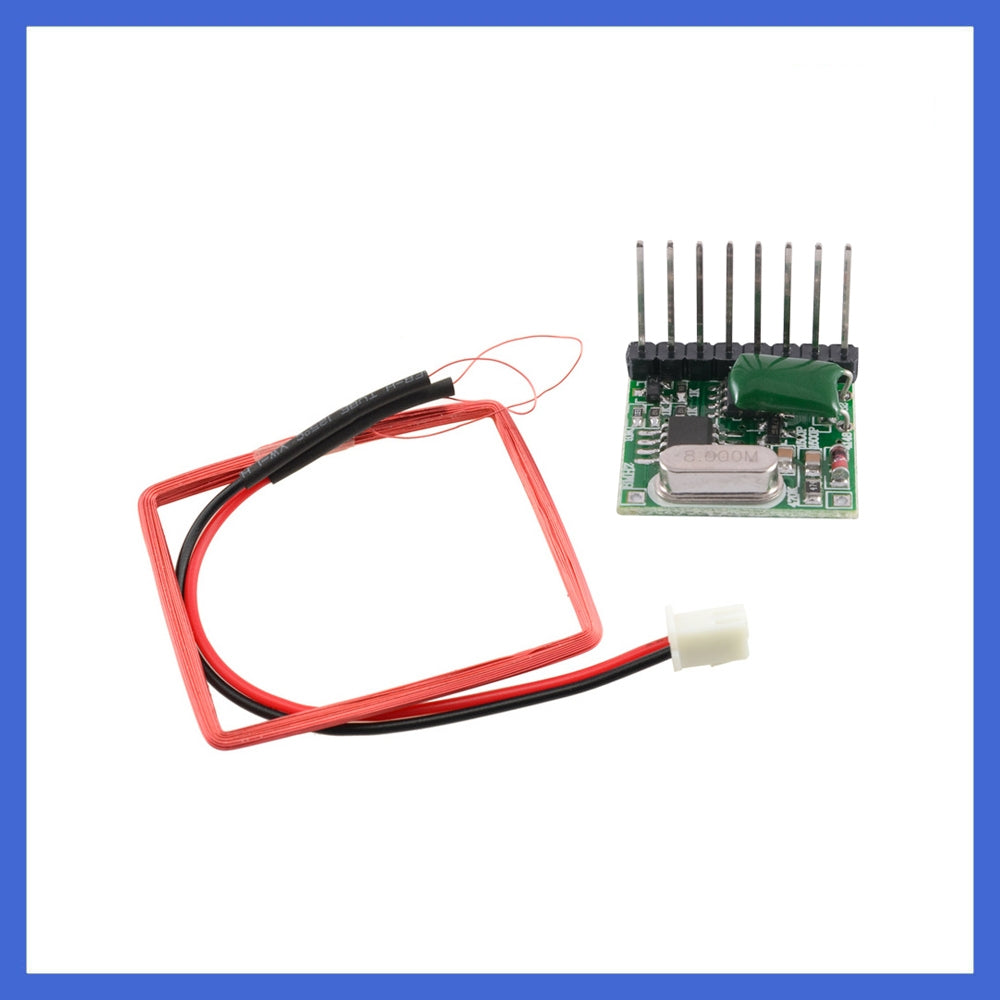

5 pcs 125Khz EM4100 wiegand26 LED buzzer driver with antenna mini reader module
5 pcs 125Khz EM4100 wiegand26 LED buzzer driver with antenna mini reader module
Обычная цена
$28.95 USD
Обычная цена
Цена со скидкой
$28.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
|
Detailed Description:
|
|
| General | |
| Brand | FCARD |
| Model | FC80 |
| Specification | |
| Response time | <0.2s |
| Communication | Weigand 26 |
| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm(max to 35cm,meanwhile a special coil &card should be necessary) |
| Induction Type | EM card |
| Power supply | DC5V |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |
| Dimension (LxWxH mm) | 20*20*5mm(23*23*8mm with epoxy casing) |
| Weight (kg) | 0.01 |
PIN description
| Pin | Symbol | Description |
| 1 | Buz | To Buzzer's minus pin |
| 2 | LED | To LED's minus pin,the LED will flash while card presented. |
| 3 | WG1 | WG26 data 1 output |
| 4 | WG0 | WG26 data 0 output |
| 5 | +5V | DV 5V power supply |
| 6 | GND | GND |
| 7 | ANT | To coil |
| 8 | ANT | To coil |
