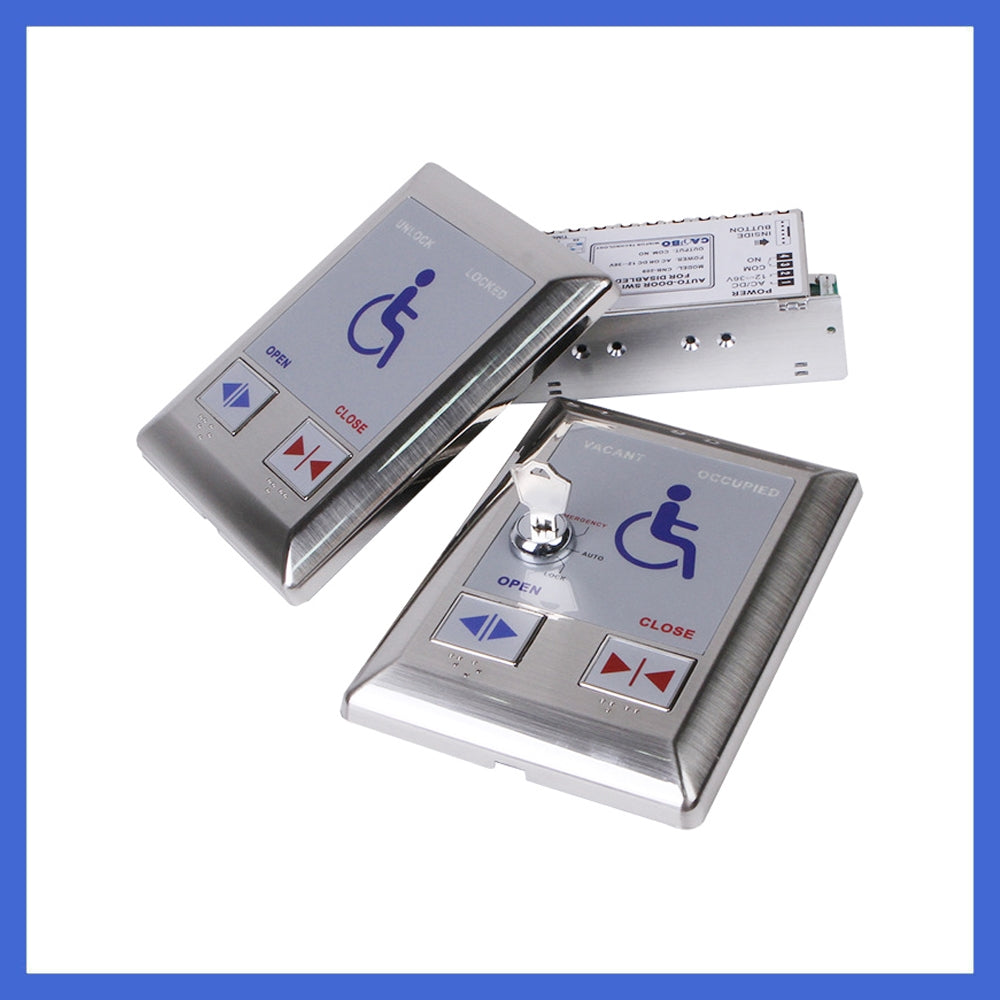

Auto-door Switch Sensor for Washroom/Restroom of Disabled Handicapped Person

Using Process:

• Dedicated for washroom of disabled-person, large-paneldesigned with voice prompts

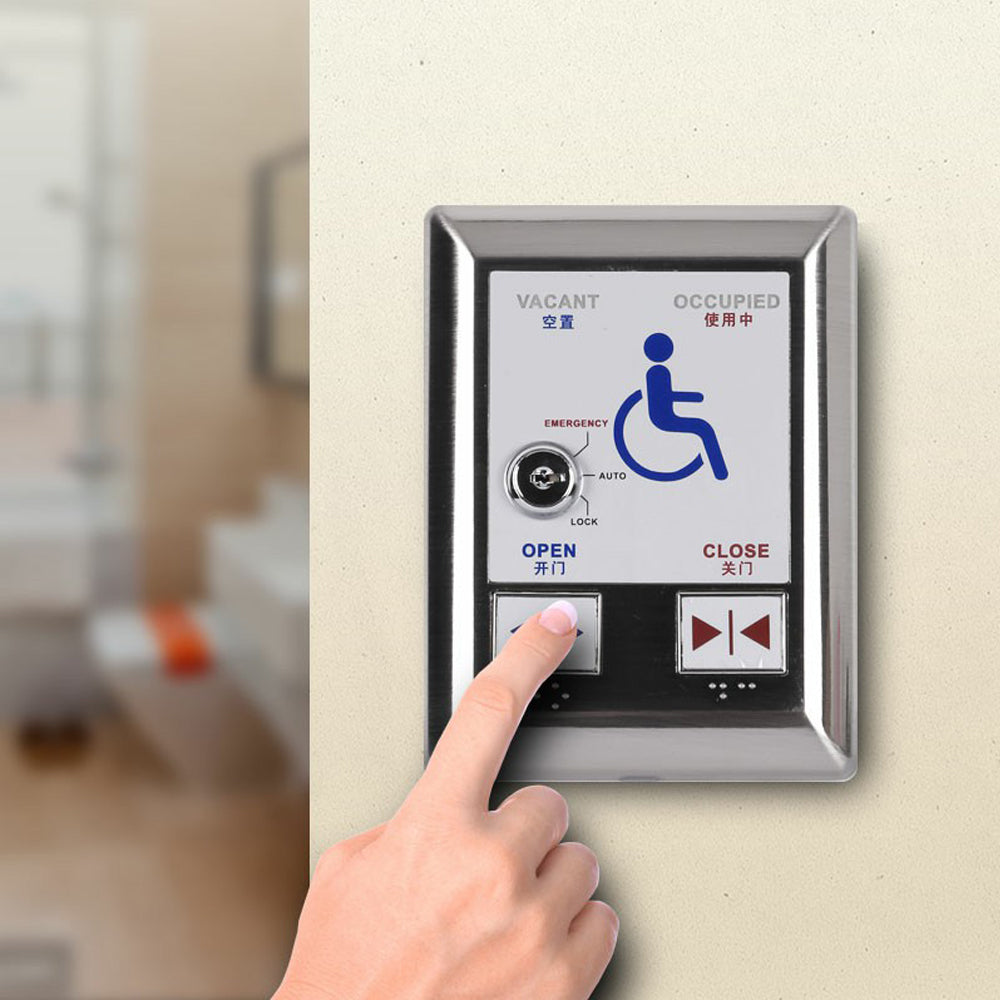

• Normal standby,the exterior panel displays "Vacant"
• Press the open button of exterior panel, door open with voice prompts. Internal panel displays unlocket, warning to press the lock button.

         After entering the washroom, press the lock button of inner panel,door close with voice prompt. At the time, door can not be open until the

         user press open button of inner panel. And door close in 5s/15s/15minutes according to the setting

• When user have trouble and can not operate the call panel, start the EMERGENCY function, door can be open forcibly by outsider
• Start the LOCK function to lock the system, when the staff after work so that the door is in a safety closure state, to stop the use of external

Function:

• Emergency: When user have trouble and can not operate the call panel, start EMERGENCY function, door open forcibly by outsider
• Automatic: Start AUTO function, call panel work normally, people can get out and in
• Lock: Inner and exterior panel lose effectiveness, control system and door are locked. Can not be used normally

Technical Parameters:

• Operating voltage: AC/DC 12-36V

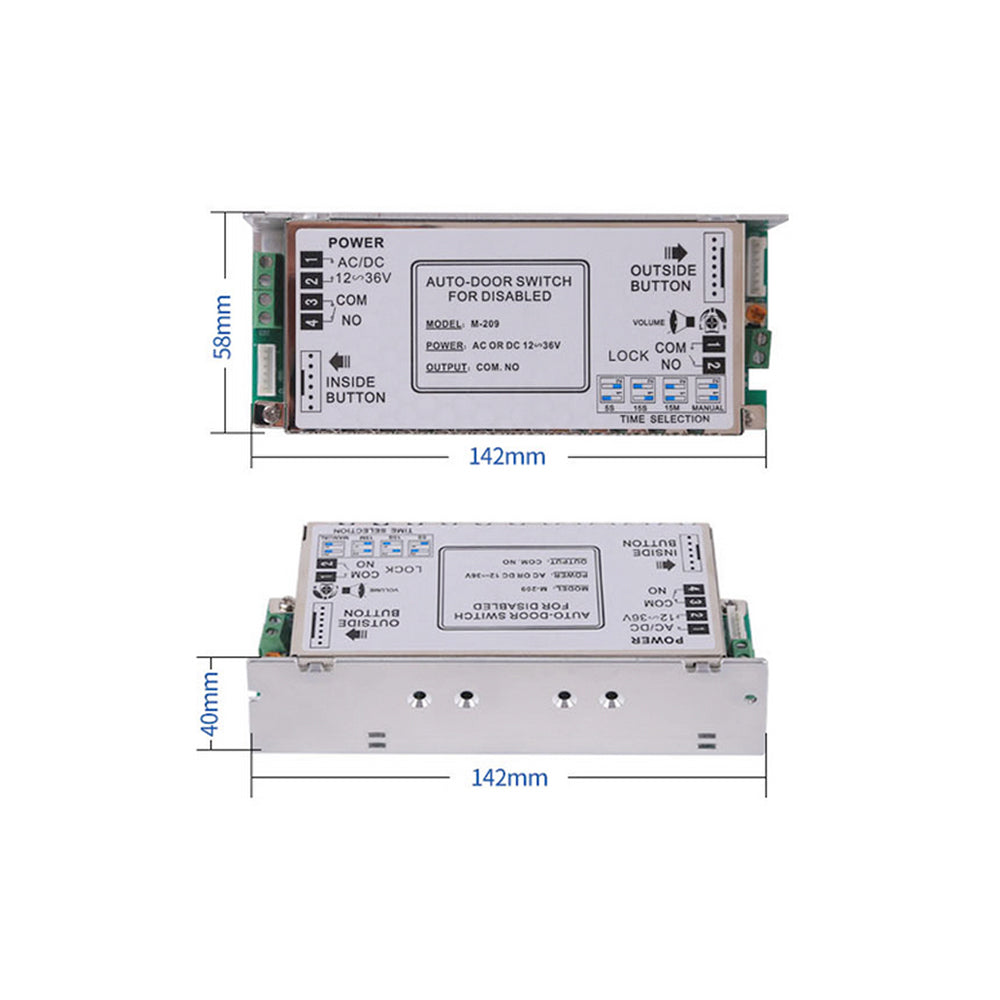

• Size of switch controller: 142Lx58Wx40h(mm)

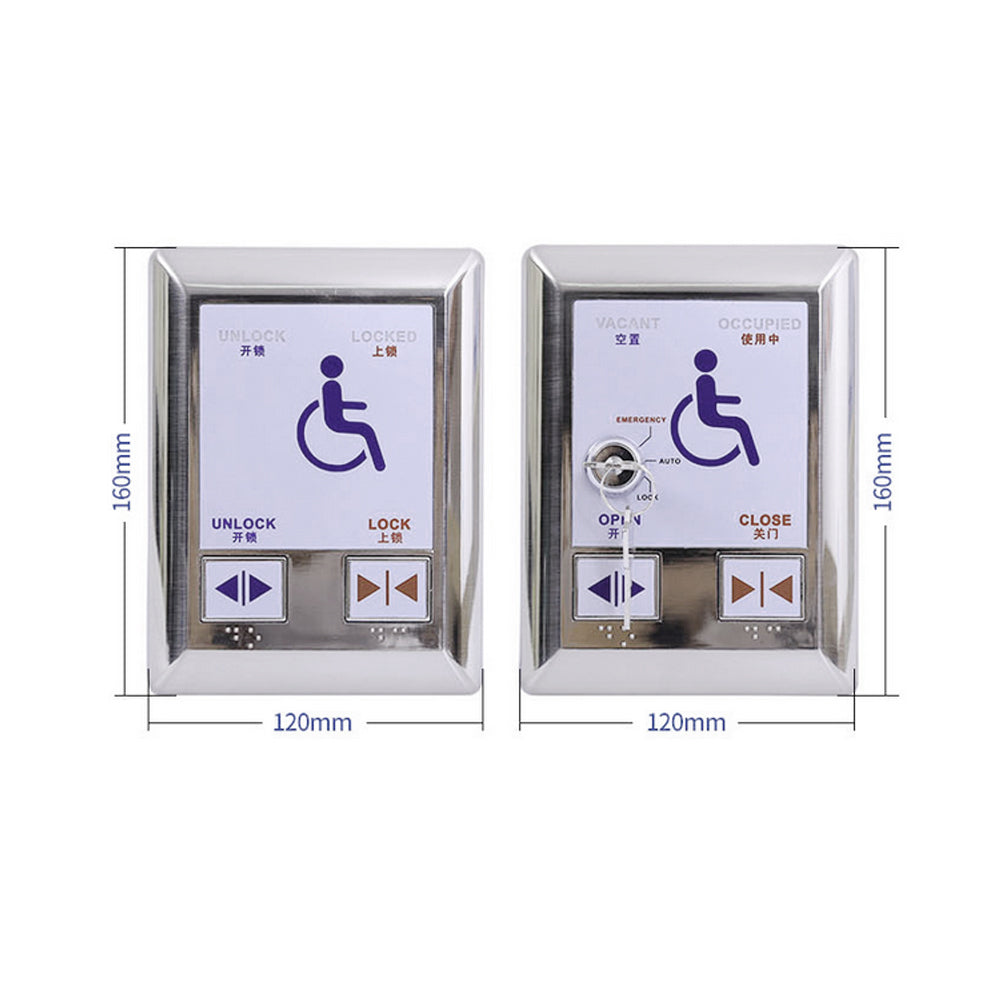

• Size of panel: 160Lx120Wx15xH(mm)

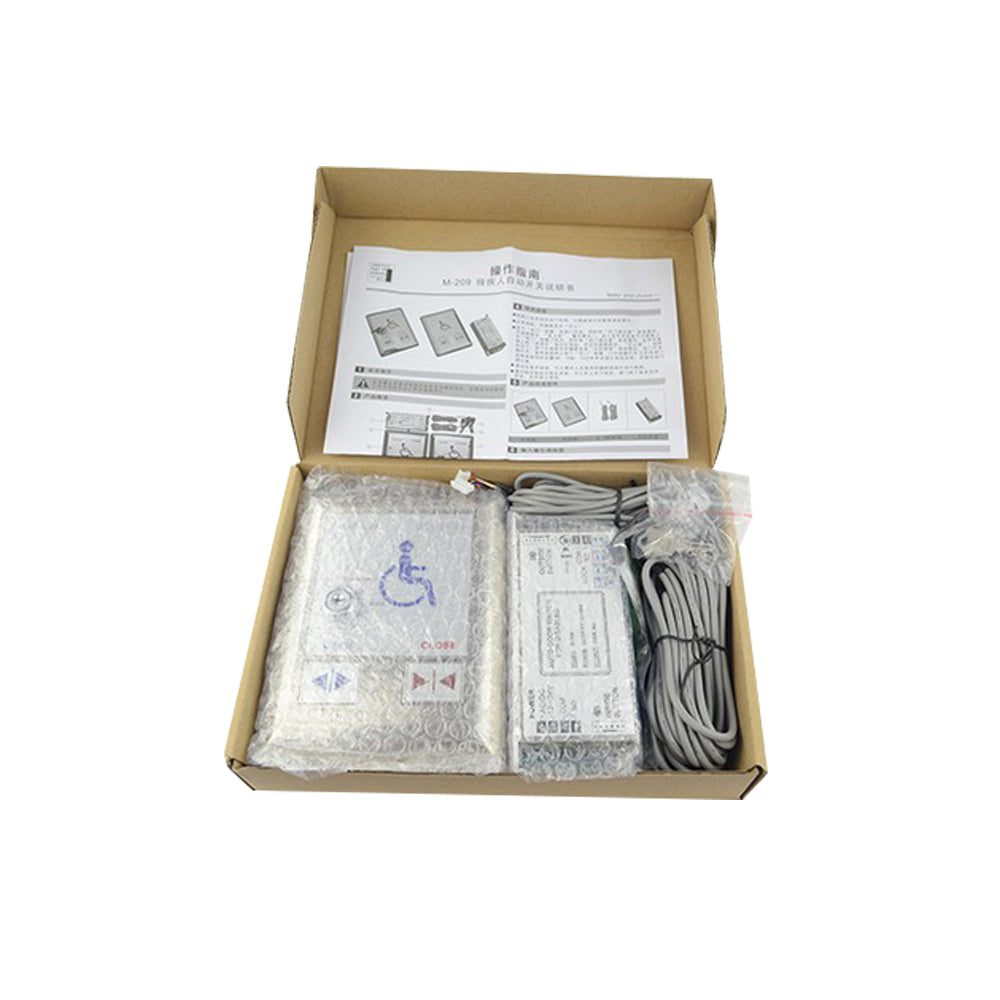

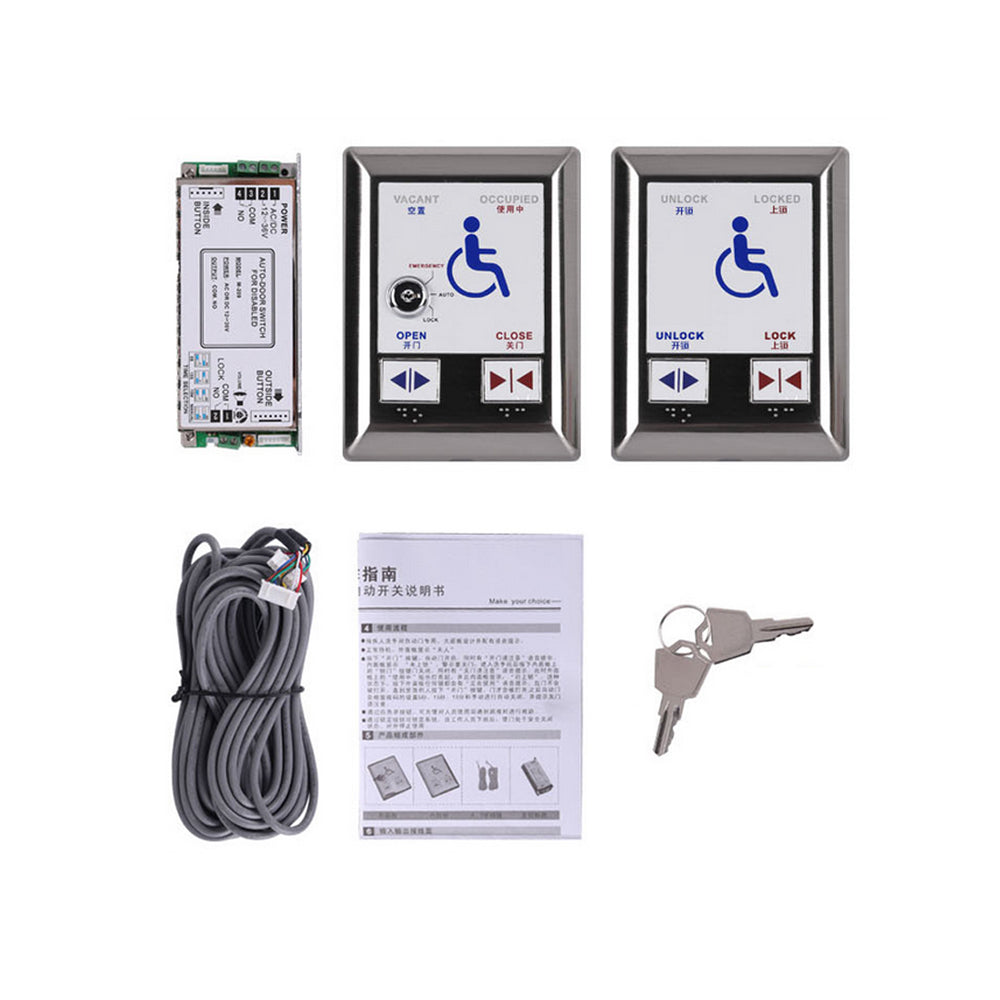

Package Included:

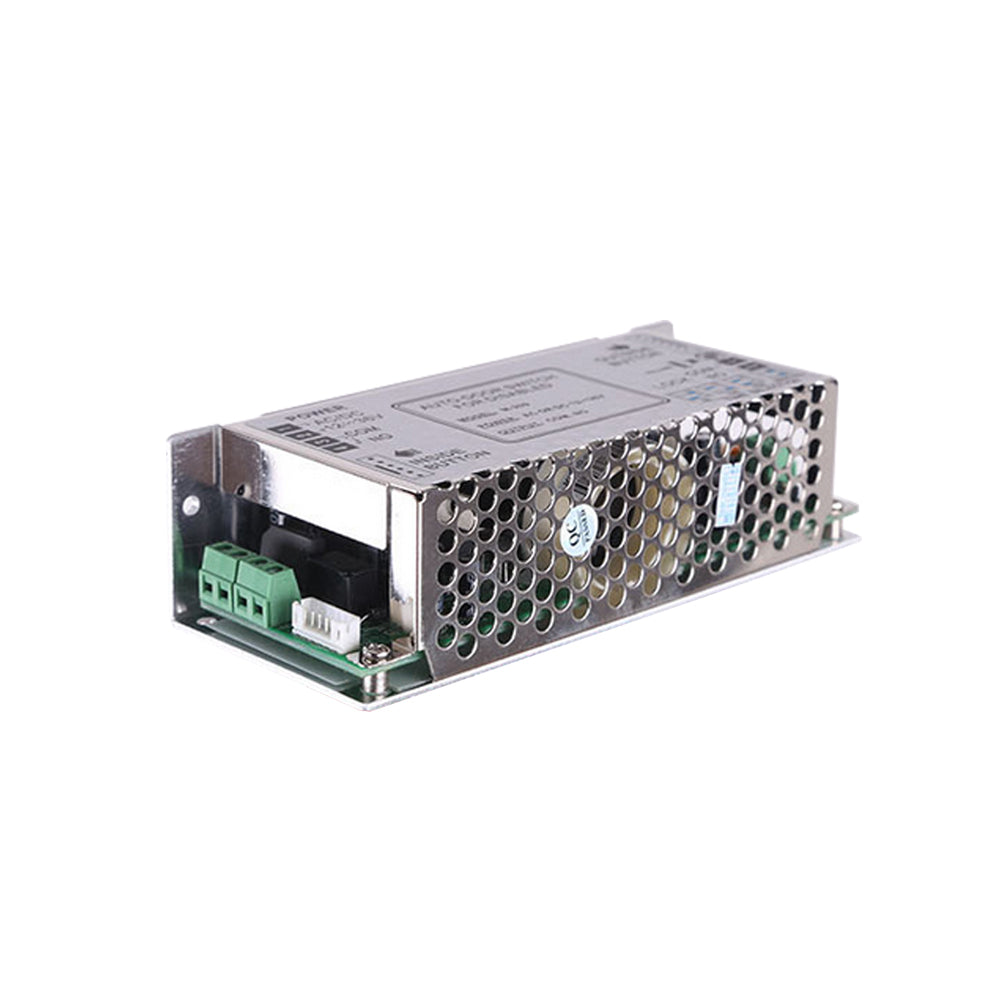

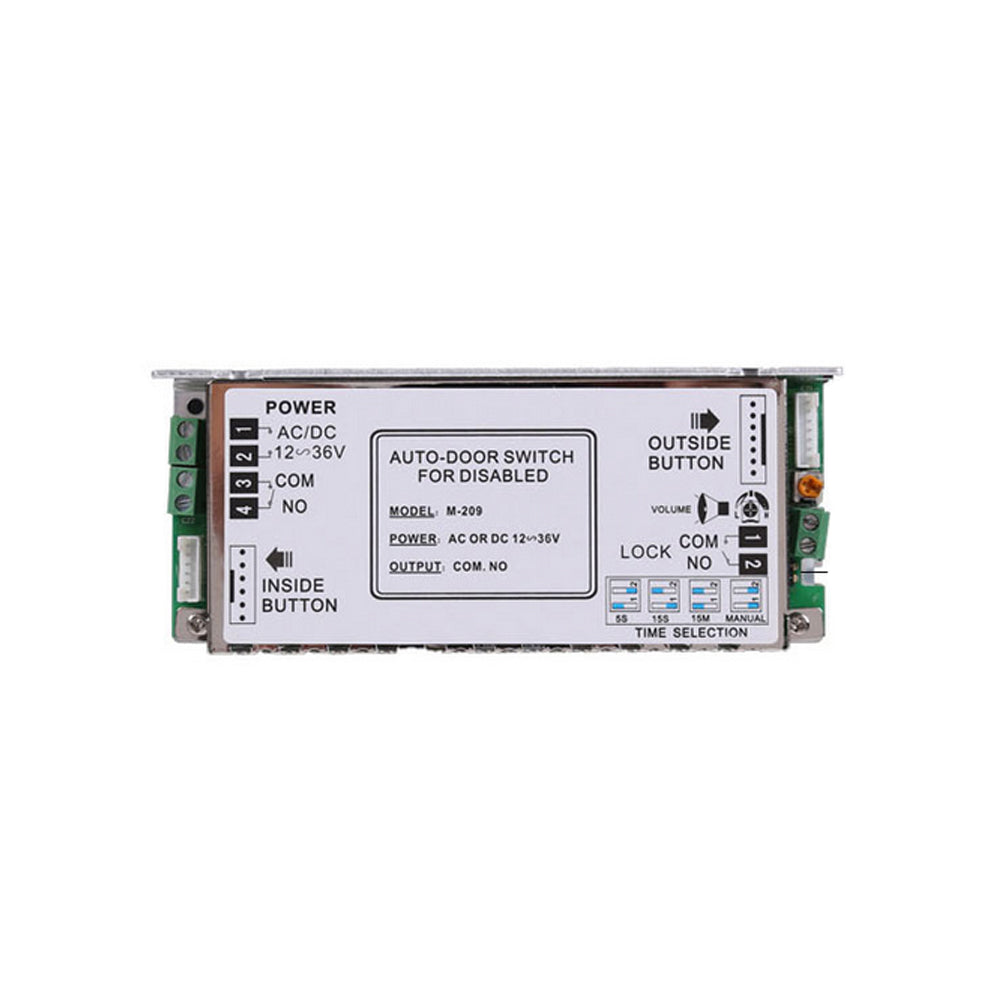

• 1 x Main controller
• 1 x Inner panel
• 1 x Exterrior panel
• 1 x 6 Pin line
• 1 x 7 Pin line
• 2 x Keys
