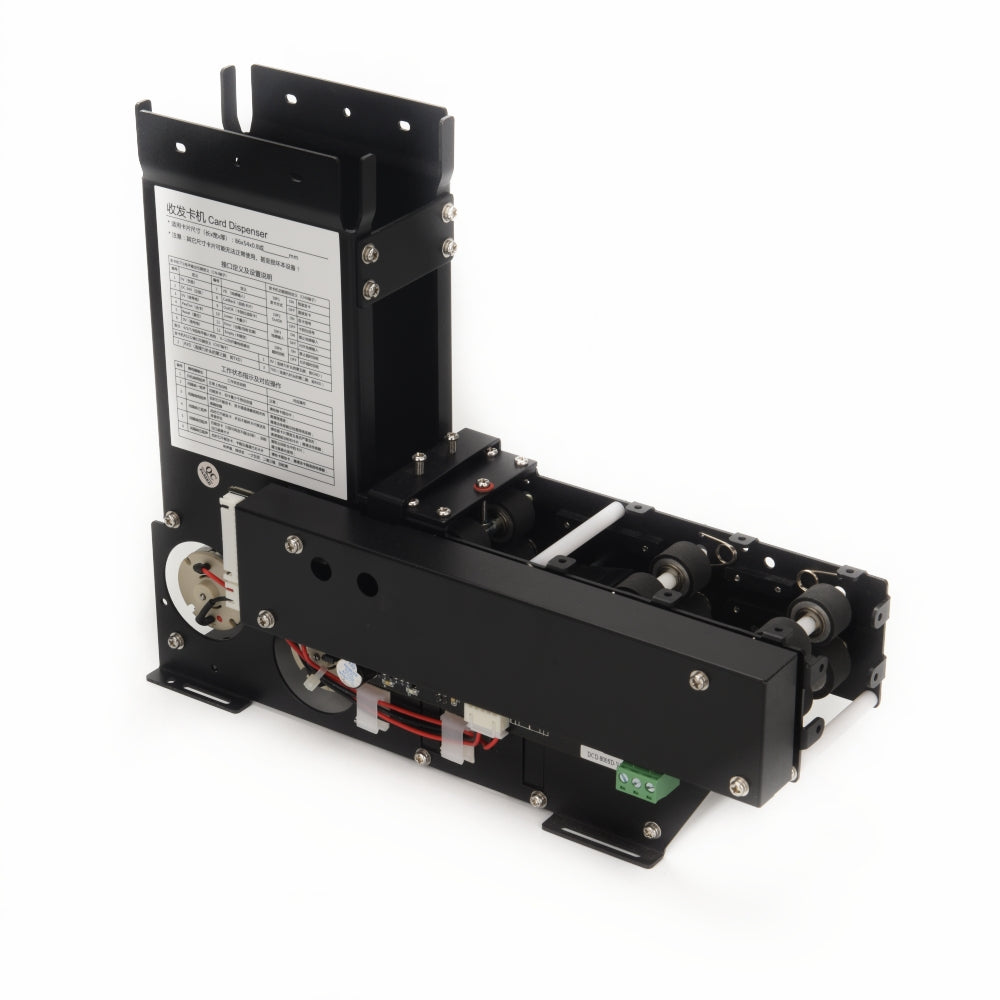

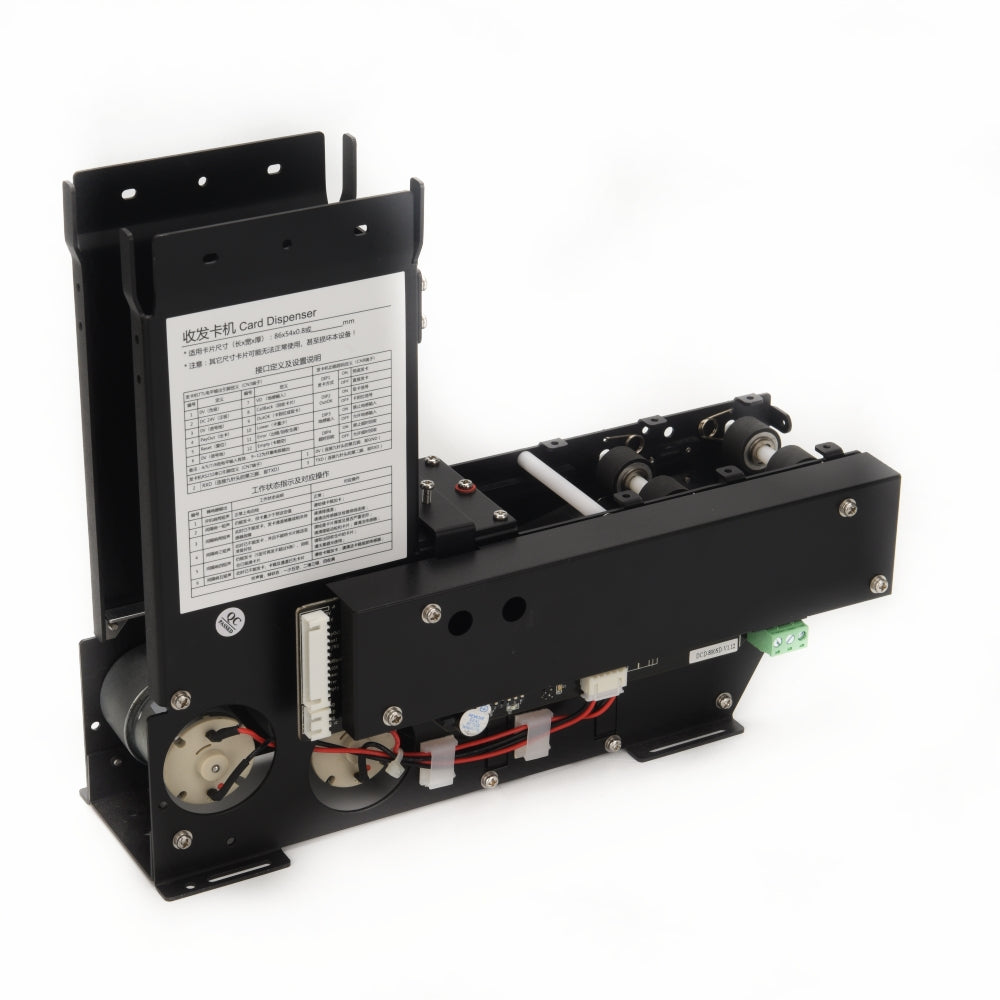

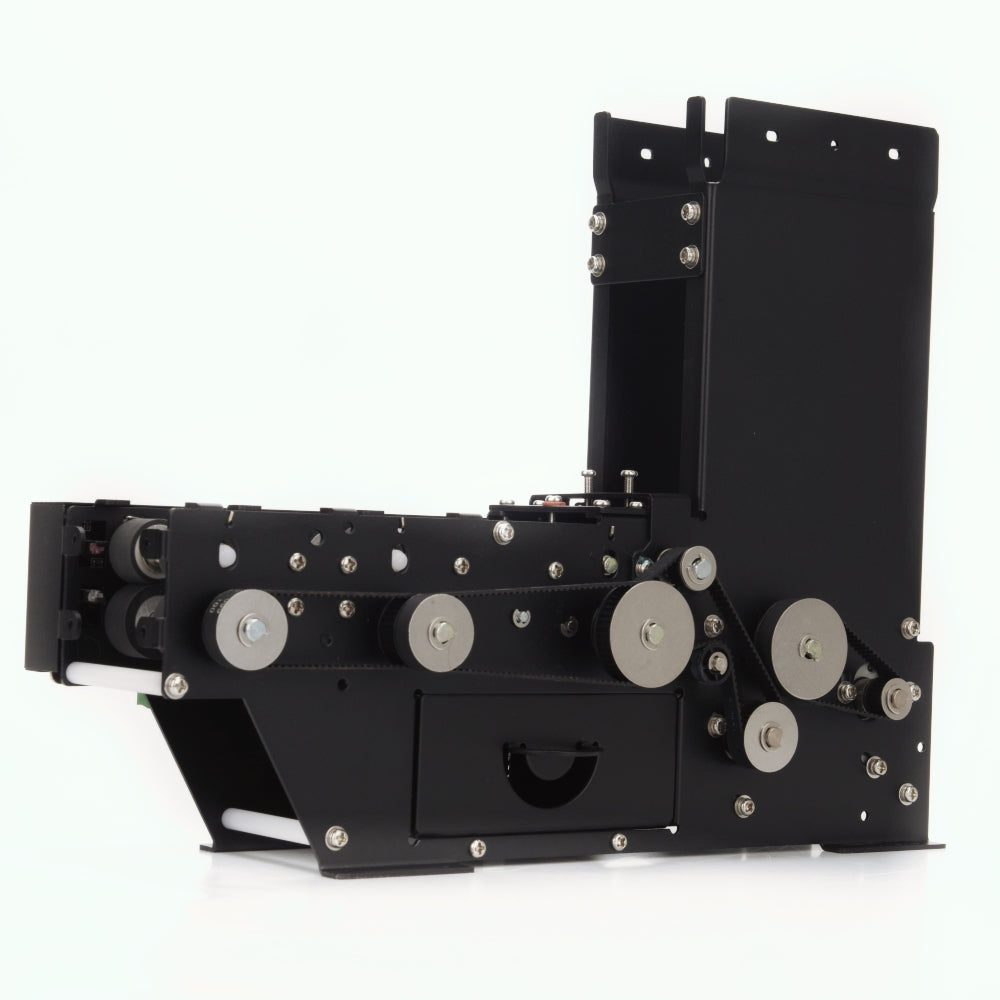

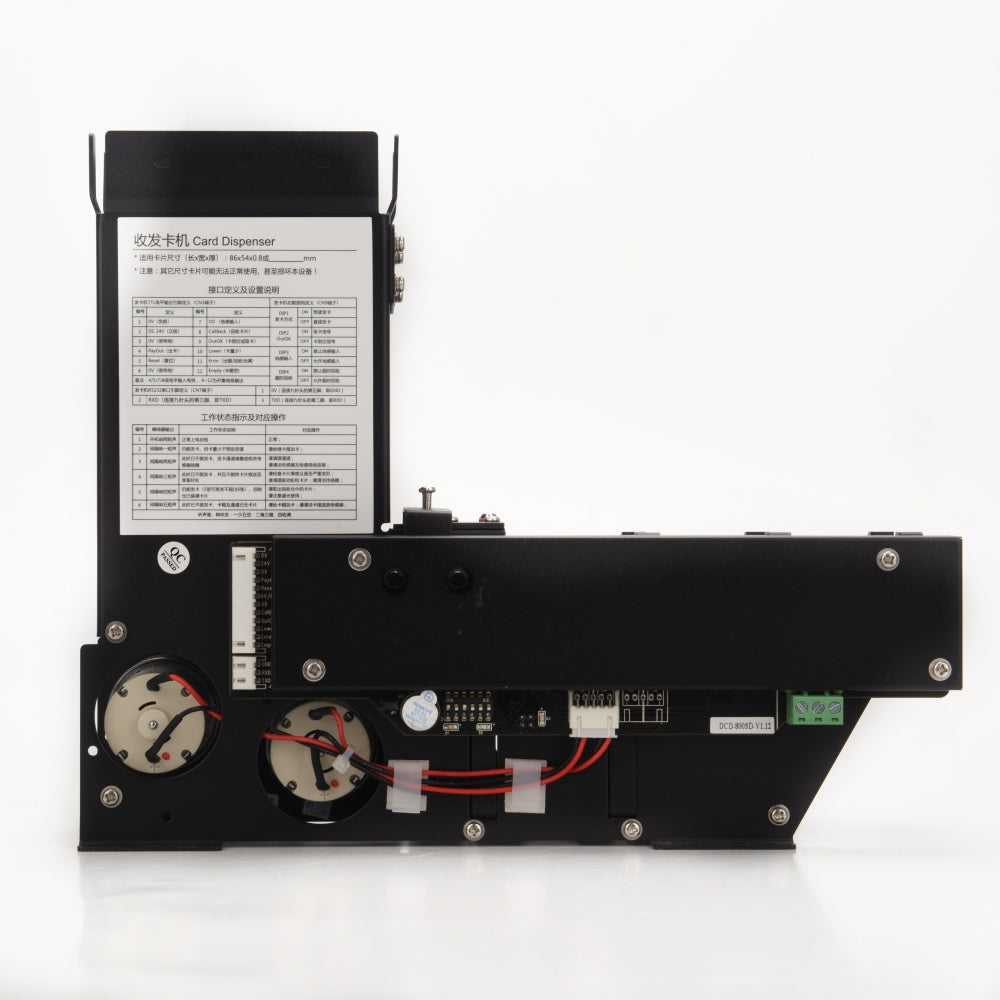

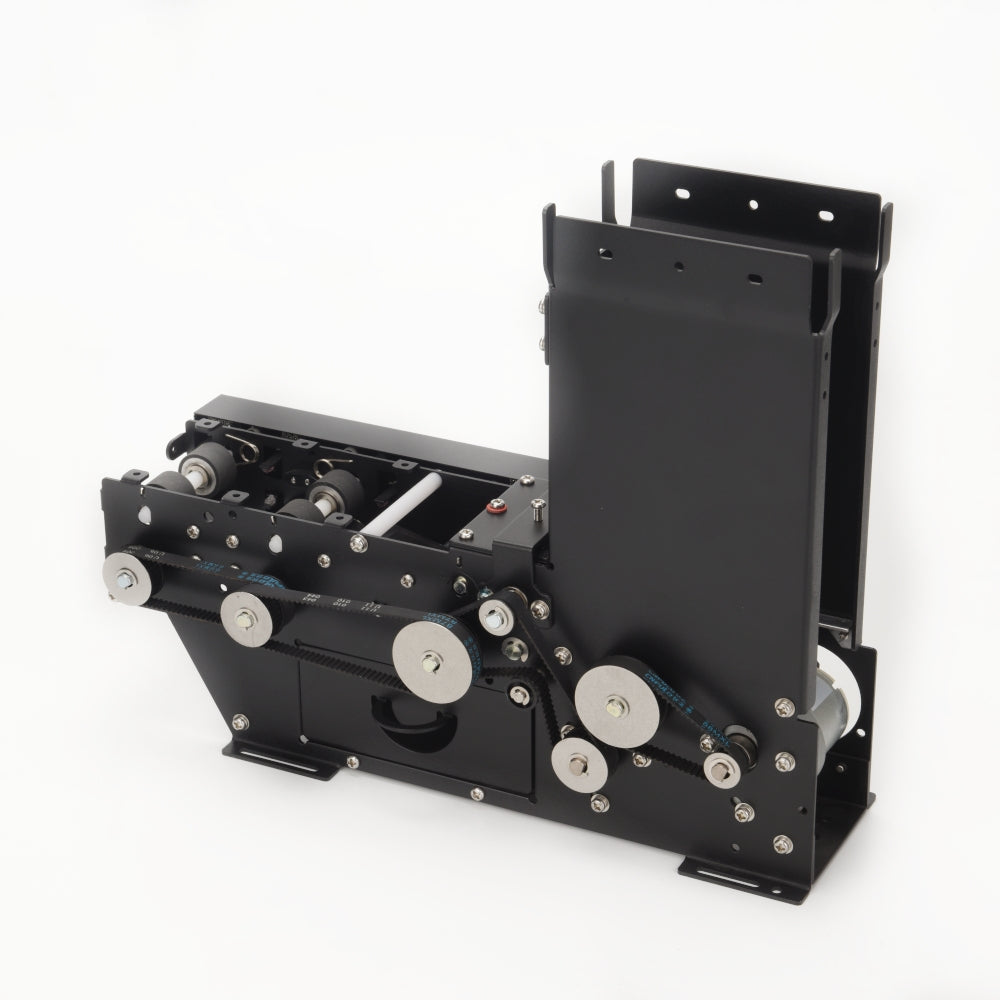

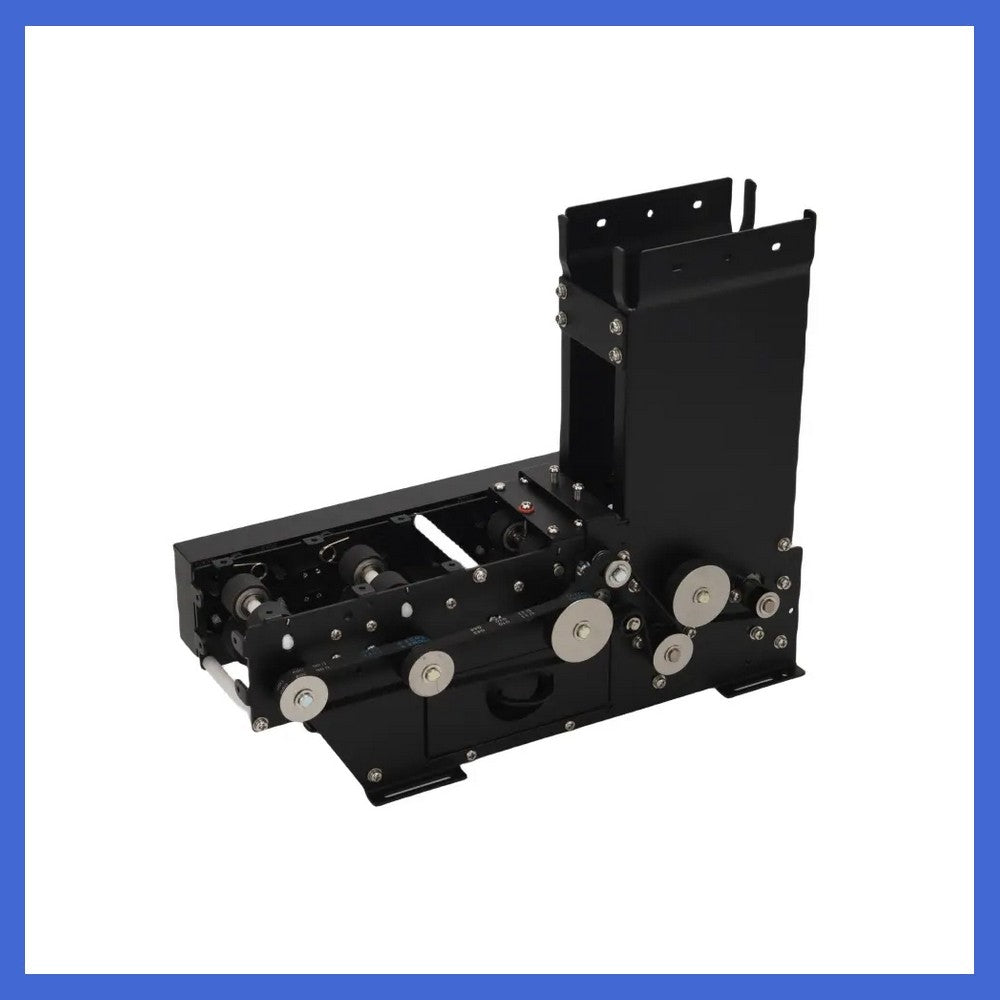

Automatic card dispenser for parking system
Model：700S
Applications
- Intelligent parking lots system
- Auto ticket vending machine
- High way card dispensing system
Main characteristics
- Industrial design, adjust to high temperature and other bad environments;
- Simulated manpower friction card issuers ，better adaptability to various deformed cards;
- Watchdog of hardware and embedded operating system to ensure properly running;
- Pre-dispense function accelerate dispensing speed;
- Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
- Automatic buzzer alarm when no cards, fewer cards or failure.
- Provide both RS232 and I/O voltage control interface;
- Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
- Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;
- Slide card stacker with a capacity of 40pc;
- Adjustable of card stacker with a capacity of 120pc each;
- Automatic withdrawal to prevent card lost (only for DCD800F series)
- Slide design to make installation and disassembling easier;
- Molded production to ensure high consistency of precision and quality.
Technical parameters
- Operating voltage: 20VCD (max current 2A, static current 0.1A)
- Operating temperature: -20℃ to 85℃
- Operating humidity: 30-90% (comparatively)
- Use condition: install in bin
- Card available: width: +/-0.5mm,Length: 85+/-0.5mm,Thickness: 0.3-2.5mm (adjustable)
- Card material: Paper or Polyester card
- Net weight of card dispenser: 2.0kg (including the briquette)
- Time of issuing: max0.5s
- Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed

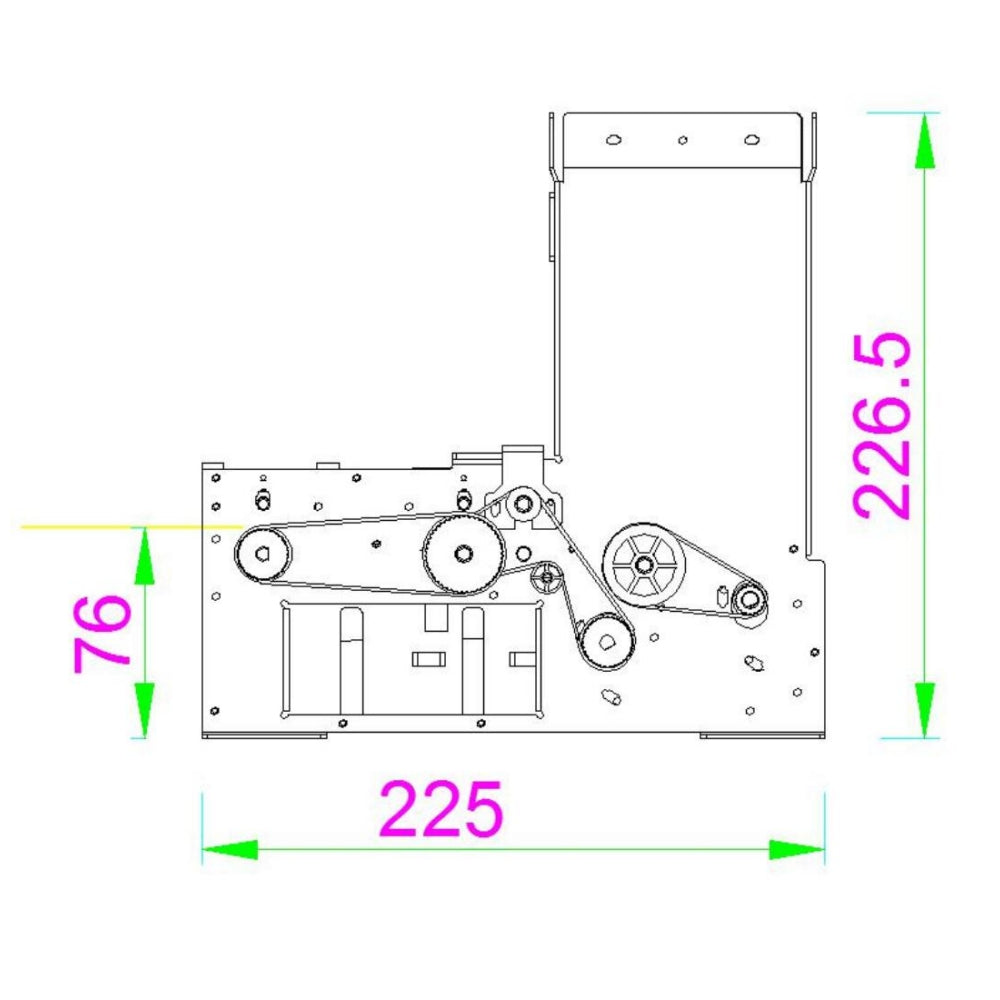

Size:
Control interface
This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm) socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.
TTL control interface (J1)
|
Pins |
Signal Description |
|
|
1 |
-24V |
Operating Voltage cathode |
|
2 |
+24 VDC |
Operating Voltage anode |
|
3 |
0 V |
Link with Operating Voltage anode |
|
4 |
Pay out |
Input, Low-Level(min 200mS) effective |
|
5 |
Reset |
Input, Low-Level(min 200mS) effective |
|
6 |
OV |
Link with Operating Voltage cathode |
|
7 |
VD |
Input, Low-Level (min 200mS) effective. use as Enable Signal |
|
8 |
Callback |
Input, Low-Level (min 200mS) effective |
|
9 |
Out ok |
Output Low-Level effective |
|
10 |
Lower |
Output Low-Level effective |
|
11 |
Error |
Output Low-Level effective |
|
12 |
Empty |
Output Low-Level effective |
RS232 control interface (J2)
|
Pins |
Signal Definiens |
Signal Description |
|
1 |
GND |
Ground |
|
2 |
RXD |
RS232 receiver port |
|
3 |
TXD |
RS232 send port |

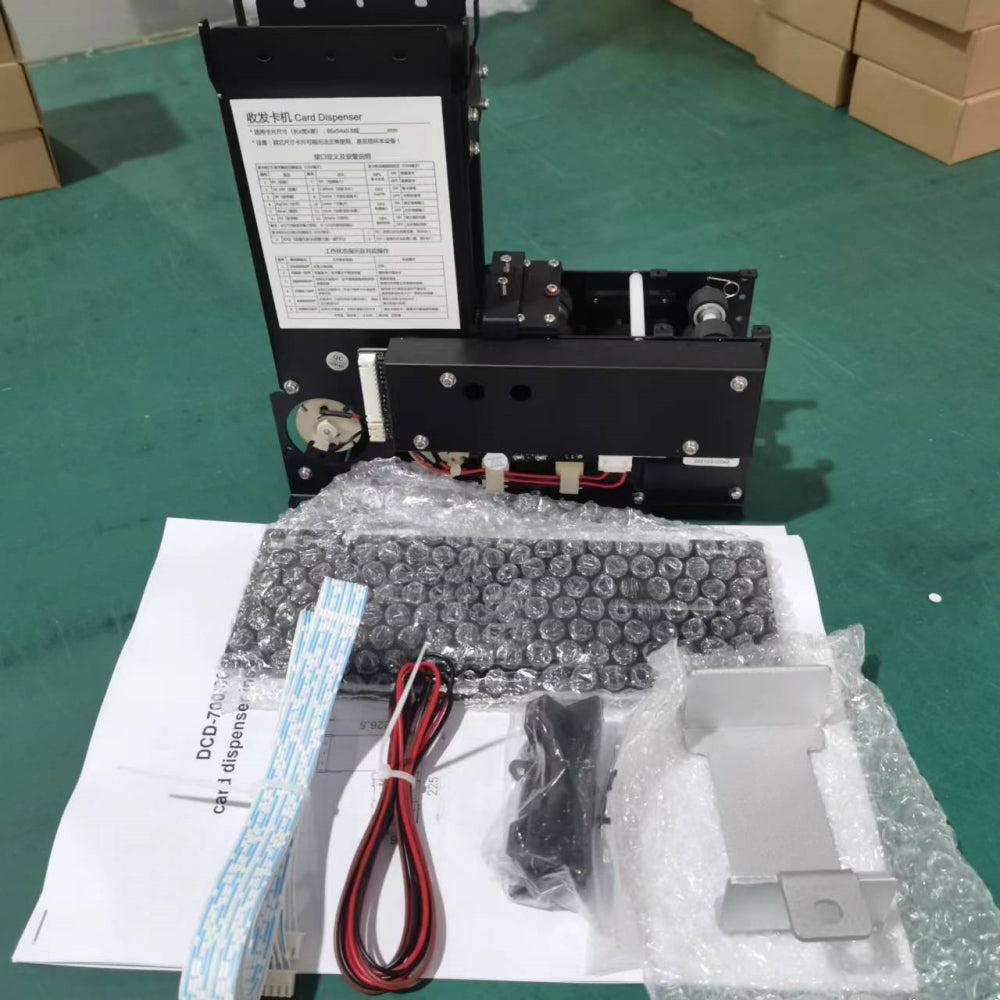

Packing:
- 1* 700S card dispenser
- 1* Cable 1（12 line）
- 1* Serial port (232) line
- 1* Press block
- 1* baseboard assembly
- 1* Card mouth K9
- To download the manual please click here
Note:
The cable has 2 options:
1.Cable 1 (Default)
2 Cable 2 (Specify), if you need Cable2, please message me.

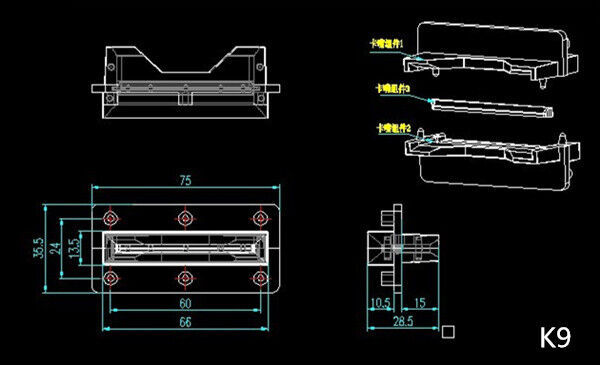

Card Mouth :
K9 card
