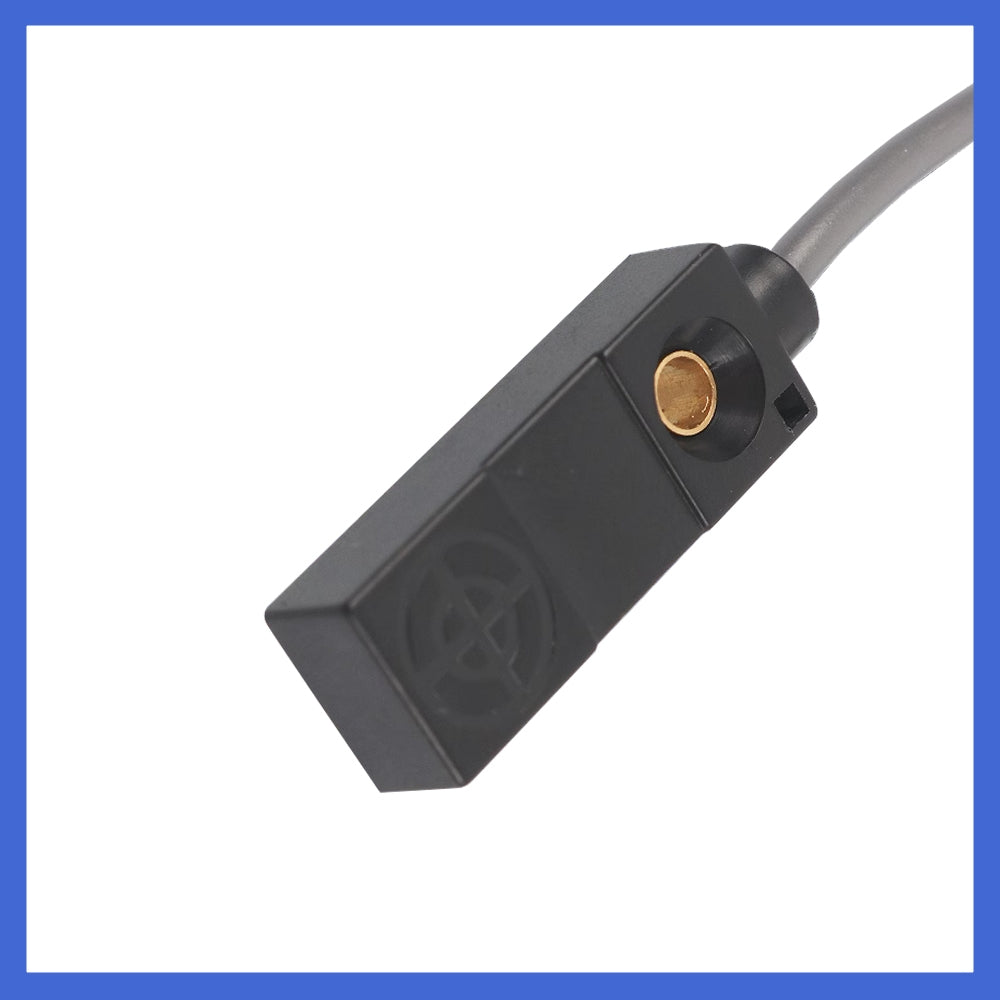

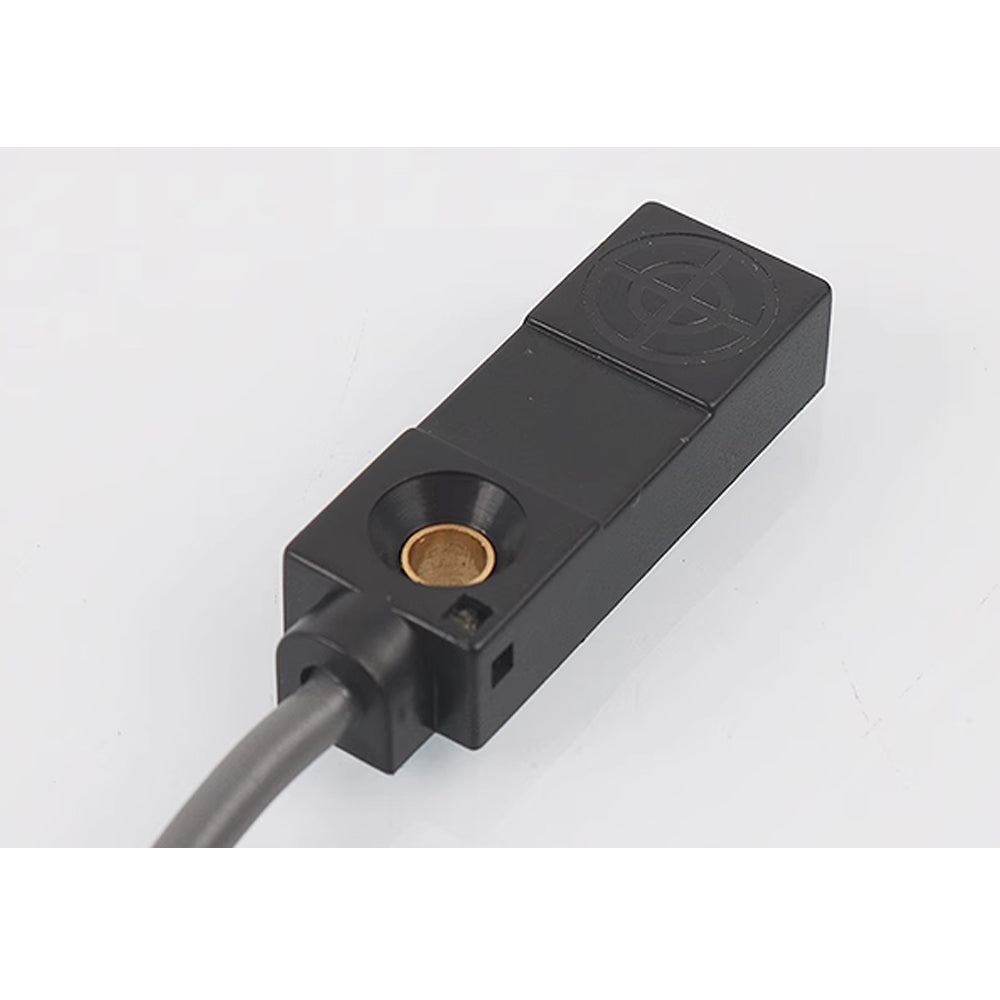

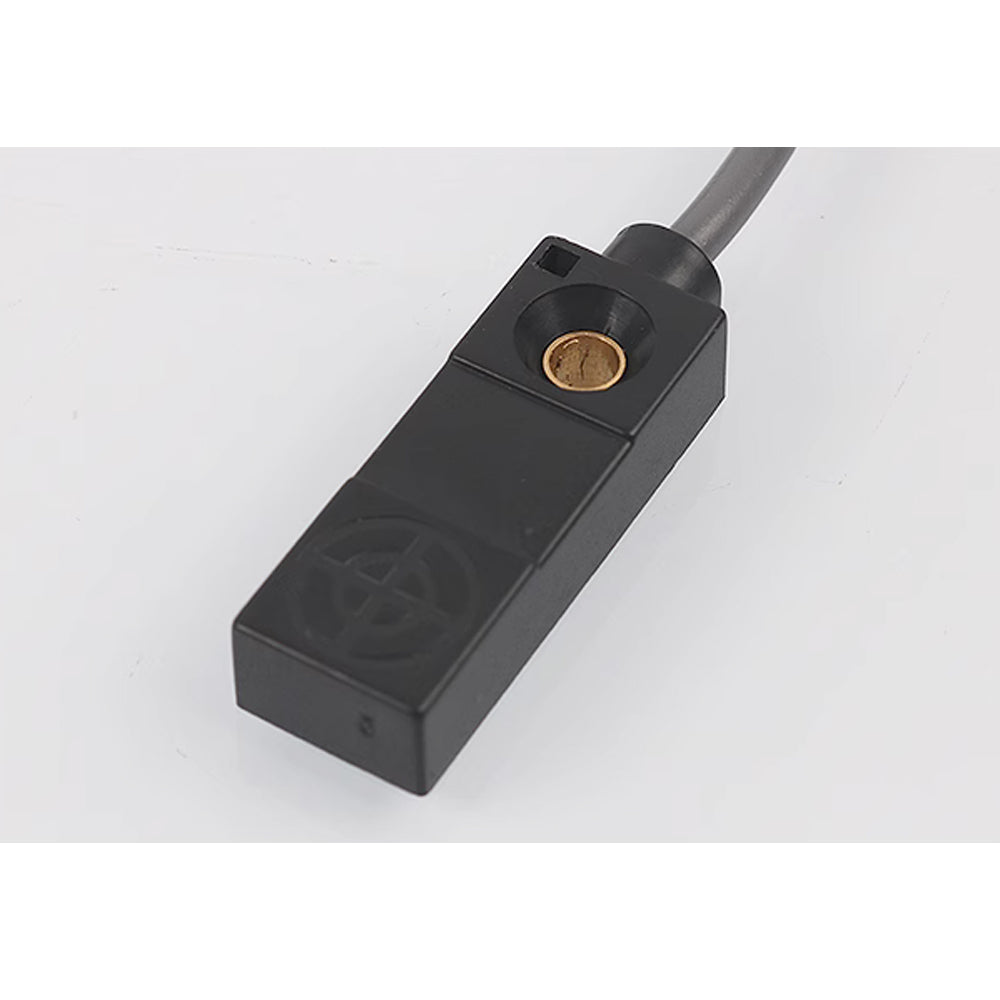

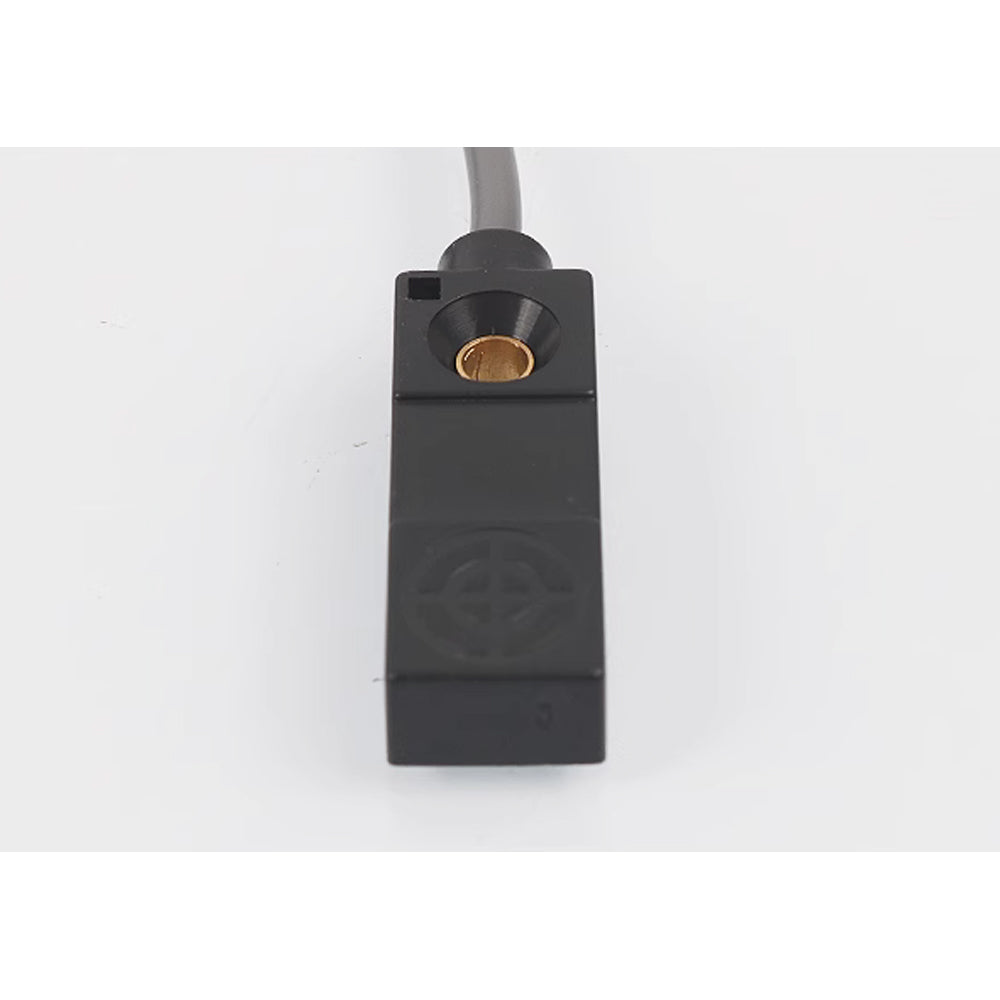

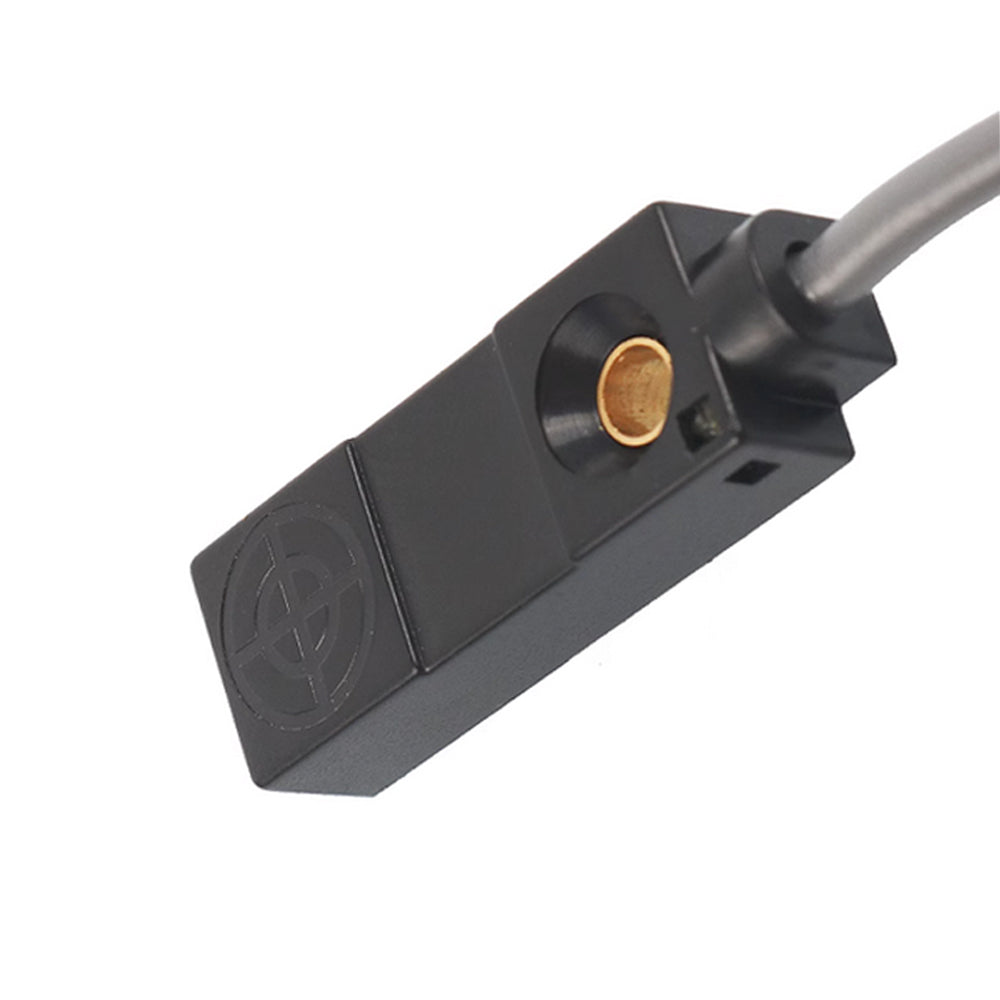

DC12-24V Rectangular Proximity Switch /Limit Sensing Metal Sensor

Ordering precautions:

• First select normally open or normally closed
• Select the Output form

Description：

• Product Name: Limit Metal Sensor
• Product model: TL-W3MC1
• External dimensions:30mmx10mmx6mm
• Voltage: 12-24VDC
• Detection distance: 3mm
• Current specification: 100mA

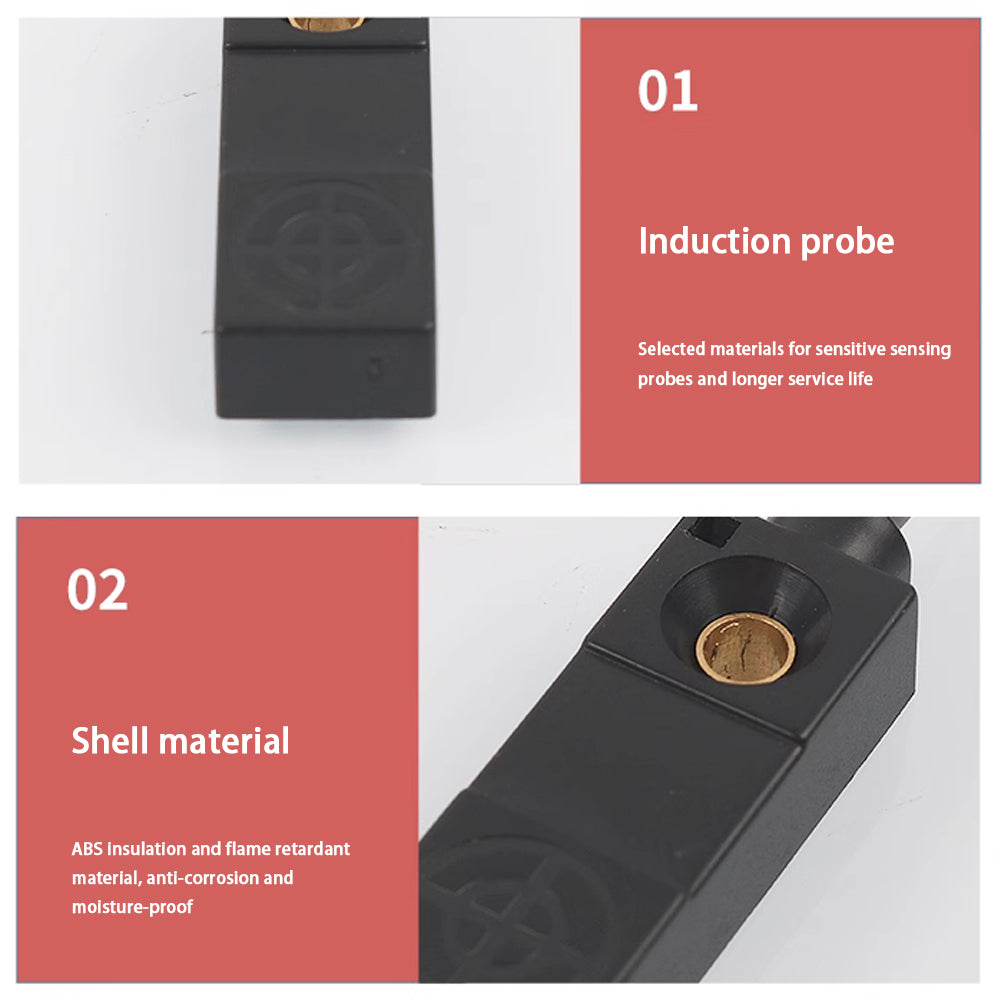

• Material: ABS

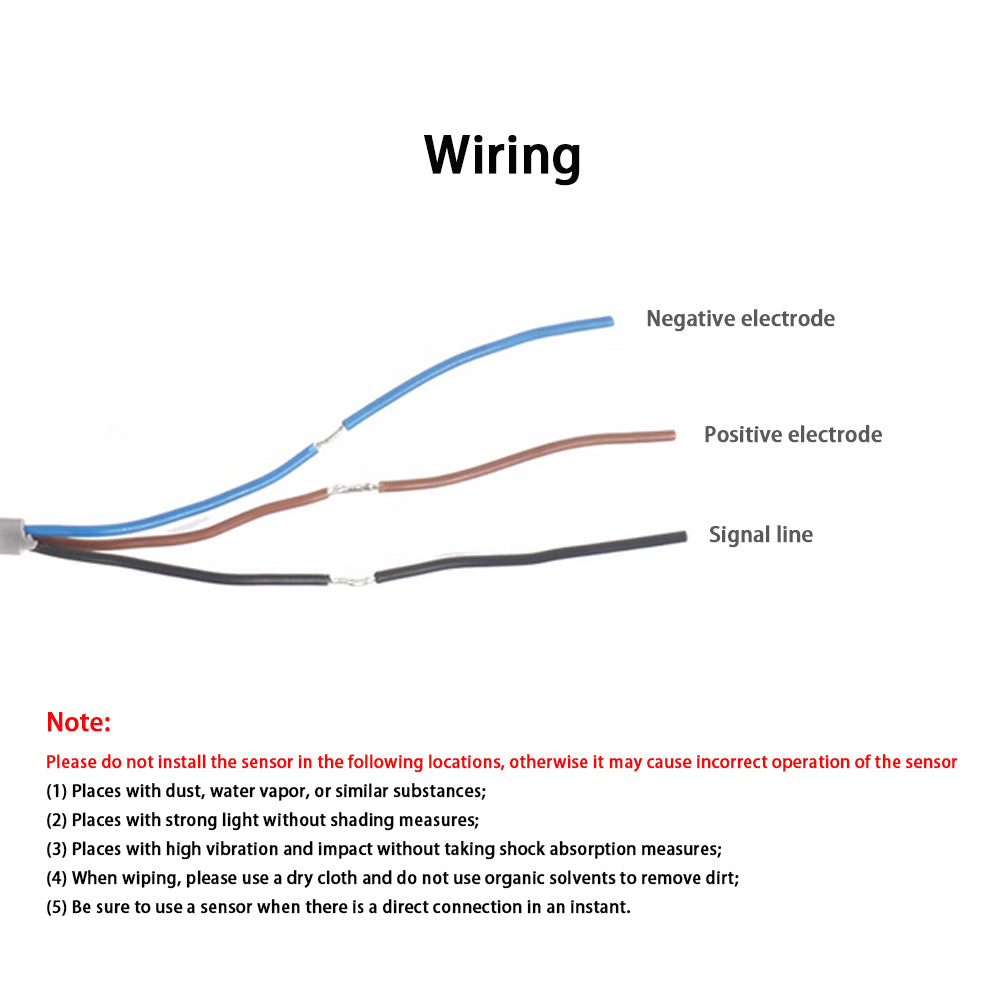

• Output format: NPN NO/NC&PNP NO/NC

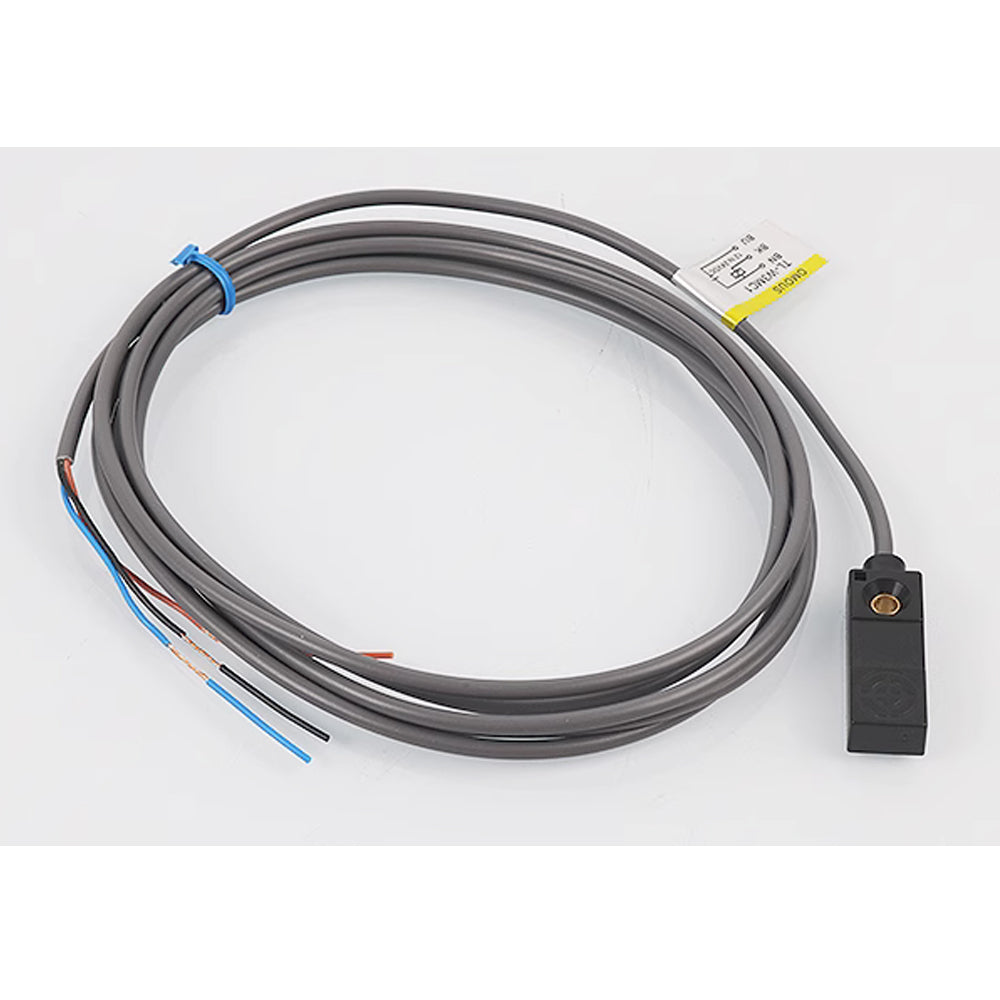

• Line length: 1.8m

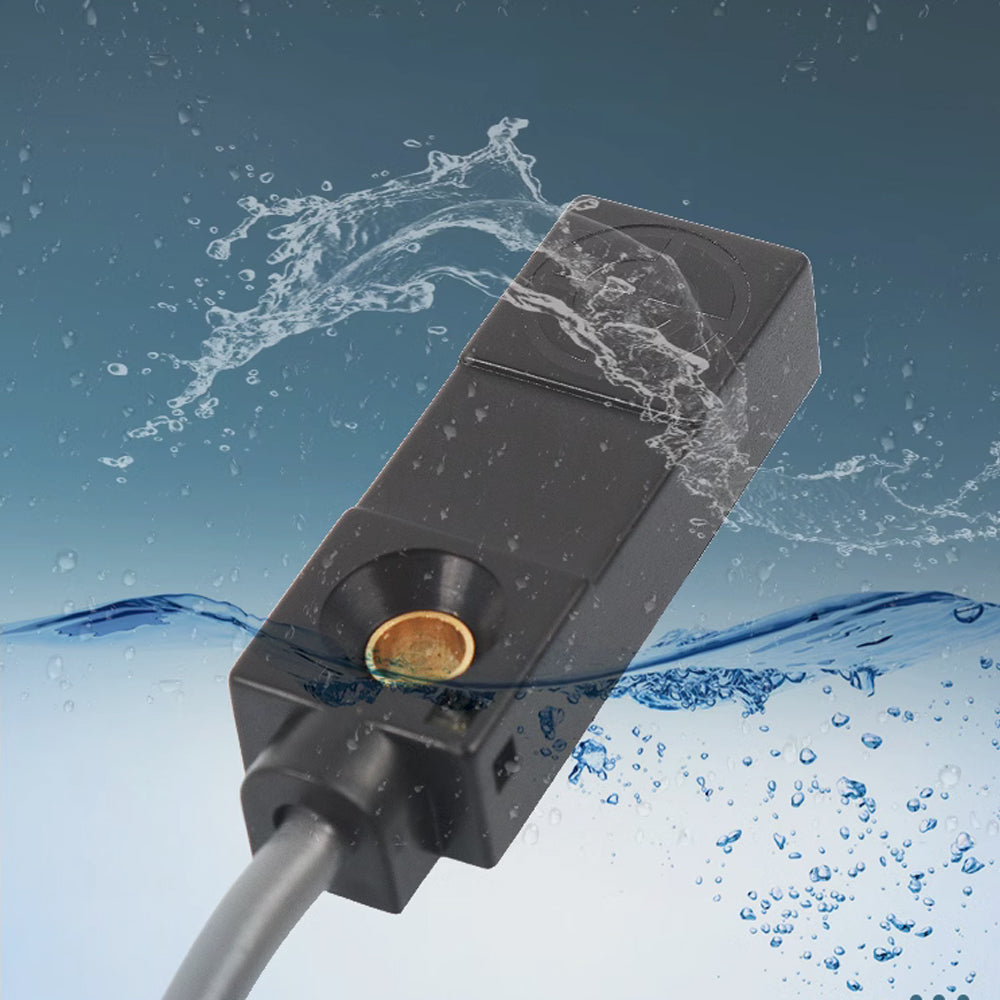

• IP67 protection, can work normally for a short time in water

Package：

• 1x Proximity Switch
