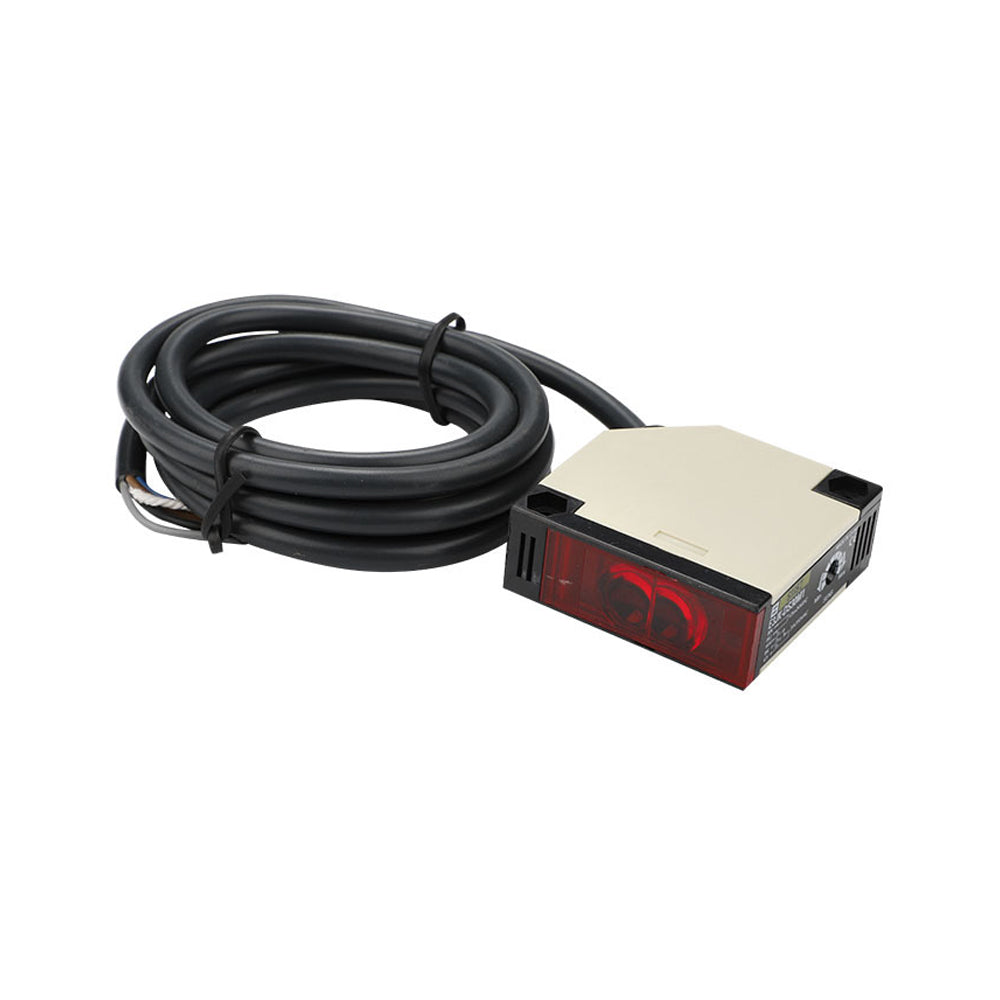

Diffuse reflection Infrared induction photoelectric switch

Model number

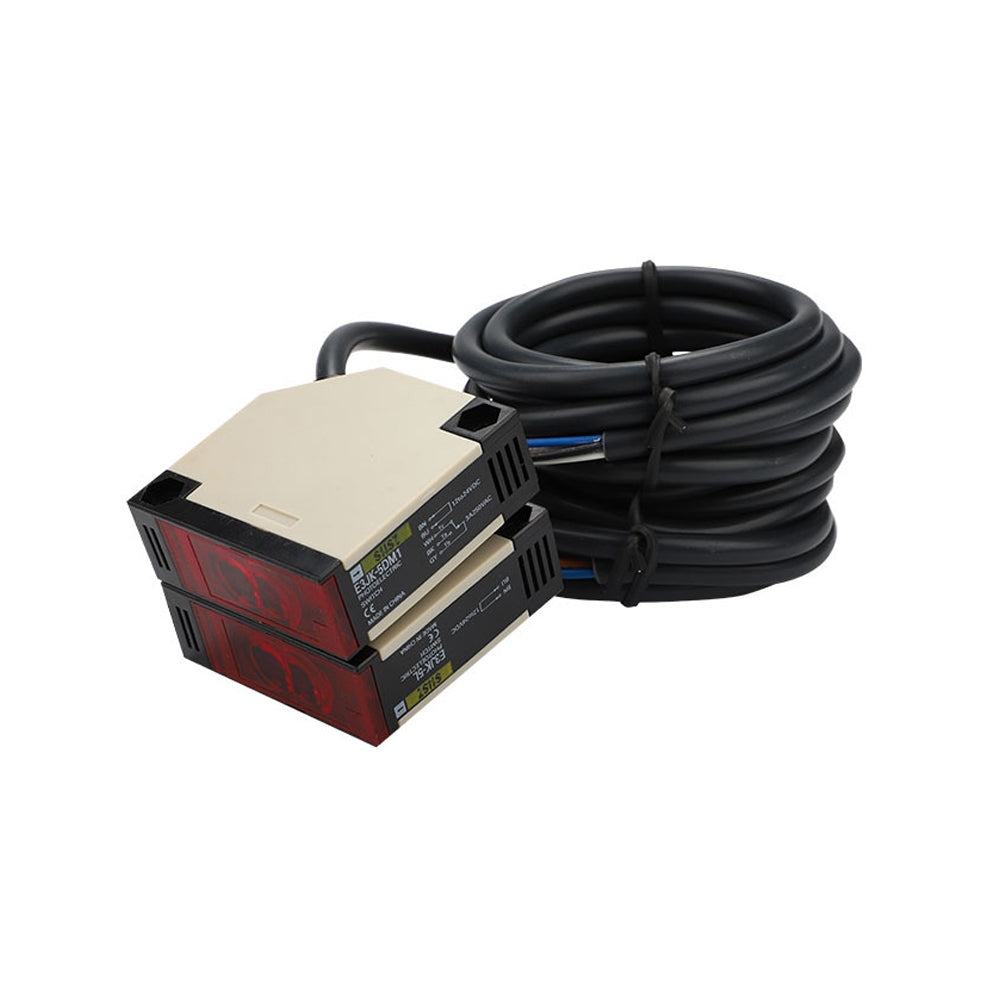

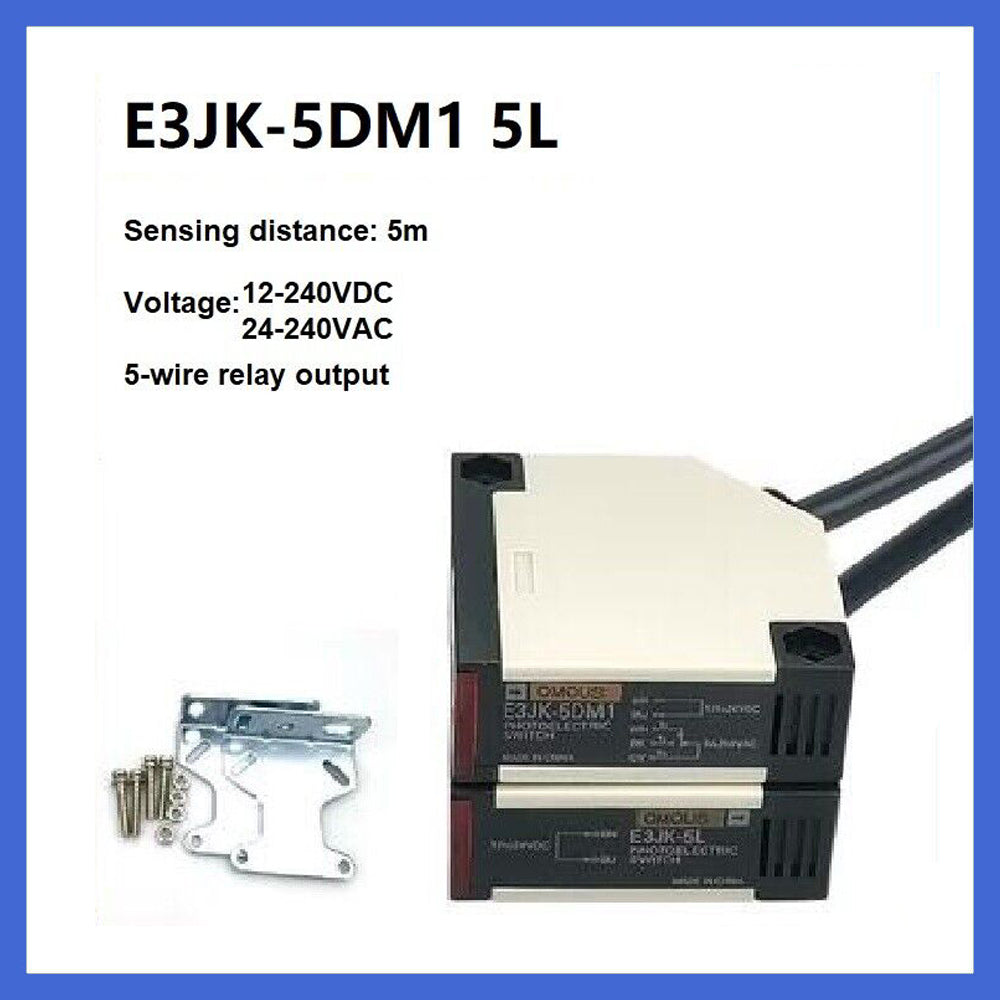

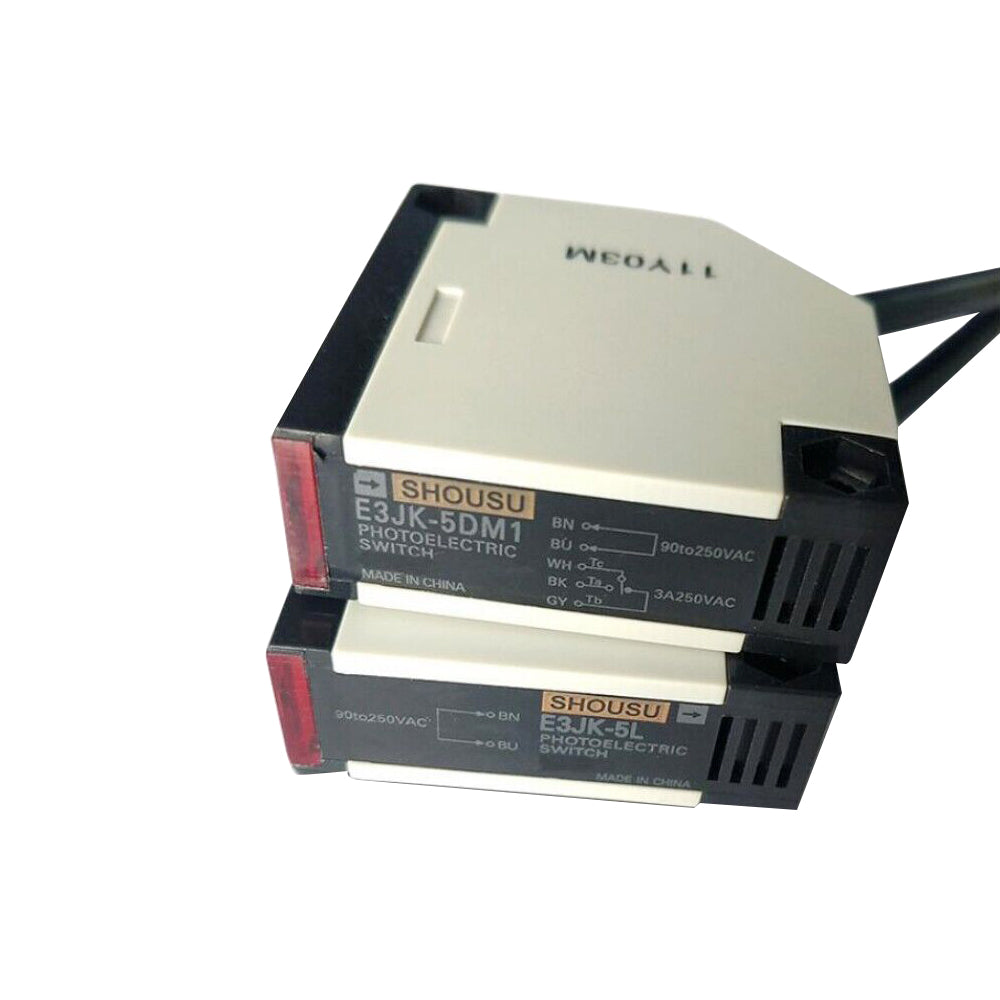

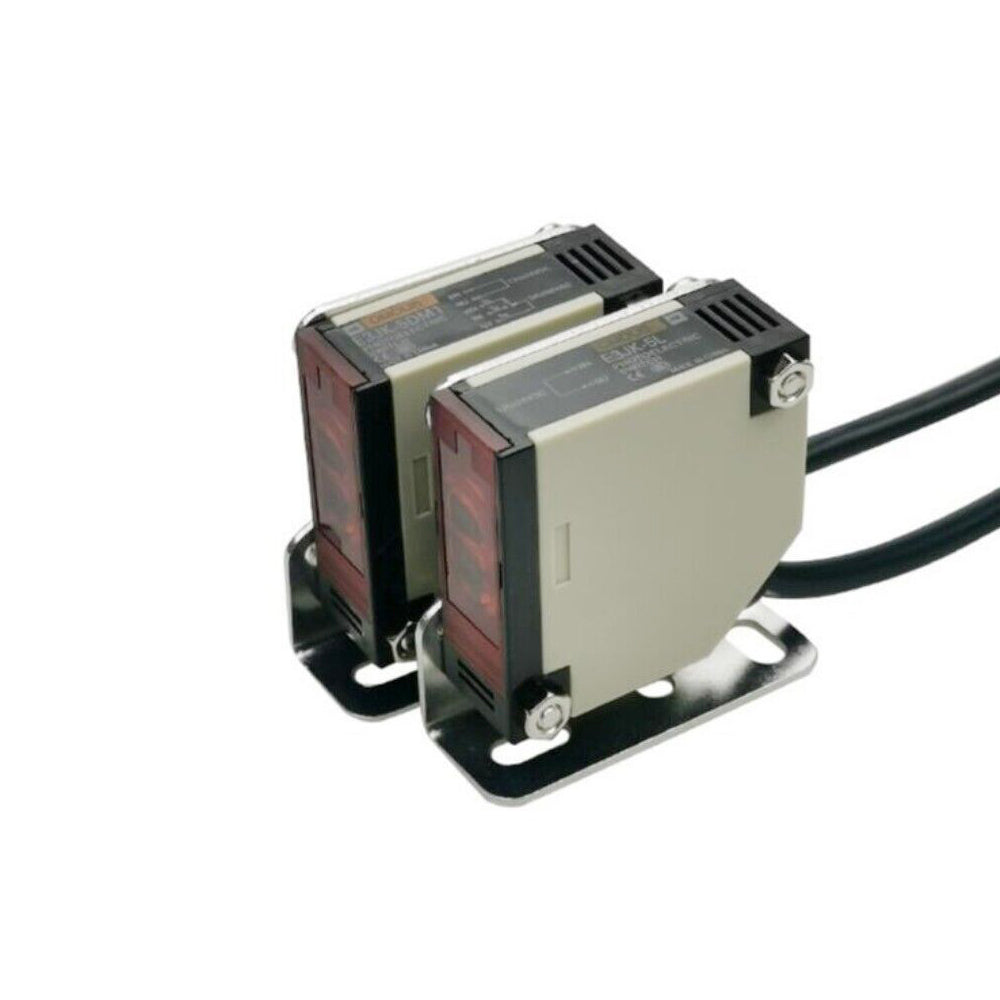

E3JK-5DM1 5L

E3JK-5DM2 5L

Supply voltage

12-240VDC/24-240VAC

90-250VAC

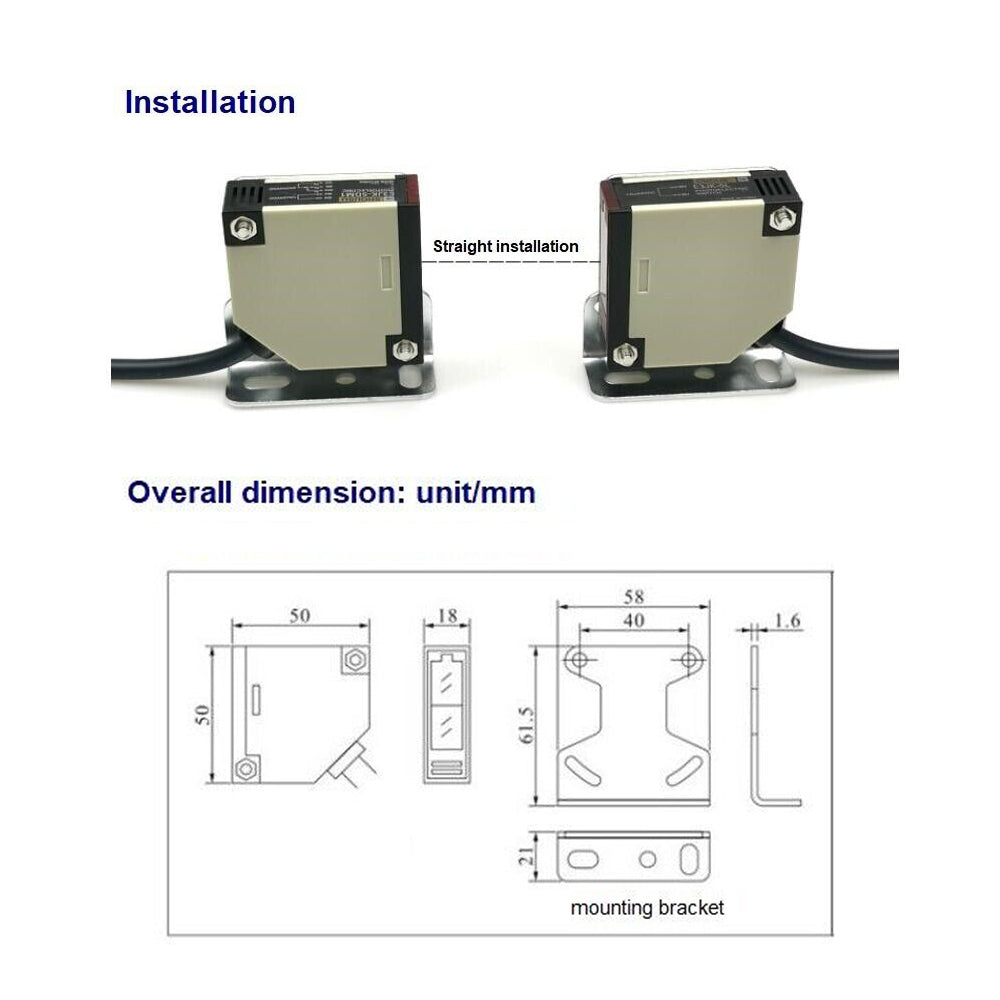

External dimensions

18x50x50mm

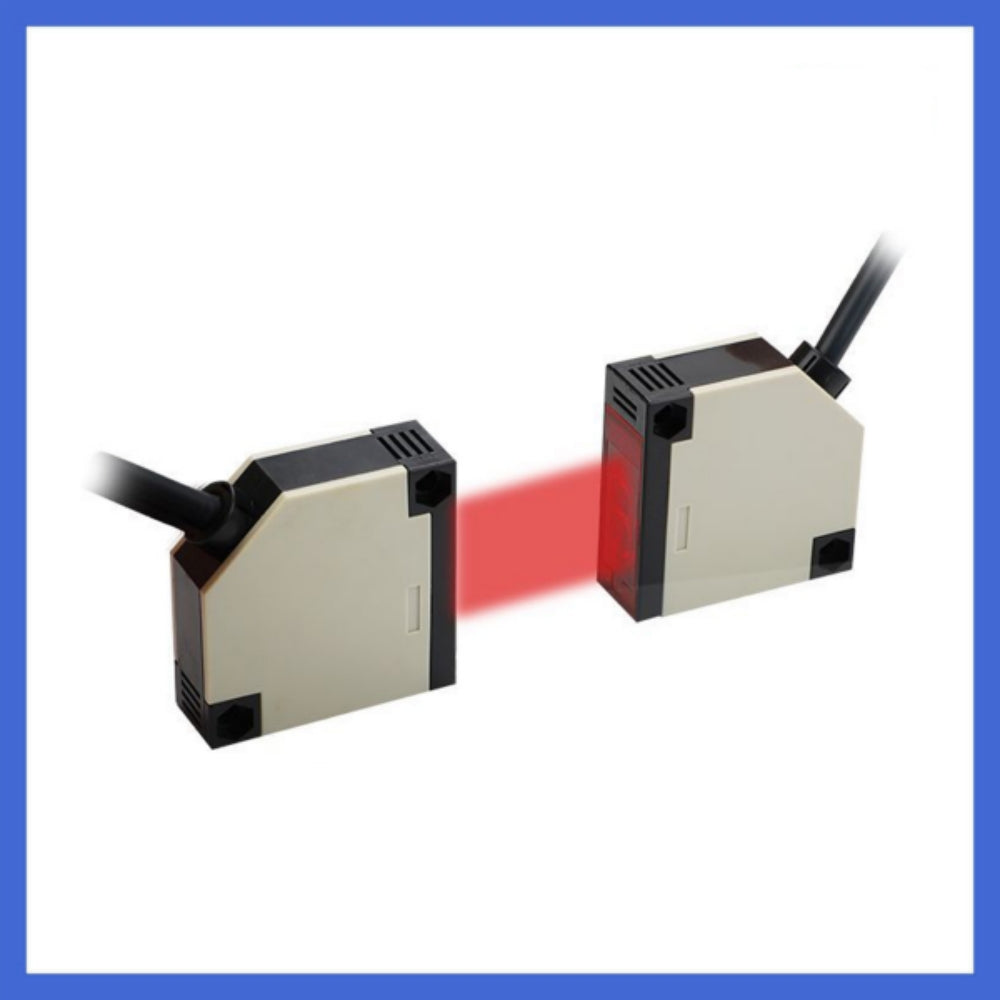

Sensing method

Through beam

Setting distance

5m±10%

Sensing object

Opaque object

Sensitivity adjustment

Fixed

Response frequency

25Hz

Response time

30ms max

Control output

3A@250VAC max,10mA@5VDC min

Protection circuit-DC

Reverse polarity protection, Surge suppressor, short-circuit protection

Protection circuit-AC

Surge suppressor

Insulation resistance

50MΩ min. At 500VDC between energized parts and case

Dielectric strength

1000VAC max.,50/60Hz for 1 min between energized parts and case

Temperature influence-1

±10% max of sensing distance at 23℃ within temperature range of -30℃ to 65℃

Temperature influence-2

±15% max of sensing distance at 23℃ within temperature range of -30℃ to 65℃

Voltage influence

±10% max of sensing distance in rated voltage range ±15%

IP rating

IP64

Material

Case: ABS; sensing surface(lens):PMMA

Operating temperature

-30 - 65℃( with no icing or condensation)

Operating humidity

Storage: 35% - 95%(without condensation)

Cable length

2M
