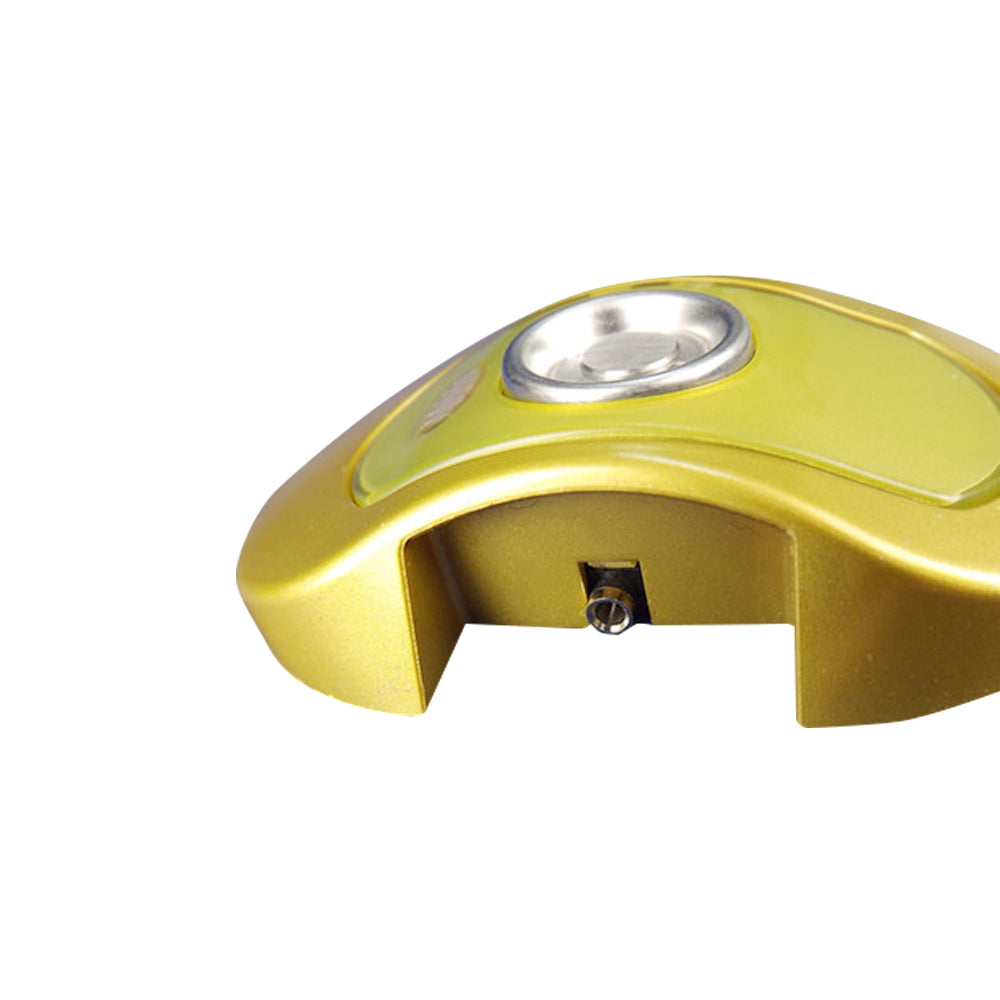

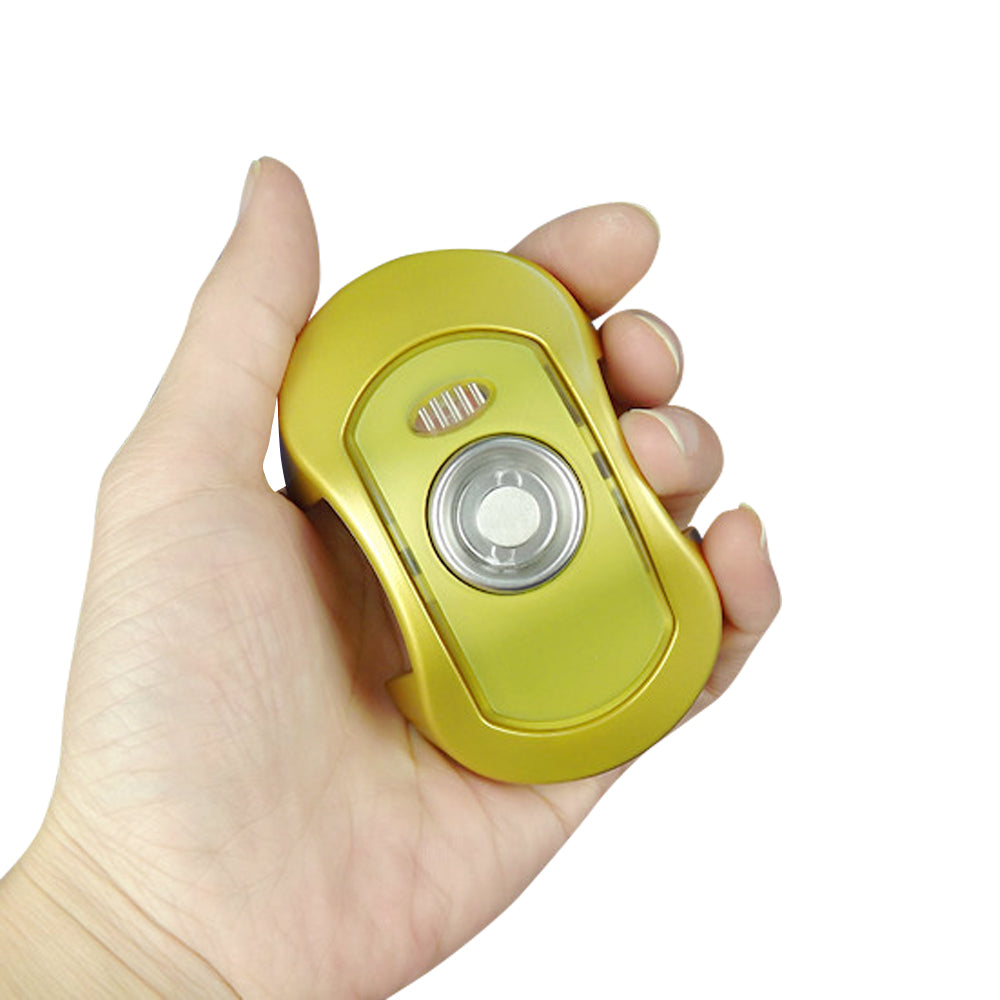

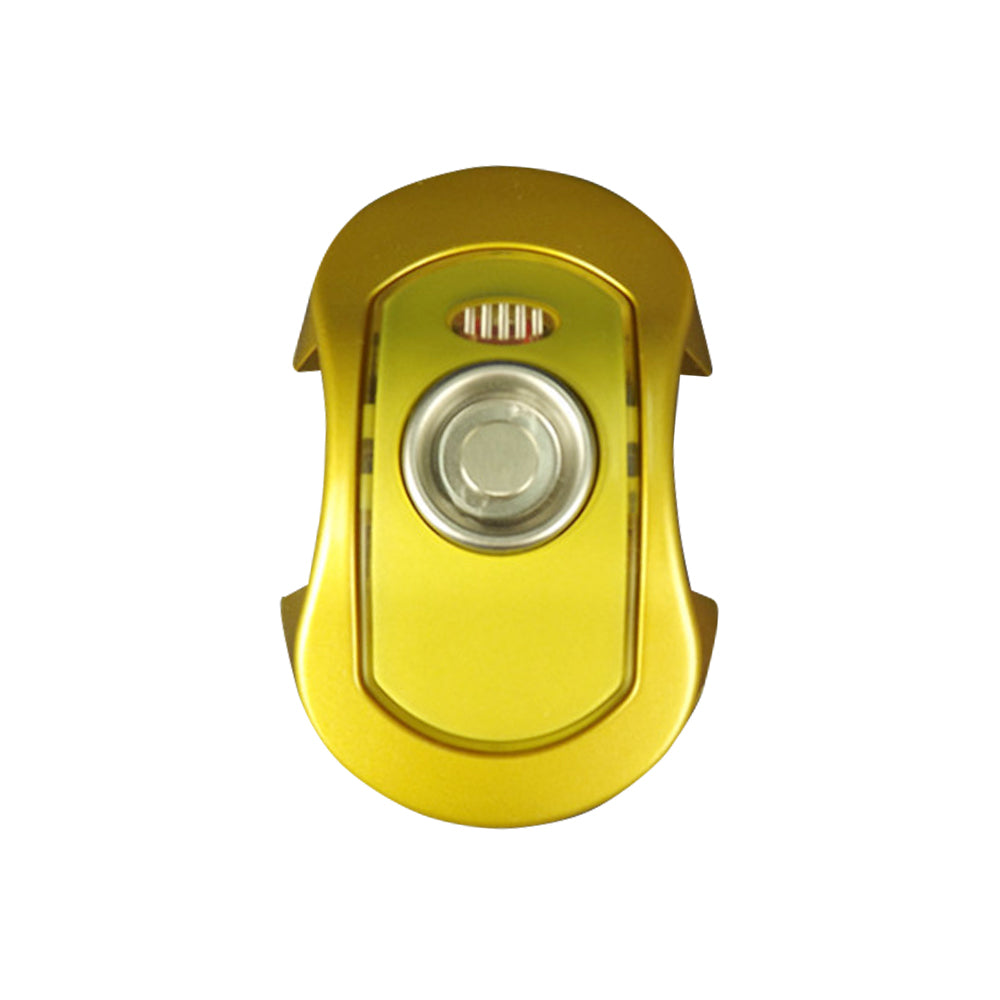

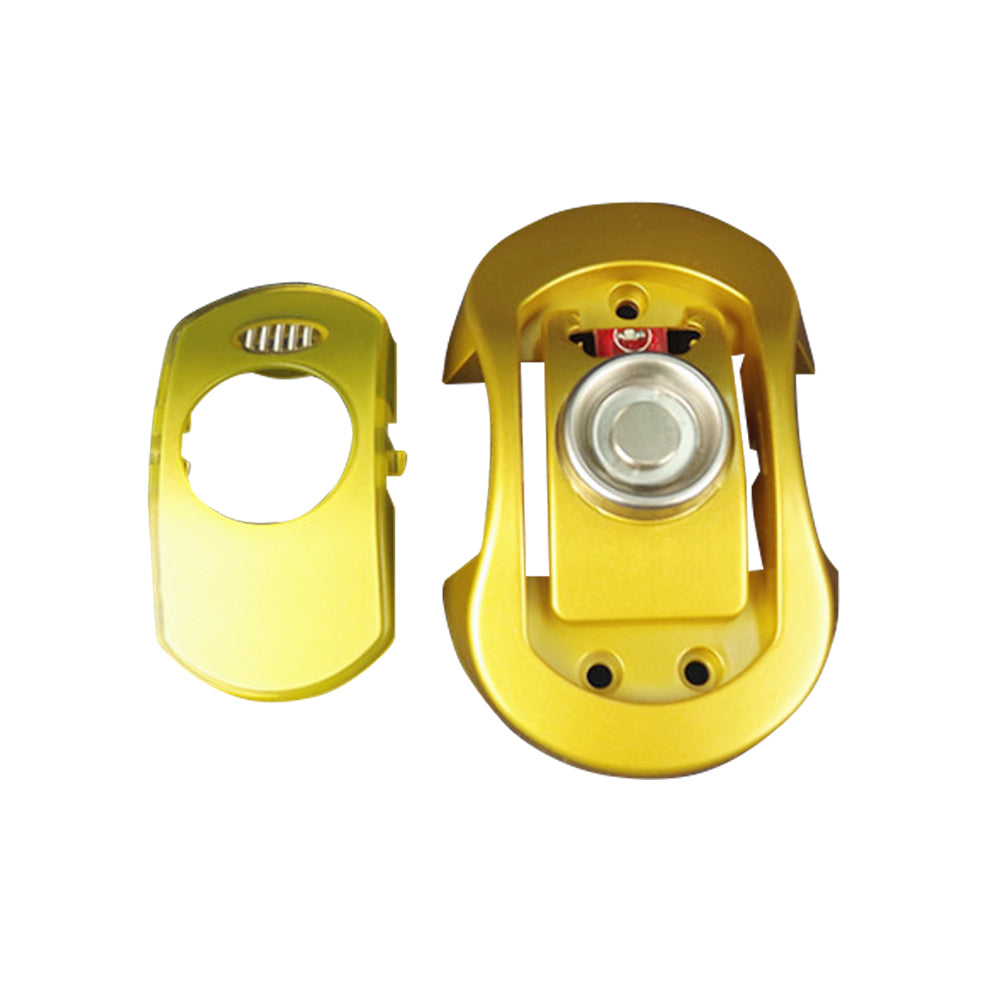

DS1990/DS1900A ibutton TM cabinet lock/ suana lock

Basic function:

The use of four management: master card, master control card, the waiter card, guest card. ​Mother card: same system only with one, used to configure all kinds of door card. ​Manager card: You can open all the locks in the system. ​Guest card: only open a door lock set. ​The attendant card: door locks open set within the service area. ​Be used in two modes: the set of locks, the user can choose the waiter card and individually lock or attendant card of the guest card and guest card combination lock.

Technical Parameter:

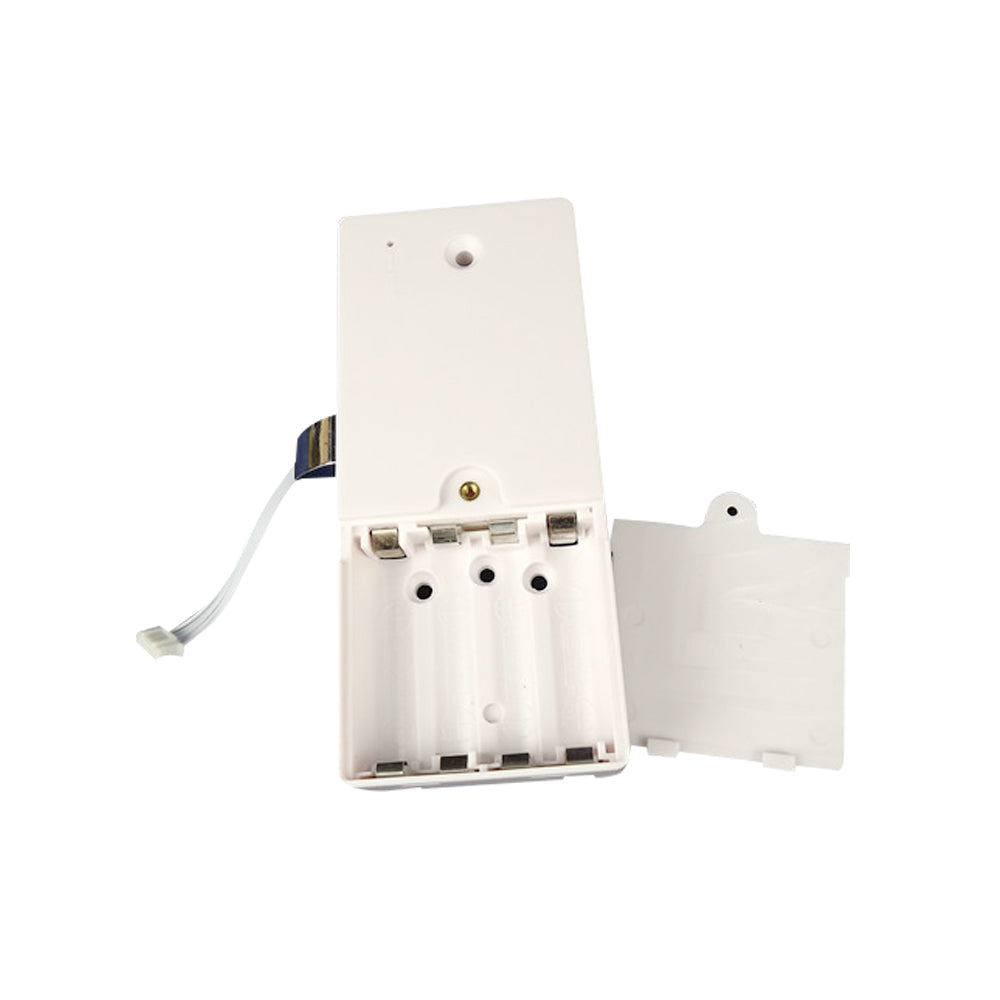

​Working Power: DC6V, 4 AA batteries. ​Quiescent Current: <10 microamps (μA) ​Dynamic current: <150 milliamps (mA) ​Battery life: normal door 20000, a low pressure prompted to open the door 200. ​Bolt length: 15mm ​Applicable to door thickness: 15 ~ 30mm ​Operating Temperature: -20 ° C to +55 ° C

The scope of application

The sauna center, Villa of leisure, recreation centers, schools, dormitories, laboratories need to effectively control the crowd and out of place.

​

 ​ ​

​

Note:

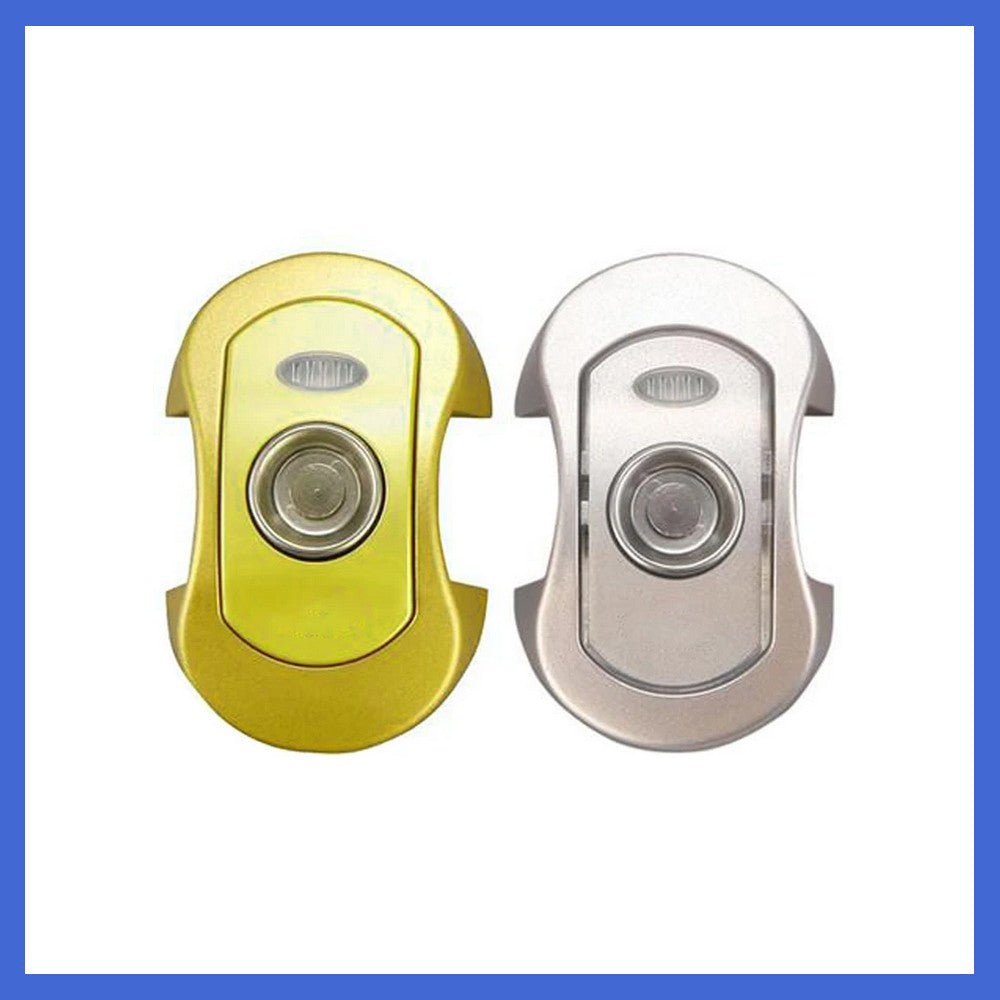

Orders please specify color: 1 golden    2 Silver.

If don‘t specify ,  default golden.

​
