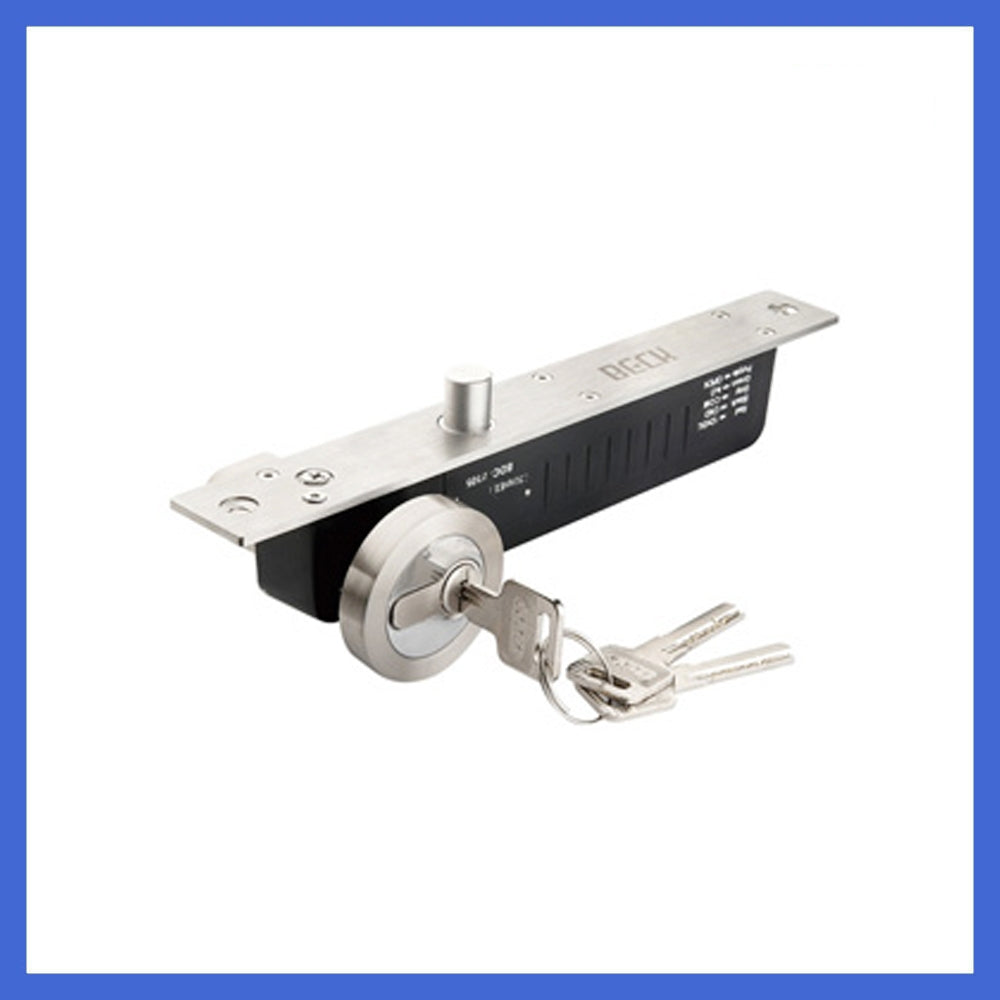

Electric Drop Bolt Strike Door Lock with Key Fail Secure NO + Time Delay +Signal
Electric Drop Bolt Strike Door Lock with Key Fail Secure NO + Time Delay +Signal
Не удалось загрузить сведения о доступности самовывоза

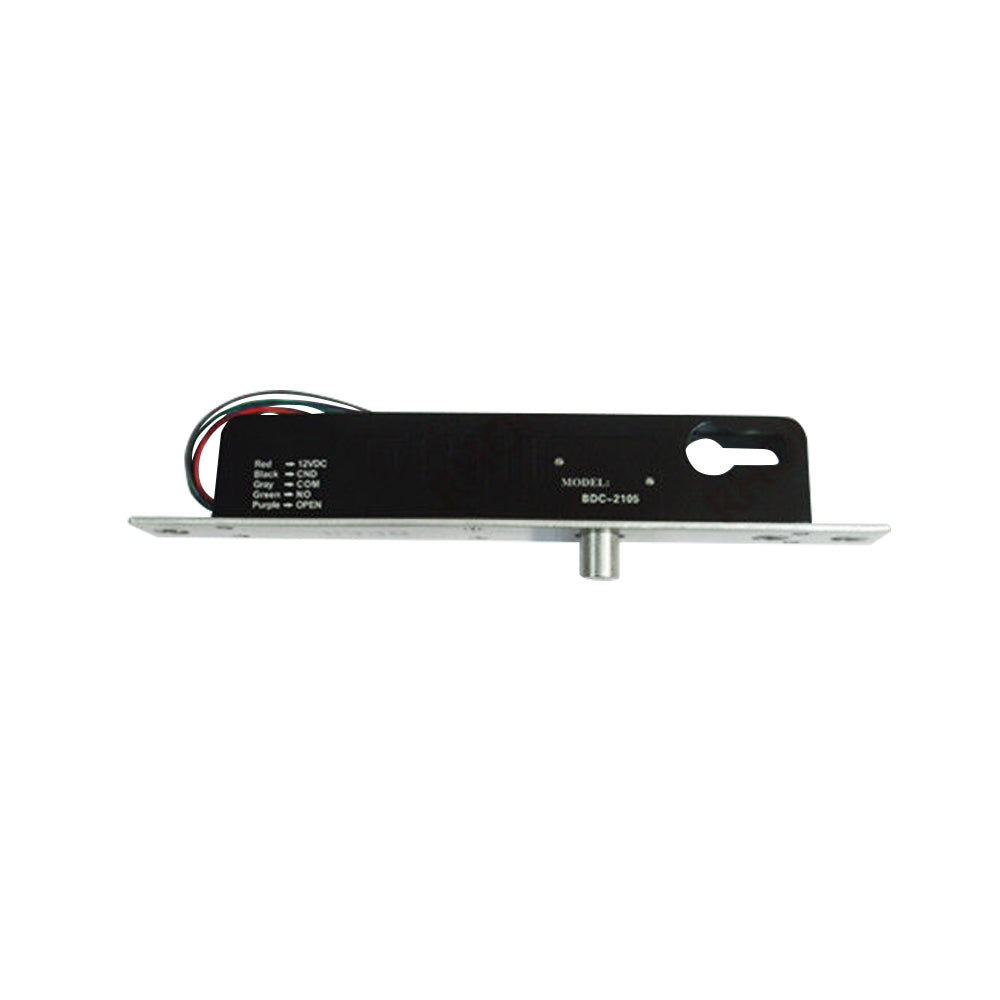

BDC-2105
1、concealed installation, beautiful appearance
2、high security, not easy broken and open
3、normally open normally closed multiple choice
4、scope of application is wide
Technical Parameters
|
Type |
BDC-2105 |
|
Working Voltage |
12VDC±10% |
|
Operating Current |
12VDC/1A |
|
Static Current |
12VDC/210mA, |
|
Detection signal output of door status |
Voltage≤36VAC/DC |
|
Material |
304 stainless steel and alloy |
|
Ambient Temperature |
－25~55℃ |
|
Relative Humidity |
10%~90%RH |
|
Type of Locking |
Magnetic Induction |
|
Fail safe |
Power on locking, Power off unlocking |
|
Remote-controlled distance |
— |
|

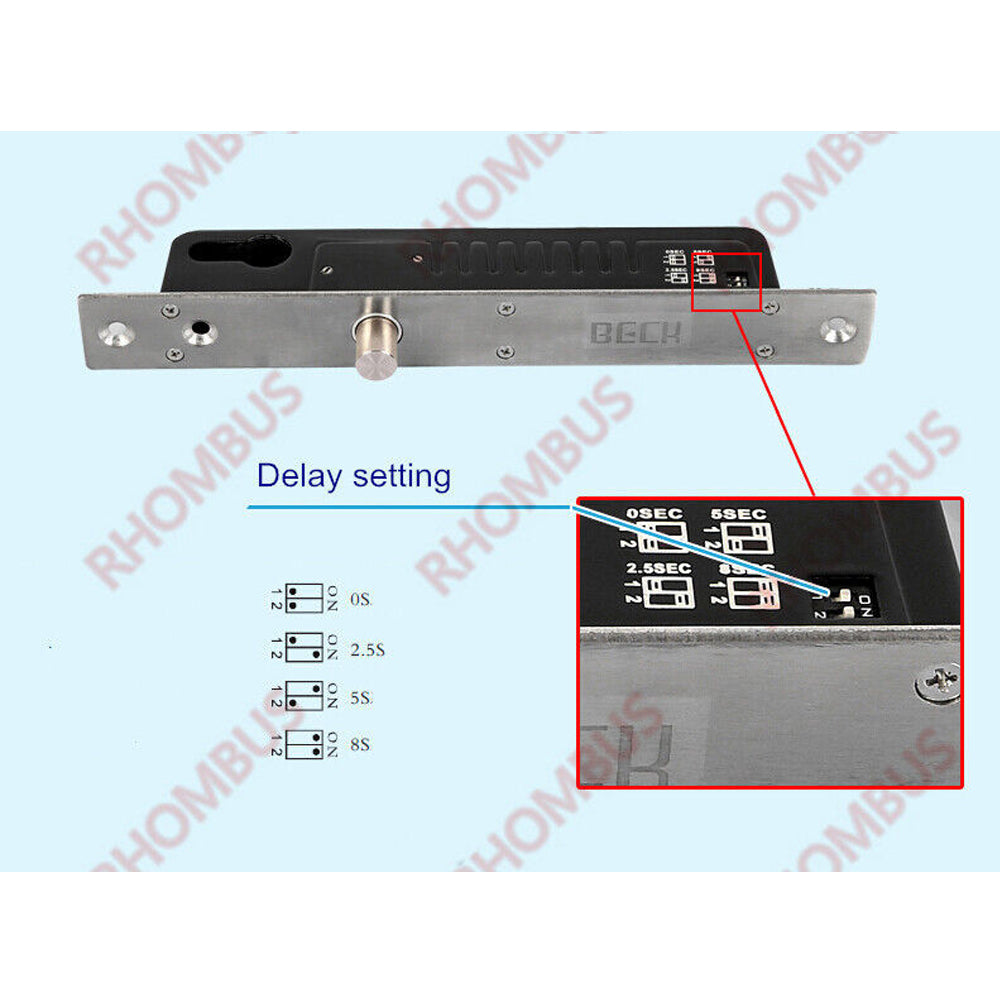

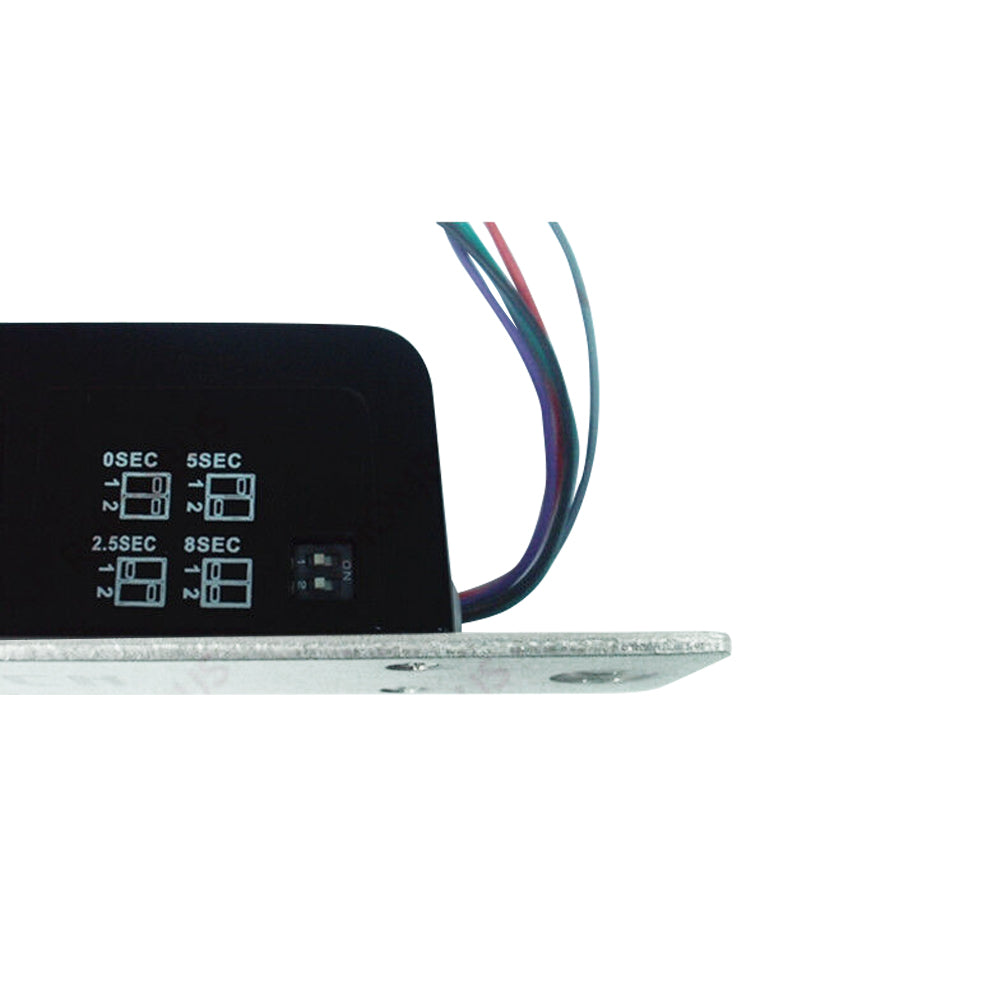

Time Delay Adjustable |
0S,2.5S,5S,8S |
|
Length of Latch Bolt |
L15.8mm/D12.5mm |
|
Voice prompt |
— |
|
Open door with Key |
√ |
|
Open door with Remote controller |
— |
|
Holding Force |
1000KG |
|

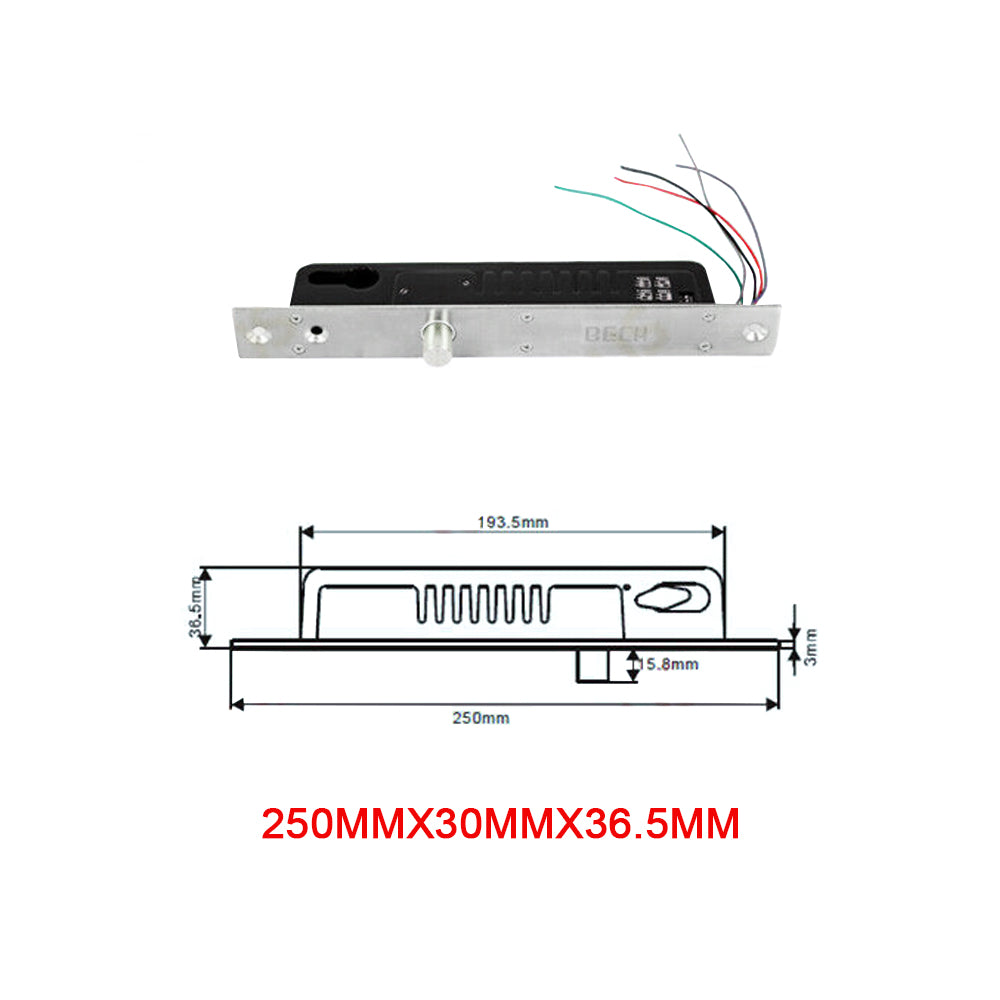

Dimension |
250*30*36.5mm |
|
Lock body dimension |
250 x 36.5x 38mm |
|
Magnetic plate |
90x 30 x 3.0mm (L x W x H) |
|
Packge size |
280x80x70mm |
|
Weight |
1.25Kg |

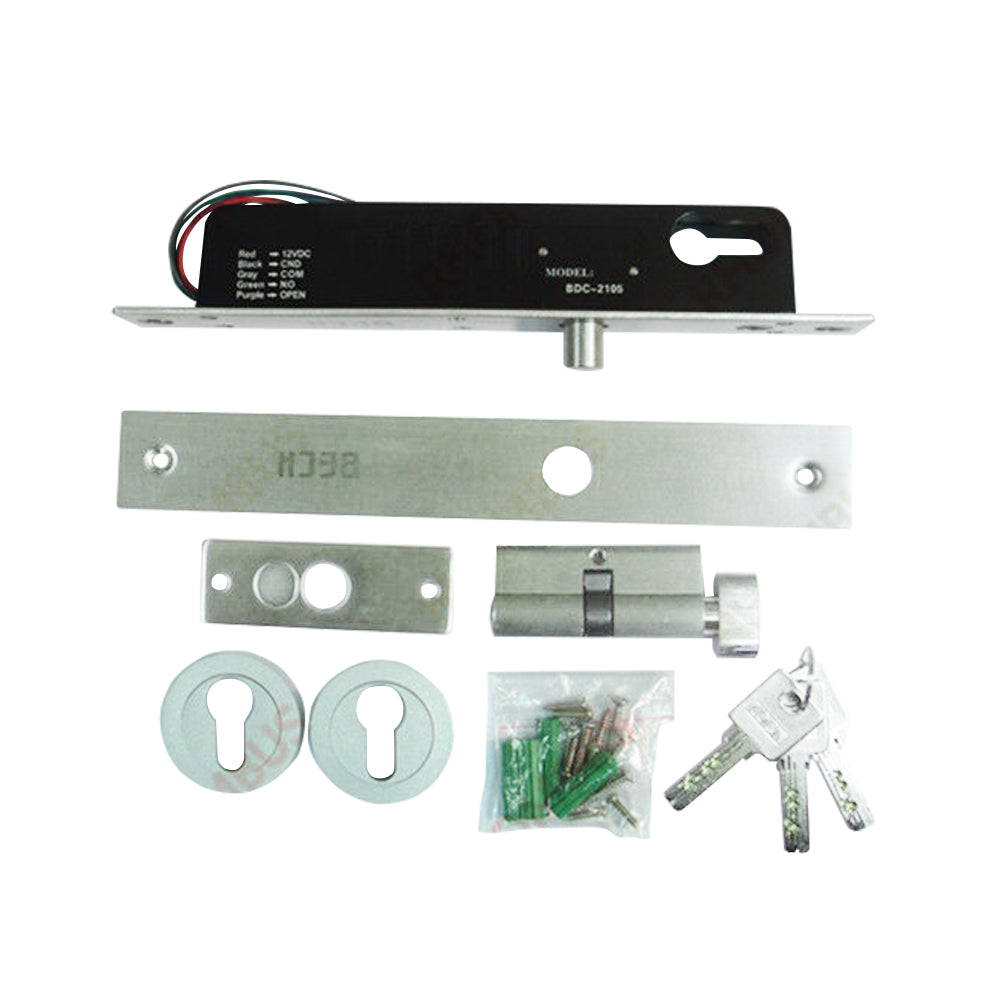

Package：
- BDC-2105 Electric Bolt Lock x 1
