Rhombus Access Control System

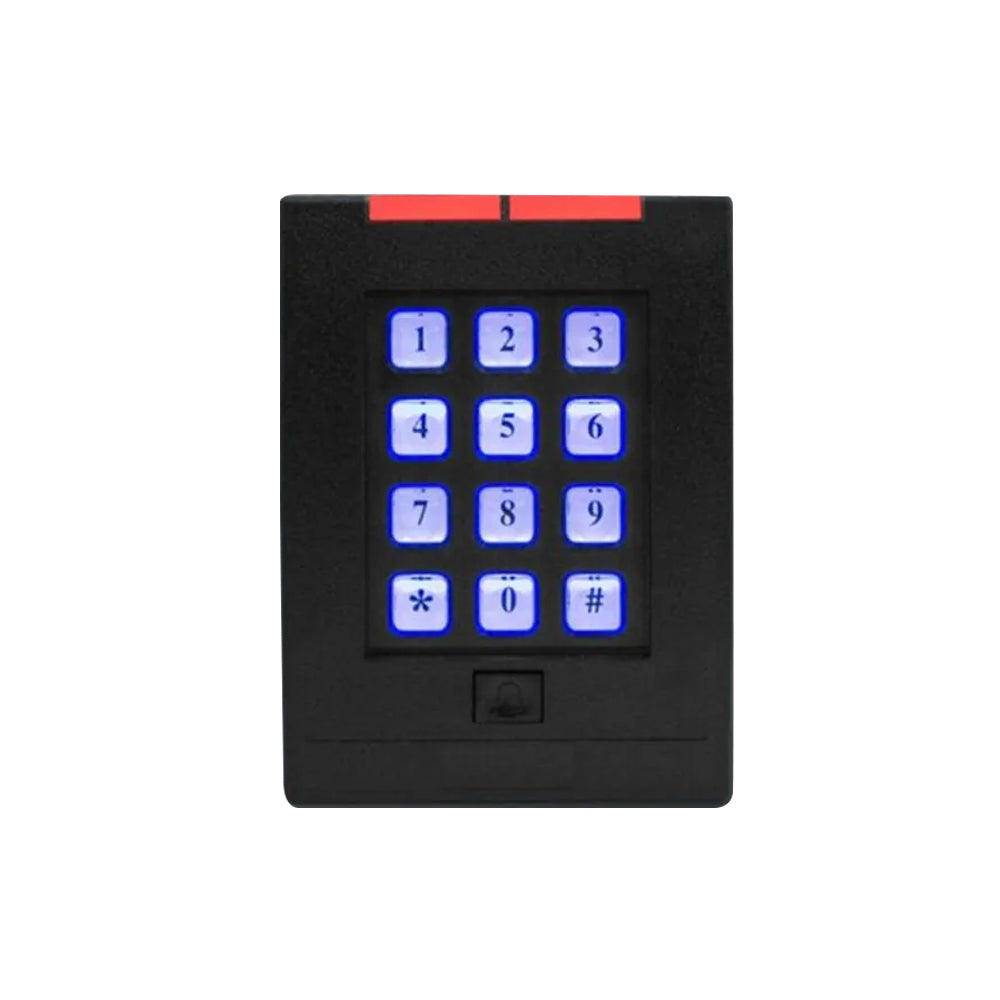

EM4100 125Khz keypad wiegand26/34 dual Led blue backlight 12V epoxy packaged R40K casing RF reader

EM4100 125Khz keypad wiegand26/34 dual Led blue backlight 12V epoxy packaged R40K casing RF reader

$18.95 USD
$18.95 USD
Распродажа Продано





Description



Power supply:DC12V

Currency:<100MA

Communication:Weigand 26/34

Card type:EM card , EM compatible card ,EM4100\4102

Induction Distance:1-5cm

DATA transfer range:Max 80m

Working Temperature:0-70°C

Working Humidity:Less than 80%

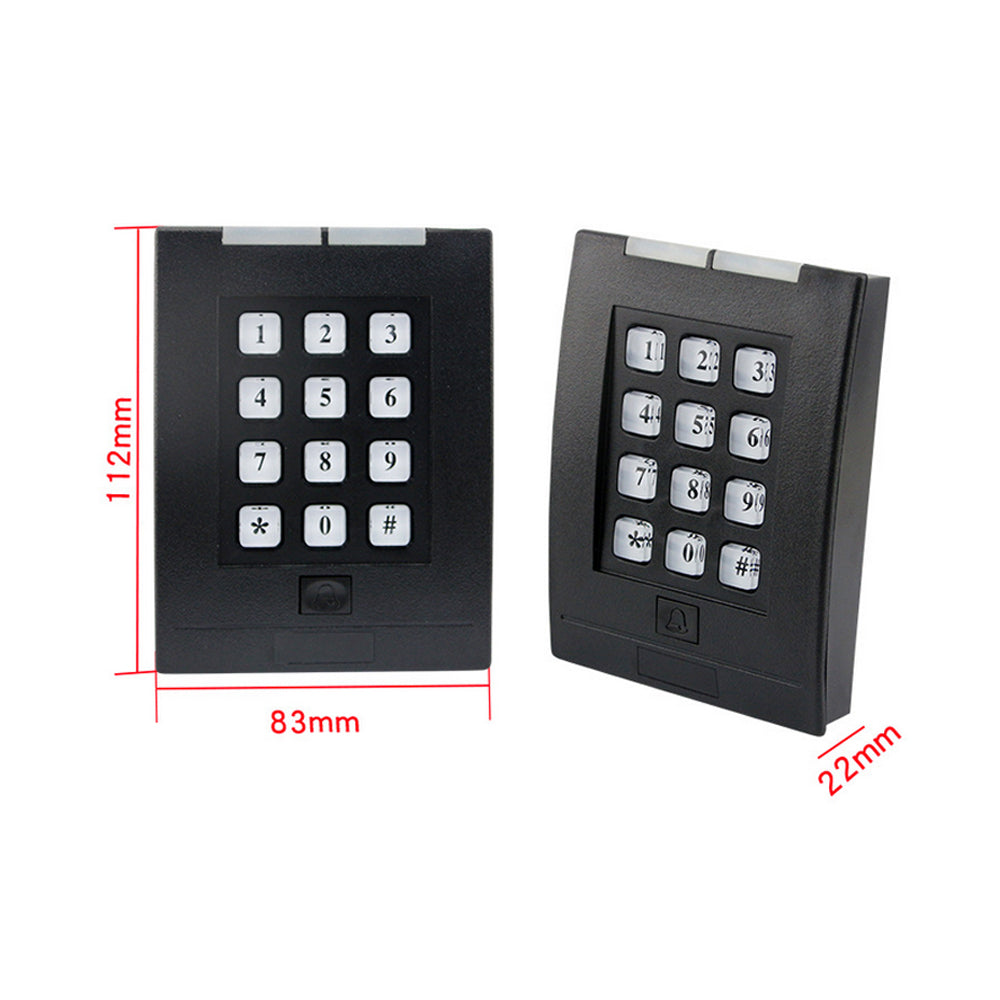

Dimension (LxWxH mm):122x83x12

Package:plastic casing

Color:black

Weight(kg):0.2

​

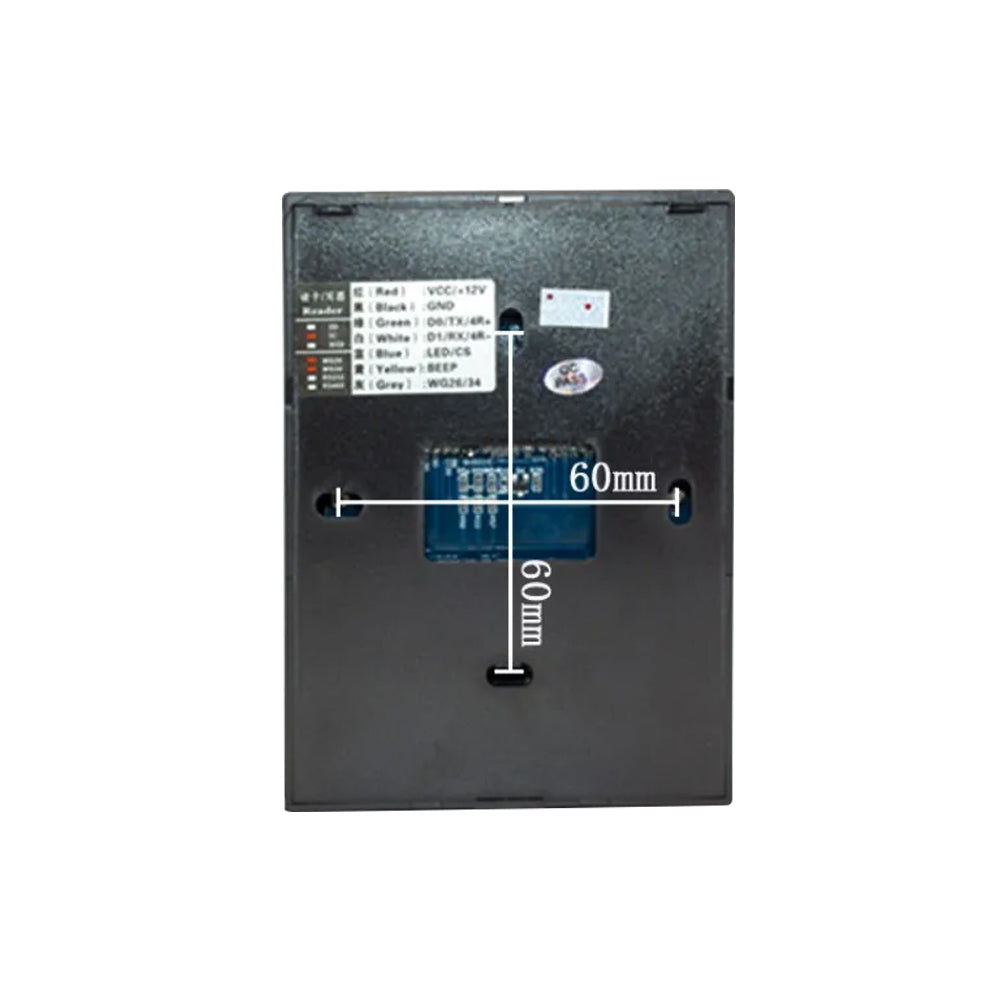

PIN description



Pin

Color

Description

1

RED

DC12V

2

BLACK

GND

3

GREEN

WG data0

4

WHITE

WG data1

5

YELLOW

BUZZER

6

BLUE

LED

7

BROWN

Select,

No Contact means  WG26,Connect to GND means WG34 output

​
