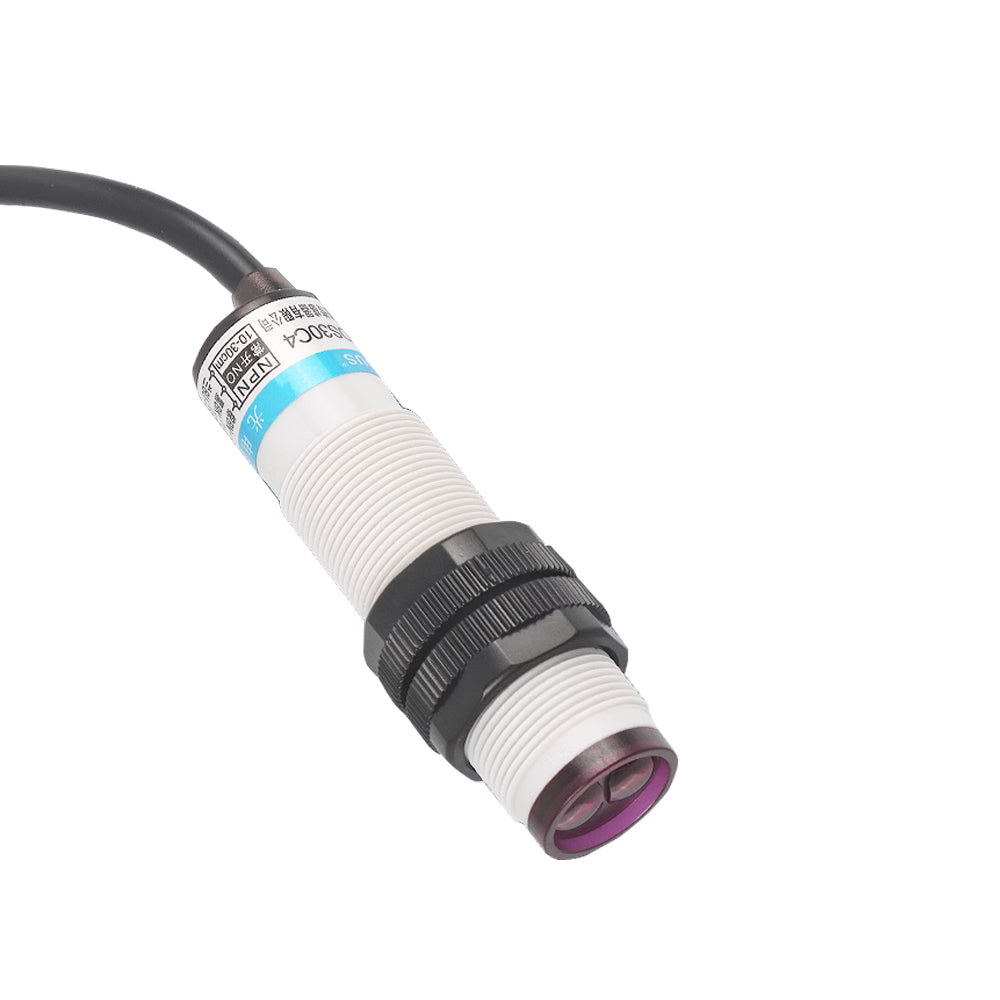

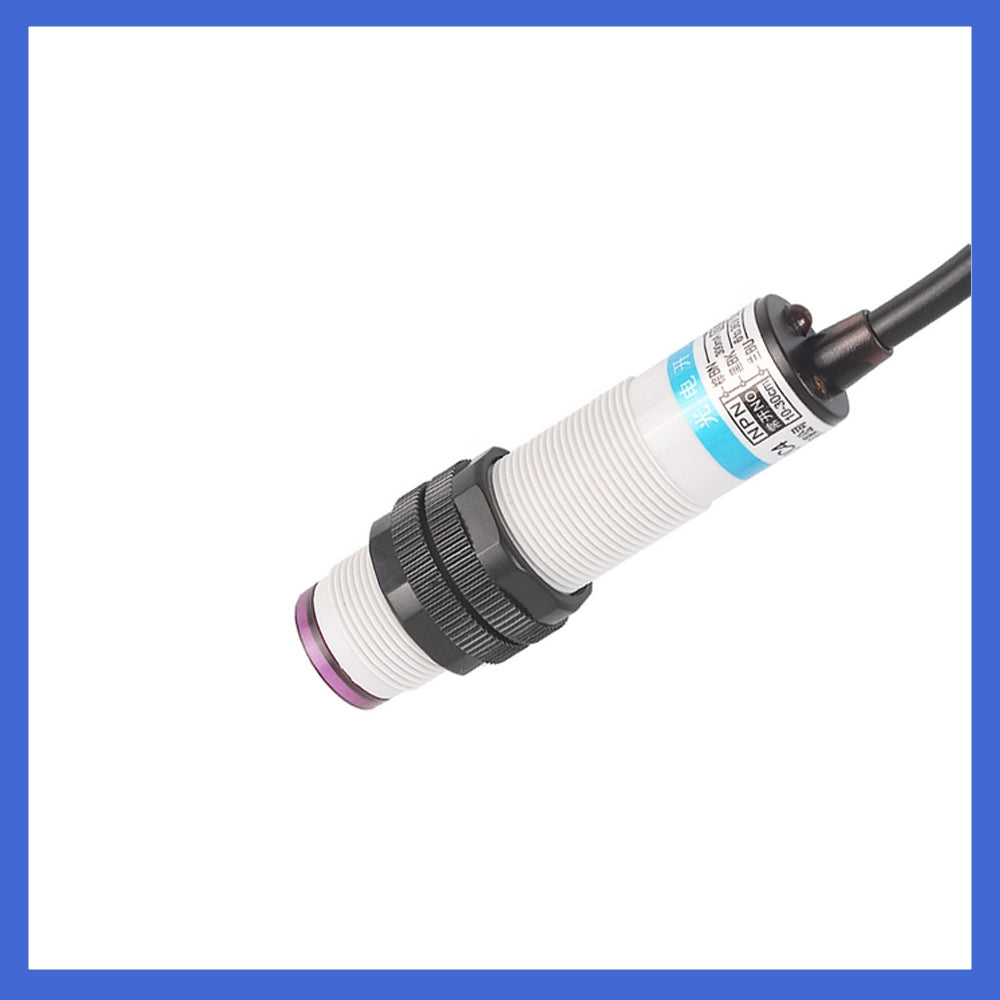

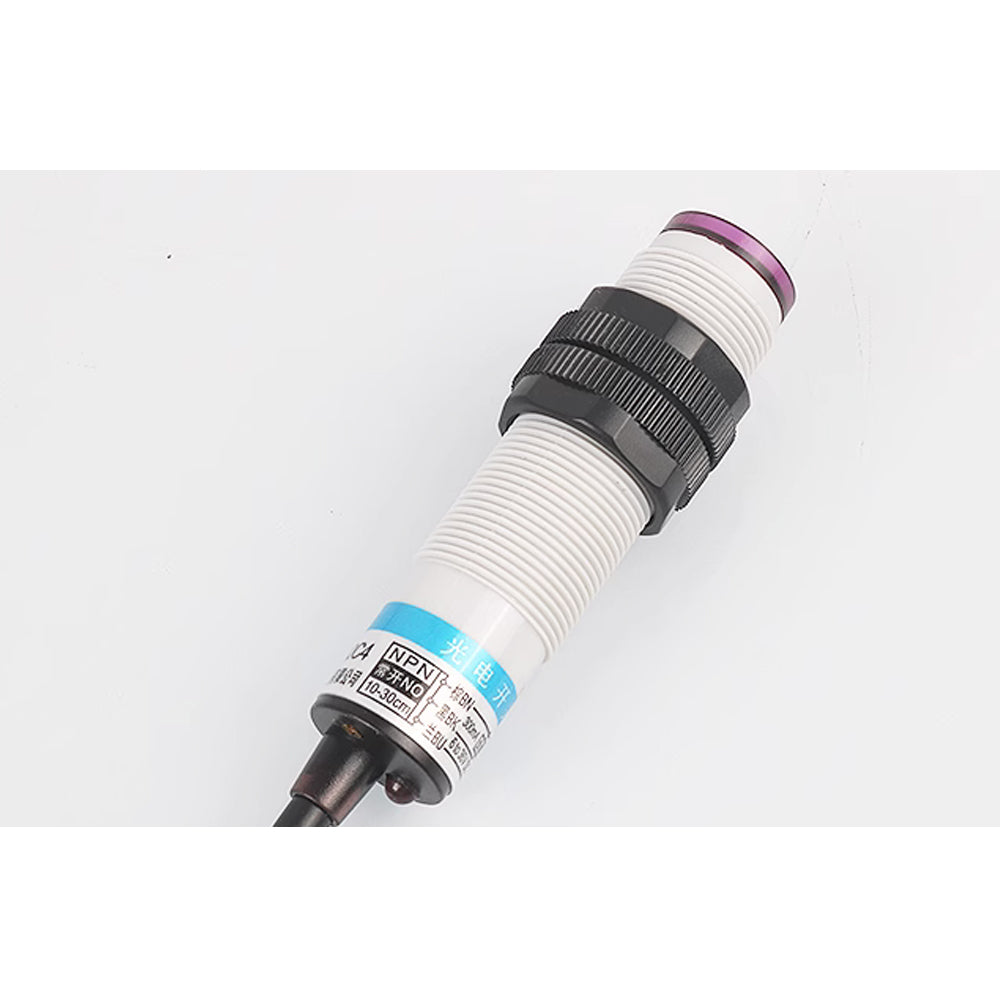

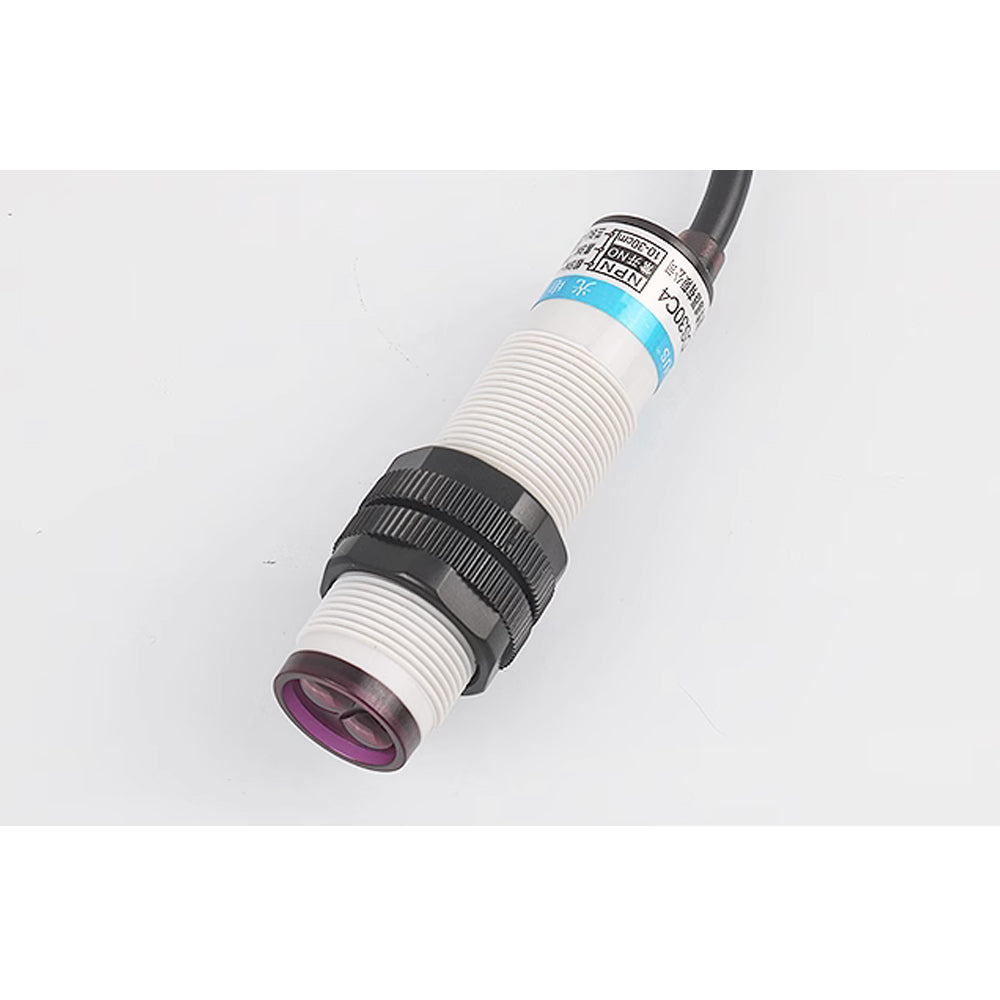

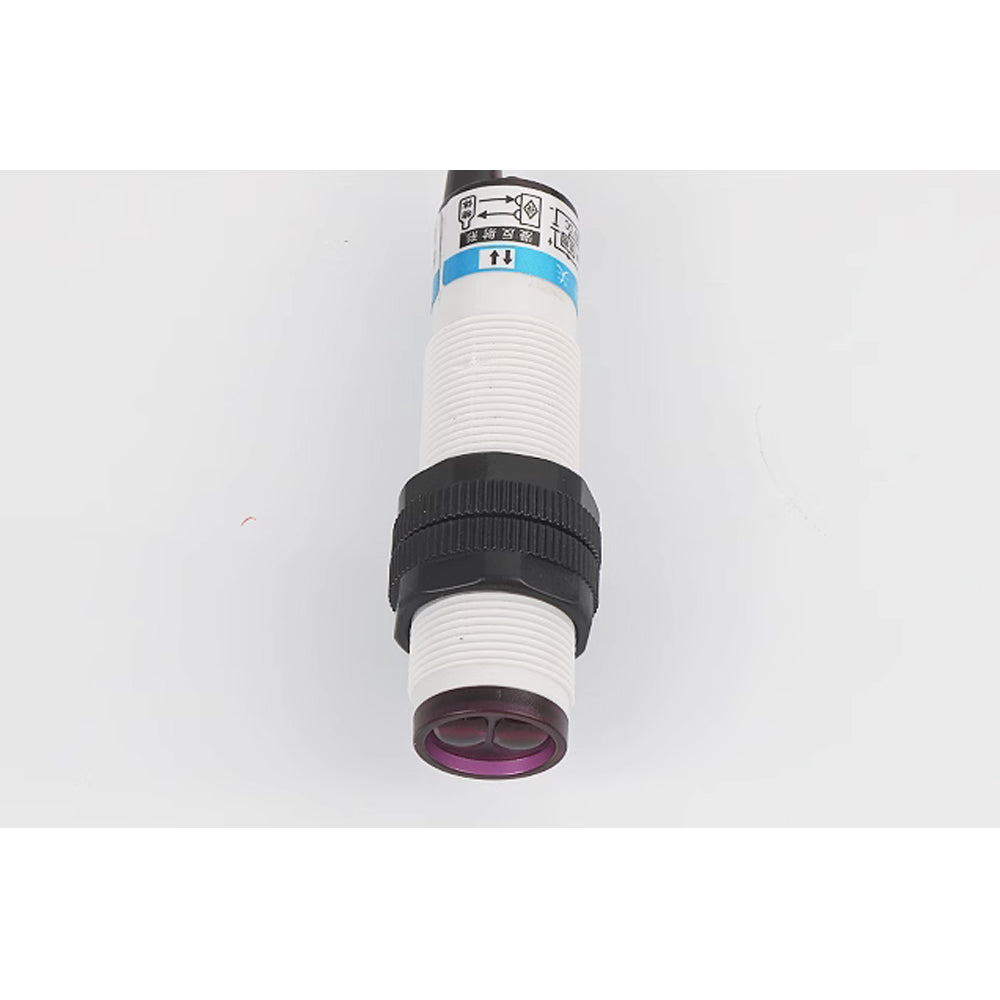

Infrared Induction Photoelectric Switch /Diffuse Reflection Sensor

Ordering precautions:

• First select normally open or normally closed
• Select the Output form

Description：

• Product Name: Diffuse Reflective Optoelectronic Switch
• Product model: E3F-DS10C4
• External dimensions: M71*18MM
• Induction principle: infrared induction
• Voltage: 6-36VDC
• Test object: opaque object

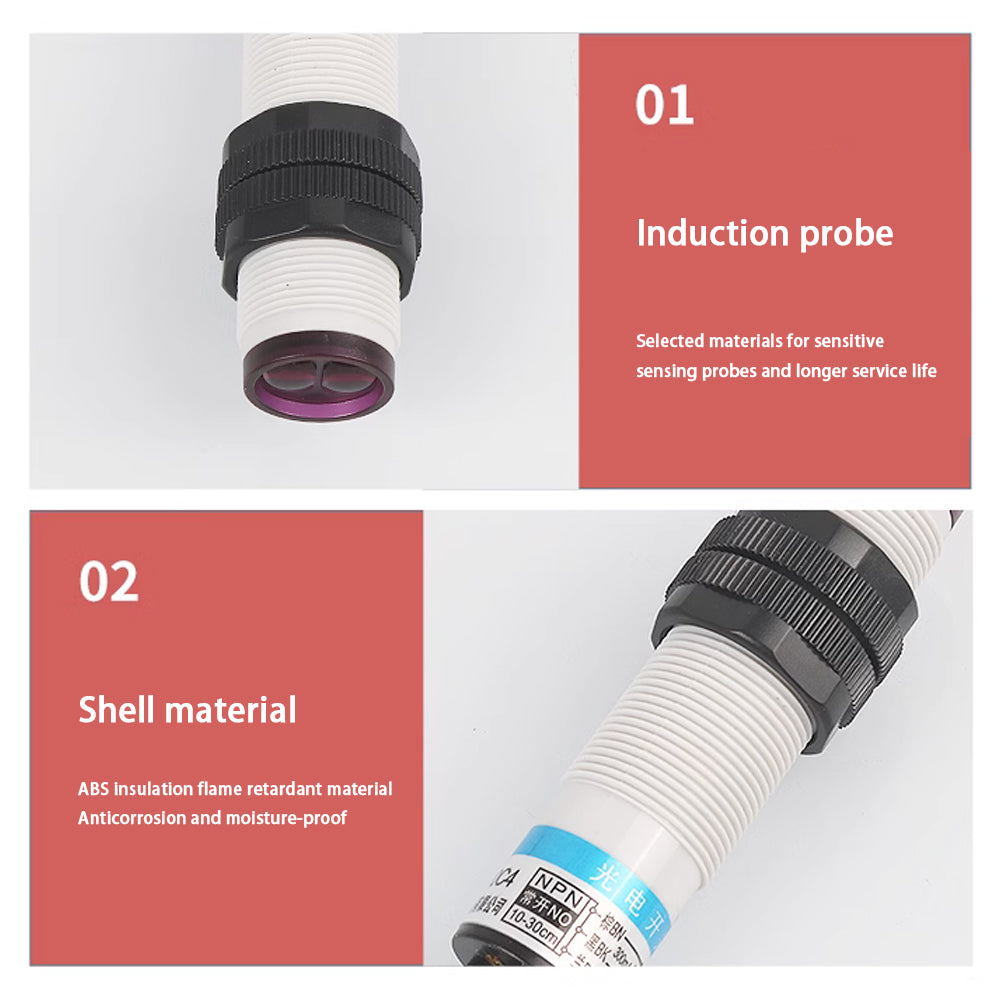

• Material: ABS
• Working current: 300mA

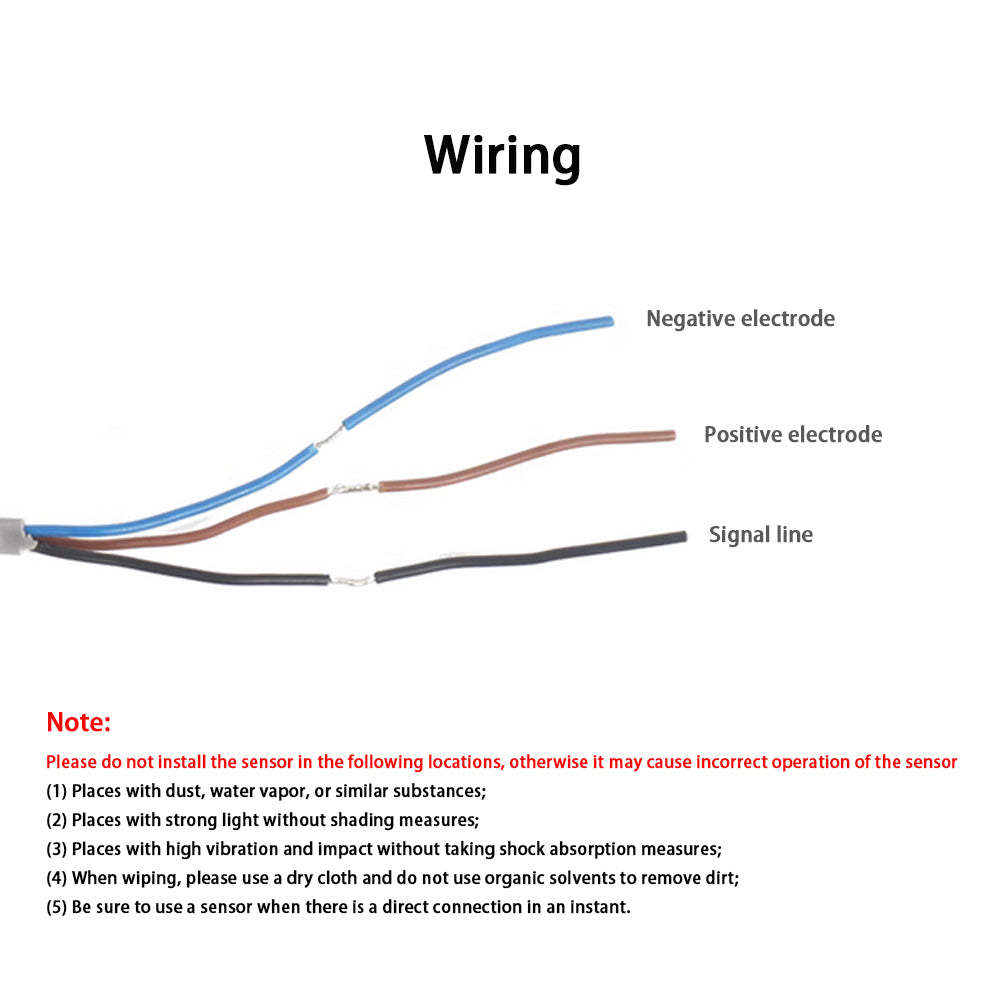

• Output format: NPN NO/NPN NC
• Nut outer diameter: M18 (only for 50/100cm sensing distance)
• Sensing distance: subject to the link title annotation

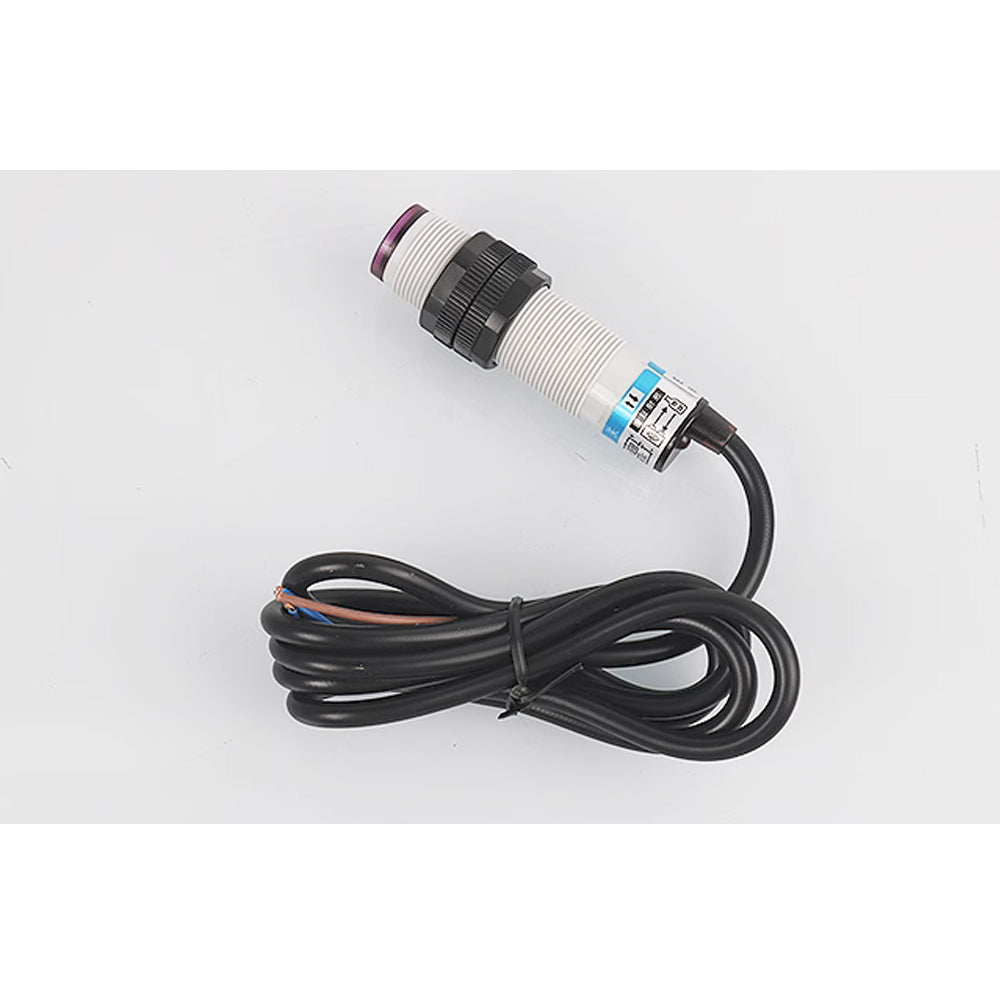

• Line length: 1.8m

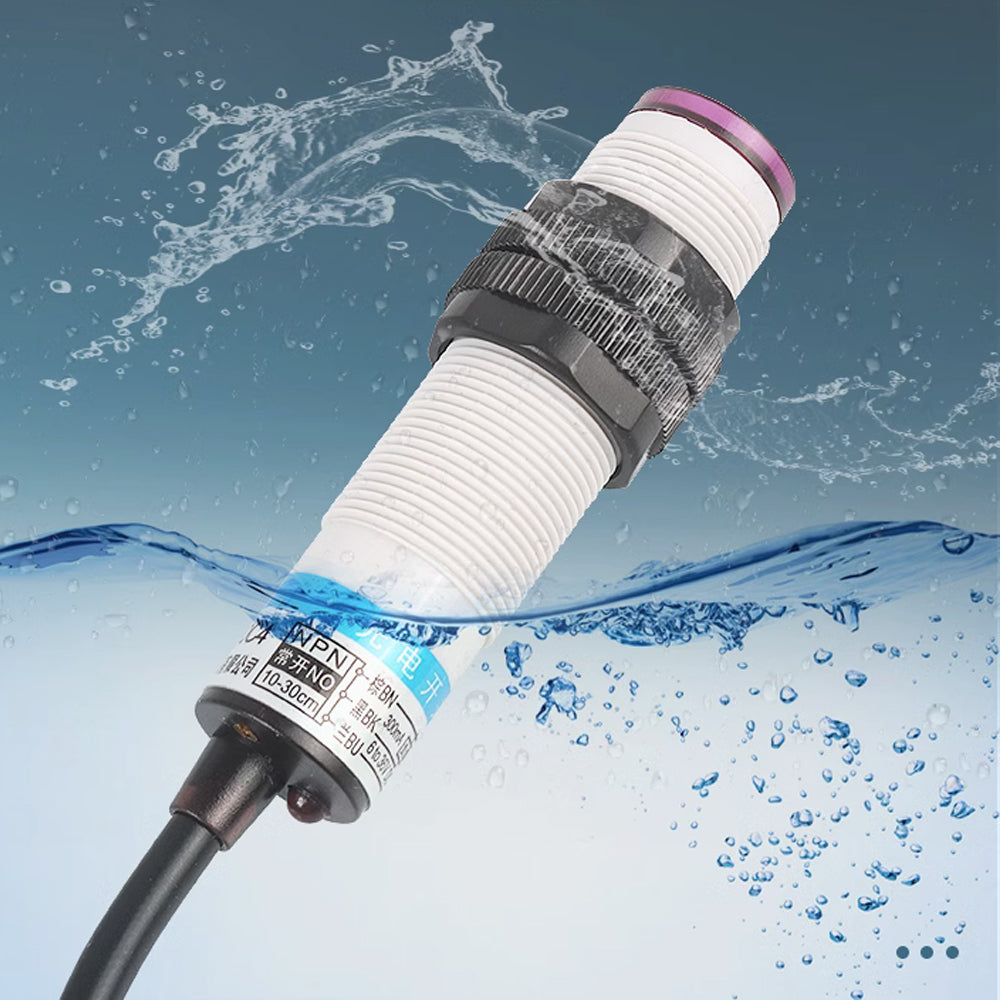

• IP67 protection, can work normally in water for a short period of time

Package：

• 1x Photoelectric switch
